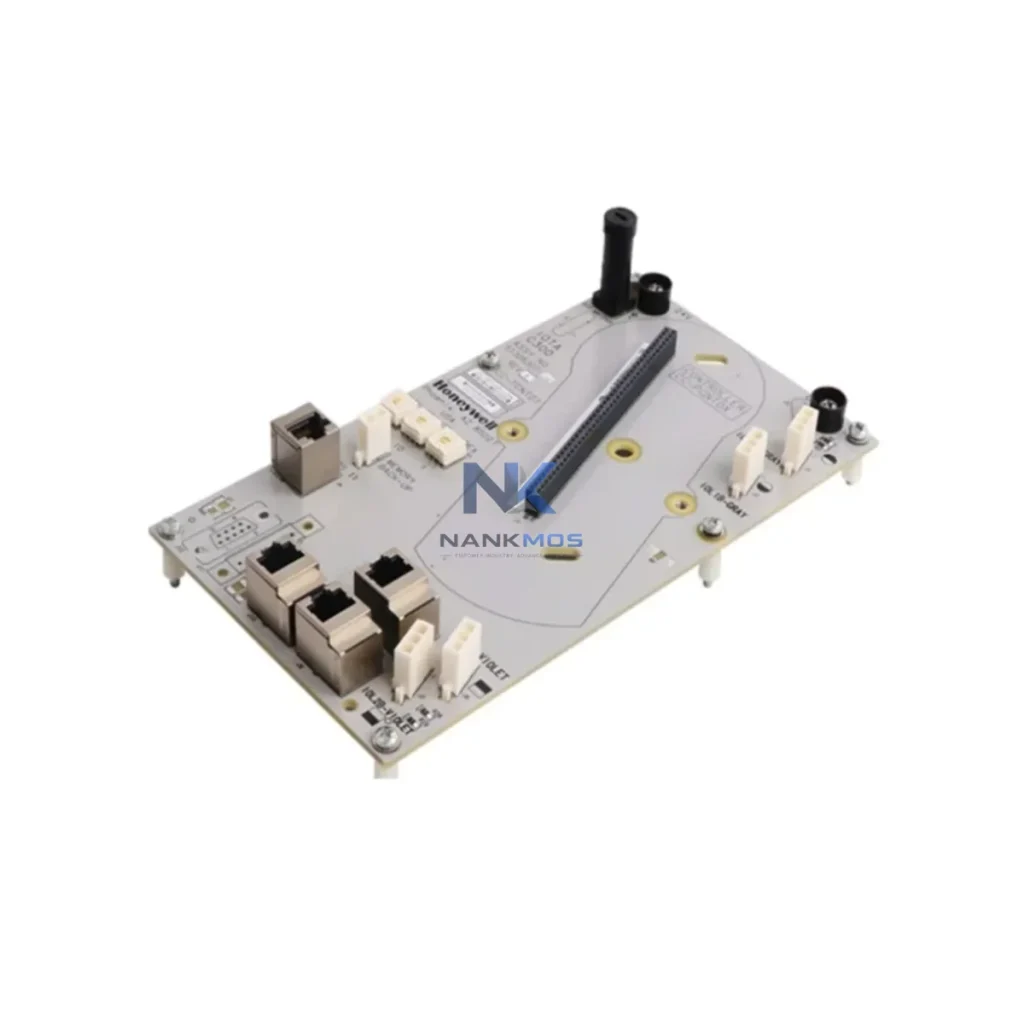

Honeywell 42622254-001 Digital Output Combiner Panel

Product Details

42622254-001 Product Description

The Honeywell 42622254-001 is a Digital Output Combiner Panel engineered for the TDC 3000 Distributed Control System (DCS) platform — one of the most widely deployed process automation architectures in refining, petrochemical, power generation, and continuous manufacturing environments. Designed to aggregate and distribute digital output signals across field devices, this module serves as a critical node in the plant-wide data chain, bridging the gap between high-level control logic and physical actuators, valves, and relay-driven equipment on the plant floor.

In modern smart factory deployments, the integrity of every output signal path directly determines process reliability. The 42622254-001 ensures that digital command signals originating from the TDC 3000 High-Performance Process Manager (HPM) or Application Module (AM) are accurately routed to field termination assemblies without signal degradation or communication latency. Its role in the output signal chain makes it indispensable for facilities pursuing real-time process transparency, remote diagnostics, and data-driven maintenance strategies.

In a fully integrated smart factory architecture, the Honeywell 42622254-001 operates at the intersection of control logic and physical process execution. The data flow begins upstream at the TDC 3000 Application Module (AM), where process logic generates digital output commands based on real-time inputs from field sensors — including Honeywell ST 3000 Smart Transmitters and pressure/temperature sensing devices connected via HART protocol. These commands travel through the Local Control Network (LCN) to the High-Performance Process Manager (HPM), which coordinates output distribution across multiple I/O subsystems.

The 42622254-001 Combiner Panel receives these routed digital signals and distributes them to field termination assemblies, which in turn drive solenoid valves, motor starters, relay panels, and other actuator-class devices. Alongside this output path, HART-enabled field instruments continuously return diagnostic and process variable data upstream — enabling the Honeywell Universal Station (US) or Honeywell Experion PKS SCADA platform to maintain a live, bidirectional view of field device health and process status.

For facilities integrating legacy TDC 3000 infrastructure with modern IIoT architectures, edge gateways such as the Honeywell Experion Edge or third-party Moxa industrial Ethernet switches can be deployed to bridge LCN data onto Ethernet/IP or Modbus TCP networks. This allows SCADA systems and MES platforms to consume real-time output status data from the 42622254-001's signal chain without requiring full system migration. Remote I/O modules and Honeywell Series C I/O cards can further extend the reach of the output network to distributed plant areas, maintaining signal integrity across long cable runs.

At the HMI layer, operators using Honeywell Universal Stations or modern Experion Orion consoles receive real-time feedback on output states, enabling rapid response to process deviations. Alarm management systems integrated with the TDC 3000 platform automatically flag output failures or signal anomalies detected in the combiner panel's signal path, triggering remote diagnostic workflows that reduce mean time to repair (MTTR) without requiring physical site access. Variable frequency drives (VFDs) and motor control centers connected downstream of the output panel can also report operational status back through HART diagnostic channels, completing the closed-loop data circuit between field devices and the control room.

For data visualization and long-term analytics, historians such as the Honeywell PHD (Process History Database) or third-party OSIsoft PI systems aggregate output event logs and signal state changes from the 42622254-001's network path, enabling trend analysis, predictive maintenance scheduling, and regulatory compliance reporting across the full production lifecycle.

Many process plants operating TDC 3000 infrastructure face a common set of integration challenges as they modernize toward Industry 4.0 standards. The Honeywell 42622254-001 directly addresses several of these pain points within the digital output signal chain.

Protocol Fragmentation: Plants with mixed-generation equipment often struggle with protocol inconsistencies between legacy DCS modules and newer HART or Foundation Fieldbus devices. The 42622254-001's native compatibility with the TDC 3000 UCN and LCN architectures ensures seamless signal routing without requiring protocol conversion middleware at the output stage, reducing latency and eliminating potential translation errors.

Data Silos and Process Transparency: When digital output modules operate in isolation from SCADA and MES layers, production teams lose visibility into actuator states and output command histories. By maintaining the 42622254-001 within a fully networked TDC 3000 topology — connected to Experion PKS or legacy Universal Stations — output events are automatically logged and made available for real-time dashboards and shift reporting, eliminating blind spots in production line transparency.

Remote Monitoring and Alarm Tracking: Unplanned output failures in critical process loops can cause costly shutdowns. The HART diagnostic channel embedded in the TDC 3000 signal path allows maintenance teams to remotely interrogate output module health, verify signal continuity, and receive predictive fault alerts before failures escalate. This capability is especially valuable for unmanned or remotely operated facilities where on-site response time is a constraint.

System Scalability: As production capacity expands, the modular architecture of the TDC 3000 platform — supported by components like the 42622254-001 — allows additional output channels to be added without redesigning the control network. New field devices, additional relay panels, or expanded motor control circuits can be integrated into the existing combiner panel topology, protecting the original capital investment while supporting incremental capacity growth.

Q1: What communication protocols does the Honeywell 42622254-001 support, and is it compatible with modern SCADA systems? The 42622254-001 operates within the Honeywell TDC 3000 DCS architecture, supporting HART protocol for field device communication and interfacing with the Local Control Network (LCN) and Universal Control Network (UCN). It is fully compatible with Honeywell Experion PKS SCADA platforms and can be integrated with third-party SCADA systems via OPC-DA/UA gateways or Modbus TCP bridges deployed at the network boundary.

Q2: How does this module support remote diagnostics and predictive maintenance? The HART communication channel embedded in the TDC 3000 signal path enables bidirectional data exchange between the 42622254-001's output circuit and connected field instruments. Maintenance teams can remotely query output module status, verify signal integrity, and receive fault diagnostics through the Honeywell Experion PKS console or compatible asset management software — reducing the need for physical inspection and enabling condition-based maintenance scheduling.

Q3: What is the warranty coverage, and has the unit been tested before shipment? Every Honeywell 42622254-001 unit supplied by NANKMOS is covered by a 12-month warranty and undergoes pre-shipment functional testing to verify output signal performance, connector integrity, and communication compatibility within the TDC 3000 platform. Test records are available upon request for quality assurance documentation purposes.

Q4: Can the 42622254-001 be integrated into an expanded or upgraded TDC 3000 system without network reconfiguration? Yes. The modular design of the TDC 3000 I/O architecture allows the 42622254-001 to be added to existing output subsystems without requiring LCN or UCN reconfiguration. Additional combiner panels can be installed in parallel with existing modules, and the system's network management tools automatically recognize new nodes, enabling seamless capacity expansion with minimal commissioning effort.
