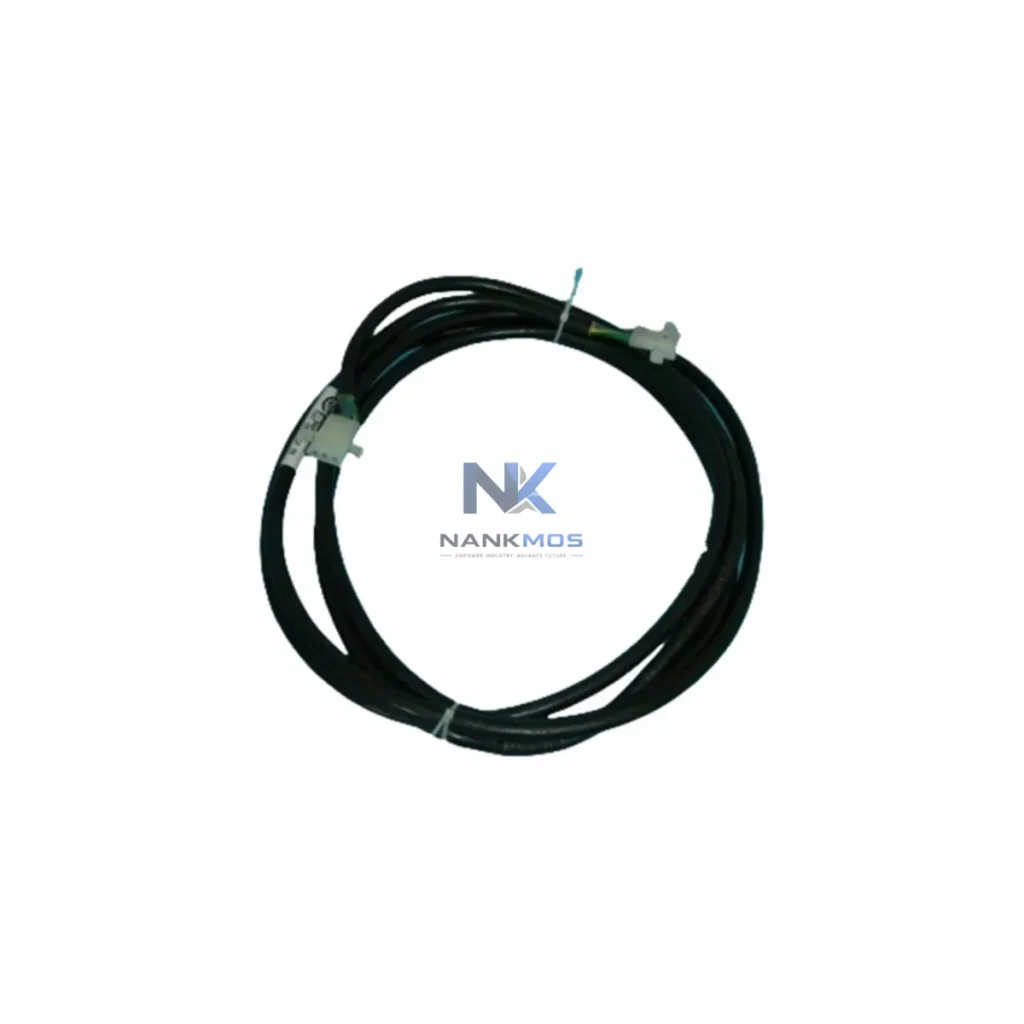

Honeywell 51109516-101 Power Cable Module

Product Details

51109516-101 Product Description

The Honeywell 51109516-101 is a precision-engineered power cable module designed for the TDC 3000 Distributed Control System (DCS) platform. In modern industrial facilities where energy efficiency, load stability, and production continuity are non-negotiable, this cable module serves as a critical interconnect between the DCS controller backplane and field-side power distribution infrastructure. Its role extends beyond simple signal routing — it actively supports the integrity of power delivery paths that govern motor control loops, drive regulation, and real-time energy monitoring across the production floor.

Manufactured to Honeywell's stringent quality standards, the 51109516-101 is engineered for continuous-duty operation in demanding process environments including oil and gas, chemical processing, pulp and paper, and power generation. Its shielded construction minimizes electromagnetic interference (EMI) that can corrupt control signals, introduce noise into power monitoring circuits, or cause spurious trips in variable frequency drive (VFD) systems. By maintaining clean power paths, the module directly contributes to reduced thermal load on connected hardware and improved overall drive efficiency.

Every unit is subject to outgoing shipment testing prior to dispatch, verifying continuity, insulation resistance, and connector integrity. Stock is maintained for prompt fulfillment, and each module is covered by a 12-Month Warranty against manufacturing defects.

In a fully integrated TDC 3000 control architecture, the 51109516-101 power cable module operates at the intersection of power delivery and control signal integrity. The TDC 3000 platform's High-Performance Manager (HPM) relies on stable, low-noise power feeds to execute PID control loops that govern variable frequency drives (VFDs) managing pump and compressor motors. Any degradation in the power cable path — whether from connector wear, insulation breakdown, or EMI ingress — can manifest as instability in the HPM's output to the drive, resulting in unnecessary motor cycling and elevated energy consumption.

The 51109516-101 is typically deployed alongside Honeywell's TDC 3000 Power Supply modules (such as the 51109496-100 series) that provide regulated DC rails to the controller backplane. These power supplies feed the HPM, Advanced Manager (AM), and Logic Manager (LM) modules, all of which depend on the cable module's integrity to maintain uninterrupted control. In facilities running Honeywell's Universal Control Network (UCN) or Local Control Network (LCN), the power cable module supports the physical layer that keeps network nodes energized and communicating — a prerequisite for real-time energy data exchange between field devices and the SCADA historian.

On the I/O side, Honeywell's 51304485-100 and similar analog input modules receive 4–20 mA signals from power monitoring transducers and current transformers installed on motor feeders. These signals feed into the HPM's energy management strategy, where load shedding algorithms and demand response routines are executed. The 51109516-101 ensures that the power infrastructure supporting these I/O racks remains stable, preventing false readings that could trigger unnecessary load shedding or mask genuine overload conditions.

For facilities integrating Honeywell's Universal Station (US) or Global User Station (GUS) HMI platforms, operators rely on accurate, real-time power consumption data displayed on energy dashboards. The cable module's role in maintaining backplane power integrity directly supports the data pipeline from field sensors through the HPM to the HMI display layer. Similarly, in plants using Honeywell's PHD (Process Historian Database) or third-party SCADA systems via OPC-DA/OPC-UA gateways, clean power delivery to the DCS nodes is essential for continuous data logging and energy KPI reporting.

Production line energy optimization in process industries is rarely achieved through a single device — it is the cumulative result of reliable interconnects, stable control loops, and accurate measurement. The Honeywell 51109516-101 contributes to this outcome by ensuring that the TDC 3000 DCS backplane receives consistent, interference-free power, which in turn allows the control system to execute energy management strategies without interruption.

When power cable integrity is compromised, the consequences cascade: HPM modules may experience watchdog resets, UCN communication nodes may drop offline, and VFD control signals may become erratic — all of which force motors to operate outside their optimal efficiency curves. By maintaining a verified, low-resistance power path, the 51109516-101 helps keep drives operating at their programmed setpoints, reducing reactive power demand and minimizing heat generation in motor windings and drive cabinets.

From a predictive maintenance perspective, the 51109516-101 is a component that is often overlooked until failure — at which point the cost in unplanned downtime, emergency procurement, and production loss far exceeds the cost of proactive replacement. Facilities that maintain a spare inventory of critical cable modules like the 51109516-101 consistently report shorter mean time to repair (MTTR) for DCS-related outages. This directly translates to higher equipment utilization rates and more stable production takt times.

In energy-intensive industries where demand charges represent a significant portion of the electricity bill, the ability to execute load management strategies without DCS interruption is a measurable financial advantage. The 51109516-101 supports this capability by being a reliable, tested component in the power delivery chain — one that allows the TDC 3000 platform to sustain the continuous control loops that underpin demand response, peak shaving, and motor efficiency optimization programs.

Each 51109516-101 shipped from our inventory has been verified through outgoing shipment testing, covering electrical continuity, insulation resistance, and mechanical connector integrity. This pre-dispatch validation reduces the risk of installation failures and ensures that the module performs to specification from day one. Combined with the 12-Month Warranty, this testing protocol gives maintenance engineers and procurement teams confidence in the reliability of every unit.

Q1: How does the 51109516-101 contribute to energy savings in a TDC 3000 system? The 51109516-101 maintains clean, stable power delivery to the TDC 3000 DCS backplane, which is essential for uninterrupted execution of energy management control loops. When the HPM and associated I/O modules receive consistent power, VFD setpoints are maintained accurately, motor cycling is minimized, and reactive power losses are reduced. Indirectly, this supports demand response programs and load shedding strategies that lower overall facility energy consumption.

Q2: Is the 51109516-101 compatible with all TDC 3000 configurations? The 51109516-101 is designed for the Honeywell TDC 3000 platform and is compatible with HPM, AM, LM, and associated backplane assemblies that use this cable module form factor. Compatibility with specific rack configurations should be verified against the TDC 3000 system documentation or the original bill of materials for your installation. If you require confirmation for a specific configuration, contact our technical team with your system details.

Q3: Can the 51109516-101 be used as a direct replacement for a failed unit, and what is the recommended replacement interval? Yes, the 51109516-101 is a direct replacement module. There is no fixed replacement interval specified by Honeywell for this cable module under normal operating conditions; however, facilities operating in high-vibration or high-temperature environments should inspect cable modules during scheduled maintenance shutdowns. Proactive replacement based on visual inspection findings or as part of a DCS lifecycle refresh program is recommended to avoid unplanned outages.

Q4: What warranty and testing assurances are provided with each unit? Every 51109516-101 dispatched from our inventory is covered by a 12-Month Warranty against manufacturing defects. Prior to shipment, each unit undergoes outgoing testing that verifies electrical continuity, insulation resistance, and connector mechanical integrity. This pre-dispatch validation ensures that the module meets operational specifications upon arrival, reducing installation risk and supporting faster return to service after a DCS maintenance event.
