Honeywell 51109693-100B DCS Module

Product Details

51109693-100B Product Description

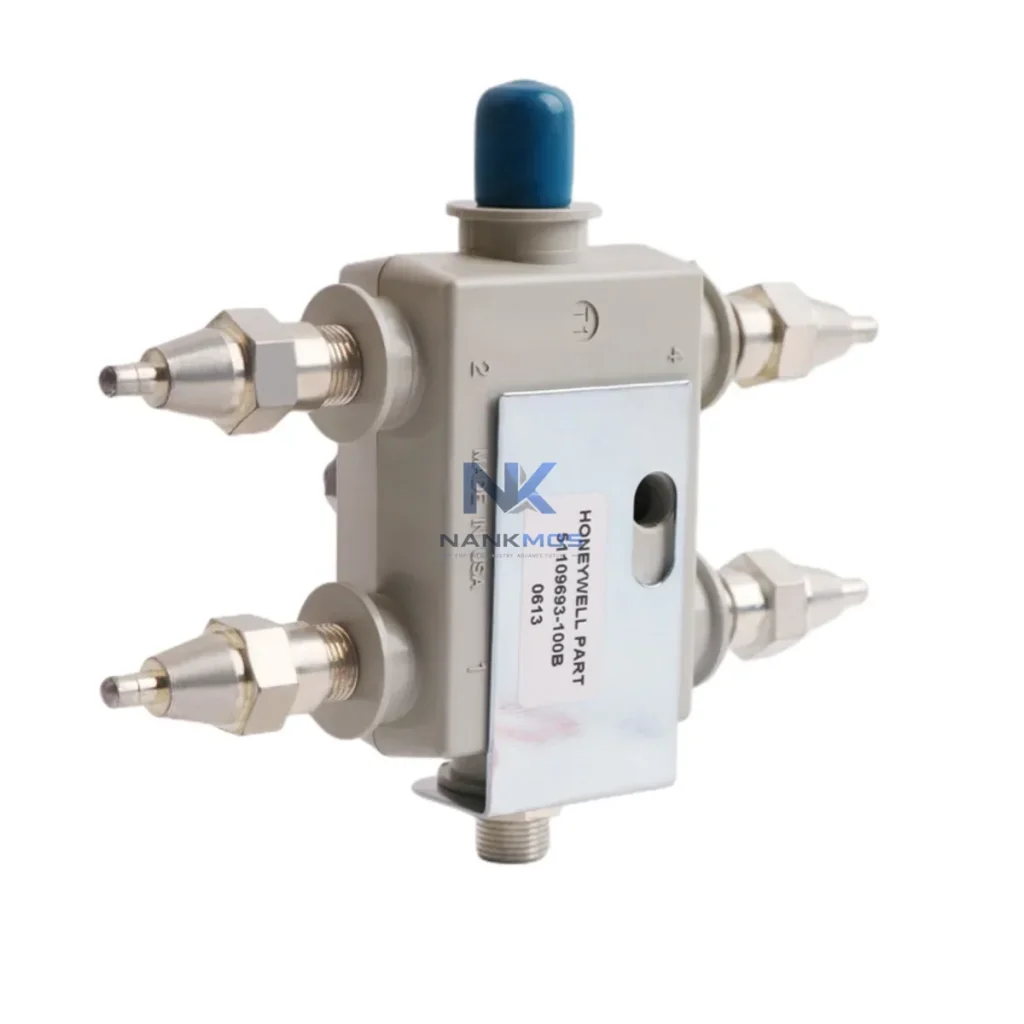

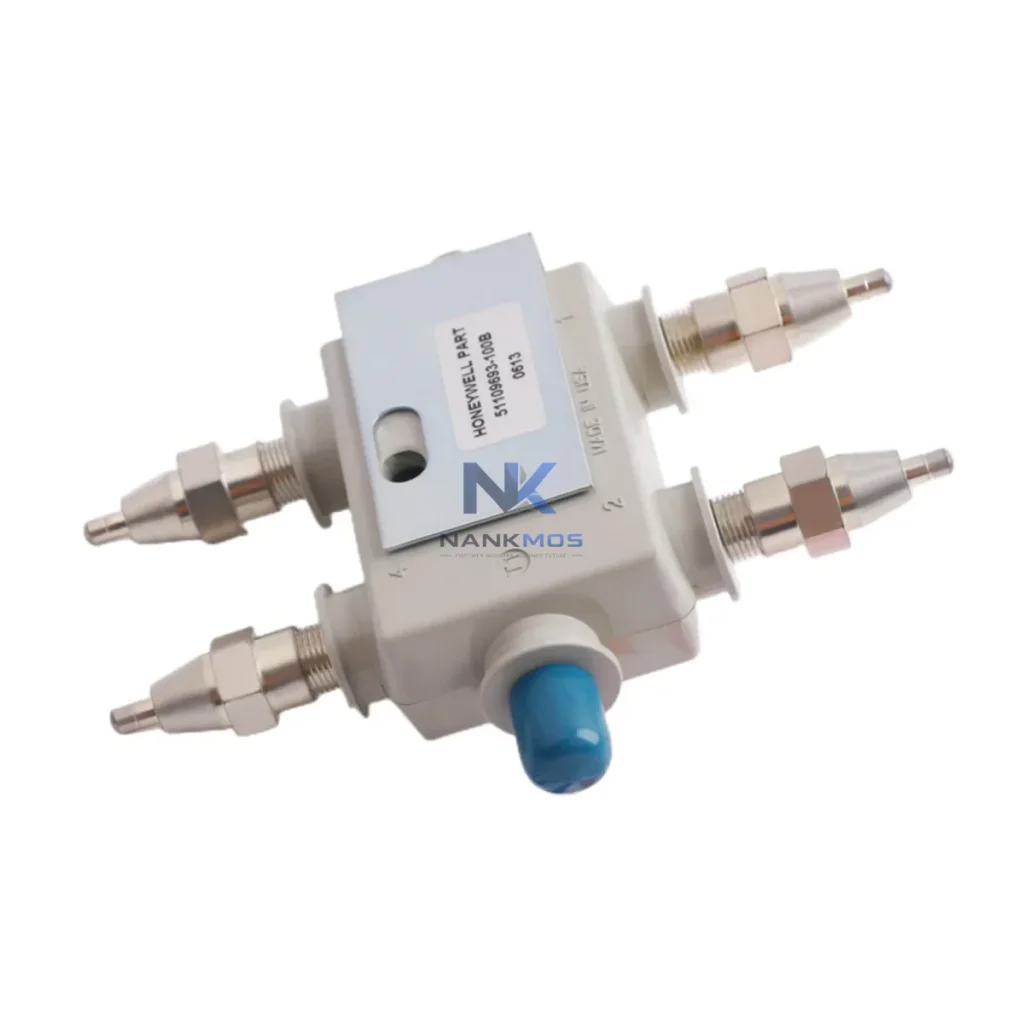

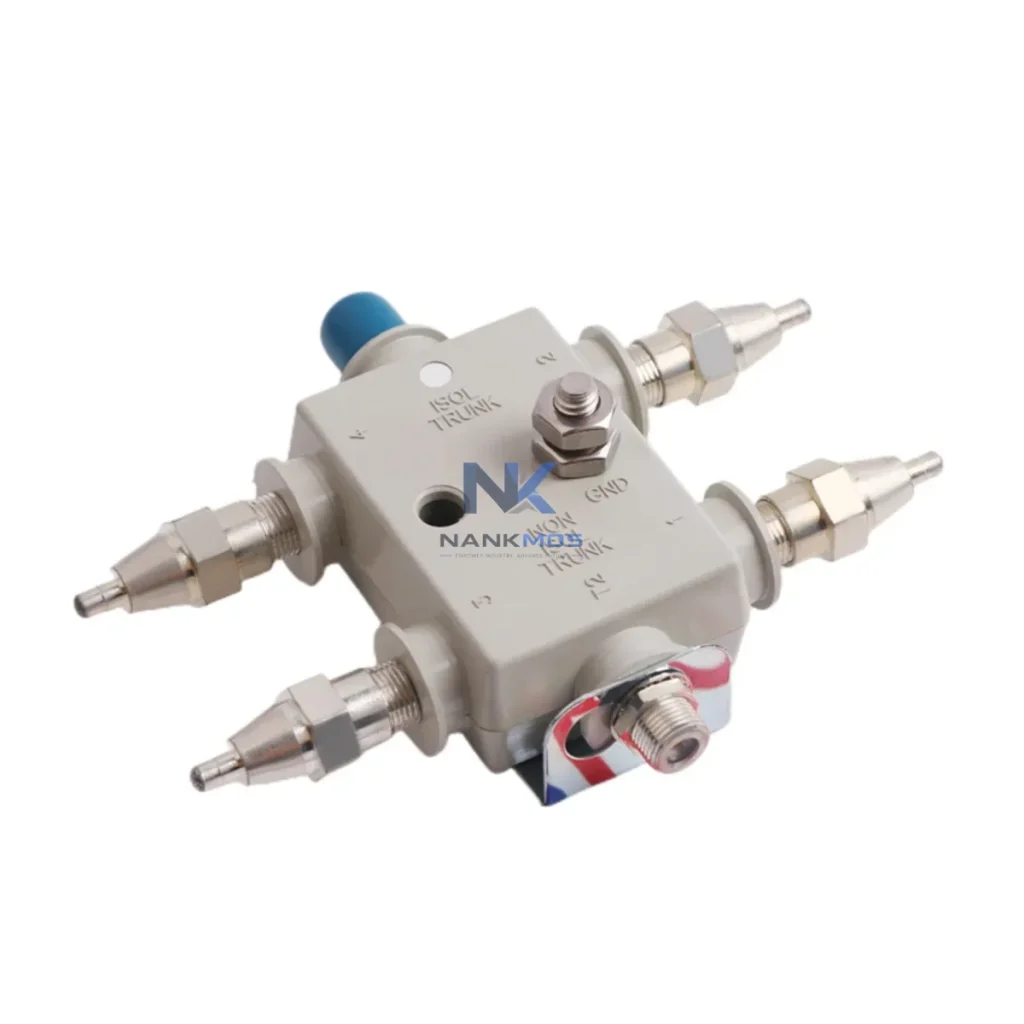

The Honeywell 51109693-100B is a system-ready Ground Tap module engineered for the TDC 3000 Distributed Control System platform. Within a fully integrated automation architecture, grounding integrity is not a peripheral concern — it is a foundational requirement that directly affects signal fidelity, EMI suppression, loop stability, and the long-term reliability of every connected module. The 51109693-100B fulfills this role with precision, providing a dedicated, low-impedance ground reference path that supports the electrical coherence of the entire control cabinet assembly.

In modern industrial control environments — spanning refining, petrochemical processing, power generation, water treatment, and advanced manufacturing — the TDC 3000 platform operates as the central nervous system of the facility. Every I/O card, every communication gateway, every CPU module, and every field termination assembly depends on a stable, well-defined ground plane. The 51109693-100B establishes and maintains that plane, ensuring that transient voltages, ground loops, and capacitive coupling do not propagate into the signal chain and compromise measurement accuracy or control output integrity.

The 51109693-100B does not operate in isolation. Its value is realized within the broader context of a fully coordinated TDC 3000 control architecture. At the control layer, Honeywell HPM (High-Performance Process Manager) modules and AM (Application Modules) rely on a stable ground reference to maintain deterministic scan cycles and accurate PID execution. Any ground potential difference between the HPM chassis and the field termination assemblies can introduce offset errors in analog loops — errors that the 51109693-100B is specifically designed to eliminate.

At the I/O layer, FTA (Field Termination Assemblies) such as the 51304453-150 and 51304453-175 series connect field instruments — thermocouples, RTDs, pressure transmitters, and flow meters — directly to the DCS backplane. These assemblies depend on a common ground reference to ensure that differential signal measurements remain accurate across varying ambient temperatures and cable lengths. The 51109693-100B provides the chassis-level bonding point that anchors this reference.

At the communication layer, the TDC 3000 Local Control Network (LCN) and Universal Control Network (UCN) carry time-critical process data between controllers, historians, and operator stations. Network communication modules such as the NIM (Network Interface Module) and the 51401642-100 series gateway cards are sensitive to ground-induced noise. A properly installed Ground Tap module reduces common-mode interference on these network segments, improving packet integrity and reducing retransmission events during high-load process conditions.

At the power layer, Honeywell power supply modules — including the 51109684-100 series — distribute 24 VDC and 5 VDC rails across the DCS rack. Grounding discipline at the cabinet level, enforced by the 51109693-100B, prevents power supply switching transients from coupling into analog signal circuits. This is particularly important in cabinets where digital I/O modules and analog input modules share the same backplane.

At the HMI and historian layer, Honeywell GUS (Global User Station) and PHD (Process Historian Database) workstations communicate with the LCN through dedicated network nodes. Signal integrity at the physical layer — supported by proper grounding — ensures that historian data accurately reflects real-time process conditions without noise-induced artifacts. At the execution layer, final control elements such as control valves and variable frequency drives introduce significant electrical noise into the cabinet environment. The 51109693-100B provides the low-impedance return path that prevents this noise from propagating into the measurement and control circuits.

In refinery and petrochemical applications, the TDC 3000 platform manages distillation column control, reactor temperature regulation, and compressor surge protection. Ground integrity is critical in these environments because field cables run long distances through electrically noisy areas. The 51109693-100B ensures that the DCS cabinet maintains a stable reference potential regardless of the ground conditions at the field instrument location.

In power generation facilities, including coal-fired, gas turbine, and combined-cycle plants, the TDC 3000 controls boiler drum level, turbine speed, and generator excitation sequences. High-voltage switching events in the switchyard can induce transient voltages on instrument cable shields. The Ground Tap module provides the defined discharge path that protects sensitive I/O circuits from these transients.

In water and wastewater treatment plants, the TDC 3000 manages pump sequencing, chemical dosing, and filtration control. These facilities often have challenging grounding environments due to electrochemical processes and cathodic protection systems. The 51109693-100B provides the isolation and bonding necessary to maintain measurement accuracy in these conditions.

In mining and metallurgical operations, where heavy machinery generates significant electrical interference, the Ground Tap module supports the signal stability required for accurate weight measurement, conveyor speed control, and furnace temperature regulation. In marine and offshore applications, where the TDC 3000 is used for platform process control and vessel automation, the 51109693-100B supports compliance with marine electrical standards by providing a defined chassis ground reference within the control panel assembly.

Q1: Is the 51109693-100B compatible with both early and late revisions of the TDC 3000 platform?A: Yes. The 51109693-100B is designed to the TDC 3000 mechanical and electrical standard and is compatible across the platform's production history. It integrates with HPM, PM, and AM controller chassis as well as standard FTA mounting assemblies. For specific revision compatibility in mixed-generation installations, cross-reference the Honeywell TDC 3000 hardware compatibility matrix or contact our technical team prior to ordering.

Q2: What is the recommended installation practice for the 51109693-100B in a multi-cabinet DCS architecture?A: In multi-cabinet installations, each cabinet should have its own Ground Tap module bonded to the facility ground bus via a dedicated low-impedance conductor. Cabinet-to-cabinet ground bonding should follow the star grounding topology recommended in Honeywell's TDC 3000 installation guidelines. This prevents ground loops between cabinets while maintaining a common reference potential across the entire DCS system. All FTA assemblies within the cabinet should be bonded to the same chassis ground point established by the 51109693-100B.

Q3: What does the 12-Month Warranty cover, and what is the supply and testing process?A: Every 51109693-100B unit shipped by NANKMOS is covered by a 12-Month Warranty against manufacturing defects and functional failure under normal operating conditions. Prior to shipment, each unit undergoes functional verification testing to confirm electrical continuity, impedance characteristics, and mechanical integrity. Units are packaged in anti-static, moisture-resistant packaging suitable for international freight. In-stock units are available for immediate dispatch with standard lead times of 3–7 business days for international destinations. For urgent project requirements, expedited shipping options are available upon request.
