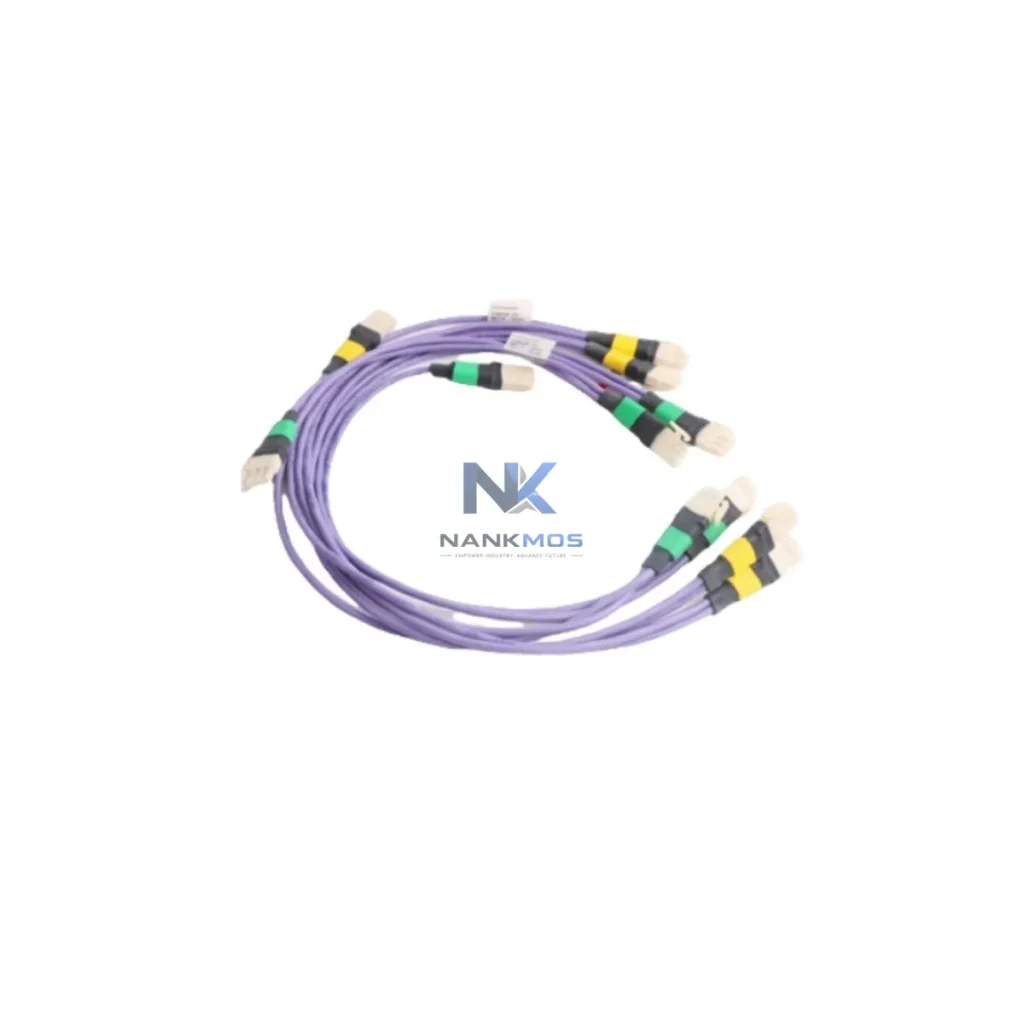

51202329-702 51202329-712 51202329-102 51020329-802 Product Description

The Honeywell 51202329-702 I/O Link Cable is a purpose-engineered communication cable designed for the TDC3000 Distributed Control System (DCS) — one of the most widely deployed process automation platforms in refining, petrochemical, power generation, and continuous manufacturing environments. This cable serves as the physical backbone of the TDC3000 I/O Link network, enabling deterministic, high-integrity data transfer between field instruments, I/O modules, and the Universal Control Network (UCN) or Local Control Network (LCN) layers of the Honeywell DCS architecture.

In smart factory deployments, reliable field-to-controller connectivity is non-negotiable. The 51202329-702 ensures that analog and digital signals from transmitters, valve positioners, and field devices are accurately conveyed to the controller layer without signal degradation, ground loops, or communication timeouts. Whether you are maintaining an existing TDC3000 installation or expanding a hybrid DCS/SCADA architecture, this cable delivers the electrical and mechanical performance required for 24/7 industrial operation.

In a fully integrated smart factory, the Honeywell 51202329-702 sits at the critical junction between field instrumentation and the DCS controller layer. Consider a typical process plant data flow: a pressure transmitter or thermocouple in the field generates a 4–20 mA analog signal. That signal travels through the I/O Link cable to a Honeywell PM I/O (Process Manager I/O) module — such as the 51304485-100 or 51304516-100 series — where it is digitized and placed onto the I/O Link bus.

From the I/O module, data is forwarded via the Universal Control Network (UCN) to the Honeywell HPM (High-Performance Process Manager) controller, which executes the control logic and issues setpoint commands back downstream. The UCN itself relies on coaxial highway cables and UCN Interface Modules (51401288-100) to maintain network integrity across long cable runs in large process plants.

At the supervisory layer, the Honeywell TDC3000 GUS (Global User Station) or a modern Experion PKS Station provides the SCADA/HMI interface, displaying real-time process values, alarm states, and trend data sourced directly from the I/O Link network. Operators can monitor loop performance, acknowledge alarms, and initiate remote setpoint changes — all enabled by the reliable physical layer that the 51202329-702 cable provides.

For plants integrating legacy TDC3000 assets with modern Ethernet-based SCADA platforms, an OPC-DA/UA Gateway or a Honeywell Experion Server bridges the proprietary I/O Link protocol to standard industrial Ethernet, enabling data visualization in platforms such as Wonderware, iFIX, or Ignition SCADA. In these hybrid architectures, the physical integrity of the I/O Link cable directly determines the quality and latency of data reaching the upper layers.

Remote I/O expansion is another key application. Using Honeywell RHMUX (Remote Highway Multiplexer) units, the I/O Link network can be extended to remote marshalling cabinets hundreds of meters from the main control room. The 51202329-702 cable, along with compatible variants 51202329-712 and 51202329-102, supports these extended runs while maintaining signal fidelity. For plants requiring fiber-optic isolation between hazardous and safe areas, Honeywell Fiber Optic Modems (51190493-100) can be inserted into the data path, with the I/O Link cable handling the copper segments on either side.

Edge computing integration is increasingly common in TDC3000 environments. Industrial edge gateways — such as those running Honeywell Connected Plant software or third-party IIoT platforms — tap into the UCN/LCN data highway via OPC servers, pulling real-time process data for analytics, predictive maintenance, and digital twin applications. The 51202329-702 ensures that the foundational field-to-controller data link remains stable and noise-free, which is essential for the accuracy of any upstream analytics or AI-driven optimization.

Protocol Fragmentation: Many process plants operate a mix of legacy DCS, modern PLC, and SCADA systems. The TDC3000 I/O Link protocol is proprietary, and cable integrity is the first line of defense against communication errors. A degraded or incorrect cable introduces CRC errors, signal dropouts, and false alarms that propagate through the entire control hierarchy. The 51202329-702 eliminates this risk by providing a factory-spec, electrically verified physical link.

Data Islands and Blind Spots: When field devices cannot reliably communicate with the DCS, operators lose visibility into critical process variables — creating data islands where decisions must be made on incomplete information. Replacing aging or damaged I/O Link cables with the 51202329-702 restores full data transparency, enabling continuous monitoring of temperature, pressure, flow, and level across all process units.

Remote Monitoring and Diagnostics: In unmanned or remote facilities, the ability to diagnose field device faults without a site visit depends entirely on the integrity of the communication path. A reliable I/O Link cable ensures that HART diagnostic data, device status signals, and alarm conditions are accurately transmitted to the control room and, via OPC/SCADA gateways, to remote operations centers for real-time analysis.

Production Line Transparency: Modern manufacturing execution systems (MES) and ERP integrations require continuous, accurate data from the field. Any interruption in the I/O Link chain — caused by cable faults, connector corrosion, or incorrect cable type — breaks the data pipeline and creates reporting gaps. The 51202329-702, pre-tested before shipment and backed by a 12-month warranty, provides the reliability baseline that production transparency demands.

System Expansion and Scalability: As plants add new process units or migrate from TDC3000 to Experion PKS, maintaining a stock of correct I/O Link cables is essential for rapid commissioning. NANKMOS maintains ready inventory of the 51202329-702 and its variants, enabling fast delivery to support planned shutdowns, emergency replacements, and system expansion projects worldwide.

Q1: Is the Honeywell 51202329-702 compatible with both UCN and LCN networks in TDC3000? The 51202329-702 is designed for the I/O Link bus layer, which connects field I/O modules to the Process Manager (PM) controllers. It is compatible with TDC3000 architectures using both UCN (Universal Control Network) and LCN (Local Control Network) data highways, as the I/O Link layer is common to both configurations. Always verify cable length and termination requirements against your specific system drawing.

Q2: What is the communication latency of the TDC3000 I/O Link, and does the cable affect it? The TDC3000 I/O Link operates on a deterministic scan cycle, typically 100–500 ms depending on I/O module configuration. Cable quality directly affects signal integrity: a degraded cable increases retry cycles and can extend effective latency. The 51202329-702 is electrically tested to Honeywell specifications, ensuring minimal signal attenuation and consistent scan performance.

Q3: Can the 51202329-702 be used in Experion PKS migration projects? Yes. During phased Experion PKS migrations, existing TDC3000 I/O infrastructure — including I/O Link cables — is typically retained and connected to the new Experion controller via C300 or ACE nodes using legacy I/O interface modules. The 51202329-702 remains fully functional in these hybrid configurations, protecting your existing field wiring investment during the migration period.

Q4: What warranty and pre-shipment testing does NANKMOS provide for the 51202329-702? Every 51202329-702 unit shipped by NANKMOS undergoes pre-shipment electrical testing to verify continuity, insulation resistance, and shield integrity. All units are covered by a 12-month warranty from the date of shipment. In the event of a verified defect, NANKMOS provides replacement or full refund. Contact [email protected] for warranty claims or technical support.
