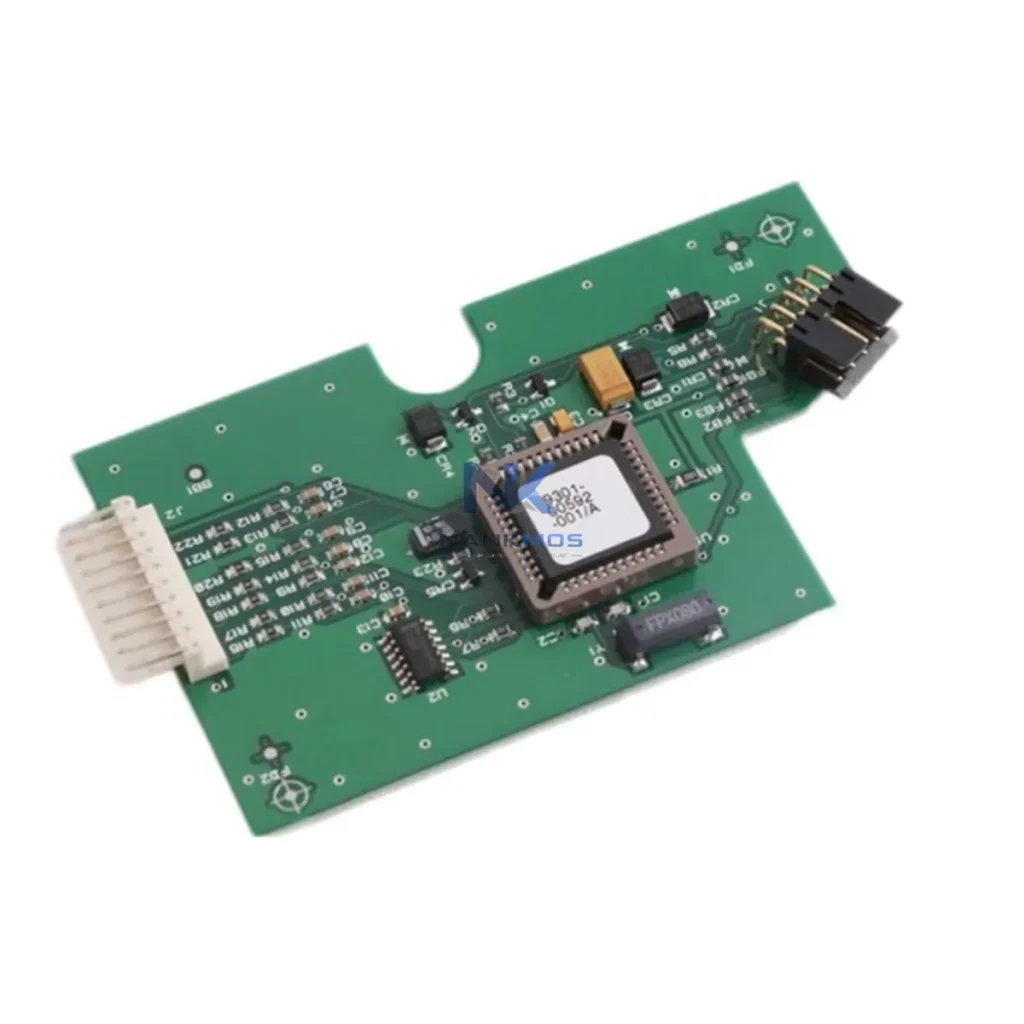

Honeywell 51304685-150 DCS I/O Module

Product Details

51304685-150 Product Description

The Honeywell 51304685-150 is a conformally coated I/O module engineered for seamless integration within the TotalPlant Solution (TPS) and Experion PKS distributed control system architectures. Designed to operate within Honeywell's layered automation hierarchy, this module delivers reliable signal acquisition, robust environmental protection, and deterministic data throughput across multi-loop process control environments. Its conformal coating ensures long-term operational integrity in humid, corrosive, or thermally variable industrial settings — making it a preferred choice for critical process industries where uptime and signal fidelity are non-negotiable.

Within a complete Honeywell control architecture, the 51304685-150 functions as a precision interface between field instrumentation and the control layer. It supports structured wiring termination, maintains signal isolation integrity, and contributes to the overall redundancy and diagnostic capability of the I/O subsystem. Whether deployed in a greenfield Experion PKS installation or integrated into a legacy TPS migration project, this module provides the system-matched performance that Honeywell's engineering standards demand.

From a system architecture perspective, the 51304685-150 occupies the I/O layer — the critical bridge between physical process signals and the controller's execution environment. Its compatibility with Honeywell's C300 Controller, the IOTA termination assemblies, and the FIM (Field Interface Module) family ensures that signal paths remain clean, latency remains predictable, and maintenance interventions remain minimal. The module's design philosophy aligns with Honeywell's Universal I/O strategy, enabling flexible channel assignment and reducing the need for dedicated wiring infrastructure during commissioning or expansion phases.

In multi-cabinet control room deployments, the 51304685-150 integrates with Honeywell's EPLCG2 Power Supply modules to maintain stable voltage rails across the I/O chassis. Alongside the CC-PAIX01 and CC-TAIX01 analog input modules, it forms a coherent signal acquisition layer capable of handling 4–20 mA, thermocouple, and RTD inputs with high channel density. The module's conformal coating variant is specifically selected for offshore platforms, chemical processing units, and water treatment facilities where ambient conditions exceed standard industrial ratings.

Communication stability is maintained through Honeywell's FTE (Fault Tolerant Ethernet) backbone, which connects the I/O subsystem to the Experion PKS server infrastructure. The 51304685-150 operates within this architecture without introducing latency anomalies, supporting scan rates compatible with fast-loop control strategies. When paired with the Honeywell FTEB (Fault Tolerant Ethernet Bridge) and the C300 redundant controller pair, the system achieves bumpless failover with no signal interruption — a critical requirement for continuous process operations in refining, petrochemical, and power generation applications.

For HMI integration, the module's data is surfaced through Experion PKS Station displays and Honeywell's LEAP (Lean Automation Project) engineering environment, enabling operators to monitor channel-level diagnostics, calibration status, and alarm conditions in real time. This transparency reduces mean time to repair (MTTR) and supports predictive maintenance strategies aligned with Industry 4.0 operational frameworks.

The 51304685-150 is also compatible with Honeywell's Series C I/O family, including the CC-PDOB01 digital output modules and the CC-TAOX01 analog output modules, enabling a unified I/O architecture across mixed signal types. In expansion scenarios, additional I/O chassis can be added to the FIM network without reconfiguring the controller strategy, preserving engineering investment and reducing commissioning time for capacity upgrades.

From a protection and safety layer perspective, the module's conformal coating and robust termination design reduce the risk of insulation breakdown and signal cross-talk in high-density wiring environments. When integrated with Honeywell's Safety Manager SC or the FSC (Fail-Safe Controller) platform, the I/O architecture can be extended to include SIL-rated loops, providing a unified engineering environment for both basic process control and safety instrumented functions.

Inventory availability is maintained with pre-tested stock, and each unit undergoes functional verification prior to shipment. All units are supplied with a 12-Month Warranty covering manufacturing defects and operational failures under normal service conditions. Lead times are confirmed at the time of order, with expedited shipping available for critical maintenance requirements.

The 51304685-150 achieves its full performance potential when deployed within a complete Honeywell Experion PKS or TPS automation platform. A typical system architecture integrating this module includes the following components working in coordinated layers:

At the control layer, the Honeywell C300 Controller (or its redundant pair) executes the control strategy and communicates with the I/O subsystem via the FIM network. The C300's deterministic scan cycle ensures that signals acquired by the 51304685-150 are processed within the required loop execution time. For legacy TPS installations, the PM/APM (Process Manager / Advanced Process Manager) serves the equivalent control function, and the 51304685-150 is backward-compatible with these platforms.

At the I/O layer, the module operates alongside the CC-PAIX01 (Analog Input, HART-enabled), CC-PDOB01 (Digital Output), and CC-TAOX01 (Analog Output) modules within the same I/O chassis. The IOTA (I/O Termination Assembly) provides the physical wiring interface, separating field wiring from the module electronics and enabling hot-swap maintenance without process interruption.

At the communication layer, the FTEB (Fault Tolerant Ethernet Bridge) connects the I/O chassis to the Experion PKS server network, providing redundant data paths and automatic failover. The FIM (Field Interface Module) manages the local I/O bus, ensuring that all modules in the chassis — including the 51304685-150 — maintain synchronized data exchange with the controller.

At the power layer, the Honeywell EPLCG2 Power Supply provides regulated DC power to the I/O chassis, with redundant supply options available for high-availability installations. Proper power rail sizing ensures that the conformal coating variant of the 51304685-150 operates within its thermal envelope even in high-density chassis configurations.

At the HMI layer, Experion PKS Station and Honeywell's LEAP engineering environment provide operator visibility into module-level diagnostics, channel calibration status, and alarm management. Integration with Honeywell's PHD (Process Historian Database) enables long-term trend analysis and compliance reporting.

At the protection layer, integration with Honeywell Safety Manager SC or the FSC platform extends the architecture to include SIL-rated I/O loops, enabling a unified engineering environment for BPCS and SIS functions within the same control room infrastructure.

Refining & Petrochemical: The 51304685-150's conformal coating makes it the preferred I/O module for crude distillation units, hydrotreaters, and catalytic reformers where hydrogen sulfide exposure and high ambient humidity accelerate corrosion on uncoated electronics. Its compatibility with the C300 redundant controller architecture supports the continuous operation requirements of these facilities.

Power Generation: In combined-cycle gas turbine (CCGT) and coal-fired power plants, the module integrates with Honeywell's Experion PKS to manage boiler control, turbine protection, and balance-of-plant I/O. Its FTE communication interface ensures that control room operators maintain real-time visibility into plant-wide signal status.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities deploy the 51304685-150 in pump station control panels and chemical dosing systems, where the conformal coating provides protection against chlorine vapors and condensation. Integration with Experion PKS SCADA extensions enables remote monitoring across distributed treatment sites.

Chemical Processing: Batch and continuous chemical reactors require precise analog signal acquisition across temperature, pressure, and flow loops. The 51304685-150 supports high-density analog I/O within the Experion PKS chassis, reducing panel footprint while maintaining signal integrity across long cable runs from field instruments.

Mining & Minerals Processing: Conveyor systems, crusher controls, and flotation cell automation in mining operations benefit from the module's robust environmental rating. Its compatibility with Honeywell's FTE backbone enables system-wide diagnostics from a centralized control room, reducing the need for field technician interventions in hazardous areas.

Marine & Offshore: Offshore production platforms and FPSO vessels deploy conformally coated I/O modules as standard practice due to salt spray and humidity exposure. The 51304685-150 meets the environmental requirements for marine-grade automation installations when integrated within Honeywell's Experion PKS offshore variant configurations.

Q1: Is the Honeywell 51304685-150 compatible with both TPS and Experion PKS architectures? Yes. The 51304685-150 is designed for use within Honeywell's TPS (TotalPlant Solution) and Experion PKS platforms. It is compatible with the PM/APM controller family in TPS installations and with the C300 controller in Experion PKS deployments. When migrating from TPS to Experion PKS, the module can often be retained in the existing I/O chassis, reducing hardware replacement costs during the migration project. Confirm chassis and IOTA compatibility with your Honeywell system integrator prior to installation.

Q2: Does the conformal coating affect module replacement or hot-swap procedures? The conformal coating is applied to the module's PCB and does not affect the mechanical interface with the I/O chassis or IOTA termination assembly. Hot-swap procedures follow the standard Honeywell Experion PKS maintenance protocol — the module can be removed and replaced without powering down the chassis, provided the controller strategy is configured for bumpless I/O substitution. All replacement units supplied by NANKMOS are pre-tested and verified against Honeywell's functional specifications before shipment.

Q3: What warranty and support terms apply to the 51304685-150 supplied by NANKMOS? All units are supplied with a 12-Month Warranty covering manufacturing defects and operational failures under normal service conditions. Pre-shipment functional testing is performed on every unit to verify signal integrity, communication handshake with the FIM network, and power consumption within specification. Expedited shipping is available for critical maintenance requirements. For technical support, system compatibility verification, or bulk order inquiries, contact NANKMOS at [email protected] or +86 18359268345.
