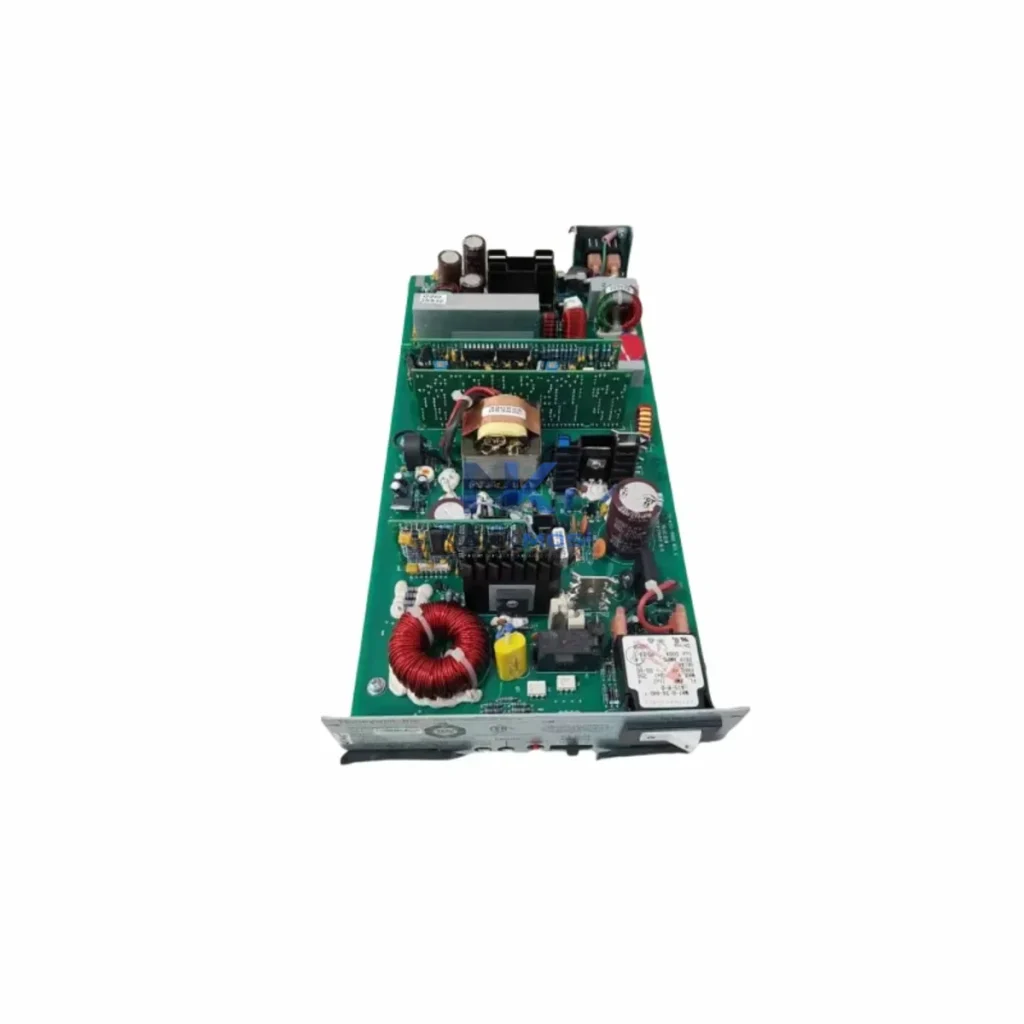

Honeywell 51305489-500 Safety Controller Module

Product Details

51305489-500 Product Description

The Honeywell 51305489-500 is a high-integrity safety controller module engineered for deployment within the Honeywell FSC (Fail-Safe Controller) platform — one of the most widely adopted safety-rated control architectures in process industries worldwide. Designed to meet IEC 61508 SIL2 requirements, this module serves as the central processing and logic execution unit within a redundant, fault-tolerant safety instrumented system (SIS). Its role spans the control layer, I/O coordination layer, and communication layer simultaneously, making it a cornerstone component for engineers designing or maintaining safety-critical automation infrastructure.

The 51305489-500 does not operate in isolation — its value is fully realized when integrated within a complete FSC safety architecture. In a typical SIS deployment, this controller module interfaces directly with the Honeywell 51305890-175 FSC Digital Input Module and 51304485-100 Digital Output Module to manage field-level signal acquisition and actuation commands. Redundant power integrity is maintained through paired Honeywell 51196655-100 FSC Power Supply Modules, ensuring uninterrupted controller operation even under single-point power failure conditions.

For process variable monitoring, the 51305489-500 coordinates with Honeywell 51305072-300 Analog Input Modules to receive 4–20mA signals from pressure transmitters, temperature sensors, and flow meters across the plant. Communication upward to the DCS or SCADA layer is handled via the Honeywell 51304453-100 FSC Communication Module, which supports Modbus TCP and Profibus DP protocols, enabling seamless Contextual Integration with supervisory systems such as Honeywell Experion PKS or third-party DCS platforms.

In high-availability architectures, the 51305489-500 is typically deployed in a 1oo2D (one-out-of-two with diagnostics) or 2oo3 voting configuration alongside a redundant CPU peer. The Honeywell 51309276-100 FSC Synchronization Module maintains real-time state synchronization between redundant controllers, ensuring bumpless switchover during fault events. Sequence-of-events recording is supported through the Honeywell 51305072-400 SOE Input Module, providing millisecond-resolution timestamping critical for post-incident analysis in power generation and petrochemical applications.

At the HMI and engineering workstation layer, the FSC system integrates with Honeywell Safety Manager Engineering Tools for logic configuration, online diagnostics, and firmware management — all without requiring a system shutdown. Terminal block assemblies and marshalling panels using Honeywell 51202329-200 series field termination assemblies complete the wiring infrastructure, ensuring clean signal routing from field instruments to the safety controller backplane.

The Honeywell 51305489-500 is deployed across a broad spectrum of safety-critical industries where process integrity and personnel protection are non-negotiable:

Oil & Gas / Petrochemical: Used in Emergency Shutdown (ESD) systems and High Integrity Pressure Protection Systems (HIPPS) at upstream wellheads, midstream compressor stations, and downstream refinery units. The module's SIL2 rating satisfies IEC 61511 functional safety requirements for process sector SIS design.

Power Generation: Deployed in turbine protection systems, boiler management systems (BMS), and burner management systems (BMS) at coal-fired, gas-fired, and combined-cycle power plants. Its redundant architecture ensures continuous protection even during planned maintenance windows.

Water & Wastewater Treatment: Applied in pump protection, chemical dosing interlocks, and overflow prevention systems at municipal water treatment facilities. The module's robust diagnostic capability reduces unplanned downtime and supports remote fault identification.

Mining & Metallurgy: Integrated into conveyor belt protection systems, crusher interlock circuits, and ventilation safety systems in underground and open-pit mining operations where environmental conditions demand high-reliability control hardware.

Marine & Offshore: Certified for use in offshore platform ESD and fire & gas (F&G) systems, where compact rack-mount form factor and redundant communication paths are essential for space-constrained control room installations.

Q1: Is the Honeywell 51305489-500 compatible with existing FSC racks and backplanes without hardware modification? Yes. The 51305489-500 is designed for direct insertion into standard FSC backplane racks. It is backward-compatible with existing FSC system configurations, including legacy rack assemblies. No additional adapter hardware is required, making it an ideal drop-in replacement for maintenance and lifecycle upgrade projects. Always verify firmware revision compatibility with your FSC engineering workstation before hot-insertion in live systems.

Q2: How does the 51305489-500 support redundant architecture and what is the switchover behavior during a CPU fault? In a redundant FSC configuration, two 51305489-500 modules operate in active-standby mode with continuous state synchronization via the FSC synchronization bus. Upon detection of a primary CPU fault — whether hardware failure, watchdog timeout, or communication loss — the standby module assumes control within milliseconds, with no interruption to field I/O or safety logic execution. This bumpless transfer behavior is critical for continuous process industries where even brief control interruptions can trigger unplanned shutdowns.

Q3: What does the 12-Month Warranty cover, and how is pre-shipment testing conducted? Every Honeywell 51305489-500 unit supplied by NANKMOS is covered by a 12-Month Warranty from the date of shipment. Prior to dispatch, each module undergoes a structured pre-shipment test protocol including power-on self-test (POST) verification, communication port integrity checks, I/O channel simulation, and visual inspection for physical damage or component degradation. Units that do not pass all test criteria are quarantined and not shipped. This process ensures that every module arrives at your facility in verified operational condition, minimizing installation risk and commissioning delays.
