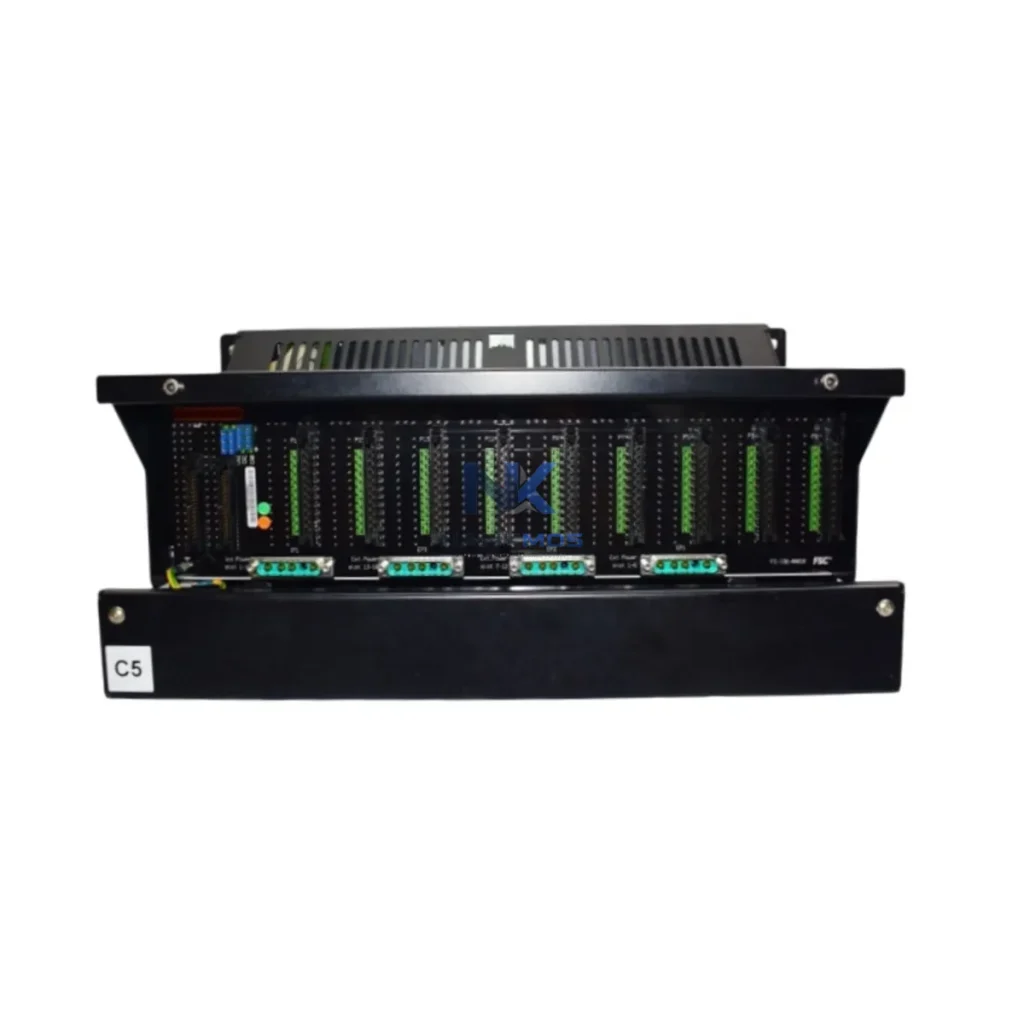

Honeywell 51305980-260 Fieldbus Interface Module

Product Details

51305980-260 Product Description

The Honeywell 51305980-260 Fieldbus Interface Module (FIM) is a purpose-engineered I/O and communication gateway component within the Experion PKS distributed control system (DCS) platform. Designed to bridge the Foundation Fieldbus H1 segment with the Experion PKS control backbone, this module enables seamless contextual integration between field instrumentation and the supervisory control layer. In modern process automation architectures, the FIM does not operate in isolation — it functions as a critical node within a layered, redundant, and diagnostically rich control environment that spans from the field device level through to the operator interface and enterprise data layer.

Whether deployed in a greenfield refinery expansion, a brownfield upgrade of an existing DCS cabinet, or a modular skid-mounted control system for water treatment or power generation, the 51305980-260 delivers the signal integrity, protocol compliance, and long-term maintainability that industrial engineers demand. Its architecture-ready design ensures compatibility with the broader Honeywell Experion PKS ecosystem, supporting multi-loop control strategies, redundant communication paths, and deterministic fieldbus segment management.

The 51305980-260 FIM is most effectively deployed as part of a fully integrated Experion PKS control architecture. At the control layer, the module interfaces directly with the Honeywell C300 Controller — the primary process controller in the Experion PKS Series C platform — via the I/O Link bus. The C300 executes the control strategies that consume field device data delivered through the FIM's H1 segments, enabling closed-loop PID control, cascade strategies, and advanced process control (APC) functions without latency introduced by protocol conversion overhead.

Power integrity for the FIM and its associated H1 segment devices is maintained through the Honeywell CC-PWR01 Power Supply Module, which provides regulated 24VDC to the I/O chassis. For applications requiring high availability, a redundant power supply configuration using a secondary CC-PWR01 unit ensures uninterrupted operation during single-point power failures — a critical requirement in continuous process industries such as oil refining and chemical manufacturing.

On the fieldbus segment itself, the FIM communicates with Foundation Fieldbus-compliant field devices including Honeywell STT850 Smart Temperature Transmitters, Honeywell SPS Series Pressure Transmitters, and third-party FF-H1 devices from vendors such as Yokogawa and Endress+Hauser. The FIM manages segment scheduling, LAS (Link Active Scheduler) functions, and device descriptor (DD) interpretation, ensuring deterministic data exchange across all connected field instruments.

At the communication layer, the Experion PKS architecture leverages the Honeywell FTEB (Fault-Tolerant Ethernet Bridge) to connect the C300 controller to the Experion server over a redundant FTE (Fault Tolerant Ethernet) network. This dual-ring Ethernet topology provides the communication backbone that carries process data, alarm events, and historian records from the I/O layer through to the Experion PKS Operator Station — the HMI layer where operators monitor and interact with the process in real time.

For applications requiring expanded I/O capacity beyond the fieldbus segments managed by the FIM, the architecture can incorporate Honeywell CC-TDIL01 Digital Input Modules and CC-TAOX11 Analog Output Modules mounted in the same I/O chassis. These Series C I/O modules share the same backplane and I/O Link interface, allowing engineers to mix fieldbus and hardwired I/O within a single cabinet footprint — a significant advantage for retrofit projects where existing 4-20mA wiring must coexist with new FF-H1 instrumentation.

In redundant control architectures, the 51305980-260 can be paired with a second FIM unit in a redundant FIM configuration, where both modules monitor the same H1 segments simultaneously. Upon detection of a primary FIM failure, the secondary module assumes LAS control of the segment within milliseconds, maintaining uninterrupted field device communication. This redundancy model aligns with the broader Experion PKS high-availability architecture that also includes redundant C300 controllers and redundant FTE network paths.

For system-wide diagnostics and asset management, the FIM integrates with Honeywell Field Device Manager (FDM), which provides centralized device configuration, calibration management, and predictive maintenance alerts for all FF-H1 devices on the segment. FDM communicates through the Experion PKS server, enabling maintenance engineers to access device health data, perform remote configuration changes, and generate compliance reports without physical access to the field device — a capability that significantly reduces maintenance labor costs in large-scale process plants.

Oil Refining & Petrochemical: In crude distillation units and catalytic cracking processes, the 51305980-260 FIM manages H1 segments connecting flow transmitters, pressure sensors, and control valves across multiple process trains. The module's deterministic communication scheduling ensures that critical loop data — including feed rate, column pressure, and product cut temperatures — is delivered to the C300 controller within the required scan cycle, supporting tight product quality control and safe operating envelope management.

Power Generation: In combined-cycle gas turbine (CCGT) plants and coal-fired boiler control systems, the FIM provides the fieldbus interface for boiler drum level transmitters, steam flow meters, and burner management system (BMS) I/O. The redundant FIM configuration is particularly valued in power generation applications where a single communication failure could trigger a turbine trip or boiler shutdown, resulting in significant generation loss and grid instability.

Water & Wastewater Treatment: Municipal water treatment facilities and industrial effluent treatment plants deploy the Experion PKS platform with FIM modules to manage distributed instrumentation across large geographic footprints. The Foundation Fieldbus H1 protocol's ability to power field devices over the same two-wire segment cable reduces installation costs in these applications, where instrument cable runs can extend hundreds of meters between the control room and field measurement points.

Mining & Minerals Processing: In flotation circuits, grinding mill control, and tailings management systems, the 51305980-260 FIM supports the integration of density meters, particle size analyzers, and slurry flow transmitters into the Experion PKS control strategy. The module's robust operating temperature range and compatibility with explosion-proof field device installations make it suitable for the harsh environmental conditions typical of mineral processing facilities.

Pharmaceutical & Fine Chemicals: In batch process applications governed by FDA 21 CFR Part 11 and GAMP 5 validation requirements, the FIM's diagnostic data and device status reporting support the audit trail and electronic record requirements of regulated manufacturing environments. Integration with Honeywell FDM provides the calibration records and device configuration history required for regulatory compliance documentation.

Q1: How many Foundation Fieldbus H1 segments can the 51305980-260 FIM support, and what is the maximum device count per segment? The 51305980-260 FIM supports up to 4 independent H1 fieldbus segments. Each H1 segment can accommodate up to 16 field devices in a standard non-redundant configuration, though practical segment loading is typically limited to 10-12 devices to maintain adequate communication cycle time margins. Total device capacity per FIM module is therefore up to 64 devices across all four segments, subject to segment power budget constraints and the communication schedule generated by the Experion PKS configuration tools.

Q2: Is the 51305980-260 compatible with both C200 and C300 controllers in the Experion PKS platform, and can it be used in a redundant controller architecture? The 51305980-260 FIM is designed for the Experion PKS Series C I/O architecture and is primarily validated for use with the C300 Controller. Compatibility with C200 controllers depends on the specific firmware revision and I/O chassis configuration — consult the Experion PKS I/O Link Compatibility Matrix for your site's controller revision. In redundant C300 controller architectures, the FIM communicates with both the primary and secondary controller simultaneously via the I/O Link, ensuring that controller failover does not interrupt fieldbus segment communication or field device data acquisition.

Q3: What warranty and pre-shipment testing does NANKMOS provide for the 51305980-260, and what is the lead time for in-stock units? All 51305980-260 FIM units supplied by NANKMOS are covered by a 12-Month Warranty from the date of shipment. Prior to dispatch, each unit undergoes a pre-shipment functional test that verifies power-up behavior, backplane communication integrity, and H1 segment port operation. In-stock units are available for same-day or next-business-day dispatch depending on order confirmation timing. For urgent requirements, expedited shipping arrangements can be made upon request. Contact NANKMOS at [email protected] or +86 18359268345 for current stock confirmation and lead time commitments.
