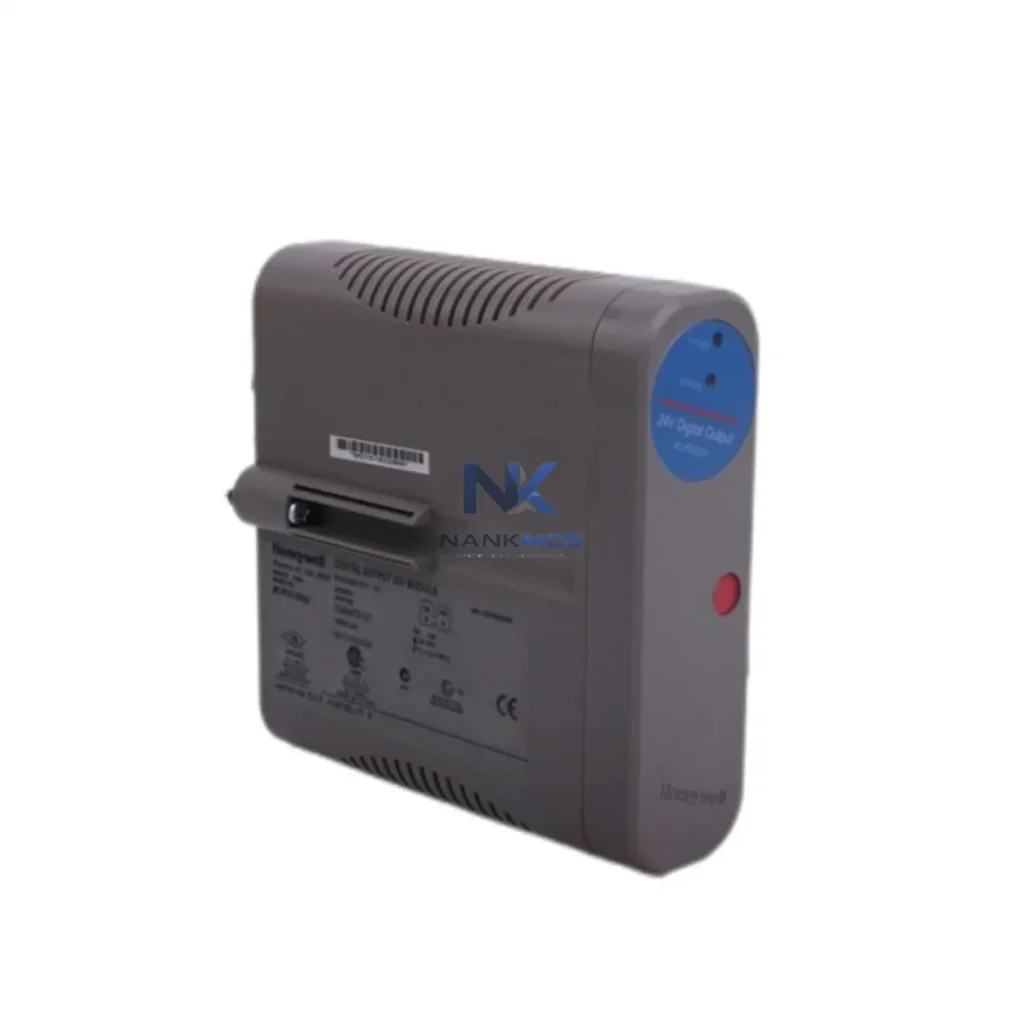

Honeywell 51306975-175 Digital Output Module

Product Details

51306975-175 Product Description

The Honeywell 51306975-175 is a system-ready Digital Output Module engineered for deployment within Honeywell's Fail-Safe Controller (FSC) safety architecture. Designed to deliver deterministic, high-integrity output signaling across safety-critical process environments, this module serves as a foundational element of the output layer in SIL-rated control systems. Its architecture-native design ensures seamless integration with FSC base units, I/O expansion racks, and Safety Manager platforms, enabling consistent signal delivery, redundancy support, and long-term operational reliability across demanding industrial applications including oil and gas, petrochemical processing, power generation, and water treatment infrastructure.

The 51306975-175 operates within the FSC modular rack system, interfacing directly with the FSC CPU modules and backplane bus to deliver discrete output commands to field actuators, solenoid valves, motor starters, and shutdown devices. Its deterministic output behavior is critical in emergency shutdown (ESD) systems, burner management systems (BMS), and high-integrity pressure protection systems (HIPPS), where output response time and signal fidelity directly impact process safety integrity. The module supports both energize-to-trip and de-energize-to-trip output configurations, providing engineering flexibility across diverse safety loop designs.

Within a complete FSC control architecture, the 51306975-175 works in close coordination with complementary modules including the Honeywell 51306975-150 Digital Input Module for closed-loop signal verification, the 51109684-175 Analog Output Module for continuous control loops, and the 51304485-150 Power Supply Module that provides regulated DC power across the I/O rack. Communication between the output module and the FSC CPU — typically the 51309276-175 or 51309276-225 processor variants — is managed through the FSC backplane, ensuring sub-millisecond scan cycle synchronization and deterministic output execution. For systems requiring network-level integration, the Honeywell FSC Gateway Module enables Modbus RTU and PROFIBUS DP connectivity to distributed control systems (DCS) and SCADA platforms.

In redundant safety architectures, the 51306975-175 is deployed alongside voted output configurations using 1oo2 or 2oo3 logic structures, coordinated through the FSC Safety Manager software platform. This redundancy model ensures that no single module failure can result in a spurious trip or a failure to trip, maintaining the required Safety Integrity Level across the full safety lifecycle. The module's diagnostic coverage supports automatic fault detection and reporting to the FSC engineering workstation, reducing mean time to repair (MTTR) and supporting IEC 61511 compliance documentation requirements.

For HMI integration, the FSC system interfaces with Honeywell's Experion PKS or third-party SCADA systems via the FSC communication gateway, providing operators with real-time output status, module health diagnostics, and alarm management. Terminal modules and marshalling panels connected to the 51306975-175 output channels are typically wired through Honeywell's FTA (Field Termination Assembly) system, which simplifies field wiring, reduces installation errors, and supports hot-swap maintenance without interrupting adjacent I/O channels. Signal isolators and surge protection devices installed at the field terminal level further enhance output signal integrity in electrically noisy industrial environments.

The 51306975-175 is fully compatible with Honeywell's FSC rack system, including the 8-slot and 16-slot I/O expansion chassis, and supports mixed-module configurations alongside analog input, digital input, and communication modules within the same rack. This modular expandability allows engineers to scale the safety system from small standalone ESD controllers to large, multi-rack safety architectures without redesigning the control platform. All modules within the FSC family share a common engineering environment through the FSC Engineering Tool (ET), enabling unified configuration, diagnostics, and version-controlled change management across the entire safety system lifecycle.

Stock availability for the Honeywell 51306975-175 is maintained for immediate dispatch, with pre-shipment functional testing performed on every unit. Each module undergoes output channel verification, backplane communication testing, and power consumption validation prior to packaging. All units are shipped with full 12-Month Warranty coverage and are supported by NANKMOS technical staff for installation guidance, architecture compatibility verification, and post-commissioning support.

The Honeywell 51306975-175 Digital Output Module is most effectively deployed as part of a fully integrated FSC automation platform. In a typical safety system architecture, the module occupies the output layer of the I/O rack, receiving execution commands from the FSC CPU — such as the Honeywell 51309276-175 or 51309276-225 processor modules — which execute the safety application logic at deterministic scan rates. The Honeywell 51306975-150 Digital Input Module provides the corresponding input layer, enabling closed-loop verification of field device states against output commands, a critical requirement for SIL-rated ESD and BMS applications.

Power distribution across the I/O rack is managed by the Honeywell 51304485-150 Power Supply Module, which delivers regulated 24 VDC to all installed I/O modules including the 51306975-175, ensuring stable operation under varying load conditions. For systems requiring analog process variable monitoring alongside discrete safety outputs, the Honeywell 51109684-175 Analog Output Module and 51304516-150 Analog Input Module are installed in adjacent rack slots, sharing the same backplane communication bus and engineering configuration environment.

Network integration is achieved through the Honeywell FSC Gateway Module, which bridges the FSC backplane to plant-level DCS and SCADA systems via Modbus RTU or PROFIBUS DP protocols. This gateway enables real-time output status monitoring, remote diagnostics, and alarm forwarding to operator workstations running Honeywell Experion PKS or third-party HMI platforms. Field wiring to the 51306975-175 output channels is routed through Honeywell FTA (Field Termination Assembly) panels, which provide organized, labeled terminal blocks for solenoid valves, motor starters, and shutdown actuators, reducing commissioning time and supporting systematic loop testing during plant startup.

For installations requiring signal isolation between the FSC output layer and field devices operating at different voltage levels, dedicated signal isolator modules and surge protection terminal blocks are installed at the marshalling panel level, protecting the 51306975-175 output channels from transient overvoltage events common in petrochemical and power generation environments. The complete FSC platform — spanning CPU, power supply, digital I/O, analog I/O, communication gateway, FTA panels, and HMI integration — is configured and maintained through the FSC Engineering Tool (ET), providing a unified, version-controlled engineering environment across the full safety system lifecycle.

Oil & Gas and Petrochemical: The 51306975-175 is widely deployed in upstream and downstream oil and gas facilities as the output execution layer for emergency shutdown (ESD) systems controlling wellhead safety valves, pipeline isolation valves, and blowdown systems. In petrochemical plants, the module drives solenoid valves and motor-operated valves within HIPPS (High Integrity Pressure Protection Systems), where SIL 2/3 output integrity is a regulatory requirement under IEC 61511 and API 670 standards.

Power Generation: In thermal, combined-cycle, and nuclear power plants, the 51306975-175 serves as the output module for turbine protection systems, boiler management systems (BMS), and generator protection relays. Its de-energize-to-trip output logic aligns with fail-safe design principles required by power plant safety standards, ensuring that loss of power or module failure results in a safe state rather than a spurious or uncontrolled output condition.

Water and Wastewater Treatment: Municipal and industrial water treatment facilities deploy the 51306975-175 within FSC-based safety systems controlling chemical dosing pumps, high-pressure filtration systems, and UV disinfection shutdown circuits. The module's diagnostic transparency and modular replacement capability support the maintenance schedules of water utilities operating under continuous 24/7 production requirements.

Mining and Metallurgy: In mining operations and metal processing plants, the 51306975-175 controls conveyor belt emergency stops, crusher protection systems, and ventilation fan safety interlocks. Its robust operating temperature range and high diagnostic coverage make it suitable for the electrically demanding environments typical of underground mining and surface ore processing facilities.

Marine and Offshore: Offshore platform safety systems and marine vessel automation systems utilize the 51306975-175 within FSC architectures for fire and gas detection output control, ballast system safety interlocks, and engine room emergency shutdown circuits, where IEC 61508 SIL certification and compact modular design are essential for space-constrained control cabinet installations.

Q1: Is the Honeywell 51306975-175 compatible with both FSC and Safety Manager platforms? The 51306975-175 is designed for the Honeywell FSC (Fail-Safe Controller) I/O rack system. It is compatible with FSC CPU modules and the FSC backplane architecture. Integration with Honeywell Safety Manager is achieved at the system level through the FSC Gateway Module and shared engineering environment. For direct Safety Manager I/O compatibility, consult the Safety Manager I/O module catalog to confirm rack and backplane compatibility for your specific system revision.

Q2: Can the 51306975-175 be replaced online without shutting down the entire FSC system? The FSC architecture supports hot-swap I/O module replacement in redundant configurations where the output function is maintained by a parallel voted module. In 1oo2 or 2oo3 output architectures, the 51306975-175 can be removed and replaced while the redundant output channel maintains field device control. For simplex (non-redundant) output configurations, a controlled process hold or bypass procedure is required prior to module replacement, in accordance with the plant's Management of Change (MOC) and safety management system procedures. NANKMOS provides pre-tested replacement units with 12-Month Warranty to minimize system downtime during maintenance windows.

Q3: What is the lead time and stock availability for the Honeywell 51306975-175? NANKMOS maintains verified stock of the Honeywell 51306975-175 for immediate dispatch. Each unit undergoes pre-shipment functional testing including output channel verification, backplane communication validation, and power consumption measurement before packaging. Standard international shipping lead time is 3–7 business days depending on destination. All units are covered by a 12-Month Warranty from the date of shipment, with technical support available for installation, architecture compatibility verification, and commissioning assistance. Contact [email protected] or +86 18359268345 for stock confirmation and order processing.
