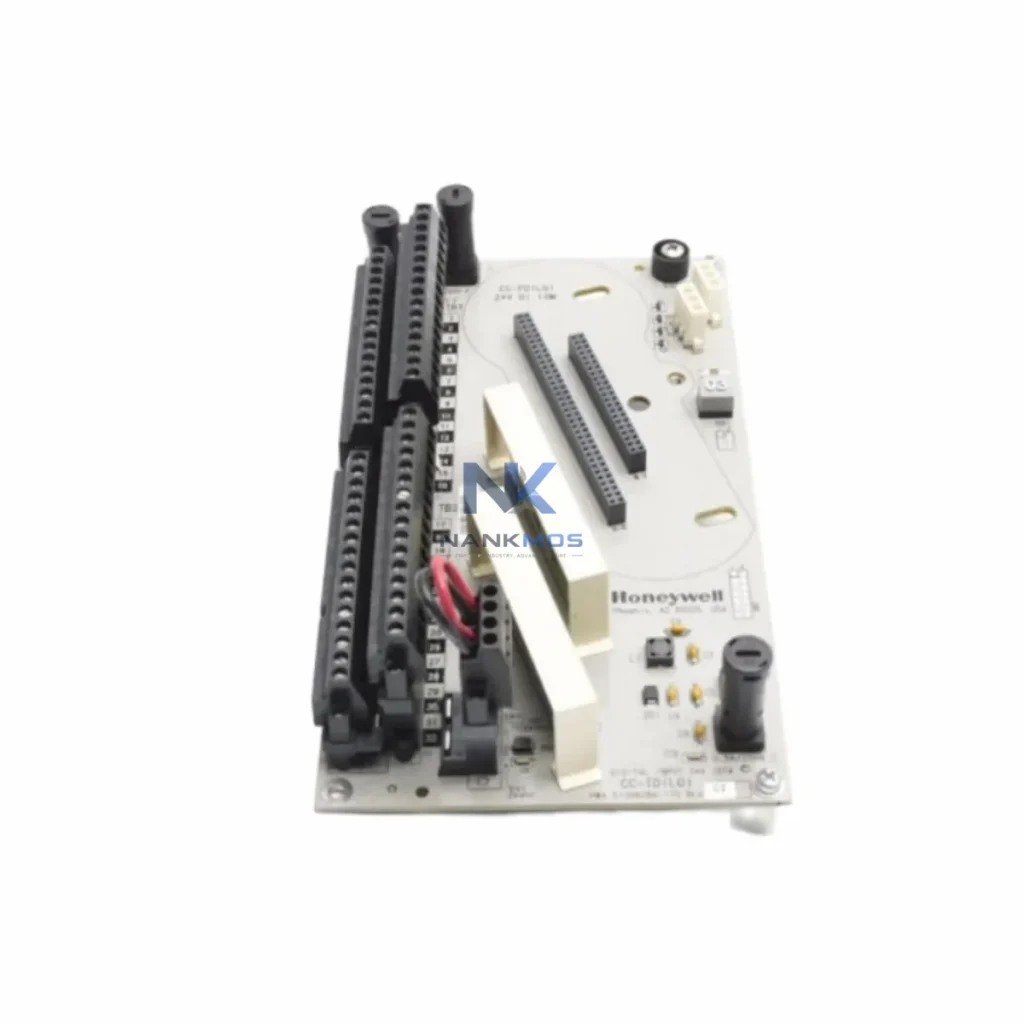

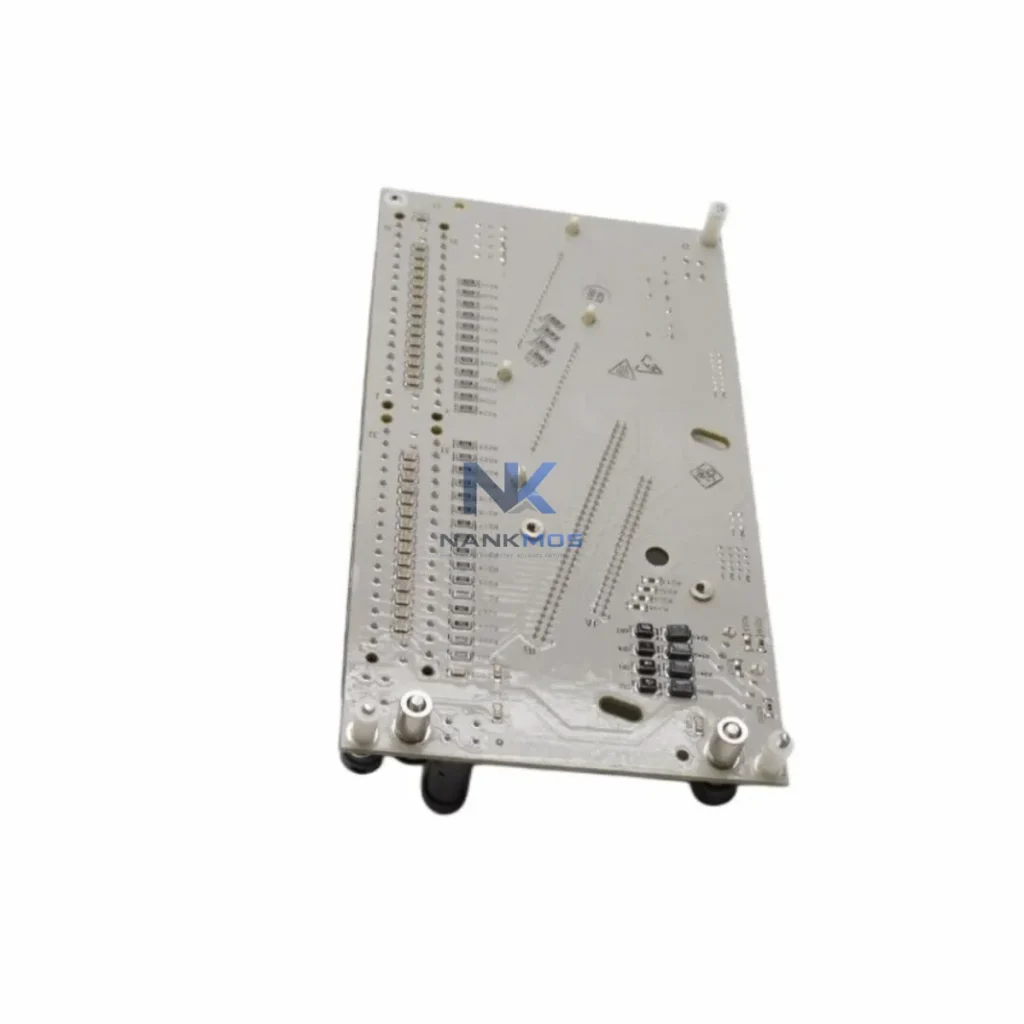

Honeywell 51308386-175 CC-TDIL01 DCS Digital Input Module

Product Details

51308386-175 CC-TDIL01 Product Description

The Honeywell 51308386-175 CC-TDIL01 is a high-integrity DCS Digital Input Module engineered for the Experion PKS (Process Knowledge System) control architecture. Designed to serve as a critical node in the industrial data chain, this module bridges field-level discrete signals with the supervisory and control layers of a smart factory environment. From signal acquisition at the sensor terminal to real-time data delivery at the SCADA dashboard, the CC-TDIL01 ensures that every digital state change is captured, validated, and transmitted with deterministic precision across the plant network.

In modern industrial automation sites, the integrity of digital input data is foundational to process safety, operational transparency, and remote diagnostics. The 51308386-175 CC-TDIL01 fulfills this role within the Honeywell C300 controller ecosystem, accepting discrete field signals from limit switches, proximity sensors, valve position feedback devices, and motor status contacts, then delivering structured data upstream through the Experion PKS FTE (Fault Tolerant Ethernet) backbone. This dual-redundant network architecture ensures that no single point of failure can interrupt the data flow between field devices and the control room.

When integrated alongside the Honeywell CC-TCNT01 Control Net Interface or the CC-PAIH01 Analog Input Module, the CC-TDIL01 participates in a coordinated I/O subsystem that supports both continuous process monitoring and event-driven alarm management. Field signals collected by the CC-TDIL01 are processed by the C300 controller, which then communicates upstream to Experion PKS servers running HMIWeb Display Builder for operator visualization. This seamless data path — from discrete field contact to HMI faceplate — is what enables plant operators to make informed decisions in real time without physical site visits.

The module's compatibility with the SCADA integration layer means that historians such as the Honeywell PHD (Process Historian Database) can archive every digital state transition for trend analysis, compliance reporting, and predictive maintenance workflows. When paired with the Experion PKS R500 or later server platforms, the CC-TDIL01 supports millisecond-level timestamping of input events, enabling root-cause analysis of process upsets and interlock activations with high temporal resolution.

For remote diagnostics, the CC-TDIL01 exposes module health, channel status, and communication quality metrics through the Experion PKS system diagnostic framework. Maintenance engineers accessing the system via Remote Desktop or Experion Station can interrogate individual channel states, verify wiring integrity, and confirm signal validity without dispatching field technicians. This capability is especially valuable in hazardous or geographically distributed plant environments where minimizing physical access reduces both cost and safety risk.

In smart factory deployments where edge computing is being introduced, the CC-TDIL01 can coexist with edge gateway devices — such as those running OPC-UA server stacks — that aggregate Experion PKS data and forward it to cloud-based analytics platforms or MES (Manufacturing Execution Systems). The digital input states captured by the CC-TDIL01 become part of a broader dataset that feeds machine learning models for anomaly detection, OEE (Overall Equipment Effectiveness) calculation, and automated work order generation.

The module is also compatible with Honeywell's Safety Manager integration pathways, where digital input states from the CC-TDIL01 can be cross-referenced with safety instrumented system (SIS) outputs to validate process interlocks and confirm safe-state conditions. This cross-system data validation is a key requirement in industries such as oil and gas, petrochemical, and power generation, where regulatory compliance demands documented proof of interlock integrity.

Every 51308386-175 CC-TDIL01 unit supplied by NANKMOS undergoes pre-shipment functional verification, including channel-by-channel input state testing and communication link validation against the Experion PKS backplane interface. Units are shipped with full traceability documentation and are covered by a 12-Month Warranty, ensuring that your automation infrastructure investment is protected from the moment of installation through the first year of operation. Stock is maintained for immediate dispatch, supporting both planned capital projects and urgent replacement requirements.

The CC-TDIL01 sits at the field interface layer of the Experion PKS data architecture, collecting discrete digital signals from plant floor devices and feeding them into the C300 controller's process execution engine. In a typical smart factory deployment, field devices such as inductive proximity sensors, mechanical limit switches, and solenoid valve position indicators connect directly to the CC-TDIL01's input terminals. The module digitizes these contact states and presents them to the C300 controller via the high-speed backplane bus, where control logic — including interlock sequences, permissive chains, and alarm conditions — is evaluated in real time.

Upstream from the C300 controller, the Honeywell CC-TCNT01 ControlNet Interface Module or the FTE switch infrastructure carries process data to the Experion PKS server cluster. At this layer, the Honeywell CC-PAIH01 Analog Input Module and CC-TAIX01 Thermocouple Input Module contribute continuous process variable data — temperature, pressure, flow — that is correlated with the discrete states captured by the CC-TDIL01 to build a complete process picture. Operators viewing the HMIWeb Display Builder interface see both analog trends and digital state indicators on unified process graphics, enabling rapid situational awareness.

For sites integrating variable frequency drives (VFDs) or motor control centers, the run/stop and fault status signals from drive units are typically wired into CC-TDIL01 input channels, providing the DCS with real-time motor status visibility. When a drive fault is detected, the CC-TDIL01 immediately propagates the state change to the C300 controller, which can trigger alarm annunciation on the Experion operator station and initiate an automated response sequence — such as switching to a standby pump — without operator intervention.

At the edge layer, OPC-UA gateway devices aggregate Experion PKS tag data — including the digital input states from the CC-TDIL01 — and publish them to cloud analytics platforms or on-premise MES systems. This enables production managers to monitor equipment availability, track interlock activation frequency, and generate shift reports from any networked device, extending the visibility of the CC-TDIL01's field data far beyond the control room boundary.

One of the most persistent challenges in industrial automation is the fragmentation of field data — where discrete signal states exist in isolation at the field level but never reach the supervisory systems where they can drive decisions. The CC-TDIL01 directly addresses this gap by providing a reliable, high-channel-density digital input interface that integrates natively with the Experion PKS data infrastructure, eliminating the need for intermediate signal converters or protocol bridges that introduce latency and failure points.

In sites where legacy hardwired I/O panels are being modernized, the CC-TDIL01 offers a direct migration path: existing field wiring can be re-terminated to the module's input terminals, and the signals immediately become available as named process tags within the Experion PKS tag database. This approach eliminates data silos that previously existed between standalone relay panels and the DCS, enabling full process transparency from field device to historian archive.

Remote monitoring challenges — particularly in unmanned substations, remote pump stations, or geographically distributed process units — are addressed through the CC-TDIL01's integration with Experion PKS remote diagnostic tools. Maintenance teams can verify channel health, confirm signal validity, and detect wiring faults from a central engineering workstation, reducing the frequency and cost of site visits while maintaining compliance with process safety requirements.

For alarm management, the CC-TDIL01's millisecond-level event timestamping capability enables precise sequence-of-events (SOE) reconstruction following process upsets. Rather than relying on operator logs or approximate timestamps, engineers can use the PHD Historian's SOE data to trace the exact sequence of digital state changes that preceded a trip or shutdown, accelerating root-cause analysis and reducing mean time to repair (MTTR).

System expansion is straightforward within the Experion PKS architecture: additional CC-TDIL01 modules can be added to existing C300 controller chassis without system downtime, and new input channels are automatically recognized by the Experion PKS configuration environment. This scalability ensures that the CC-TDIL01 remains a viable I/O solution as plant capacity grows and new field devices are commissioned.

Q1: What communication protocol does the Honeywell 51308386-175 CC-TDIL01 use, and is it compatible with third-party SCADA systems?The CC-TDIL01 communicates via the Experion PKS backplane bus and FTE (Fault Tolerant Ethernet) network, which is Honeywell's proprietary dual-redundant industrial Ethernet protocol. Native integration is with Experion PKS SCADA and HMI platforms. Third-party SCADA connectivity is achievable through OPC-DA or OPC-UA gateway servers that interface with the Experion PKS data layer, enabling data sharing with systems such as Wonderware, iFIX, or Ignition without modifying the core DCS configuration.

Q2: How does the CC-TDIL01 support remote diagnostics and predictive maintenance?The module exposes channel-level health metrics — including input state, signal validity, and communication status — through the Experion PKS diagnostic framework. Maintenance engineers can access this data remotely via Experion Station or OPC-UA clients, enabling proactive identification of wiring degradation, contact bounce issues, or communication anomalies before they escalate to process disruptions. Integration with the PHD Historian allows trend analysis of input state change frequency, supporting condition-based maintenance scheduling.

Q3: What is the network latency performance of the CC-TDIL01 within the Experion PKS architecture?Within the Experion PKS FTE network, the CC-TDIL01 delivers deterministic input scan performance consistent with the C300 controller's configured execution rate, typically in the range of 100–500 ms for standard process control applications. For sequence-of-events applications requiring higher temporal resolution, the module supports millisecond-level timestamping of digital input transitions, ensuring accurate SOE records for alarm analysis and regulatory reporting.

Q4: What warranty and pre-shipment testing does NANKMOS provide for the 51308386-175 CC-TDIL01?Every CC-TDIL01 unit supplied by NANKMOS is covered by a 12-Month Warranty from the date of shipment. Prior to dispatch, each unit undergoes functional verification including channel-by-channel input state testing and backplane communication validation. Units are shipped with traceability documentation confirming test results. In-stock units are available for immediate dispatch to support both planned project timelines and urgent replacement requirements.
