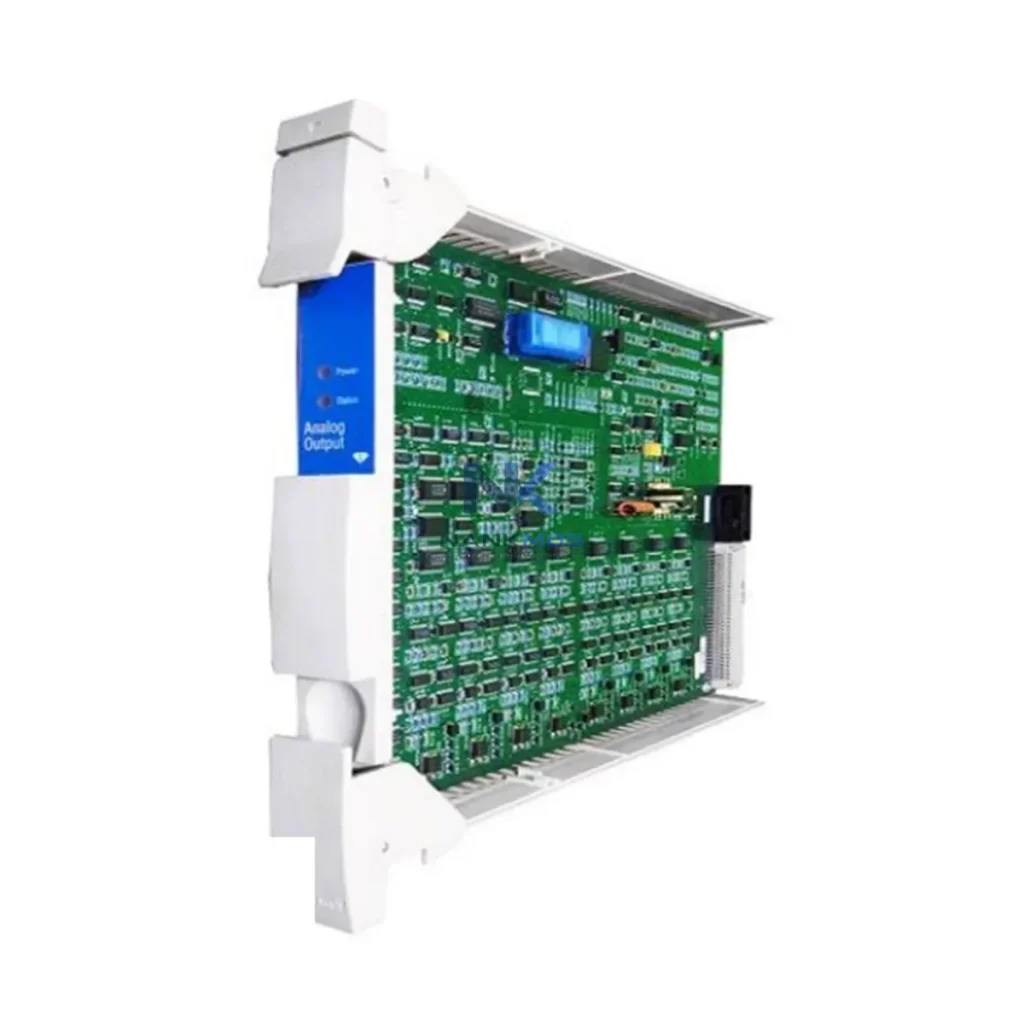

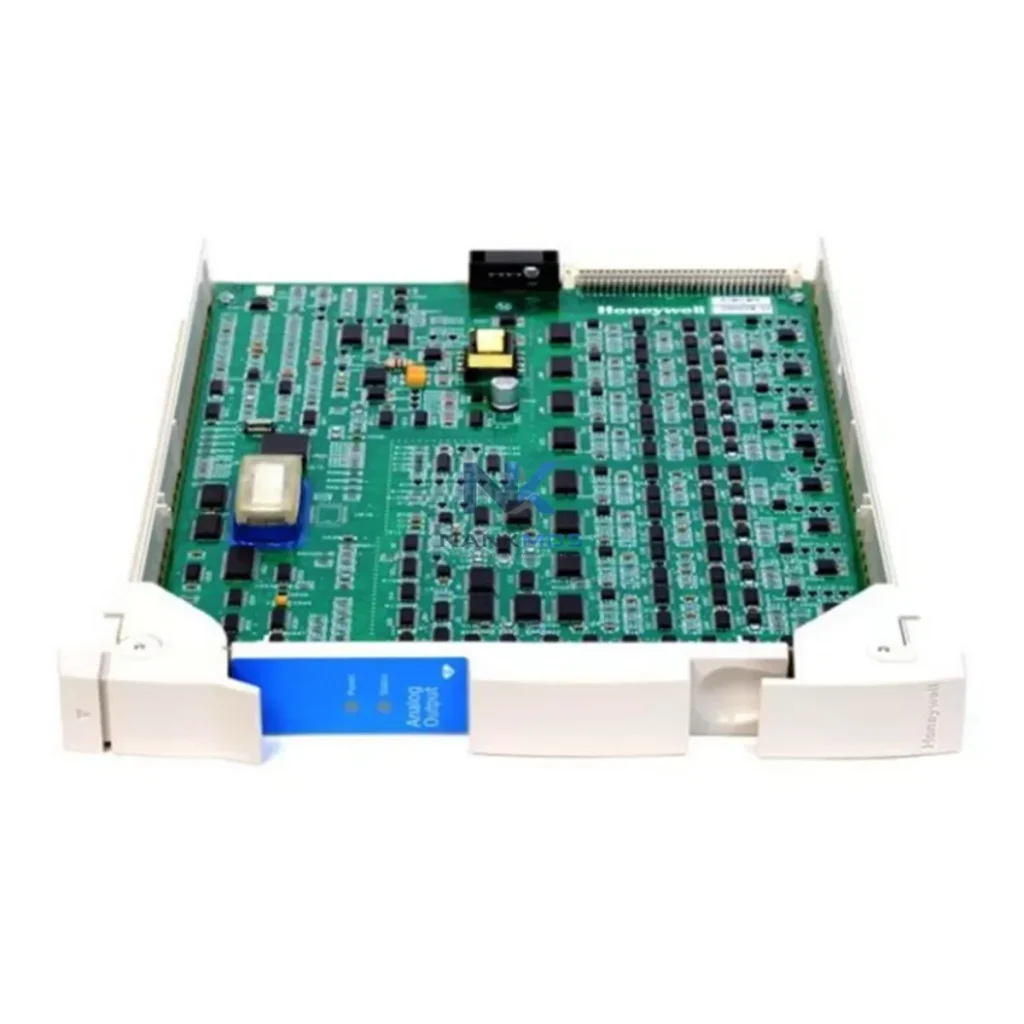

Honeywell 51309152-175 MC-PAOX03 Analog Output Module

Product Details

51309152-175 MC-PAOX03 Product Description

The Honeywell 51309152-175 MC-PAOX03 is a high-precision analog output module engineered for the Honeywell TDC 3000 and Experion PKS distributed control systems. Designed to deliver stable, low-drift 4–20 mA analog signals to field actuators, control valves, and variable-speed drives, this module plays a central role in energy-efficient process automation. By providing accurate, real-time output signals to downstream equipment, the MC-PAOX03 enables tighter loop control, reduced energy waste, and improved production line throughput across oil and gas, chemical, power generation, water treatment, and advanced manufacturing facilities.

In a modern energy-optimized production environment, the MC-PAOX03 analog output module functions as the precision command interface between the control system and the physical process. When integrated with the Honeywell TDC 3000 High-Performance Process Manager (HPM), the module receives setpoint commands from the process controller and translates them into accurate 4–20 mA signals that drive control valves, damper actuators, and variable-frequency drives (VFDs) with minimal signal latency. This tight integration eliminates unnecessary actuator travel, directly reducing mechanical wear and the energy consumed by over-driven field devices.

The MC-PAOX03 pairs seamlessly with the Honeywell MC-TAIX03 Analog Input Module, which feeds real-time process measurements — temperature, pressure, flow, and level — back into the control loop. Together, these two modules form a closed-loop energy management circuit: the input module reads actual process conditions, the controller calculates the optimal output, and the MC-PAOX03 delivers the corrected signal to the actuator. This feedback architecture is fundamental to reducing energy waste caused by sustained deviation from setpoint.

For drive-intensive applications, the MC-PAOX03 output signal is commonly wired to ABB ACS880 or Siemens SINAMICS G120 variable-frequency drives, where the 4–20 mA command directly governs motor speed. By enabling precise speed modulation rather than fixed-speed operation, the system eliminates throttling losses in pump and fan circuits — one of the largest sources of avoidable energy consumption in process plants. The result is measurable reduction in kWh consumption per production unit.

Within the Experion PKS architecture, the MC-PAOX03 communicates over the Honeywell UCN (Universal Control Network) backplane, ensuring deterministic, low-jitter signal delivery to all output channels. This deterministic behavior is critical when coordinating multi-axis motion or multi-loop energy balancing across a production cell. The module also works in conjunction with the Honeywell MC-PDOX03 Digital Output Module for hybrid control strategies that combine discrete switching with analog modulation — for example, enabling a pump motor via digital output while simultaneously ramping its VFD speed via the MC-PAOX03 analog channel.

For facilities running SCADA-level energy monitoring, the MC-PAOX03 output data is logged through the Honeywell Experion PKS Server and visualized on Honeywell HMIWeb Display Builder operator stations. Operators can monitor real-time output values, identify channels operating at saturation (indicating potential loop tuning issues or equipment degradation), and take corrective action before energy waste escalates. Integration with Honeywell PHD (Process Historian Database) enables long-term trending of output utilization, supporting energy audits and ISO 50001 compliance reporting.

The module also interfaces with Honeywell MC-TDOY22 Digital Output Modules and Honeywell FSC (Fail-Safe Controller) safety systems in SIL-rated applications, ensuring that energy control actions remain within safe operating envelopes even during abnormal process conditions. This safety-energy integration prevents runaway actuator commands that could cause thermal overload, equipment damage, or unplanned shutdowns — all of which carry significant energy and productivity penalties.

The Honeywell 51309152-175 MC-PAOX03 contributes to factory energy optimization at multiple levels of the production hierarchy. At the field level, its 12-bit resolution output ensures that control valves and actuators receive commands accurate to within 0.025% of full scale, eliminating the coarse stepping that causes valve hunting — a phenomenon where imprecise analog signals cause a control valve to oscillate around its setpoint, consuming excess energy and accelerating mechanical wear. By eliminating hunting, the MC-PAOX03 directly extends actuator service life and reduces maintenance-related downtime.

At the loop level, the module's low output drift (typically less than 0.1% per year) means that calibrated control loops remain accurate over extended production campaigns without requiring frequent field recalibration. This stability is particularly valuable in energy-intensive processes such as distillation column control, boiler feedwater regulation, and compressed air pressure management, where even small sustained deviations from setpoint translate into measurable energy losses over time.

At the plant level, the MC-PAOX03 supports demand-side energy management by enabling the Experion PKS controller to implement load-shedding strategies during peak tariff periods. By modulating the output signals to non-critical actuators — reducing pump speeds, lowering heating setpoints, or throttling cooling flows — the control system can shift energy consumption away from peak demand windows without interrupting production. This capability directly reduces electricity costs and supports corporate sustainability targets.

Predictive maintenance integration is another key energy benefit. By monitoring the relationship between commanded output (from the MC-PAOX03) and actual process response (from paired analog input modules), the Experion PKS system can detect early signs of actuator degradation — such as increased hysteresis or reduced response speed — before they cause process upsets. Early detection allows maintenance teams to schedule interventions during planned downtime rather than responding to emergency failures, preserving both energy efficiency and production throughput.

All MC-PAOX03 units supplied by NANKMOS are sourced from verified industrial channels, subjected to pre-shipment functional testing across all 8 output channels, and covered by a 12-Month Warranty. Stock is maintained for immediate dispatch, minimizing lead times for urgent MRO and capital project requirements.

Q1: What energy savings can I expect by upgrading to the MC-PAOX03 from an older analog output module? The MC-PAOX03's 12-bit resolution and low drift specification reduce valve hunting and actuator overcorrection compared to older 8-bit or uncalibrated modules. In pump and compressor applications, eliminating hunting typically reduces motor energy consumption by 3–8% and extends actuator service intervals by 20–40%, depending on process conditions and loop tuning quality.

Q2: Is the MC-PAOX03 compatible with both TDC 3000 and Experion PKS platforms? Yes. The 51309152-175 MC-PAOX03 is designed for the Honeywell MC-series I/O family and is compatible with both the legacy TDC 3000 High-Performance Process Manager (HPM) and the current Experion PKS C300/C200 controller platforms via the appropriate I/O Link interface. Always verify the specific backplane and I/O Link revision with your system documentation before installation.

Q3: What is the recommended replacement or cross-reference for the MC-PAOX03 if it is discontinued? For new Experion PKS installations, Honeywell recommends migrating to the EPKS Series C I/O platform. However, for existing TDC 3000 and early Experion systems, the MC-PAOX03 remains the correct form-fit-function replacement. NANKMOS maintains stock of tested MC-PAOX03 modules to support ongoing MRO requirements. Contact our team for availability and lead time confirmation.

Q4: What does the 12-Month Warranty cover, and how is pre-shipment testing conducted? Every MC-PAOX03 unit supplied by NANKMOS undergoes pre-shipment functional testing that verifies output signal accuracy across all 8 channels at 0%, 25%, 50%, 75%, and 100% of the 4–20 mA range. The 12-Month Warranty covers manufacturing defects and functional failures under normal operating conditions. Units that fail in service within the warranty period are replaced or repaired at no charge. Contact [email protected] for warranty claims and RMA processing.
