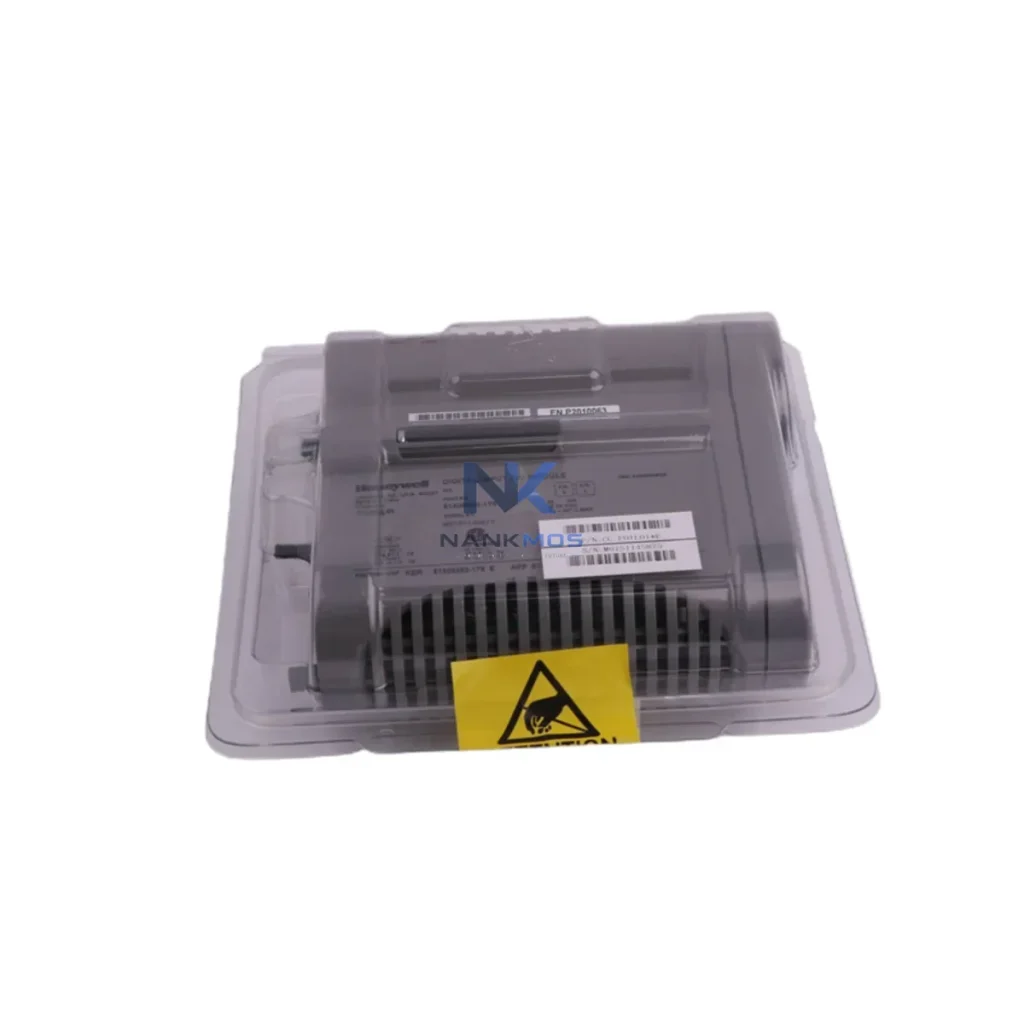

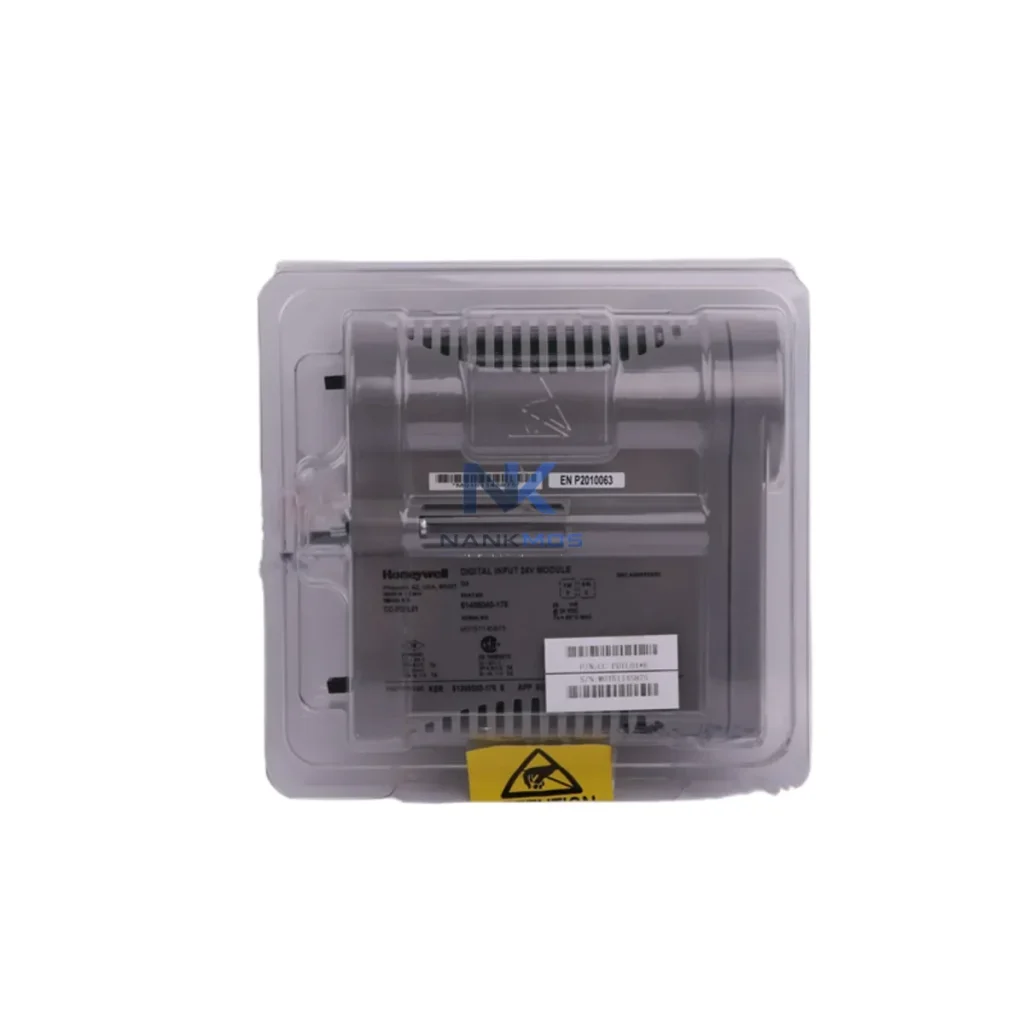

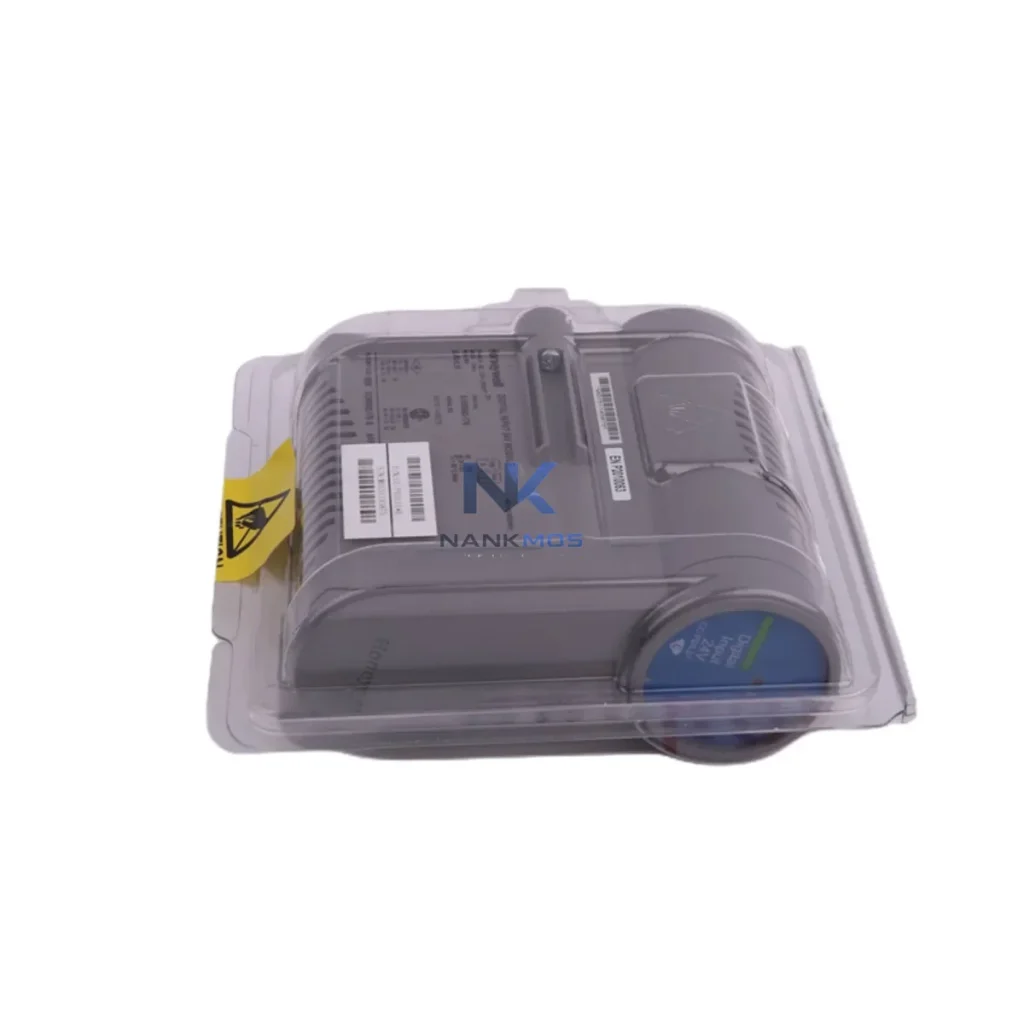

Honeywell 51405040-175 CC-PDIL01 DCS Digital Input Module

Product Details

51405040-175 CC-PDIL01 Product Description

The Honeywell CC-PDIL01 (Part No. 51405040-175) is a high-density digital input module engineered for seamless integration within the Honeywell Experion PKS C300 distributed control system architecture. Designed to operate as a core I/O layer component, this module delivers reliable discrete signal acquisition across demanding industrial environments — from continuous process plants and power generation facilities to petrochemical complexes and water treatment infrastructure. Its role within the C300 platform extends beyond simple signal termination: the CC-PDIL01 participates actively in the system's redundancy framework, diagnostic reporting pipeline, and modular expansion strategy, making it an indispensable element of any well-engineered Experion control architecture.

Within the layered control hierarchy of the Experion PKS platform, the CC-PDIL01 occupies the I/O layer — interfacing field-level discrete signals with the C300 Controller's process execution engine. Each channel provides optically isolated digital input acquisition, ensuring signal integrity even in electrically noisy industrial environments. The module communicates with the C300 Controller over the C300's internal I/O Link, a deterministic, high-speed backplane bus that guarantees low-latency data delivery to the control strategy. This architecture eliminates the signal jitter and communication overhead associated with external fieldbus-based I/O, enabling tighter loop control and faster fault response across the entire automation platform.

System architects deploying the CC-PDIL01 benefit from its native compatibility with the Honeywell Series C I/O family. In a typical C300 cabinet, the module is installed on a Series C I/O FTA (Field Termination Assembly) carrier, such as the CC-TAIX11 or CC-TAIX51, which provides screw-terminal field wiring access without disturbing the module itself during maintenance. This plug-and-replace design supports hot-swap capability, allowing field engineers to replace a faulty CC-PDIL01 without shutting down the associated control loop — a critical advantage in continuous-process industries where unplanned downtime carries significant operational cost.

The CC-PDIL01 achieves its full operational value when deployed as part of a cohesive Experion PKS automation platform. In a complete C300-based control architecture, the module works in concert with the Honeywell C300 Controller — the platform's primary process execution engine — which manages scan cycles, control strategy execution, and I/O data aggregation across all connected Series C modules. Power distribution to the I/O subsystem is handled by the Honeywell CC-PWR001 or CC-PWR002 power supply modules, which provide regulated 24 VDC rail power to the I/O carrier assemblies, ensuring stable operating voltage for the CC-PDIL01's input circuits even under varying field load conditions.

For applications requiring digital output capability alongside the CC-PDIL01's input channels, system designers typically pair it with the Honeywell CC-PDOB01 digital output module, creating a balanced I/O subsystem capable of both discrete signal acquisition and field device actuation within the same cabinet section. Analog signal processing is handled by companion modules such as the CC-PAIH01 analog input module and the CC-PAOH01 analog output module, which extend the C300 platform's measurement and control reach to continuous process variables including flow, pressure, temperature, and level.

Communication layer integration is managed through the Honeywell EPLCG001 or compatible Ethernet gateway modules, which bridge the C300's internal I/O Link to plant-level Ethernet networks supporting OPC-DA, OPC-UA, and Modbus TCP protocols. For redundant network topologies, the platform supports dual-ring Ethernet configurations using industrial-grade managed switches, ensuring that a single network fault does not interrupt supervisory data flow between the Experion Station and the C300 controller cluster. HMI visibility of CC-PDIL01 channel states is delivered through the Honeywell Experion Station operator interface, where each digital input point is mapped to a process graphic object with real-time status, alarm annunciation, and historical trend logging.

In marshalling-intensive applications, the CC-PDIL01 is frequently deployed alongside Honeywell CC-TAIX11 field termination assemblies and CC-SCMB02 signal conditioning modules, which provide surge protection, signal filtering, and terminal block organization for field cable termination. For safety-instrumented system integration, the C300 platform supports coordinated operation with Honeywell Safety Manager controllers via the FSC Gateway, enabling the CC-PDIL01's digital input data to participate in safety logic validation workflows without requiring separate field wiring infrastructure.

Petrochemical & Refinery Process Control: In continuous hydrocarbon processing facilities, the CC-PDIL01 acquires discrete status signals from motor control centers, valve position limit switches, pressure switch contacts, and emergency shutdown relay outputs. Its optical isolation prevents ground loop interference from high-voltage motor circuits from corrupting the digital input signal chain, maintaining data integrity across the C300 controller's process execution cycle. The module's hot-swap capability supports turnaround maintenance schedules without requiring full DCS shutdown.

Power Generation & Utility Automation: Combined-cycle power plants and utility substations deploy the CC-PDIL01 to monitor breaker status, transformer tap positions, generator protection relay outputs, and auxiliary equipment run/stop feedback. The module's deterministic I/O Link communication ensures that protection-critical status changes are reflected in the C300 controller's scan cycle within the required response time window, supporting fast load-shedding and grid synchronization logic.

Water & Wastewater Treatment: Municipal water treatment facilities use the CC-PDIL01 to monitor pump run status, valve open/close confirmation, level switch contacts, and chemical dosing system interlocks. The module's wide operating temperature range and humidity tolerance make it suitable for installation in outdoor marshalling enclosures and pump station control panels where environmental conditions are less controlled than in central control rooms.

Mining & Minerals Processing: Ore processing and mineral extraction operations deploy the CC-PDIL01 within conveyor control systems, crusher interlock circuits, and flotation cell monitoring panels. The module's channel-level diagnostic capability allows maintenance engineers to identify individual failed input channels without removing the module from service, reducing diagnostic time and minimizing production impact during fault investigation.

Packaging & Discrete Manufacturing: High-speed packaging lines and assembly automation systems use the CC-PDIL01 to acquire machine cycle signals, part-present sensor outputs, safety gate status, and reject mechanism feedback. Integration with the C300 controller's sequence control function blocks enables coordinated multi-axis machine control with deterministic I/O response times compatible with production line cycle rates.

Q1: Is the CC-PDIL01 (51405040-175) compatible with both redundant and non-redundant C300 controller configurations? Yes. The CC-PDIL01 operates in both simplex and redundant C300 controller architectures. In a redundant C300 configuration, the module's I/O Link data is accessible to both the primary and secondary C300 controllers simultaneously, ensuring that a controller failover event does not interrupt digital input data acquisition. The FTA carrier assembly supports dual I/O Link connections for redundant controller pairing without requiring additional field wiring changes. This makes the CC-PDIL01 a suitable choice for high-availability process control applications where controller redundancy is a system design requirement.

Q2: What field termination assembly (FTA) is required for the CC-PDIL01, and can existing FTA wiring be reused when replacing a module? The CC-PDIL01 is designed for use with Honeywell Series C FTA carriers, including the CC-TAIX11 (non-isolated) and CC-TAIX51 (isolated) termination assemblies. The FTA remains mounted in the cabinet during module replacement — field wiring connected to the FTA terminal blocks does not need to be disturbed when swapping the CC-PDIL01 module itself. This plug-and-replace design significantly reduces replacement time and eliminates the risk of wiring errors during maintenance. All units supplied by NANKMOS are tested against FTA interface specifications prior to shipment and covered by a 12-Month Warranty.

Q3: What is the lead time and warranty coverage for the CC-PDIL01 51405040-175, and how is long-term spare parts availability managed? NANKMOS maintains in-stock inventory of the CC-PDIL01 (51405040-175) to support immediate dispatch requirements for both planned maintenance programs and emergency replacement scenarios. All units undergo functional testing and visual inspection prior to shipment. Each module is covered by a 12-Month Warranty against manufacturing defects and functional failures under normal operating conditions. For customers managing long-term spare parts programs for Experion PKS installations, NANKMOS offers volume procurement and consignment stocking arrangements to ensure continuous availability of critical I/O modules throughout the operational lifecycle of the control system. Contact [email protected] or +86 18359268345 for availability confirmation and lead time quotation.
