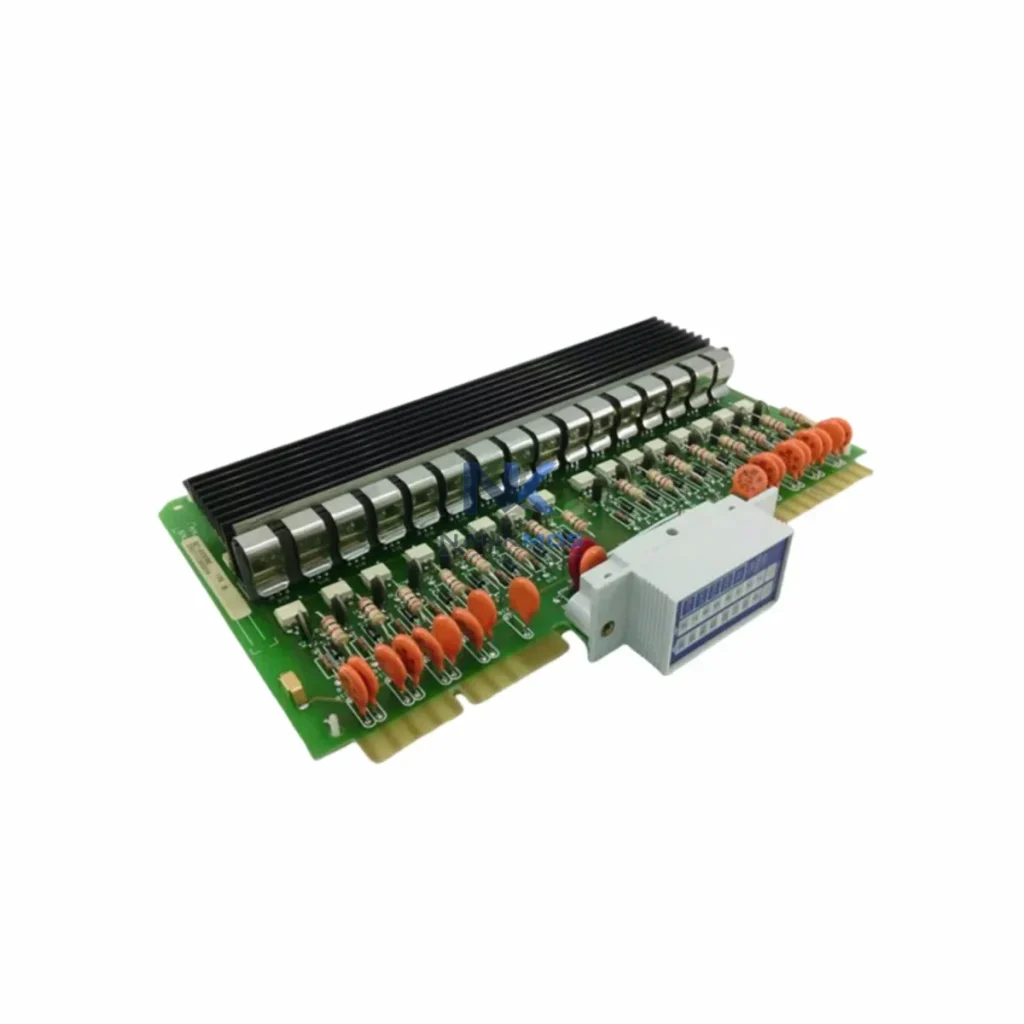

Honeywell 621-6550RC Output Module

Product Details

621-6550RC Product Description

The Honeywell 621-6550RC is a system-ready output module engineered for seamless integration within the Honeywell 621 Series programmable logic controller platform. Designed to serve as a reliable discrete output interface at the I/O layer of a distributed control architecture, the 621-6550RC delivers consistent signal switching performance, modular rack compatibility, and long-term operational stability across demanding industrial environments. Whether deployed in a standalone control cabinet or as part of a multi-rack, redundant automation system, this module supports the structural integrity and scalability that modern industrial facilities require.

In the context of a complete automation architecture, the 621-6550RC occupies a critical position at the field output layer — translating CPU-generated control logic into discrete switching actions that drive actuators, solenoids, motor starters, indicator lamps, and relay coils. Its role is not isolated; it functions as a coordinated node within a layered system that spans the control layer, I/O layer, communication layer, power layer, HMI layer, execution layer, protection layer, and maintenance layer. Understanding this system-level context is essential for engineers specifying, commissioning, or maintaining 621 Series-based installations.

The 621-6550RC achieves its full operational value when deployed as part of a coherent, multi-layer automation platform. At the control layer, the Honeywell 621 Series CPU module — such as the 621-0020 or 621-0010 processor — executes the ladder logic or function block programs that generate the discrete output commands routed to the 621-6550RC. The CPU communicates with I/O modules via the 621 Series backplane bus, ensuring deterministic scan-cycle timing and reliable output state updates.

At the power layer, the 621-6500 or equivalent 621 Series power supply module provides regulated DC power to the rack, ensuring that all installed I/O modules — including the 621-6550RC — operate within their specified voltage and current envelopes. Proper power budgeting across the rack is essential when multiple output modules are installed simultaneously, particularly in high-density I/O configurations where relay coil inrush currents must be accounted for.

For input signal acquisition, the 621-6550RC works in tandem with discrete input modules such as the 621-6400 series, which capture field-level digital signals from limit switches, proximity sensors, and pushbuttons. The CPU processes these inputs and generates corresponding output commands delivered through the 621-6550RC to field actuators, completing the closed-loop control cycle. Analog I/O modules within the 621 platform — such as the 621-6700 series analog input or 621-6800 series analog output modules — extend the system's capability to handle process variables such as temperature, pressure, and flow, enabling integrated discrete-plus-analog control strategies within a single rack architecture.

At the communication layer, the 621 Series supports integration with supervisory systems via serial communication modules and gateway interfaces. When connected to a SCADA platform through a 621 Series communication module supporting Modbus RTU or proprietary Honeywell protocols, the output states of the 621-6550RC become visible and controllable from the supervisory level, enabling remote diagnostics, alarm management, and production reporting. HMI panels — whether Honeywell-native or third-party units connected via RS-232/RS-485 — can display real-time output status, providing operators with immediate visibility into field device states driven by the 621-6550RC.

In redundant architecture designs, the 621 Series supports hot-standby CPU configurations where a secondary processor monitors the primary and assumes control in the event of a fault. In such configurations, the 621-6550RC output module remains active on the shared I/O rack, ensuring that field output continuity is maintained during CPU switchover events. This redundancy capability is critical in applications where unplanned output interruptions could result in process upsets, equipment damage, or safety incidents.

Terminal modules and wiring accessories compatible with the 621 Series rack system simplify field wiring to the 621-6550RC's relay contacts, reducing installation time and minimizing wiring errors during commissioning. Proper labeling, cable management, and terminal torque specifications should be observed to ensure long-term connection integrity in vibration-prone environments.

Manufacturing & Discrete Production Lines: In automotive assembly, electronics manufacturing, and general discrete production environments, the 621-6550RC drives conveyor motor starters, pneumatic valve solenoids, and machine cycle indicators. Its relay contact output type provides electrical isolation between the PLC control circuit and the field load circuit, protecting the CPU and backplane from voltage transients generated by inductive loads.

Power Generation & Electrical Utilities: In power plant auxiliary systems and substation automation, the 621-6550RC controls circuit breaker trip/close coils, alarm annunciators, and interlock relay circuits. The module's relay output architecture is well-suited to the high-reliability, low-duty-cycle switching demands of electrical utility control panels, where output state integrity and contact reliability are paramount.

Petrochemical & Refinery Process Control: In process plant applications, the 621-6550RC interfaces with shutdown valve solenoids, pump motor starters, and process interlock circuits. When integrated into a safety-instrumented system architecture, the module's output states are monitored by the SCADA layer to verify that field devices respond correctly to control commands, supporting process safety management requirements.

Water & Wastewater Treatment: Municipal water treatment facilities deploy the 621-6550RC to control pump station motor starters, chemical dosing pump relays, and UV disinfection system enable circuits. The module's compatibility with the 621 Series rack system allows water utility operators to standardize on a single PLC platform across multiple pump stations, simplifying spare parts inventory and maintenance training.

Mining, Metallurgy & Heavy Industry: In mining conveyor systems, ore processing plants, and steel mill auxiliary drives, the 621-6550RC provides robust discrete output control in environments characterized by high vibration, dust, and electrical noise. The relay contact output type ensures reliable switching of high-current motor control circuits without signal degradation from electromagnetic interference.

Packaging & Material Handling: In high-speed packaging lines and automated warehousing systems, the 621-6550RC controls reject gate solenoids, diverter actuators, and conveyor zone enable relays. Its integration within the 621 Series platform allows packaging line engineers to implement coordinated multi-zone control strategies with deterministic output timing referenced to the CPU scan cycle.

Q1: Is the Honeywell 621-6550RC compatible with all 621 Series rack configurations, and can it be mixed with other I/O module types in the same rack? Yes. The 621-6550RC is designed for slot-based installation in standard 621 Series I/O racks and is fully compatible with mixed-module rack configurations. It can be installed alongside discrete input modules, analog I/O modules, and communication modules within the same rack, provided that the rack's power supply budget accommodates the combined current draw of all installed modules. Engineers should consult the 621 Series rack power specification and perform a power budget calculation before finalizing the rack configuration. NANKMOS supplies the 621-6550RC with a 12-Month Warranty and provides pre-shipment functional testing to verify module operability prior to delivery.

Q2: What are the key considerations for commissioning the 621-6550RC in a redundant CPU architecture, and how does the module behave during a CPU switchover event? In a 621 Series redundant CPU configuration, the 621-6550RC resides on the shared I/O rack and is accessible to both the primary and standby CPU modules. During normal operation, the primary CPU controls output states via the backplane bus. Upon a detected CPU fault, the standby processor assumes control and resumes output command execution within the switchover time specified by the 621 Series redundancy module. The 621-6550RC's relay contacts maintain their last commanded state during the switchover interval, which engineers must account for in the application's safety and process continuity analysis. Contextual Integration of the redundancy module, I/O rack, and output modules should be validated during factory acceptance testing before site deployment.

Q3: How does NANKMOS ensure the long-term availability and quality of the Honeywell 621-6550RC, and what does the 12-Month Warranty cover? NANKMOS maintains dedicated inventory of the Honeywell 621-6550RC to support both new system builds and long-term maintenance requirements for installed 621 Series systems. Each unit undergoes pre-shipment functional testing to verify relay contact operation, backplane interface integrity, and module identification. The 12-Month Warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. Warranty claims are processed through NANKMOS's technical support team at [email protected]. For projects requiring extended lead-time security or multi-unit procurement, NANKMOS offers inventory reservation arrangements to ensure supply continuity for critical automation infrastructure.
