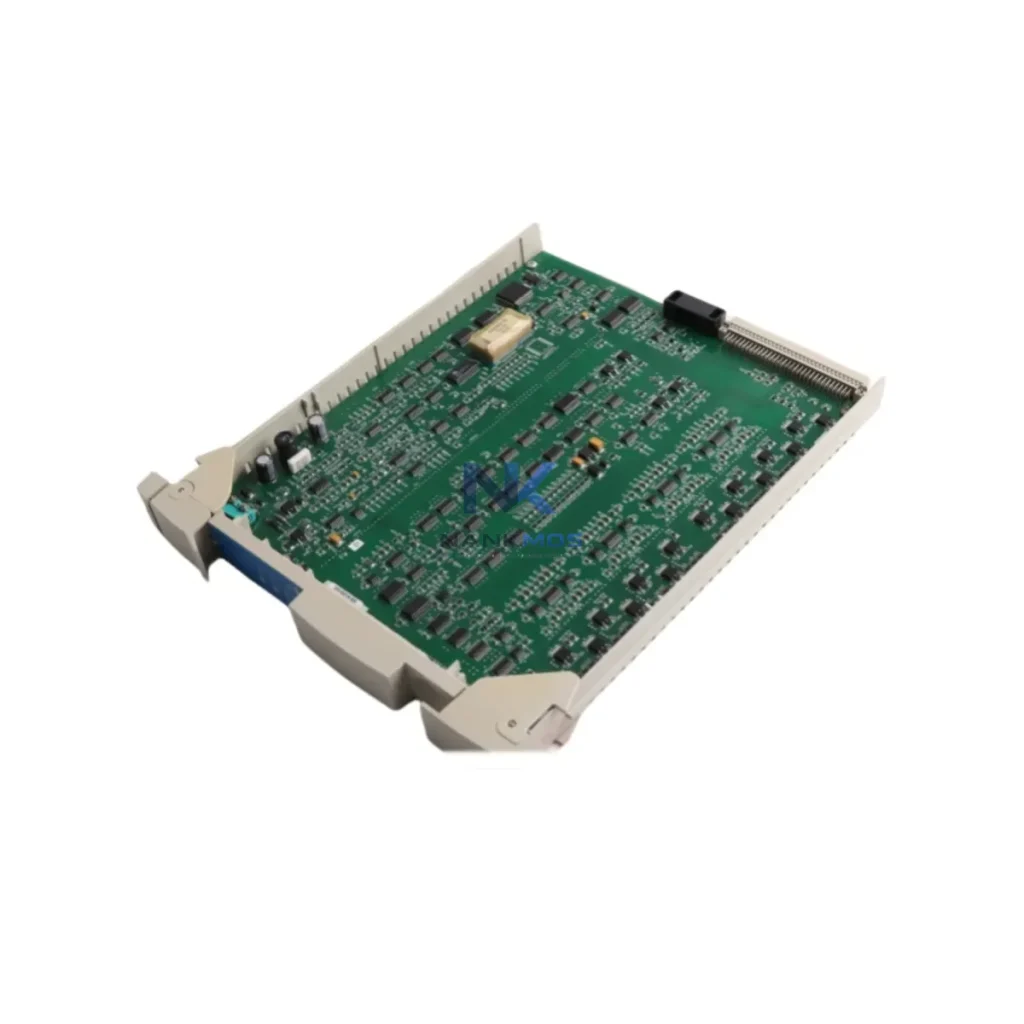

Honeywell 80363969-150MC-PAOY22 Analog Output Module

Product Details

80363969-150MC-PAOY22 Product Description

The Honeywell 80363969-150MC-PAOY22 is a high-density analog output module engineered for deployment within the HC900 Process and Safety Controller platform — one of Honeywell's most widely adopted distributed control architectures in continuous process industries. Its role within the control hierarchy is unambiguous: it occupies the I/O layer, translating digital control commands from the CPU into precise analog signals that drive field actuators, control valves, variable-frequency drives, and positioners.

In a fully integrated HC900 architecture, the 80363969-150MC-PAOY22 operates in close coordination with the HC900 CPU module (such as the HC900 C50 or C70 controller), which executes the control strategy and issues output commands via the rack backplane. The backplane communication ensures deterministic, low-latency signal delivery — a critical requirement in process control loops where output response time directly affects loop stability and product quality. The module's 22-channel density makes it particularly well-suited for large-scale process units where multiple analog output loops must be managed within a compact rack footprint.

Power integrity for the 80363969-150MC-PAOY22 is maintained through the HC900 rack power supply module, which provides regulated DC power across all I/O slots. In redundant architectures, a secondary power supply module can be installed in parallel to eliminate single-point power failure — a configuration commonly adopted in critical process applications such as refinery distillation columns or chemical reactor control systems. The power layer's stability directly underpins the analog output accuracy of this module, as voltage fluctuations at the backplane level can introduce offset errors in the 4–20 mA output loops.

Signal conditioning and field wiring are managed through HC900-compatible terminal modules and marshalling panels, which provide the physical interface between the module's output terminals and the field cable infrastructure. In installations where signal isolation is required — for example, when driving actuators located in electrically noisy environments or across long cable runs — signal isolators or loop-powered barriers can be inserted between the module output and the field device without disrupting the HC900 rack architecture.

At the communication layer, the HC900 system supports Ethernet-based supervisory connectivity, allowing the 80363969-150MC-PAOY22's output status and diagnostic data to be monitored in real time from Honeywell's HC Designer engineering workstation or from third-party SCADA platforms via OPC-DA or OPC-UA server interfaces. This supervisory visibility enables operators to verify analog output values against setpoints, detect loop deviations, and initiate corrective actions without physical access to the control cabinet — a significant advantage in remote or hazardous-area installations.

For HMI integration, the HC900 platform interfaces natively with Honeywell's Station series operator interfaces and is also compatible with third-party HMI panels running industry-standard communication drivers. Operators can monitor individual channel output values, acknowledge alarms triggered by out-of-range output conditions, and adjust setpoints directly from the HMI layer — all while the 80363969-150MC-PAOY22 continues to execute its output function without interruption.

In multi-rack HC900 configurations, remote I/O expansion racks extend the system's I/O capacity beyond the local rack, with the 80363969-150MC-PAOY22 deployable in both local and remote rack positions. Remote rack communication is handled via the HC900 remote I/O scanner module, which maintains synchronised data exchange between the CPU and all remote I/O modules across the system. This architecture supports modular plant expansion — additional process units can be brought online by adding remote racks without modifying the existing CPU or network infrastructure.

Related modules and components commonly deployed alongside the 80363969-150MC-PAOY22 in HC900 architectures include the HC900 analog input modules (PAIY series) for closed-loop feedback, HC900 digital output modules (PDOY series) for discrete actuator control, HC900 digital input modules (PDIY series) for status monitoring, HC900 communication gateway modules for Modbus RTU or PROFIBUS DP field device integration, and HC900 redundancy modules for CPU and I/O fault tolerance. Together, these components form a cohesive, layered control architecture capable of managing complex, multi-variable process control strategies with high reliability and minimal maintenance overhead.

The 80363969-150MC-PAOY22 finds application across a broad spectrum of process industries where precise analog output control is a fundamental operational requirement.

In petrochemical and refinery operations, the module drives control valves in distillation column reflux loops, reactor feed flow controllers, and heat exchanger bypass valves — applications where output accuracy and loop stability are directly linked to product yield and energy efficiency. The HC900 platform's ability to execute advanced process control (APC) strategies, including cascade and feedforward control, relies on the analog output module's ability to deliver precise, repeatable output signals to the final control elements.

In power generation and utilities, the module is deployed in boiler combustion control systems, turbine governor control loops, and cooling water flow regulation — environments where output reliability and fail-safe behaviour are non-negotiable. The HC900's support for safety instrumented system (SIS) integration allows the 80363969-150MC-PAOY22 to operate within architectures that include independent safety shutdown layers, ensuring that process upsets do not propagate to equipment damage or personnel hazard.

In water and wastewater treatment, the module controls dosing pump speed references, aeration blower output, and filter backwash valve positioning — applications characterised by continuous operation, variable load profiles, and stringent regulatory compliance requirements. The module's multi-channel density reduces panel space requirements and simplifies cable management in water treatment facilities where control cabinet real estate is often constrained.

In mining and metallurgy, the 80363969-150MC-PAOY22 is used in ore processing control systems, flotation cell level control, and smelter temperature regulation — harsh environments where module robustness and long-term reliability are critical. The HC900 platform's diagnostic capabilities allow maintenance teams to identify degraded output channels before they cause process disruptions, supporting predictive maintenance programmes that reduce unplanned downtime.

In pharmaceutical and food processing, the module drives temperature controllers, pressure regulators, and flow control valves in batch and continuous manufacturing processes subject to GMP and HACCP compliance requirements. The HC900's audit trail and data logging capabilities complement the 80363969-150MC-PAOY22's output function by providing a complete record of setpoint changes and output deviations for regulatory reporting purposes.

Q1: Is the 80363969-150MC-PAOY22 compatible with both local and remote HC900 I/O expansion racks, and are there any restrictions on rack position or slot assignment?

A: The 80363969-150MC-PAOY22 is designed for installation in HC900-compatible I/O racks and can be deployed in both local rack positions (directly adjacent to the CPU rack) and remote rack positions (connected via the HC900 remote I/O scanner). Slot assignment follows the HC900 rack configuration rules defined in the HC Designer engineering software — the module must be assigned to an I/O slot (not a power or CPU slot), and its channel addresses are automatically mapped based on its physical rack and slot position. No hardware jumper or DIP switch configuration is required; all channel parameters, including output range, scaling, and fault-state behaviour, are configured entirely through HC Designer. It is recommended to verify rack compatibility and firmware version alignment between the module and the installed CPU before commissioning.

Q2: What happens to the analog output channels if the HC900 CPU loses communication with the I/O rack — does the module hold last value, go to a safe state, or de-energise?

A: In the event of a communication loss between the HC900 CPU and the I/O rack, the 80363969-150MC-PAOY22 will respond according to the fault-state configuration defined for each output channel in HC Designer. Available fault-state options typically include: hold last value (the output maintains its last commanded value), go to a user-defined safe value (a pre-configured mA or voltage level appropriate for the connected actuator), or go to zero output. The appropriate fault-state strategy depends on the process safety requirements of the connected field device — for example, a control valve on a cooling water line may be configured to go to full-open on CPU communication loss to prevent equipment overheating. This configuration should be reviewed and validated during the Factory Acceptance Test (FAT) and Site Acceptance Test (SAT) phases of the project.

Q3: What does the 12-Month Warranty cover for the 80363969-150MC-PAOY22, and what is the typical lead time for replacement units if a module fails in service?

A: The 12-Month Warranty covers manufacturing defects, component failures, and functional non-conformance under normal operating conditions from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage conditions, physical impact, or operation outside the specified environmental ratings. NANKMOS maintains in-stock inventory of HC900 I/O modules including the 80363969-150MC-PAOY22, enabling same-day or next-business-day dispatch for verified warranty replacement requests. For critical process applications where module availability is a key operational risk, NANKMOS recommends maintaining a site spare of this module — particularly in multi-rack installations where a single module failure could affect a significant number of analog output loops. Contact [email protected] or +86 18359268345 to confirm current stock availability and lead time before project commitment.
