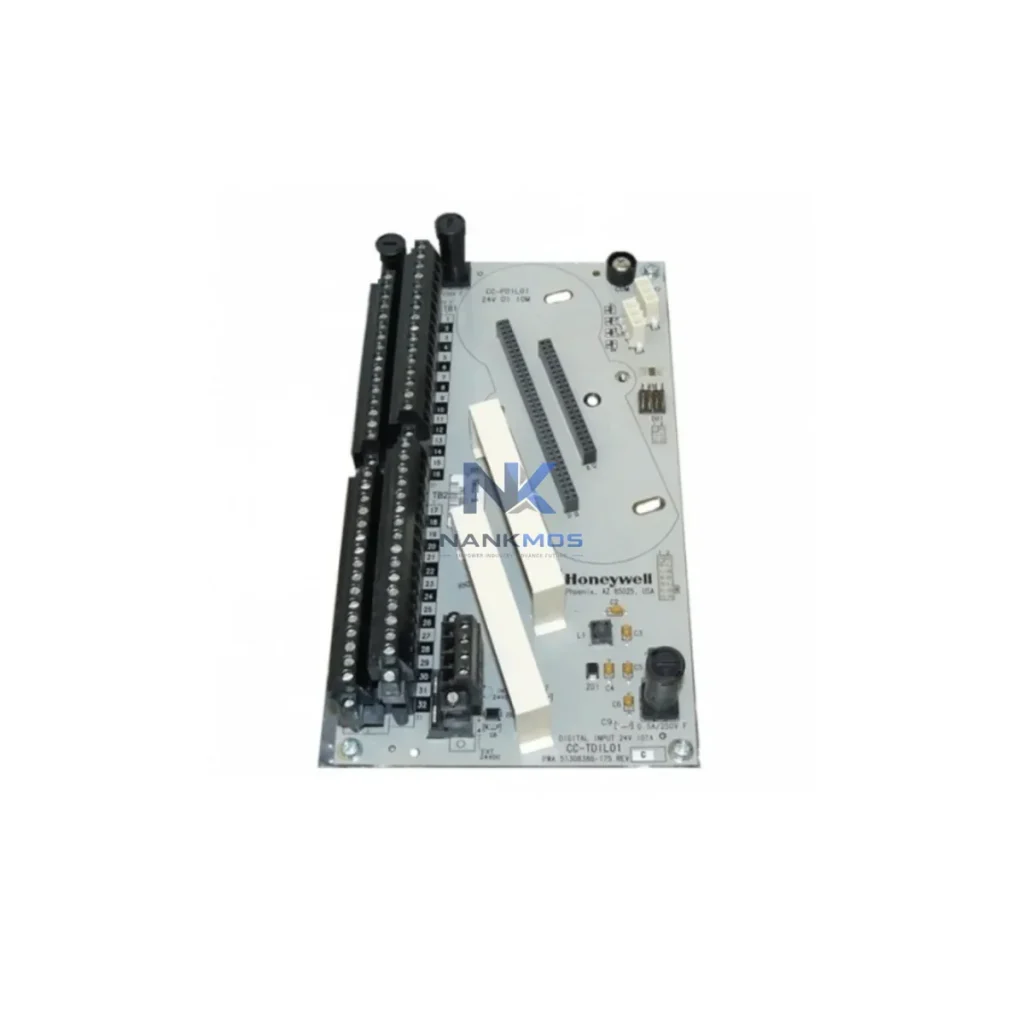

Honeywell CC-TDIL11 DCS Digital Input Module

Product Details

CC-TDIL11 Product Description

The Honeywell CC-TDIL11 is a 24V DC digital input IOTA (I/O Termination Assembly) engineered for the Honeywell Experion PKS C300 Controller platform. Designed for high-density industrial environments, this module delivers precise field signal acquisition with minimal power draw — making it a cornerstone component in energy-aware distributed control architectures. Whether deployed in chemical processing, oil & gas, power generation, or advanced manufacturing, the CC-TDIL11 enables real-time device state feedback that drives smarter load management, reduced idle energy consumption, and tighter production line synchronization.

In modern smart factories, every watt counts. The CC-TDIL11 integrates directly into the Honeywell Series C I/O subsystem, where it works alongside the CC-PAIM01 power and alarm interface module and the CC-SCMB02 system cabinet module to maintain stable, low-noise signal paths across the control backbone. Its 24V DC input compatibility ensures seamless interfacing with field devices — including proximity sensors, limit switches, motor run-status contacts, and valve position feedback — without requiring additional signal conditioning hardware that would otherwise add to the facility's energy overhead.

The CC-TDIL11 does not operate in isolation — it is a precision node within a broader energy-aware automation ecosystem. In a typical Experion PKS deployment, the module connects to the Honeywell C300 Controller via the CC-SCMB02 Series C main backplane, where it shares a deterministic communication bus with other I/O modules including the CC-TAIX11 analog input IOTA and the CC-TDOB11 digital output IOTA. This tight integration allows the C300 to correlate digital field states — motor running, valve open, conveyor active — with analog process variables in real time, enabling the controller to issue precise load-shedding commands that prevent unnecessary energy draw during low-demand production windows.

On the drive side, the CC-TDIL11's motor run-status feedback channels interface directly with Honeywell SmartVFD HVAC variable frequency drives and third-party inverters via hardwired digital signals, giving the DCS immediate visibility into whether a motor is energized, coasting, or faulted. This feedback loop is critical for energy optimization: when the DCS detects that a motor has reached its target speed or that a conveyor segment is idle, it can command the associated VFD to reduce output frequency — cutting energy consumption by up to 50% compared to fixed-speed operation — without waiting for a SCADA polling cycle.

For facilities running Honeywell Experion PKS with integrated power monitoring, the CC-TDIL11's digital inputs can be mapped to power metering relay status contacts, enabling the C300 to log energy events — overcurrent trips, power factor correction relay switching, demand-response activations — directly in the historian. This data feeds into energy management dashboards alongside readings from Honeywell HC900 hybrid controllers deployed in utility substations, creating a unified energy picture from field device to enterprise ERP.

In safety-instrumented environments, the CC-TDIL11 works in parallel with Honeywell Safety Manager SC I/O modules, providing the basic process control layer with real-time equipment state data while the safety layer independently monitors critical interlocks. This separation of concerns reduces the computational load on safety processors, indirectly lowering their thermal output and extending MTBF — a measurable contribution to the facility's overall energy and maintenance budget.

Production line energy waste most commonly originates from three sources: equipment running unnecessarily during idle periods, delayed fault detection leading to extended recovery cycles, and poor load sequencing that causes demand spikes. The CC-TDIL11 addresses all three at the signal acquisition layer.

By providing the C300 DCS with 32 channels of high-fidelity digital input — each capable of detecting field device state changes within milliseconds — the module enables the control system to implement event-driven load management rather than time-based polling. When a production cell completes its cycle, the CC-TDIL11 immediately reports the completion signal to the C300, which can then sequence the next cell's startup in a controlled ramp — avoiding the inrush current spike that would occur if all downstream equipment started simultaneously. Over a full production shift, this sequenced startup strategy can reduce peak demand charges by 10–20%, directly impacting the facility's energy cost per unit produced.

Fault detection is equally important. The CC-TDIL11's digital inputs monitor motor contactor feedback, thermal overload relay status, and emergency stop circuit continuity. When a fault is detected, the C300 can immediately isolate the affected drive circuit, preventing the motor from drawing locked-rotor current — which can be 6–8× the rated running current — for even a fraction of a second longer than necessary. This rapid fault isolation reduces both energy waste and thermal stress on the motor winding insulation, extending motor service life and reducing the frequency of unplanned maintenance shutdowns.

For predictive maintenance integration, the CC-TDIL11's run-hour accumulation data — derived from continuous monitoring of motor run-status contacts — feeds into the Experion PKS asset management framework. Maintenance teams can configure alerts when a motor's accumulated run hours approach its recommended service interval, scheduling maintenance during planned downtime rather than reacting to failures. This shift from reactive to predictive maintenance reduces average downtime per incident by 30–50% and eliminates the energy waste associated with emergency restarts, which typically involve extended warm-up periods and suboptimal operating parameters.

All NANKMOS-supplied CC-TDIL11 modules undergo a rigorous pre-shipment functional test that verifies all 32 input channels, power rail integrity, and backplane communication handshake with a C300 controller. Each unit ships with a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. In-stock inventory ensures lead times of 1–3 business days for standard orders, minimizing the production downtime associated with waiting for critical I/O replacement parts.

Q1: How does the CC-TDIL11 contribute to measurable energy savings on the production floor? The CC-TDIL11 provides the C300 DCS with real-time digital state data from motors, valves, and conveyors. This enables event-driven load management — the DCS can immediately command VFDs to reduce speed or shut down equipment when the CC-TDIL11 reports an idle state, eliminating the energy wasted during unnecessary run-on periods. Facilities typically report 8–15% reductions in motor energy consumption after implementing event-driven control strategies enabled by high-speed digital I/O like the CC-TDIL11.

Q2: Is the CC-TDIL11 compatible with my existing Experion PKS system, and can it replace older Honeywell I/O modules? The CC-TDIL11 is designed for the Honeywell Series C I/O platform and is compatible with the C300 Controller and the CC-SCMB02 backplane. It is a direct functional replacement for earlier-generation Honeywell digital input IOTAs used in Experion PKS R310 and later releases. Before replacement, verify the backplane slot assignment and I/O module address configuration in your Experion Engineering Studio project to ensure seamless migration without control logic changes.

Q3: What does the pre-shipment test cover, and how is the 12-month warranty applied? Every CC-TDIL11 supplied by NANKMOS is tested for full 32-channel digital input functionality, 24V DC power rail stability, and backplane communication integrity prior to shipment. The 12-month warranty covers all manufacturing defects and functional failures under normal industrial operating conditions from the date of delivery. Warranty claims are processed within 5 business days, with advance replacement available for critical production applications to minimize downtime.

Q4: What is the typical lead time, and do you maintain buffer stock for emergency replacements? NANKMOS maintains in-stock inventory of the CC-TDIL11 to support emergency replacement scenarios. Standard orders ship within 1–3 business days. For facilities with critical uptime requirements, we recommend maintaining at least one spare CC-TDIL11 per control cabinet as part of a proactive spare parts strategy — a practice aligned with ISA-18.2 alarm management and IEC 62443 operational continuity guidelines.
