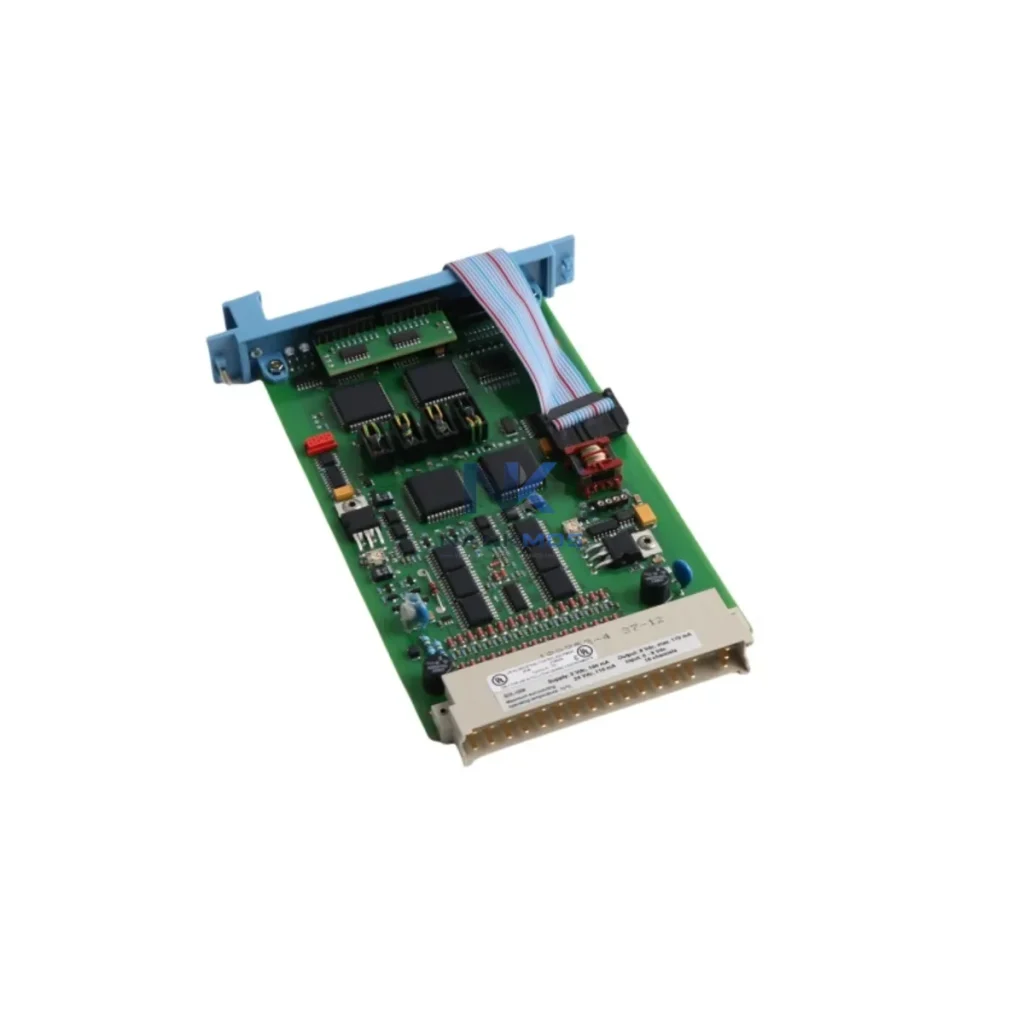

Honeywell FC-DO-1624 Digital Output Module

Product Details

FC-DO-1624 Product Description

The Honeywell FC-DO-1624 is a 16-channel, 24 VDC digital output module engineered for deployment within the Honeywell FSC (Fail Safe Controller) safety platform — one of the most widely adopted SIL 2/SIL 3-certified safety instrumented system (SIS) architectures in global process industries. Designed to operate as a tightly integrated component within the FSC rack-based control structure, the FC-DO-1624 delivers deterministic, high-integrity output signal management across demanding industrial environments including oil and gas, petrochemical, power generation, water treatment, and offshore platforms.

Unlike general-purpose digital output modules, the FC-DO-1624 is purpose-built for safety-critical control loops where output signal fidelity, diagnostic transparency, and fail-safe behavior are non-negotiable. Each output channel is individually supervised, with internal diagnostics continuously verifying channel health, load continuity, and short-circuit conditions — ensuring that any fault is immediately detected and reported to the FSC Safety Manager CPU without disrupting the overall safety function. This level of channel-level diagnostics is essential for maintaining SIL integrity across the full safety instrumented function (SIF) lifecycle.

The FC-DO-1624 achieves its full operational value when deployed as part of a complete Honeywell FSC safety architecture. At the control layer, the FC-CPU-0702 or FC-CPU-0702/F Safety Manager CPU governs all safety logic execution, communicating with I/O modules — including the FC-DO-1624 — via the FSC internal backplane bus. This tightly coupled architecture eliminates inter-module communication latency and ensures that output commands are executed within the deterministic scan cycle of the safety controller.

Power integrity across the FSC rack is maintained by the FC-PSU-0024 power supply module, which provides regulated 24 VDC to all installed I/O modules. For applications requiring high-availability operation, the FSC platform supports redundant power supply configurations, ensuring that a single PSU failure does not interrupt safety output functions. The FC-DO-1624 draws its operating power directly from the rack backplane, simplifying field wiring and reducing the risk of power distribution errors during commissioning.

On the input side, the FC-DI-1624 16-channel digital input module serves as the complementary I/O partner to the FC-DO-1624, enabling closed-loop safety functions where field device status (valve position feedback, motor run confirmation, emergency stop status) is continuously monitored and cross-referenced against output commands. For analog process variables, the FC-AI-0801 analog input module integrates pressure, temperature, and flow transmitter signals into the same FSC rack, providing a unified I/O environment for complex safety instrumented functions.

Communication between the FSC safety system and the plant DCS or SCADA layer is typically handled by the FC-GATEWAY-0001 or compatible Modbus/PROFIBUS gateway modules, enabling the FSC Safety Manager to exchange diagnostic and status data with Honeywell Experion PKS or third-party control systems without compromising the safety network's isolation. This contextual integration capability is critical for plants operating hybrid safety and process control architectures, where the SIS must remain logically separated from the BPCS while still providing operational visibility.

For HMI integration, the Honeywell FSC Safety Manager software running on an engineering workstation provides full visibility into FC-DO-1624 channel status, diagnostic alarms, and output forcing capabilities — essential for safe commissioning, functional safety testing, and proof test execution. The FC-COMM-0001 communication module further extends connectivity options, supporting redundant communication paths for high-availability SIS architectures in critical infrastructure applications.

Terminal modules and marshalling components within the FSC ecosystem ensure that field wiring to the FC-DO-1624's output channels is organized, labeled, and easily accessible for maintenance without requiring module removal — a key advantage in live plant environments where minimizing process interruption is paramount.

Oil, Gas & Petrochemical: The FC-DO-1624 is widely deployed in emergency shutdown (ESD) systems, high-integrity pressure protection systems (HIPPS), and burner management systems (BMS) across upstream, midstream, and downstream facilities. Its 16-channel output capacity allows a single module to control multiple solenoid valves, motor starters, or alarm annunciators within a single safety function, reducing rack space requirements and simplifying system architecture in congested control room environments.

Power Generation: In thermal, nuclear, and combined-cycle power plants, the FC-DO-1624 supports turbine trip systems, boiler protection systems, and generator protection relays. The module's SIL 3 capability and TÜV certification make it suitable for the most demanding safety functions in power generation, where a spurious trip or failure to trip can result in significant equipment damage or personnel safety incidents.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities use the FC-DO-1624 to control chemical dosing pumps, isolation valves, and alarm outputs within safety-rated control systems. The module's wide operating temperature range and humidity tolerance make it suitable for installation in water treatment plant control rooms, which often experience variable environmental conditions.

Mining & Metallurgy: In mining and metals processing, the FC-DO-1624 supports conveyor safety systems, crusher protection, and ventilation control in underground and surface operations. Its robust diagnostic capabilities reduce unplanned downtime by enabling predictive maintenance based on channel health data reported to the FSC Safety Manager.

Marine & Offshore: Offshore platform and FPSO applications benefit from the FC-DO-1624's compact rack-mounted form factor and its compatibility with marine-grade FSC enclosures. The module supports fire and gas (F&G) system output functions, emergency shutdown valve (ESDV) control, and deluge system activation in environments where space, weight, and reliability are critical design constraints.

Q1: Is the FC-DO-1624 compatible with all FSC rack configurations, and can it be mixed with other Honeywell FSC I/O modules in the same chassis? Yes. The FC-DO-1624 is designed for full compatibility with the standard Honeywell FSC rack backplane and can be installed in any available I/O slot alongside other FSC modules including digital input modules (FC-DI-1624), analog input modules (FC-AI-0801), and communication modules. The FSC Safety Manager CPU automatically recognizes the module during system initialization and assigns it to the configured I/O map. Mixed I/O configurations are standard practice in FSC-based SIS architectures, and the FC-DO-1624 participates fully in the system's self-diagnostic cycle regardless of its slot position.

Q2: What is the recommended approach for proof testing the FC-DO-1624 in a live plant environment, and how does the FSC architecture support safe test execution? Proof testing of the FC-DO-1624 should be performed in accordance with the site's Safety Management System (SMS) and the module's functional safety manual. The Honeywell FSC Safety Manager software supports output forcing and channel bypass functions that allow individual output channels to be tested without initiating a full system shutdown. During proof testing, the FSC CPU maintains continuous monitoring of all non-bypassed channels, ensuring that the overall safety function remains active. Test intervals are typically defined during the SIL verification phase and should be documented in the site's Safety Instrumented System Management (SISM) plan. Our team can provide guidance on proof test procedures based on your specific FSC configuration.

Q3: What does the 12-Month Warranty cover, and what pre-shipment testing is performed on the FC-DO-1624 before delivery? Every FC-DO-1624 unit supplied by NANKMOS is subject to a comprehensive pre-shipment test protocol that verifies all 16 output channels for correct switching function, load current capacity, and diagnostic response. Power-on self-test (POST) results are confirmed, and the module's communication interface with the FSC backplane is validated using a test rack. The 12-Month Warranty covers manufacturing defects, component failures, and functional faults arising under normal operating conditions. Warranty claims are supported by our technical team, and replacement units are dispatched from our global inventory to minimize system downtime. Extended warranty and spare parts management programs are available for customers with long-term maintenance contracts.
