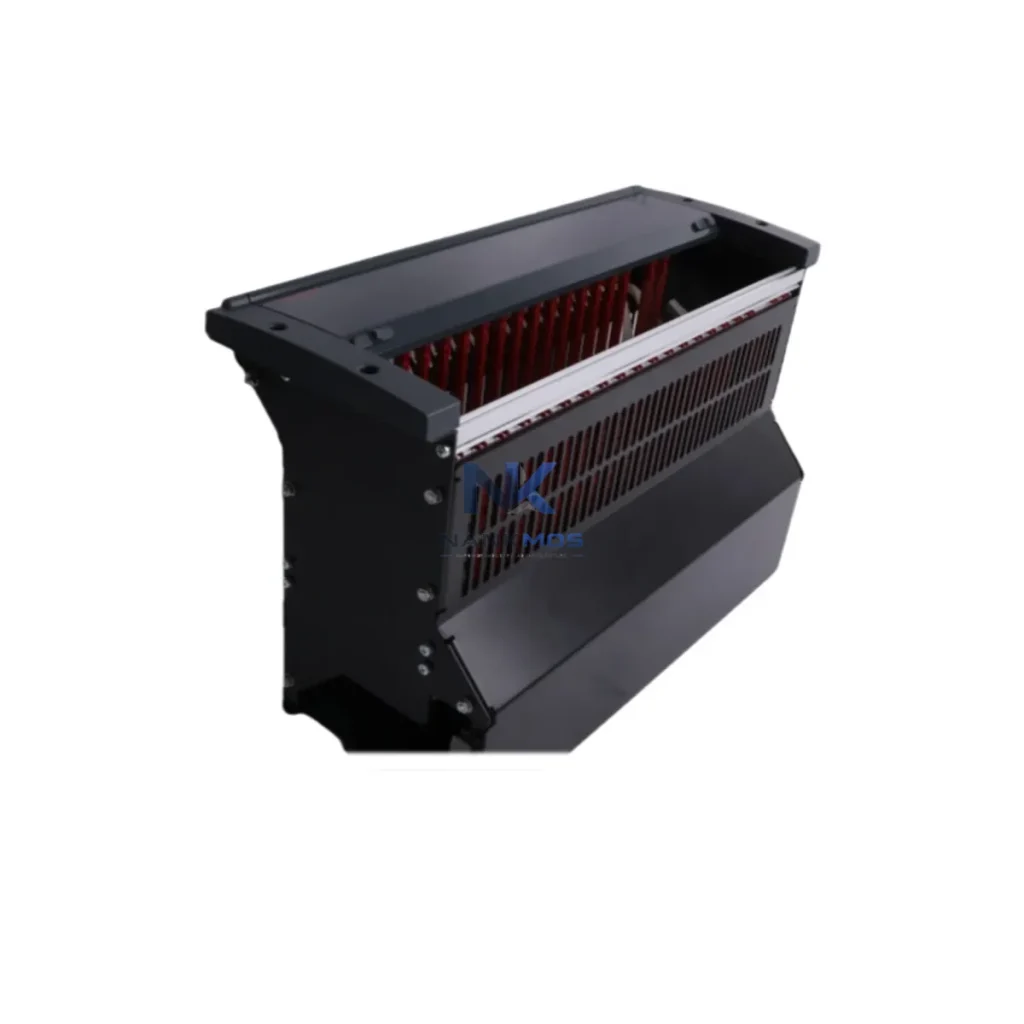

Honeywell FC-IOCHAS-0003R Safety I/O Chassis

Product Details

FC-IOCHAS-0003R Product Description

The Honeywell FC-IOCHAS-0003R is a dedicated I/O chassis engineered for the Honeywell FSC (Fail-Safe Controller) safety platform, providing the structural and electrical backbone for modular I/O expansion within safety-critical control architectures. Designed to meet the rigorous demands of SIL 2 and SIL 3 certified installations, this chassis enables engineers to deploy, scale, and maintain distributed safety I/O across process control environments with confidence. Its role within the FSC system extends beyond passive mounting — it actively supports signal integrity, module addressing, redundancy coordination, and backplane communication that are essential to the overall safety loop.

In a layered industrial control architecture, the FC-IOCHAS-0003R occupies the I/O layer, serving as the physical and logical interface between field instruments and the FSC safety CPU. It integrates directly with the FSC backplane bus, ensuring deterministic signal routing from field devices — including pressure transmitters, temperature sensors, solenoid valves, and emergency shutdown actuators — to the safety logic solver. The chassis supports the installation of Honeywell FSC I/O modules such as digital input cards (FC-DI-0808), digital output cards (FC-DO-0808), and analog input modules, all of which slot into the chassis and communicate via the internal backplane without additional wiring overhead.

System coherence is a defining characteristic of the FC-IOCHAS-0003R. When deployed alongside the FSC main processor unit (FC-CPU-0014) and the FSC power supply module (FC-PSU-0024), the chassis forms a tightly integrated safety node capable of operating in hot-standby or 1oo2D voting configurations. This redundancy architecture is critical in applications such as burner management systems, high-integrity pressure protection systems (HIPPS), and emergency shutdown (ESD) systems where single-point failures must be tolerated without process interruption. The chassis also supports the connection of the FSC communication gateway (FC-GATEWAY) for Modbus RTU or PROFIBUS DP integration, enabling the safety system to exchange diagnostic and status data with the plant DCS or SCADA layer without compromising the safety integrity of the I/O bus.

From a communication and diagnostics perspective, the FC-IOCHAS-0003R supports continuous self-monitoring of module presence, slot occupancy, and backplane health. Fault conditions are reported upstream to the FSC CPU and can be surfaced through the Honeywell Safety Manager engineering workstation or forwarded via the communication gateway to operator HMI panels. This diagnostic transparency reduces mean time to repair (MTTR) and supports predictive maintenance workflows in facilities operating under IEC 61511 functional safety management requirements.

Installation of the FC-IOCHAS-0003R follows standard DIN rail or panel-mount procedures, with the chassis accepting the full range of FSC I/O modules in a plug-and-play fashion. Module replacement during maintenance windows is facilitated by the chassis's keyed slot design, which prevents incorrect module insertion and reduces commissioning errors. Cable management is simplified through the use of Honeywell FSC field termination assemblies (FTAs), which connect to the I/O modules via ribbon cables and allow field wiring to remain undisturbed during module swaps — a significant advantage in facilities with strict change management procedures.

The FC-IOCHAS-0003R is applicable across a broad range of industries. In oil and gas upstream and midstream facilities, it supports ESD and fire and gas (F&G) system architectures. In petrochemical plants, it integrates into burner management and reactor protection systems. Power generation facilities deploy it within turbine protection and boiler safety interlock systems. Water treatment and desalination plants use it to manage pump protection and chemical dosing safety loops. Mining and minerals processing operations rely on it for conveyor protection and crusher interlock systems. Marine and offshore platforms integrate it into dynamic positioning safety systems and cargo handling protection circuits.

Each FC-IOCHAS-0003R unit supplied by NANKMOS is pre-shipment tested against Honeywell FSC compatibility specifications, verifying backplane continuity, slot integrity, and module recognition. Units are supplied with a 12-Month Warranty covering manufacturing defects and operational failures under normal installation conditions. Inventory is maintained in-stock to support urgent project timelines and MRO replacement requirements without extended lead times.

The FC-IOCHAS-0003R achieves its full value when deployed as part of a complete Honeywell FSC automation platform. At the control layer, the FSC main processor (FC-CPU-0014) executes the safety logic and coordinates all I/O chassis nodes across the safety network. The power supply module (FC-PSU-0024) provides regulated DC power to the chassis backplane, with redundant power configurations available to eliminate single-point power failures. Digital input modules (FC-DI-0808) and digital output modules (FC-DO-0808) slot directly into the chassis to interface with field devices, while analog input cards handle 4–20 mA signals from process transmitters.

At the communication layer, the FSC communication gateway (FC-GATEWAY) bridges the safety I/O bus to plant-level networks, supporting Modbus RTU for legacy DCS integration and PROFIBUS DP for modern distributed control environments. Field termination assemblies (FTAs) connect to the I/O modules via standardized ribbon cables, isolating field wiring from the control electronics and simplifying maintenance. At the HMI layer, operator workstations running Honeywell Safety Manager software provide real-time visibility into chassis health, module status, and safety loop diagnostics. Signal isolators and surge protection devices at the field terminal level further protect the chassis backplane from electrical transients originating in hazardous area field wiring.

In oil and gas facilities, the FC-IOCHAS-0003R supports ESD and F&G system architectures where SIL-rated I/O expansion is required across multiple safety nodes. Petrochemical plants deploy it in burner management systems (BMS) and reactor protection systems where deterministic I/O response times are mandatory. Power generation facilities integrate it into turbine overspeed protection and boiler safety interlock systems, where the chassis's redundancy support ensures continuous protection during CPU switchover events. Water treatment plants use it to manage pump protection and chemical dosing safety interlocks, while mining operations rely on it for conveyor belt protection and crusher interlock circuits. Marine and offshore platforms integrate the chassis into dynamic positioning safety systems and cargo handling protection circuits, where compact form factor and robust backplane communication are essential in space-constrained control rooms.

Q1: Is the FC-IOCHAS-0003R compatible with all Honeywell FSC I/O module types? Yes. The FC-IOCHAS-0003R is designed to accept the full range of Honeywell FSC I/O modules, including digital input (FC-DI-0808), digital output (FC-DO-0808), and analog input cards. Module compatibility is governed by the FSC backplane bus specification, and all modules are keyed to prevent incorrect installation. Consult the FSC system configuration guide for slot assignment rules in redundant configurations.

Q2: Can the FC-IOCHAS-0003R be used in a redundant CPU architecture? Yes. The chassis supports hot-standby and 1oo2D voting redundancy configurations when paired with redundant FSC CPU modules (FC-CPU-0014) and the appropriate redundancy communication links. In these configurations, the chassis backplane arbitrates I/O access between the primary and standby CPUs, ensuring bumpless switchover without I/O data loss. Redundant power supply modules (FC-PSU-0024) should be installed to eliminate power-related single points of failure.

Q3: What warranty and supply assurance does NANKMOS provide for the FC-IOCHAS-0003R? NANKMOS supplies the FC-IOCHAS-0003R with a 12-Month Warranty covering manufacturing defects and operational failures under normal installation and operating conditions. Each unit undergoes pre-shipment testing to verify backplane continuity, slot integrity, and FSC module recognition before dispatch. In-stock inventory is maintained to support urgent MRO replacements and project commissioning timelines without extended procurement lead times.
