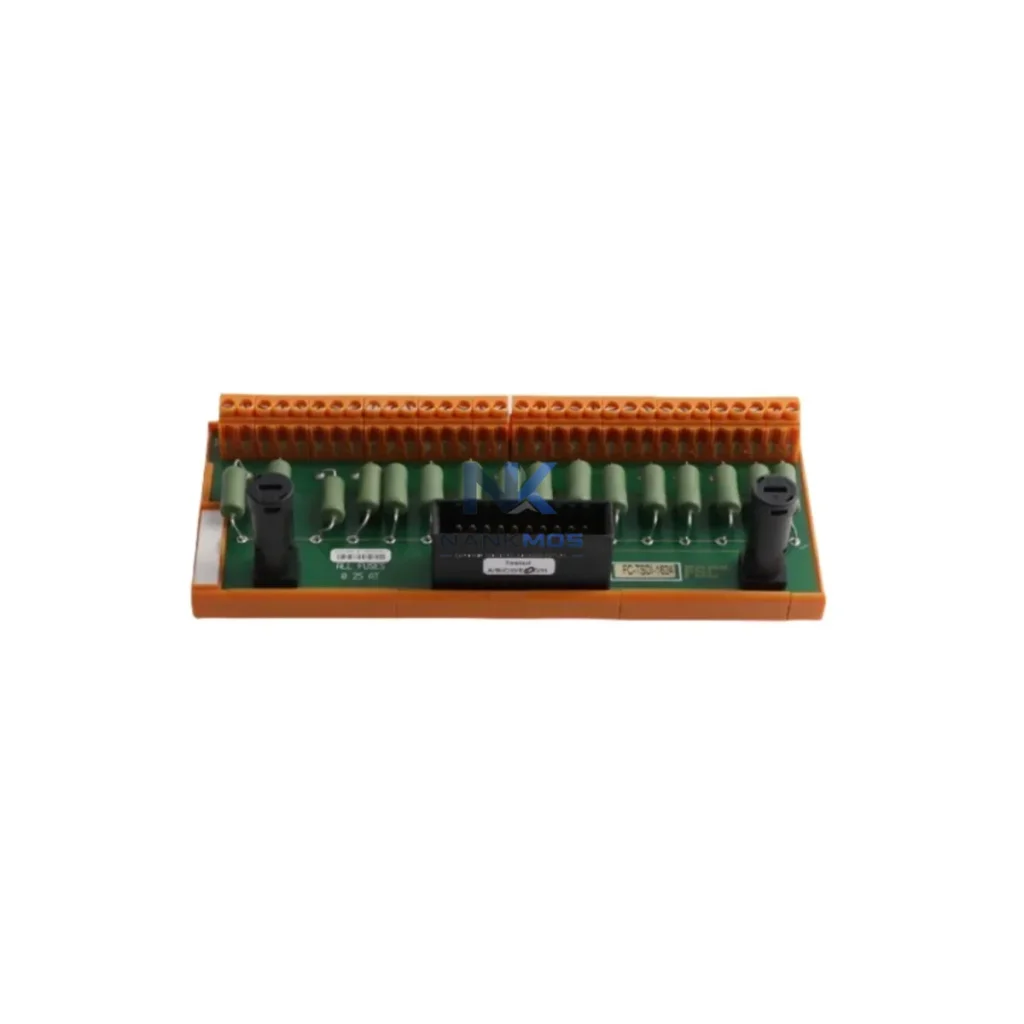

Honeywell FC-SDI-1624 V1.0 Digital Input Module

Product Details

FC-SDI-1624 V1.0 Product Description

The Honeywell FC-SDI-1624 V1.0 is a 24-channel digital input module engineered for the FSC Safety Manager platform — a proven safety-rated distributed control architecture widely deployed in process industries, energy facilities, and advanced manufacturing environments. Designed to operate within high-availability safety loops, this module plays a direct role in energy-aware automation by delivering precise, low-latency field signal acquisition that enables smarter load decisions, faster fault response, and reduced unnecessary energy consumption across the production line.

In modern industrial facilities where energy efficiency is a key performance indicator, the quality and speed of digital input data directly influence how effectively a control system can manage loads, sequence equipment, and avoid energy waste. The FC-SDI-1624 V1.0 provides the signal integrity and channel density required to support these demands without adding thermal burden or communication overhead to the safety network.

The FC-SDI-1624 V1.0 functions as a foundational sensing layer within a broader energy-aware control architecture. In a typical smart production line, this module collects discrete field signals — from limit switches, pressure contacts, motor run feedbacks, and safety interlocks — and delivers them to the FSC Safety Manager processor, such as the FC-CPU-0702 or FC-CPU-0702/R, which then executes safety logic and coordinates with the plant's energy management strategy.

When integrated alongside Honeywell's FC-SDO-0824 digital output modules, the FC-SDI-1624 V1.0 enables closed-loop control of energy-consuming field devices. For example, motor run feedback signals captured through the digital inputs allow the FSC processor to confirm actual load states before enabling downstream equipment — preventing unnecessary simultaneous starts that cause inrush current spikes and elevated energy demand charges.

In facilities running Honeywell Experion PKS as the primary DCS, the FSC Safety Manager communicates via dedicated gateway modules such as the FC-GATEWAY or compatible Ethernet interface cards, allowing SCADA operators to monitor digital input states in real time. This integration supports energy dashboards that track equipment on/off cycles, idle periods, and load sequencing — all critical data points for an effective energy management system.

The module also works in coordination with power monitoring hardware. When paired with power measurement modules or third-party energy meters connected to the plant's Modbus or PROFIBUS network, the digital input states from the FC-SDI-1624 V1.0 provide the operational context needed to correlate energy consumption with specific production events. This allows engineers to identify which equipment states drive peak demand and optimize scheduling accordingly.

For motor control applications, the FC-SDI-1624 V1.0 captures feedback from motor control centers (MCCs), variable frequency drives (VFDs), and soft starters. When a VFD signals a fault or a motor reaches its target speed, the digital input module relays this status to the FSC processor, which can then adjust the control sequence to reduce energy waste — for instance, by ramping down auxiliary systems or delaying non-critical loads. This type of coordinated response is essential in facilities targeting ISO 50001 energy management compliance.

HMI panels connected to the Experion PKS or TotalPlant Solution network display the aggregated digital input states, giving operators a real-time view of field device status. This visibility reduces the need for manual field checks, lowers operational overhead, and ensures that energy-consuming equipment is only running when production conditions require it.

One of the most significant sources of energy waste in industrial facilities is the continued operation of equipment during non-productive periods — whether due to delayed fault detection, missed interlock signals, or slow control response. The FC-SDI-1624 V1.0 addresses this directly by providing the FSC Safety Manager with fast, reliable digital input data that enables the control system to act on field conditions without delay.

In a production line context, this means that when a conveyor stops, a press completes its cycle, or a valve reaches its end position, the corresponding digital input signal is immediately available to the FSC processor. The processor can then trigger load-shedding sequences, disable idle drives, or signal upstream equipment to pause — all actions that reduce energy consumption without impacting production throughput.

Thermal load management is another area where the FC-SDI-1624 V1.0 contributes to energy efficiency. By accurately reporting the operational state of motors, heaters, and other heat-generating equipment, the module enables the control system to implement staggered start sequences and duty-cycling strategies that reduce peak thermal loads. This not only lowers energy costs but also extends the service life of heat-sensitive components and reduces the burden on facility cooling systems.

Predictive maintenance strategies also benefit from the high-channel-density input capability of the FC-SDI-1624 V1.0. By monitoring a large number of discrete field signals simultaneously, the FSC Safety Manager can detect subtle changes in equipment behavior — such as increased cycle times, unexpected interlock activations, or abnormal feedback patterns — that may indicate developing faults. Early detection allows maintenance teams to schedule interventions during planned downtime rather than responding to unplanned failures, which are typically far more energy-intensive and disruptive to production rhythm.

All units supplied by NANKMOS undergo pre-shipment functional testing to verify channel integrity, input threshold response, and backplane communication. This ensures that the FC-SDI-1624 V1.0 is ready for immediate installation and commissioning, minimizing the energy and time costs associated with field troubleshooting. Each module is backed by a 12-month warranty, and NANKMOS maintains inventory stock to support rapid deployment for both planned upgrades and emergency replacement scenarios.

Q1: How does the FC-SDI-1624 V1.0 contribute to energy savings in a process plant?The module provides the FSC Safety Manager with accurate, real-time digital input data from field devices. This enables the control system to implement load-shedding, staggered starts, and idle-state shutdowns based on actual equipment status rather than timed assumptions — directly reducing unnecessary energy consumption and demand charges.

Q2: Is the FC-SDI-1624 V1.0 compatible with Honeywell Experion PKS and third-party SCADA systems?Yes. The module operates within the FSC Safety Manager platform, which integrates with Honeywell Experion PKS via standard FSC gateway interfaces. For third-party SCADA systems, integration is achieved through the FSC communication gateway, supporting Modbus, PROFIBUS, or Ethernet-based protocols depending on the gateway configuration.

Q3: What is the recommended replacement or upgrade path for aging FSC digital input modules?The FC-SDI-1624 V1.0 is a direct form-fit-function replacement for compatible FSC digital input modules. NANKMOS recommends verifying the FSC rack configuration and firmware version prior to installation. Our technical team can assist with compatibility confirmation and provide pre-tested units to minimize commissioning time and production disruption.

Q4: What testing is performed before shipment, and what does the 12-month warranty cover?Each FC-SDI-1624 V1.0 unit undergoes pre-shipment functional testing covering channel input response, backplane communication integrity, and power draw verification. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. NANKMOS maintains in-stock inventory to support rapid replacement if a warranty claim requires a unit exchange.
