Honeywell FC-SDI-1648 Safety Digital Input Module

Product Details

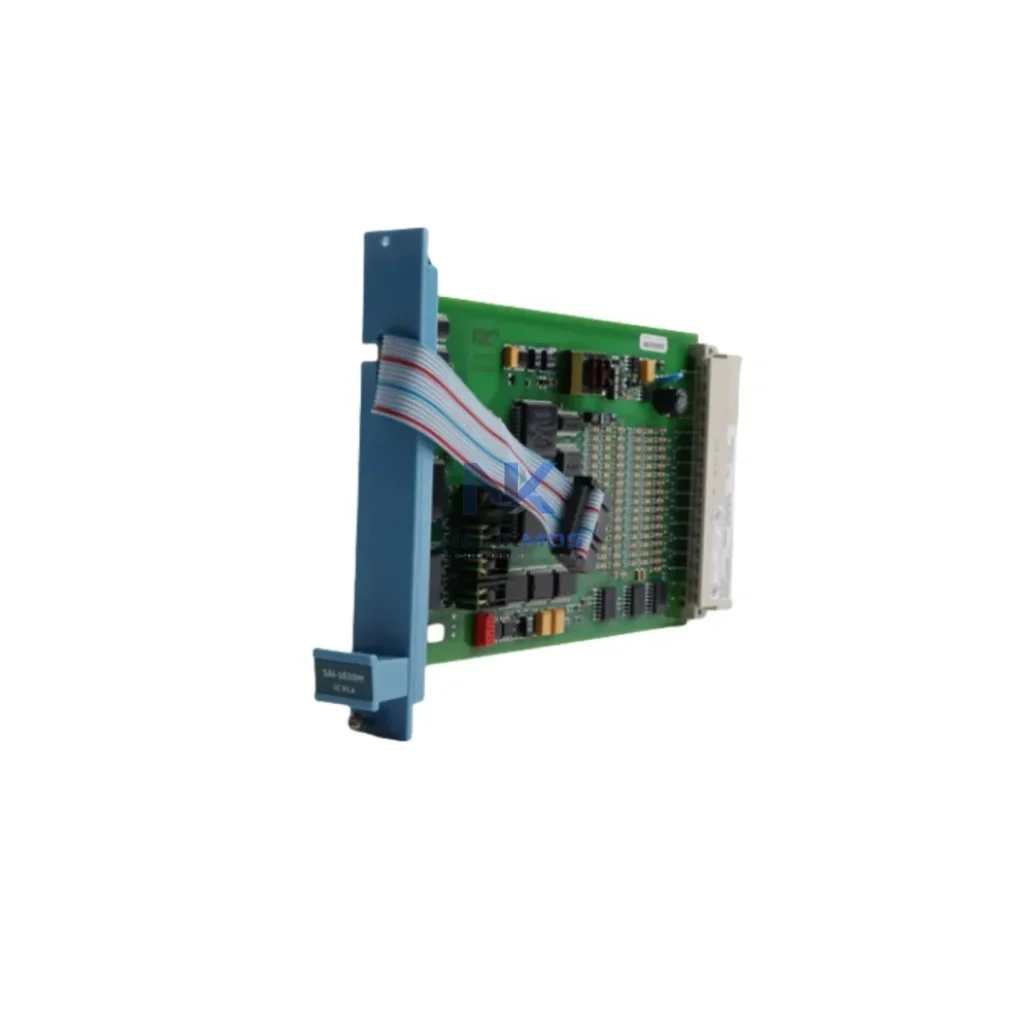

FC-SDI-1648 Product Description

The Honeywell FC-SDI-1648 is a 16-channel SIL-rated Safety Digital Input Module engineered for the Honeywell Safety Manager platform — a cornerstone of functional safety architecture in process industries, oil & gas, chemical plants, and advanced manufacturing. Designed to operate at the intersection of field instrumentation and safety-critical control logic, the FC-SDI-1648 delivers deterministic signal acquisition, real-time diagnostic feedback, and seamless integration into plant-wide industrial data networks. In the context of smart factory deployments, this module serves as a critical node in the safety data chain — bridging physical field devices with the supervisory and control layers that govern process integrity.

Modern industrial facilities demand more than simple on/off signal detection. They require a continuous, auditable flow of safety-relevant data from field sensors through PLCs, safety controllers, remote I/O racks, HMI panels, SCADA systems, and enterprise-level data historians. The FC-SDI-1648 is purpose-built to fulfill this role within Honeywell's Safety Manager ecosystem, ensuring that every digital input — from emergency shutdown (ESD) pushbuttons and pressure switches to flame detectors and gas sensors — is captured, validated, and transmitted with the integrity demanded by IEC 61511 and IEC 61508 functional safety standards.

In a fully connected smart factory safety architecture, the FC-SDI-1648 occupies a foundational position in the signal acquisition layer. Field devices — including Honeywell XNX Universal Transmitters, pressure switches, solenoid valve position feedback sensors, and manual call points — wire directly into the module's 16 digital input channels. Each channel performs continuous signal validation, detecting open-circuit faults, short-circuit conditions, and discrepancy errors in redundant input configurations before the data ever reaches the safety controller.

Once validated, digital input states are transmitted across the Honeywell Safety Manager backplane to the SM CPU module, where safety logic executes in accordance with the certified safety application program. The Safety Manager controller then communicates upstream via its gateway interfaces — typically through a Honeywell SM-OPC Server or a dedicated PROFIBUS DP master interface — to the plant DCS, such as a Honeywell Experion PKS or a third-party distributed control system. This gateway layer enables real-time process data from the FC-SDI-1648's inputs to appear as live tags in the SCADA historian, HMI displays, and alarm management systems.

For facilities running mixed-protocol environments, the FC-SDI-1648's data can be bridged through protocol converters — such as a Moxa MGate MB3480 Modbus-to-PROFIBUS gateway or an HMS Anybus Communicator — enabling legacy Modbus RTU field devices and modern PROFINET-based control networks to coexist within the same safety data architecture. Remote I/O expansion, where needed, can be achieved using Honeywell SM Remote I/O modules or compatible third-party remote I/O racks connected via fiber-optic or redundant copper Ethernet links.

At the edge layer, industrial Ethernet switches — such as the Hirschmann RS20 or Moxa EDS-308 managed switches — provide the network backbone for deterministic data delivery between the Safety Manager controller, the DCS workstations, and the plant historian servers. These switches support PROFINET, EtherNet/IP, and standard TCP/IP traffic simultaneously, ensuring that safety data from the FC-SDI-1648 reaches the SCADA layer without latency-induced data loss.

HMI panels — including Honeywell Experion Station displays or third-party Siemens SIMATIC HMI units — render the FC-SDI-1648's channel states as real-time process graphics, alarm banners, and trend displays. Operators gain immediate visibility into field device status, enabling rapid response to abnormal conditions. Simultaneously, the plant's alarm management system logs every state change with millisecond-resolution timestamps, supporting post-incident forensic analysis and regulatory compliance reporting.

For remote diagnostic access, the Safety Manager platform supports secure remote engineering connections via Honeywell Safety Builder software, allowing authorized engineers to interrogate FC-SDI-1648 channel diagnostics, review fault logs, and validate safety function status without requiring physical presence at the control panel — a critical capability for geographically distributed process facilities and offshore installations.

Many industrial sites operate with fragmented safety and control architectures — legacy PLCs running proprietary protocols alongside modern DCS platforms, with no unified data pathway connecting field safety inputs to the supervisory layer. The FC-SDI-1648 addresses these integration challenges directly within the Honeywell Safety Manager framework.

Protocol fragmentation is resolved through the Safety Manager's gateway architecture, which translates backplane I/O data into standard industrial protocols (PROFIBUS DP, Modbus TCP, OPC-UA) consumable by any SCADA or DCS platform. Data islands — where safety system data exists in isolation from the process control network — are eliminated by connecting the Safety Manager to the plant historian via OPC-DA/UA interfaces, making FC-SDI-1648 input states available as live and historical tags across the enterprise.

Remote monitoring gaps are closed through the Safety Manager's built-in diagnostic architecture: channel-level fault detection, module health status, and safety function proof-test records are all accessible remotely via Safety Builder, reducing the need for costly site visits. Production line transparency is enhanced by mapping FC-SDI-1648 input states to HMI process graphics and SCADA dashboards, giving operations teams a real-time view of every field device connected to the safety system.

Alarm tracking and audit trails are maintained automatically: every input state change, diagnostic fault, and operator acknowledgment is time-stamped and stored in the Safety Manager's event log, supporting IEC 61511 proof-test documentation and regulatory audit requirements. System expansion is straightforward — additional FC-SDI-1648 modules can be added to the Safety Manager I/O chassis without disrupting existing safety logic, enabling phased capacity growth aligned with plant expansion projects.

Q1: What communication protocols does the Honeywell FC-SDI-1648 support for SCADA and DCS integration? The FC-SDI-1648 communicates natively over the Honeywell Safety Manager backplane bus. Integration with SCADA and DCS platforms is achieved through the Safety Manager's gateway interfaces, which support PROFIBUS DP, Modbus RTU/TCP, and OPC-DA/UA. This enables FC-SDI-1648 input data to appear as live process tags in Honeywell Experion PKS, Siemens PCS 7, ABB System 800xA, and other leading DCS/SCADA platforms without additional protocol converters in most standard configurations.

Q2: How does the FC-SDI-1648 ensure network stability and data integrity in safety-critical applications? The module performs continuous online self-diagnostics, including open-circuit detection, short-circuit detection, and discrepancy monitoring for redundant input pairs. Diagnostic faults are reported to the Safety Manager CPU in real time, triggering configurable alarm responses. The Safety Manager platform supports redundant CPU and I/O configurations, ensuring that a single module or network fault does not compromise overall safety system availability.

Q3: Can the FC-SDI-1648 be integrated into existing Modbus or PROFINET-based automation networks? Yes. While the FC-SDI-1648 operates on the Safety Manager backplane, its data can be exposed to Modbus RTU/TCP and PROFINET networks through the Safety Manager's gateway and OPC server interfaces. For sites with legacy Modbus field devices or PROFINET-based control networks, protocol bridge devices such as the Moxa MGate series or HMS Anybus Communicator can be deployed to ensure seamless data flow between the safety layer and the broader automation network.

Q4: What warranty and pre-shipment testing does the FC-SDI-1648 include? Every Honeywell FC-SDI-1648 unit supplied by NANKMOS carries a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Prior to shipment, each unit undergoes functional verification testing to confirm channel integrity, diagnostic response, and backplane communication performance. Global inventory availability ensures short lead times for urgent project requirements and MRO replenishment orders.
