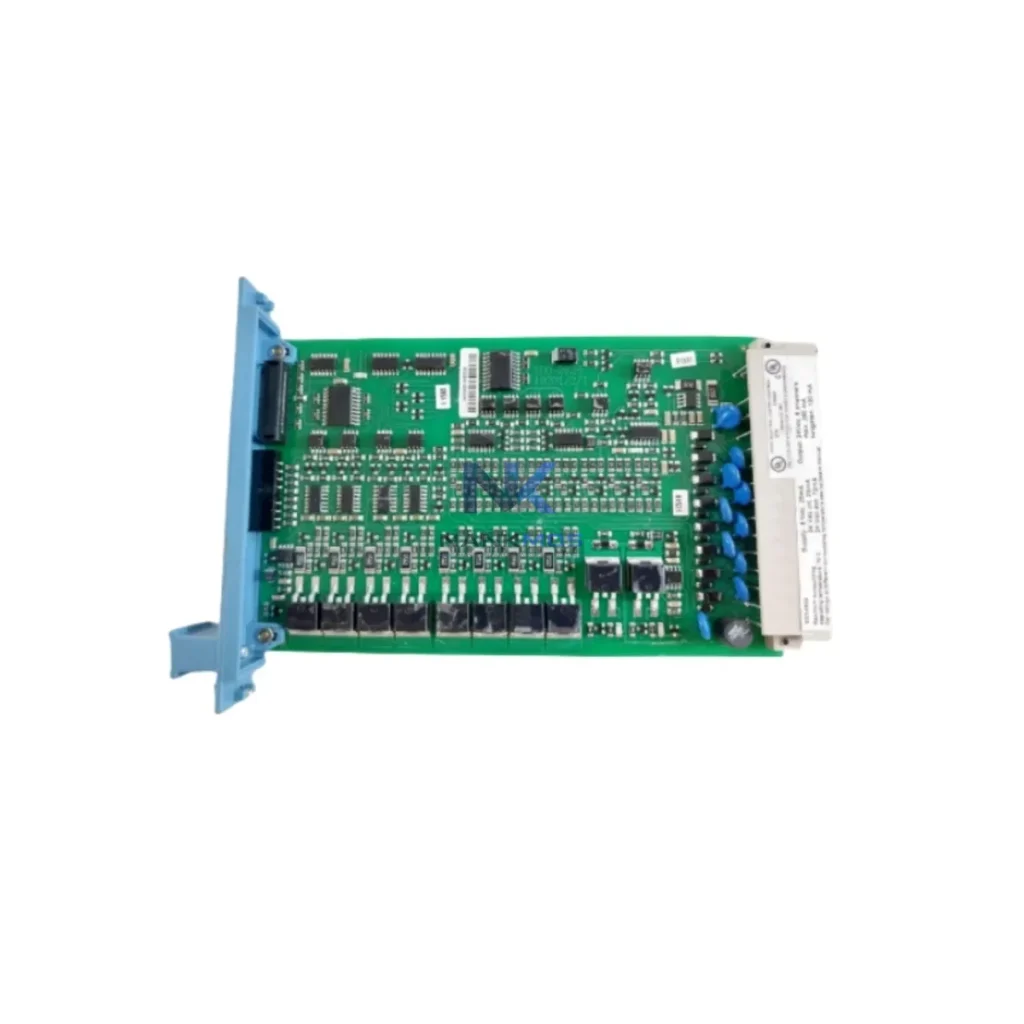

Honeywell FC-SDO-0824 V1.2 Safety Digital Output Module

Product Details

FC-SDO-0824 V1.2 Product Description

The Honeywell FC-SDO-0824 V1.2 is an 8-channel, 24VDC fail-safe digital output module engineered for deployment within the Honeywell Safety Manager safety instrumented system (SIS) platform. Designed to meet IEC 61508 SIL 2 and SIL 3 requirements, this module serves as a critical execution-layer component in process safety architectures across oil and gas, petrochemical, power generation, water treatment, and advanced manufacturing environments. Its role extends beyond simple output switching — it functions as a system-coherent node within a layered, redundant safety control architecture, ensuring deterministic response, diagnostic transparency, and long-term operational integrity.

In modern safety-critical installations, the FC-SDO-0824 V1.2 is not deployed in isolation. It operates as part of a tightly integrated control hierarchy that spans the logic solver layer, I/O layer, communication layer, power layer, HMI layer, execution layer, protection layer, and maintenance layer. Understanding its role within this full-stack architecture is essential for engineers responsible for system design, commissioning, and lifecycle management.

The FC-SDO-0824 V1.2 achieves its full operational value when integrated within the broader Honeywell Safety Manager platform ecosystem. At the logic solver layer, the FC-CPU-0014 or FC-CPU-0024 safety controller executes the safety application logic and communicates directly with the SDO module via the system backplane, ensuring sub-millisecond response times for critical shutdown commands. The backplane architecture — supported by the FC-RKEY-0001 rack and associated chassis components — provides the physical and electrical foundation for modular I/O expansion without compromising system integrity.

On the input side, the FC-SDI-1224 safe digital input module and FC-SAI-1620 safe analog input module work in concert with the FC-SDO-0824 V1.2 to complete the signal chain from field sensor to final element. This closed-loop architecture — from sensing through logic to actuation — is the backbone of any IEC 61511-compliant safety instrumented function (SIF). The FC-SAO-0824 safe analog output module complements the SDO in mixed-signal applications where both discrete and continuous control outputs are required.

For communication and system integration, the FC-FTEB-0001 Ethernet bridge module enables Safety Manager to interface with Honeywell's Experion PKS distributed control system, providing unified alarm management, historian integration, and operator visibility across both safety and process control domains. This cross-layer communication capability is essential in large-scale installations where the safety system must report status to the BPCS (Basic Process Control System) without compromising safety loop independence.

Power integrity is maintained through the FC-PSU-0024 redundant power supply module, which ensures uninterrupted 24VDC delivery to the SDO module and associated I/O under all operating conditions, including single power supply failure. Redundant power architecture is a non-negotiable requirement in SIL 3 applications and is fully supported within the Safety Manager chassis design.

At the HMI and engineering layer, Honeywell Safety Builder software provides the configuration, validation, and diagnostic environment for the FC-SDO-0824 V1.2. Engineers can configure channel assignments, test fail-safe behavior, review diagnostic logs, and perform partial stroke testing (PST) for valve actuators connected to the SDO outputs — all without interrupting the live safety function. This capability significantly reduces maintenance downtime and supports proof test scheduling in accordance with IEC 61511 requirements.

Oil, Gas & Petrochemical: In upstream and downstream hydrocarbon processing, the FC-SDO-0824 V1.2 drives solenoid valves, motor starters, and emergency shutdown (ESD) actuators as part of high-integrity pressure protection systems (HIPPS) and burner management systems (BMS). Its fail-safe de-energize behavior ensures that final elements move to the safe state upon loss of power or detection of a diagnostic fault, meeting the functional requirements of API 670 and IEC 61511 for process safety.

Power Generation: In thermal, nuclear, and renewable power plants, the module supports turbine protection systems, boiler safety interlocks, and generator trip circuits. The SIL 3 capability and TÜV certification make it suitable for the most demanding protection functions in power generation, where a single failure to trip can result in catastrophic equipment damage or personnel injury.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities deploy the FC-SDO-0824 V1.2 to control chemical dosing pumps, isolation valves, and overflow protection systems. The module's diagnostic transparency and remote monitoring capability via Experion PKS integration allow operators to detect degraded output channels before they affect process safety.

Mining & Metallurgy: In conveyor protection systems, crusher interlocks, and ventilation safety circuits, the FC-SDO-0824 V1.2 provides the reliable, high-diagnostic-coverage output switching required for personnel protection in hazardous mining environments. Its robust operating temperature range and vibration tolerance support deployment in harsh industrial enclosures.

Marine & Offshore: Offshore platform safety systems and marine vessel automation increasingly adopt IEC 61508-certified components for fire and gas (F&G) systems, emergency shutdown systems (ESD), and ballast control. The FC-SDO-0824 V1.2's compact form factor and backplane integration make it well-suited for space-constrained marine control cabinets.

Q1: Is the FC-SDO-0824 V1.2 compatible with both 1oo2 and 2oo3 voting architectures in a Safety Manager system? Yes. The FC-SDO-0824 V1.2 is designed to operate within the Safety Manager's flexible voting architecture. When configured in 1oo2D or 2oo3 logic solver arrangements, the module participates in the voted output path, with the Safety Manager CPU managing the voting logic and the SDO executing the final output command. This architecture supports SIL 3 achievement for the overall safety instrumented function (SIF) when combined with appropriate input module and logic solver configurations. System architects should consult the Safety Manager System Manual and the relevant SIL verification report for specific PFD and PFH calculations.

Q2: What diagnostic capabilities does the FC-SDO-0824 V1.2 provide, and how do they support proof test interval extension? The FC-SDO-0824 V1.2 incorporates channel-level diagnostics including open-load detection, short-circuit detection, and internal self-test routines executed at the module level. These diagnostics are reported to the Safety Manager CPU and surfaced through Safety Builder and Experion PKS for operator and maintenance visibility. High diagnostic coverage (DC) reduces the dangerous undetected failure rate (λDU), which directly supports longer proof test intervals in accordance with IEC 61511 Clause 16. For applications requiring partial stroke testing (PST) of valve actuators, the SDO module's output can be configured to support PST sequences without interrupting the safety function, further extending proof test intervals and reducing maintenance costs.

Q3: What does the 12-Month Warranty cover, and what is the supply and lead time for the FC-SDO-0824 V1.2? All FC-SDO-0824 V1.2 units supplied by NANKMOS are covered by a 12-Month Warranty from the date of shipment. Each unit undergoes pre-shipment functional testing and verification to confirm output channel integrity, diagnostic response, and backplane communication before dispatch. We maintain dedicated inventory of Safety Manager I/O modules to support urgent replacement requirements, with fast global shipping available to minimize system downtime. For lead time confirmation, current stock availability, and volume pricing, contact our technical sales team directly at [email protected] or +86 18359268345.
