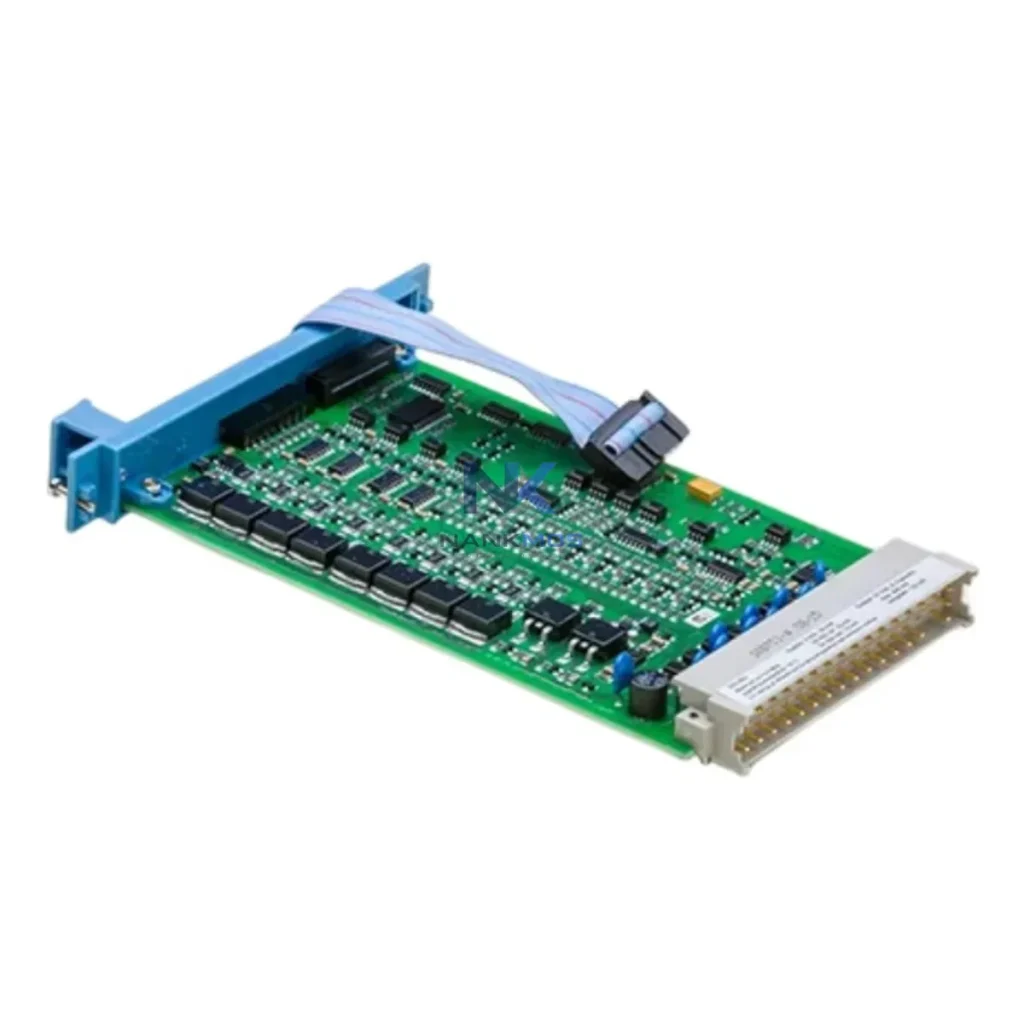

Honeywell FC-SDO-0824 V1.6 Digital Output Module

Product Details

FC-SDO-0824 V1.6 Product Description

The Honeywell FC-SDO-0824 V1.6 is a high-reliability digital output module engineered for the Honeywell FSC Safety Manager platform — a proven safety PLC architecture widely deployed in process industries, chemical plants, oil and gas facilities, and advanced manufacturing environments. Designed to deliver deterministic output switching with minimal power dissipation, this module plays a central role in energy-aware automation strategies where every watt of unnecessary load represents both an operational cost and a thermal risk. With 8 digital output channels rated for 24 VDC field devices, the FC-SDO-0824 V1.6 enables precise actuator control, valve switching, and relay-driven load management across safety-critical production lines.

In modern industrial facilities pursuing energy optimization, the digital output layer is often overlooked as a source of inefficiency. The FC-SDO-0824 V1.6 addresses this directly: its solid-state output design eliminates mechanical contact wear, reduces inrush current spikes during switching events, and supports tight integration with the FSC Safety Manager CPU modules — such as the FC-CPU-0 and FC-CPU-1 series — to enable coordinated load shedding during low-demand production windows. When paired with Honeywell's FC-SDI series digital input modules and FC-AIO analog I/O modules, the system gains full bidirectional field awareness, allowing the safety controller to make real-time decisions about which output loads remain energized and which are safely de-energized to reduce standby consumption.

Effective energy management in a safety-instrumented system begins at the output layer. The FC-SDO-0824 V1.6 integrates seamlessly within a broader FSC Safety Manager architecture that may include the FC-CPU-0 central processing unit for safety logic execution, the FC-SDI-1624 digital input module for field signal acquisition, and the FC-AIO-0824 analog I/O module for continuous process variable monitoring. Together, these components form a tightly coupled control loop that can dynamically adjust output states based on real-time energy and process data.

When the FSC Safety Manager is networked to a plant-wide SCADA system via the Honeywell FC-ELNI Ethernet communication module, supervisory-level energy management strategies become executable at the field device level. The SCADA platform can issue load-reduction commands during peak tariff windows, and the FC-SDO-0824 V1.6 executes those commands with the deterministic response time required in safety-rated environments. Integration with Modbus TCP or PROFIBUS DP communication modules further extends the module's reach into multi-vendor automation architectures, enabling cross-platform energy coordination between the FSC system and third-party PLCs, variable frequency drives (VFDs), and power monitoring devices.

On the drive side, pairing the FC-SDO-0824 V1.6 with Honeywell SmartVFD HVAC variable frequency drives or compatible third-party servo drives allows the safety controller to issue discrete start/stop and speed-reference enable signals that directly influence motor energy consumption. Rather than running motors at full speed continuously, the FSC system can use the digital output module to enable drive run commands only when production demand justifies the energy expenditure — a strategy that can reduce motor energy consumption by 20–40% in variable-load applications. The FC-SDO-0824 V1.6 also interfaces with industrial power monitoring modules and smart energy meters via relay-driven measurement triggers, enabling closed-loop feedback between energy consumption data and output switching decisions.

For HMI-level visibility, the FSC Safety Manager's output states — including all channels of the FC-SDO-0824 V1.6 — can be mirrored to a Honeywell Experion PKS HMI station or a compatible third-party HMI panel, giving operators real-time insight into which field loads are active, which are in standby, and what the aggregate power draw of the output layer represents at any given moment. This transparency is essential for facilities pursuing ISO 50001 energy management certification or internal energy KPI targets.

In high-throughput manufacturing and process environments, unplanned downtime and inefficient energy use share a common root cause: inadequate output control granularity. The FC-SDO-0824 V1.6 addresses both challenges simultaneously. Its 8-channel architecture allows production line designers to assign individual output channels to specific actuators, solenoid valves, motor contactors, or indicator loads — enabling zone-by-zone energy control rather than blanket power management that risks disrupting interdependent processes.

During scheduled low-production windows — shift changes, maintenance intervals, or demand-response events — the FSC Safety Manager can execute pre-programmed output de-energization sequences through the FC-SDO-0824 V1.6, safely shutting down non-critical loads while maintaining power to safety-critical actuators and emergency systems. This selective load shedding approach reduces facility energy consumption without compromising the safety integrity level (SIL) of the overall system, since the FSC platform maintains its safety function regardless of the operational state of individual output channels.

Thermal load reduction is another measurable benefit. Solid-state output modules like the FC-SDO-0824 V1.6 generate significantly less heat than relay-based alternatives, reducing the cooling load on control panel enclosures. In large installations with dozens of output modules, this thermal efficiency translates directly into reduced HVAC energy consumption for the control room and reduced risk of heat-related component degradation — a key factor in extending mean time between failures (MTBF) and supporting predictive maintenance programs.

Production line rhythm (takt time) stability is also enhanced by the module's deterministic switching behavior. Unlike mechanical relays that introduce variable actuation delays due to contact bounce and wear, the FC-SDO-0824 V1.6's solid-state outputs switch with consistent, sub-millisecond response times. This consistency allows production schedulers to tighten cycle time windows, reduce buffer inventory, and improve overall equipment effectiveness (OEE) — all of which contribute to energy efficiency by reducing the time that energy-consuming equipment operates without producing output.

All units are supplied from verified in-stock inventory, subjected to pre-shipment functional testing to confirm channel integrity and output switching performance, and covered by a 12-Month Warranty from the date of shipment. Fast dispatch and reliable supply chain availability ensure that replacement or expansion deployments do not introduce extended production gaps.

Q1: How does the FC-SDO-0824 V1.6 contribute to measurable energy savings on a production line? The module enables the FSC Safety Manager to execute selective load shedding — de-energizing non-critical output loads during low-demand periods while maintaining safety-critical outputs. When integrated with VFDs and power monitoring modules, this coordinated control can reduce unnecessary motor run time and standby power consumption, contributing to measurable reductions in facility energy use per unit of production output.

Q2: Is the FC-SDO-0824 V1.6 compatible with third-party PLCs and SCADA systems? The FC-SDO-0824 V1.6 is a native module for the Honeywell FSC Safety Manager platform. Integration with third-party PLCs and SCADA systems is achieved through the FSC's communication modules (Ethernet, Modbus, PROFIBUS), which expose output states and accept supervisory commands from external systems. Direct insertion into non-FSC backplanes is not supported.

Q3: What is the recommended replacement or upgrade path for aging FSC digital output modules? For facilities running earlier FSC hardware revisions, the V1.6 designation indicates a current-generation firmware and hardware revision that offers improved diagnostic coverage and output channel monitoring. Replacement should be performed during a planned maintenance window with the FSC system in a safe state. Pre-shipment testing on all supplied units ensures drop-in compatibility with existing FSC backplane configurations.

Q4: What warranty and supply assurance does NANKMOS provide for the FC-SDO-0824 V1.6? All FC-SDO-0824 V1.6 units supplied by NANKMOS carry a 12-Month Warranty covering manufacturing defects and functional failures under normal operating conditions. Units are dispatched from verified in-stock inventory following pre-shipment functional testing. Expedited shipping options are available to support urgent maintenance and production continuity requirements.
