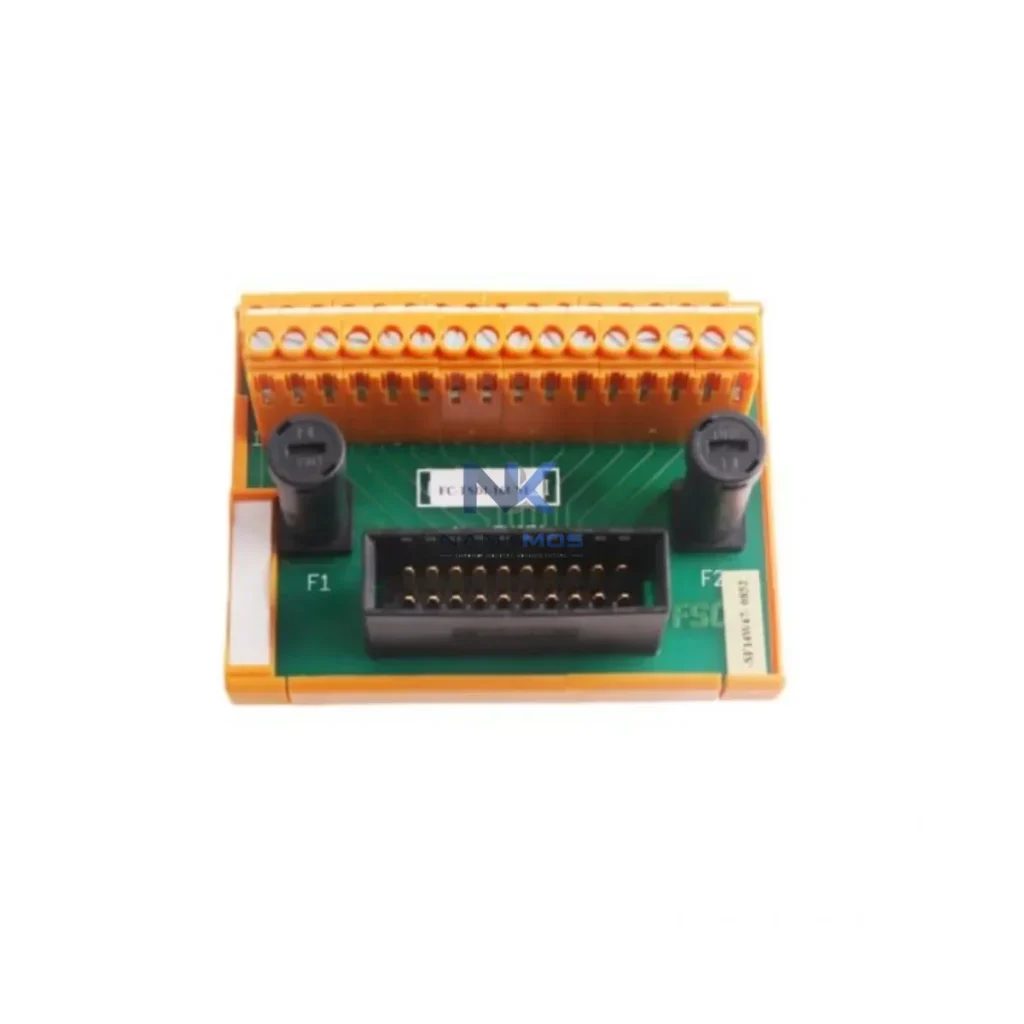

Honeywell FC-TDIO01 Safety I/O Module

Product Details

FC-TDIO01 Product Description

The Honeywell FC-TDIO01 is a SIL3-rated digital I/O module engineered for deployment within the Honeywell Safety Manager (SM) platform — a dedicated safety instrumented system (SIS) designed to meet the rigorous demands of IEC 61508 and IEC 61511 functional safety standards. As a core component of the SM series I/O subsystem, the FC-TDIO01 delivers deterministic digital signal processing across the full control architecture, from field device interfaces at the I/O layer through to the safety logic solver at the control layer. Its role is not simply to acquire or output digital signals — it is to maintain signal integrity, enforce diagnostic coverage, and sustain system availability under fault conditions that would compromise a standard DCS or PLC platform.

In modern process safety architectures, the I/O layer is the most failure-exposed tier of the control hierarchy. Field instruments, final control elements, and interlock circuits all terminate at the I/O module, making the FC-TDIO01 a critical node in the safety loop. Honeywell's SM platform addresses this by embedding hardware fault tolerance directly into the I/O module design — supporting 1oo2 and 2oo3 voting configurations, continuous self-diagnostics, and channel-level fault isolation. The FC-TDIO01 integrates seamlessly with the SM controller backplane, enabling hot-swap replacement without process interruption and maintaining SIL3 integrity throughout the module lifecycle.

The FC-TDIO01 achieves its full operational value only when understood within the broader Honeywell Safety Manager ecosystem. At the control layer, the FC-SDNM01 Safety Manager Controller serves as the logic solver, executing the safety application program and communicating with I/O modules — including the FC-TDIO01 — via the SM backplane. The controller's processing cycle is tightly coupled to the I/O scan rate of the digital module, ensuring that field signal changes are captured and acted upon within the system's defined safety response time.

Power integrity is maintained through the FC-PSU01 Power Supply Unit, which provides regulated DC power to the SM chassis. In redundant architectures, dual PSU configurations are standard practice, ensuring that a single power supply failure does not compromise the safety function. The FC-TDIO01 draws its operating power from the chassis backplane, making PSU redundancy directly relevant to I/O module availability.

At the communications layer, the Honeywell FTE (Fault Tolerant Ethernet) network connects the SM platform to the Experion PKS distributed control system, enabling integrated alarm management, historian data collection, and operator interface coordination. The FC-TDIO01's digital signals — whether representing valve position feedback, motor run status, or emergency shutdown initiation — are transmitted through this FTE backbone to the Experion PKS C300 Controller and displayed on Experion Station HMI consoles, giving operators a unified view of both safety and process control states.

For field termination, the SM platform uses dedicated FC-TBIO01 Terminal Blocks and marshalling panels that interface between field cable runs and the FC-TDIO01 module. Proper termination design — including cable shielding, grounding, and surge protection — is essential to maintaining the signal quality that the FC-TDIO01's diagnostic algorithms depend on. In high-noise industrial environments such as petrochemical plants or offshore platforms, signal isolators and Zener barriers are commonly installed between field instruments and the I/O module to prevent ground loops and transient interference from corrupting digital signal states.

In architectures requiring physical separation of safety and basic process control, the FC-TDIO01 operates within a dedicated SM chassis, while the process control I/O — such as Honeywell HC900 Hybrid Controller I/O modules or third-party PROFIBUS DP remote I/O — handles non-safety analog and digital signals. This separation enforces the independence requirement of IEC 61511 and prevents common-cause failures between the SIS and BPCS layers. Where the two systems must exchange data, hardwired interlock signals or certified data communication gateways are used, with the FC-TDIO01 often serving as the hardwired output interface for final element commands.

Maintenance and diagnostic efficiency are enhanced through the SM platform's online diagnostic tools, which continuously monitor the FC-TDIO01's channel health, loop resistance, and output load status. Integration with Honeywell's Asset Management System (AMS) or third-party HART-enabled field device managers allows maintenance teams to correlate I/O module diagnostics with field instrument health data, reducing mean time to repair and supporting proof test scheduling in compliance with the safety lifecycle requirements of IEC 61511 Clause 16.

Petrochemical and Refinery Safety Systems: In refinery applications, the FC-TDIO01 is deployed within emergency shutdown (ESD) systems controlling high-integrity pressure protection (HIPPS) valves, compressor anti-surge systems, and fired heater burner management systems (BMS). The module's SIL3 rating and high diagnostic coverage make it suitable for Safety Instrumented Functions (SIFs) with low probability of failure on demand (PFDavg) requirements. Its hot-swap capability is particularly valued in continuous process units where planned shutdowns are infrequent and unplanned downtime carries significant economic and safety consequences.

Power Generation and Utilities: In combined-cycle power plants and cogeneration facilities, the FC-TDIO01 interfaces with turbine protection systems, boiler safety interlocks, and generator trip circuits. The module's deterministic response time and voting architecture support the fast-acting protection functions required by turbine OEM specifications and grid code compliance requirements. Integration with the plant DCS via FTE ensures that safety system status is visible to control room operators without compromising the independence of the SIS.

Water and Wastewater Treatment: Municipal water treatment facilities and industrial effluent systems use the FC-TDIO01 within chemical dosing safety interlocks, pump protection systems, and overflow prevention circuits. The module's ability to operate in variable-temperature environments and its resistance to electrical noise from variable frequency drives (VFDs) make it well-suited to the mixed electrical environment typical of water infrastructure control rooms.

Mining and Mineral Processing: In underground mining and surface mineral processing, the FC-TDIO01 supports conveyor belt protection systems, crusher interlock circuits, and ventilation safety controls. The module's robust diagnostic coverage reduces the risk of dangerous undetected failures in environments where manual proof testing is logistically challenging and safety incidents carry severe consequences.

Offshore and Marine Applications: On offshore oil and gas platforms and LNG carriers, the FC-TDIO01 is integrated into fire and gas (F&G) detection systems, blowout preventer (BOP) control circuits, and emergency depressurization systems. The module's compliance with marine and offshore certification standards, combined with its hot-swap capability, supports the high-availability requirements of offshore safety systems where module replacement must be performed without process shutdown.

Q1: Is the FC-TDIO01 compatible with existing Honeywell Safety Manager installations, and can it be added to an operational system without a full shutdown? Yes. The FC-TDIO01 is designed for integration within the Honeywell Safety Manager platform and is compatible with existing SM chassis and backplane configurations. The module supports online hot-swap replacement, allowing it to be installed or replaced in an operational system without requiring a full process shutdown. However, any modification to the safety application — including adding new I/O channels — must follow the site's management of change (MOC) procedure and may require a partial or full proof test of the affected Safety Instrumented Function before the change is validated for operational use.

Q2: What redundancy configurations are supported, and how does the FC-TDIO01 maintain SIL3 integrity in a fault condition? The FC-TDIO01 supports 1oo2 (one-out-of-two) and 2oo3 (two-out-of-three) voting architectures at the channel and module level, consistent with the hardware fault tolerance requirements of IEC 61508 for SIL3 applications. In a fault condition, the module's continuous self-diagnostic routines detect channel failures and report them to the SM controller, which executes the configured fault response — typically driving outputs to the safe state. The module's high diagnostic coverage ensures that dangerous undetected failures remain within the PFDavg budget of the overall Safety Instrumented Function, maintaining SIL3 integrity throughout the proof test interval.

Q3: What does the 12-Month Warranty cover, and what pre-shipment testing is performed on the FC-TDIO01? Every FC-TDIO01 unit supplied by NANKMOS is covered by a 12-Month Warranty from the date of shipment, covering hardware defects and functional failures under normal operating conditions. Prior to shipment, each module undergoes a pre-shipment functional verification test that confirms digital I/O channel operation, backplane communication integrity, and self-diagnostic response. Units that do not pass functional verification are not shipped. For customers requiring documentation of test results, a test report can be provided upon request. Replacement or repair of warranty-covered units is coordinated through NANKMOS's technical support team at [email protected].
