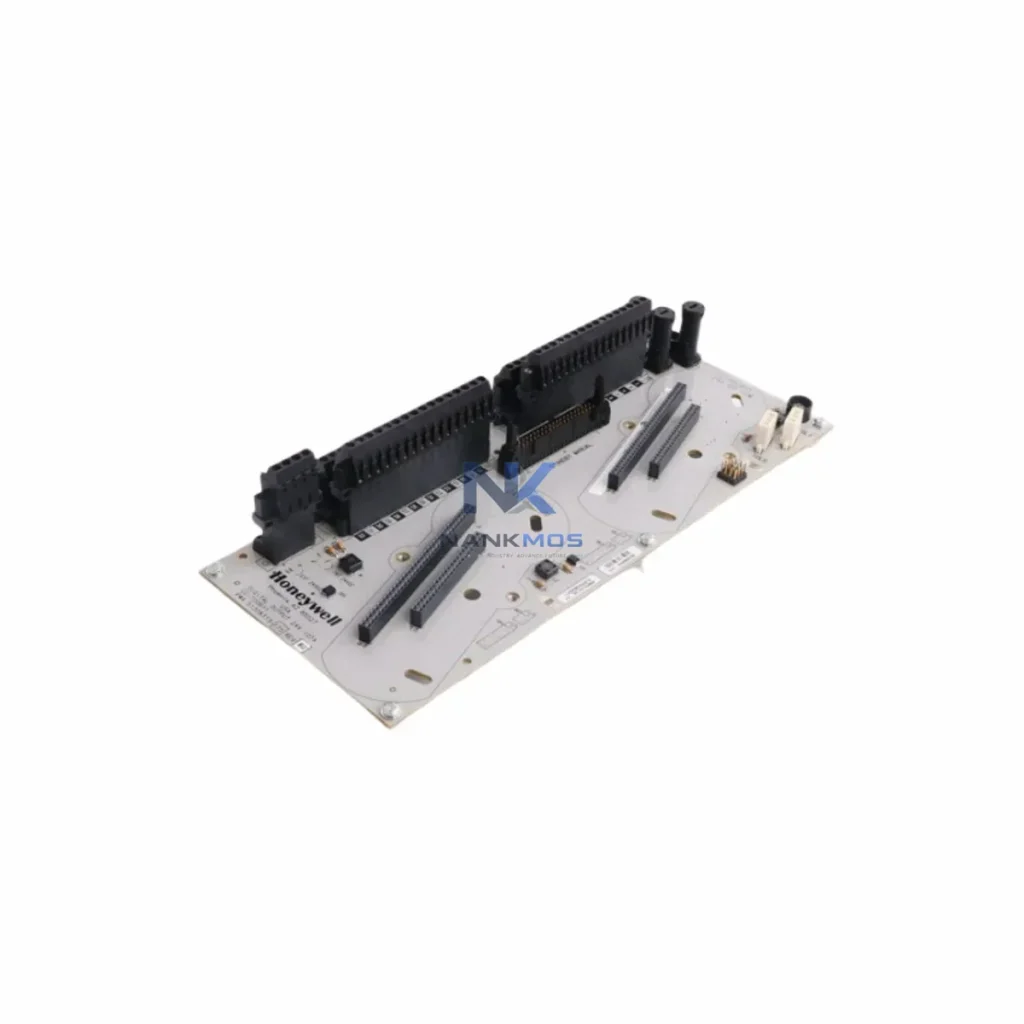

Honeywell FC-TSAOH-0220m Safety Analog Output Module

Product Details

FC-TSAOH-0220m Product Description

The Honeywell FC-TSAOH-0220M is a high-integrity safety analog output module designed for the Honeywell FSC (Fail-Safe Controller) platform. Purpose-built for energy-critical industrial environments, this module delivers precise 0–20 mA analog output signals that directly govern actuators, control valves, variable frequency drives (VFDs), and servo drive systems — enabling tightly regulated energy consumption across continuous process and discrete manufacturing lines. By maintaining deterministic, SIL-rated output control, the FC-TSAOH-0220M eliminates the energy waste associated with uncontrolled actuator drift, valve hunting, and unscheduled drive trips, making it a cornerstone component in any power-aware automation strategy.

In a fully integrated energy management architecture, the FC-TSAOH-0220M operates as the precision output stage between the Honeywell FSC safety PLC and the field devices that consume the most energy on a production line. Its 0–20 mA analog signal directly commands variable frequency drives (VFDs) such as the Honeywell SmartVFD HVAC series, regulating motor speed in proportion to actual process demand rather than running motors at fixed full-load — a primary source of avoidable energy waste in pump, fan, and compressor applications.

Upstream, the FSC safety controller receives real-time process data from pressure transmitters, flow sensors, and temperature sensors wired through Honeywell FC-TSTBI-0800 digital input modules and FC-TSAIH-0820M analog input modules. This closed-loop architecture ensures that the FC-TSAOH-0220M only commands the output level that the process actually requires, preventing over-driving actuators and reducing thermal load on both the driven equipment and the control cabinet.

For power monitoring, the FC-TSAOH-0220M integrates naturally with power measurement modules and energy meters connected to the SCADA layer via Modbus RTU or OPC-DA gateways. Plant engineers can correlate the analog output setpoint with real-time kW readings from power monitoring devices, enabling energy KPI dashboards in Honeywell Experion PKS or third-party SCADA platforms. This visibility supports demand-side load management — shedding non-critical loads during peak tariff windows while maintaining safety-rated outputs on critical process loops.

On the I/O side, the module slots into the FSC chassis alongside Honeywell FC-TSDO-0800 digital output modules and FC-TSDI-0800 digital input modules, sharing a common backplane bus that minimizes inter-module wiring and associated signal losses. HMI panels connected to the Experion PKS network display live output values, allowing operators to verify drive setpoints and actuator positions without interrupting the safety loop — reducing the manual intervention cycles that typically spike energy consumption during shift changeovers.

For servo-driven axes and precision positioning applications, the analog output from the FC-TSAOH-0220M can serve as the speed reference or torque limit signal to servo amplifiers and motion controllers, coordinating production line throughput with energy budget targets. When integrated with a manufacturing execution system (MES) or energy management system (EMS), the output setpoints can be dynamically adjusted based on production schedule, utility tariff signals, and equipment health data — a key enabler of predictive energy optimization.

Factory energy audits consistently identify unregulated actuator and drive operation as a top-three source of avoidable energy cost. The FC-TSAOH-0220M addresses this directly: by providing a SIL 2-rated, drift-free analog output, it ensures that control valves, dampers, and VFD-driven motors track their setpoints with high fidelity. Valve hunting — the oscillation around a setpoint caused by poor signal quality or controller tuning — is eliminated, removing the associated pressure surges, mechanical wear, and wasted pumping energy.

Thermal load reduction is a secondary but significant benefit. Actuators and drives that operate at partial load generate less heat than those running at full capacity with throttled mechanical restriction. By enabling true variable-speed and variable-position control, the FC-TSAOH-0220M reduces cooling requirements for motor control centers (MCCs) and drive cabinets, lowering HVAC energy consumption in the electrical room.

Production line throughput stability — often called line takt — is directly supported by the module's deterministic output behavior. Because the FSC platform performs continuous self-diagnostics and the FC-TSAOH-0220M reports channel health back to the controller, maintenance teams receive early warning of output degradation before it causes a process upset or unplanned shutdown. This predictive maintenance capability reduces emergency stop events, which are among the most energy-intensive moments in a production cycle due to restart inrush currents and reheating of process equipment.

NANKMOS maintains verified stock of the FC-TSAOH-0220M and conducts outgoing functional tests on every unit prior to shipment, confirming output linearity and channel isolation. All units are covered by a 12-month warranty from the date of shipment, with technical support available for installation, loop calibration, and FSC system integration queries.

Q1: What energy savings can I expect by integrating the FC-TSAOH-0220M with a VFD on a pump application? A: Pump affinity laws mean that reducing motor speed by 20% cuts energy consumption by approximately 49%. The FC-TSAOH-0220M provides the stable, drift-free 0–20 mA reference signal that allows the VFD to maintain that reduced speed setpoint accurately. In practice, plants replacing fixed-speed pump control with FSC-governed VFD regulation report 20–40% reductions in pump station energy costs, depending on load profile variability.

Q2: Is the FC-TSAOH-0220M compatible with third-party SCADA and DCS platforms beyond Honeywell Experion PKS? A: Yes. The FSC platform communicates with SCADA and DCS systems via standard Modbus RTU/TCP and OPC-DA/UA gateways, making the output data from the FC-TSAOH-0220M accessible to Siemens WinCC, Rockwell FactoryTalk, Wonderware, and other supervisory platforms. The analog output signal itself is a universal 0–20 mA loop compatible with any field device accepting that standard.

Q3: What is the recommended replacement or upgrade path if my existing FSC analog output module shows channel degradation? A: The FC-TSAOH-0220M is a direct form-fit-function replacement for earlier Honeywell FSC analog output modules in the same chassis family. No backplane rewiring is required. NANKMOS recommends performing a loop calibration check after module swap and verifying output linearity across the full 0–20 mA range before returning the loop to automatic control. Our technical team can provide a step-by-step commissioning checklist on request.

Q4: What does the 12-month warranty cover, and how is the pre-shipment test performed? A: The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. Prior to dispatch, each FC-TSAOH-0220M unit undergoes a functional output test verifying channel linearity, isolation resistance, and backplane communication integrity. Test records are available upon request. For warranty claims, contact NANKMOS with the unit serial number and a description of the observed fault.
