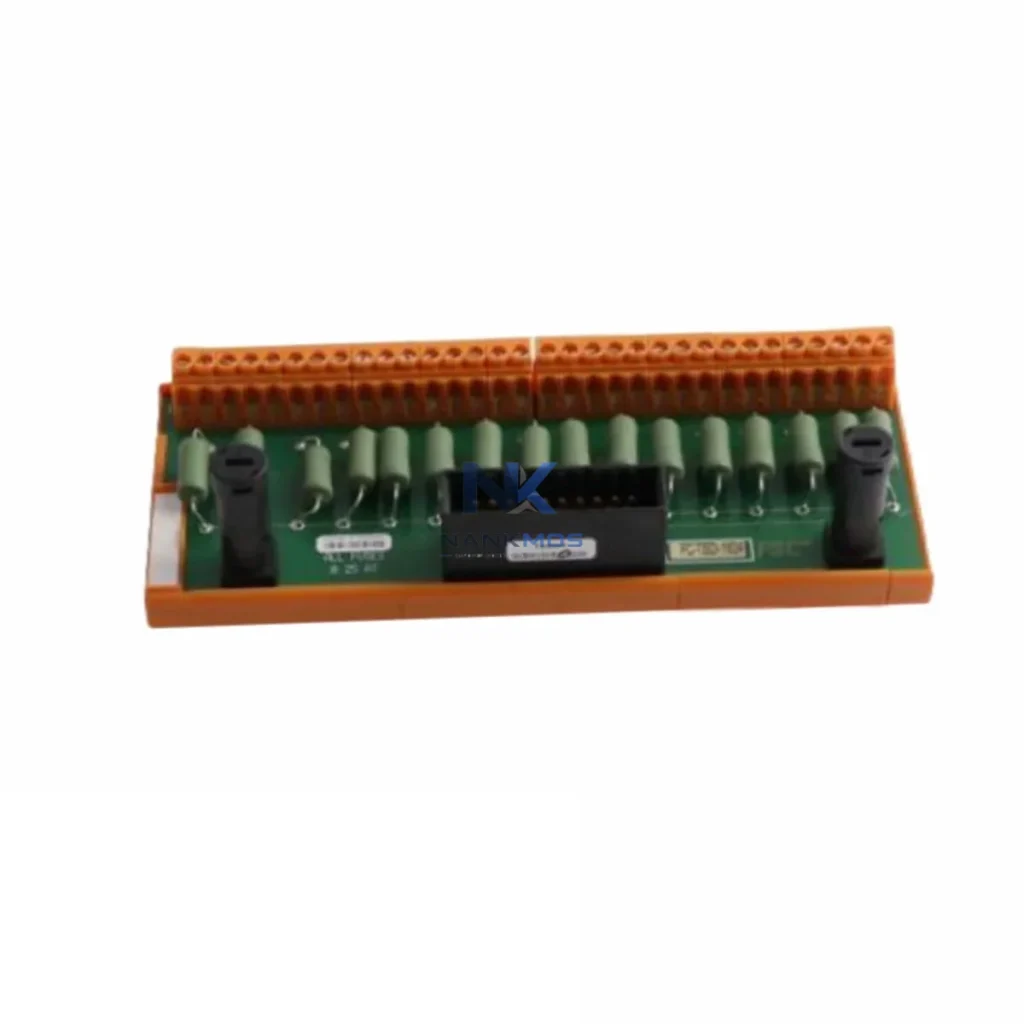

Honeywell FC-TSDI-16115 Safety System Module

Product Details

FC-TSDI-16115 Product Description

The Honeywell FC-TSDI-16115 is a SIL2-rated Safe Digital Input module engineered for seamless integration within the Honeywell Safety Manager (SM) platform — a dedicated safety instrumented system (SIS) designed to meet IEC 61508 and IEC 61511 functional safety standards. As a core I/O layer component, the FC-TSDI-16115 provides deterministic, fault-tolerant digital signal acquisition from field devices, enabling the safety controller to execute protective logic with the highest degree of reliability and architectural integrity. This module is not a standalone device — it is a precision-engineered element within a layered, redundant safety architecture that spans the control layer, I/O layer, communication layer, power layer, HMI layer, actuator layer, protection layer, and maintenance layer.

Deployed across safety-critical industries including oil and gas, petrochemical refining, power generation, water treatment, mining, metallurgy, and offshore marine platforms, the FC-TSDI-16115 delivers consistent signal fidelity, diagnostic transparency, and long-term operational stability. Every unit shipped by NANKMOS undergoes pre-shipment functional verification and is backed by a 12-Month Warranty, ensuring engineering teams can specify and procure with confidence.

The FC-TSDI-16115 achieves its full engineering value when deployed as part of a complete Honeywell Safety Manager architecture. At the control layer, the Safety Manager SC300E or SC100 safety controller processes the digital inputs acquired by the FC-TSDI-16115, executing safety logic in accordance with the Safety Requirements Specification (SRS). The controller communicates with the DCS backbone — typically a Honeywell Experion PKS system — via the FC-SDNM-0001 Safety Data Network Module, which bridges the safety network and the process control network without compromising safety domain isolation.

At the power layer, the FC-PSU-0001 Safety Manager Power Supply Unit provides redundant 24 VDC rail power to the chassis, ensuring that the FC-TSDI-16115 and co-resident I/O modules maintain continuous operation even during single power supply failure events. Redundant power feeds are routed through the FC-PSCM-0001 Power Supply Changeover Module, which performs bumpless switchover without interrupting field signal acquisition.

Adjacent to the FC-TSDI-16115 in the same chassis, the FC-TSDO-16115 Safe Digital Output module drives final control elements — ESD valves, motor starters, and interlock relays — based on the safety logic output from the SC300E controller. For analog process variables such as pressure, temperature, and flow, the FC-TSAI-16115 Safe Analog Input module provides 4–20 mA signal acquisition with HART pass-through capability, enabling field device diagnostics without interrupting the safety loop.

At the communication layer, the FC-SDNM-0001 and optional Modbus TCP gateway modules allow the Safety Manager to exchange status data with SCADA systems, historian servers, and asset management platforms. This enables real-time visibility of safety system health from the control room HMI — typically a Honeywell Station or third-party SCADA workstation running Experion or Uniformance PHD.

For installations requiring signal conditioning between field instruments and the FC-TSDI-16115 input channels, inline signal isolators and Zener barriers are commonly deployed in the marshalling cabinet to protect the safety I/O from ground loops, transient surges, and intrinsic safety zone boundaries. The FC-TSDI-16115's high diagnostic coverage ensures that any wiring fault, open circuit, or short circuit condition is detected and reported to the safety controller within the module's diagnostic test interval, supporting rapid fault isolation and maintenance response.

Oil, Gas & Petrochemical: The FC-TSDI-16115 is widely deployed in Emergency Shutdown (ESD) systems for upstream wellhead control, midstream pipeline compressor stations, and downstream refinery process units. It monitors field-mounted pressure switches, temperature switches, vibration switches, and position feedback from ESD valves, feeding the safety controller with the discrete signal states required to execute protective actions — including process shutdown, depressurization, and isolation — within the required Safety Instrumented Function (SIF) response time.

Power Generation: In gas turbine, steam turbine, and combined-cycle power plants, the FC-TSDI-16115 integrates with turbine protection systems to monitor overspeed trip signals, flame detector outputs, lube oil pressure switches, and generator protection relay contacts. Its SIL2 rating satisfies the functional safety requirements of IEC 61511 for power plant safety instrumented systems.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities use the FC-TSDI-16115 to monitor pump run/fail status, valve position feedback, high-level float switches, and chemical dosing interlock signals. The module's diagnostic capability reduces undetected dangerous failures, supporting the low probability of failure on demand (PFD) targets required for SIL2 safety functions.

Mining & Metallurgy: In underground mining and surface smelting operations, the FC-TSDI-16115 monitors conveyor belt emergency stop circuits, fire and gas detector outputs, and hoisting system safety interlocks. Its robust operating temperature range and high diagnostic coverage make it suitable for the harsh electrical environments typical of mining control rooms.

Marine & Offshore: Offshore platform ESD systems and vessel machinery protection systems deploy the FC-TSDI-16115 to monitor bilge high-level alarms, fire damper position feedback, and engine room emergency stop signals. The module's TÜV certification and IEC 61508 compliance satisfy classification society requirements for safety-critical marine automation.

Q1: Is the FC-TSDI-16115 compatible with both 1oo2D and 2oo3 Safety Manager voting architectures? Yes. The FC-TSDI-16115 is designed for use within the Honeywell Safety Manager chassis and supports both 1oo2D (one-out-of-two with diagnostics) and 2oo3 (two-out-of-three) voting configurations. The voting logic is implemented at the safety controller level (SC300E / SC100), and the FC-TSDI-16115 provides the raw digital input data to the controller via the backplane bus. Architecture selection depends on the required SIL level, spurious trip rate targets, and process availability requirements defined in the Safety Requirements Specification.

Q2: Can the FC-TSDI-16115 be hot-swapped during plant operation without interrupting the safety function? Hot-swap capability depends on the specific Safety Manager chassis configuration and the redundancy architecture in use. In a fully redundant 1oo2D configuration with dual I/O modules, one module can typically be replaced while the redundant module maintains the safety function. NANKMOS recommends consulting the Honeywell Safety Manager Hardware Manual and coordinating with your functional safety engineer before performing any module replacement during live plant operation. All replacement modules supplied by NANKMOS are pre-tested and include a 12-Month Warranty to support planned maintenance windows.

Q3: What is NANKMOS's lead time and stock availability for the FC-TSDI-16115, and what does the 12-Month Warranty cover? NANKMOS maintains inventory of the FC-TSDI-16115 to support urgent MRO procurement and planned turnaround projects. Standard lead time for in-stock units is 3–7 business days for international shipment. The 12-Month Warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. Each unit undergoes pre-shipment functional verification. For volume procurement, expedited shipping, or project-specific documentation requirements, contact NANKMOS at [email protected] or +86 18359268345.
