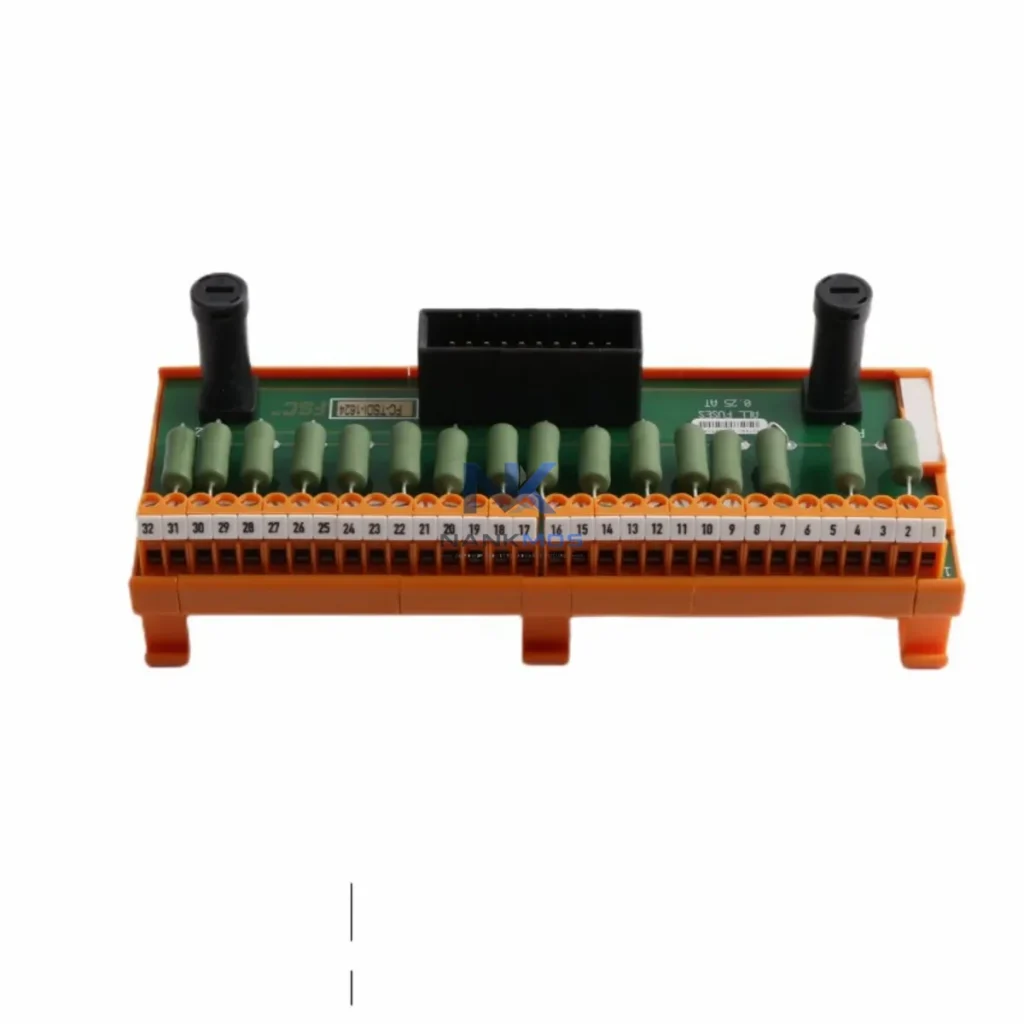

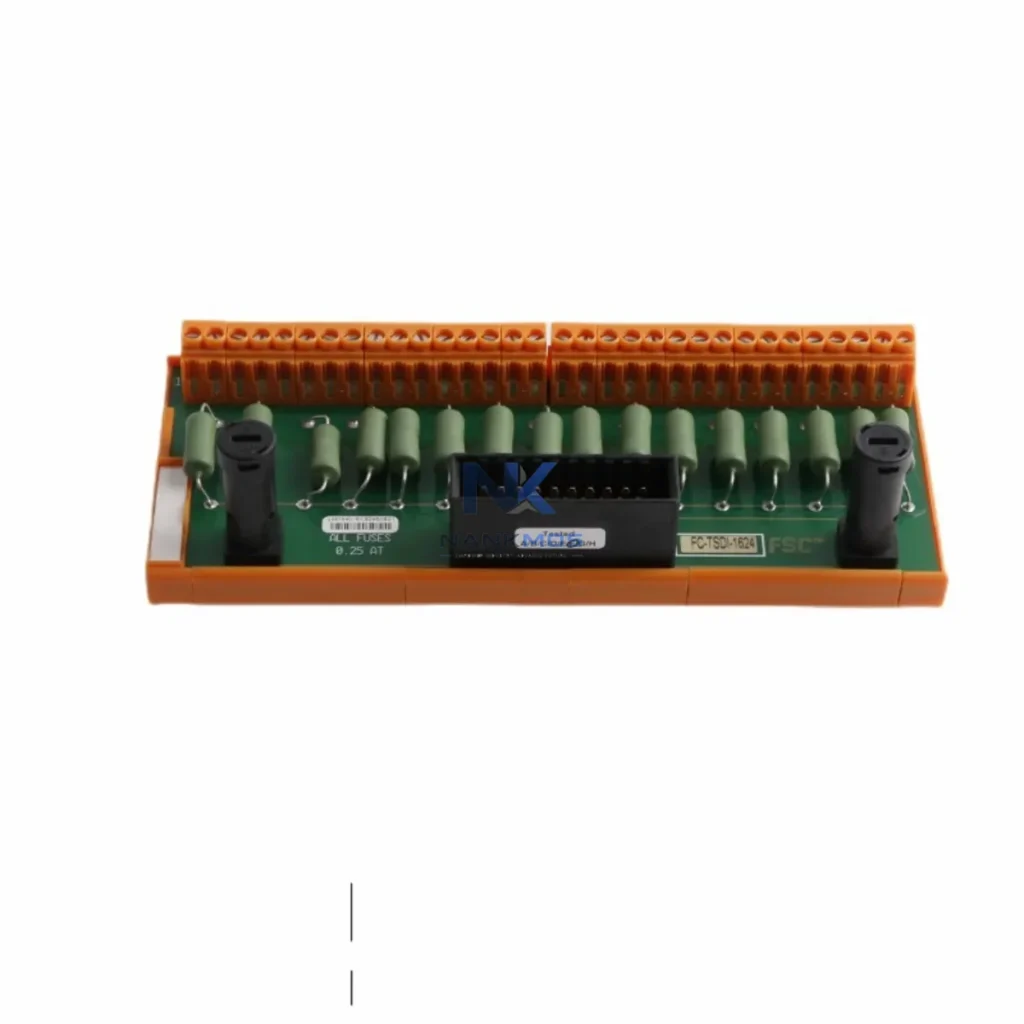

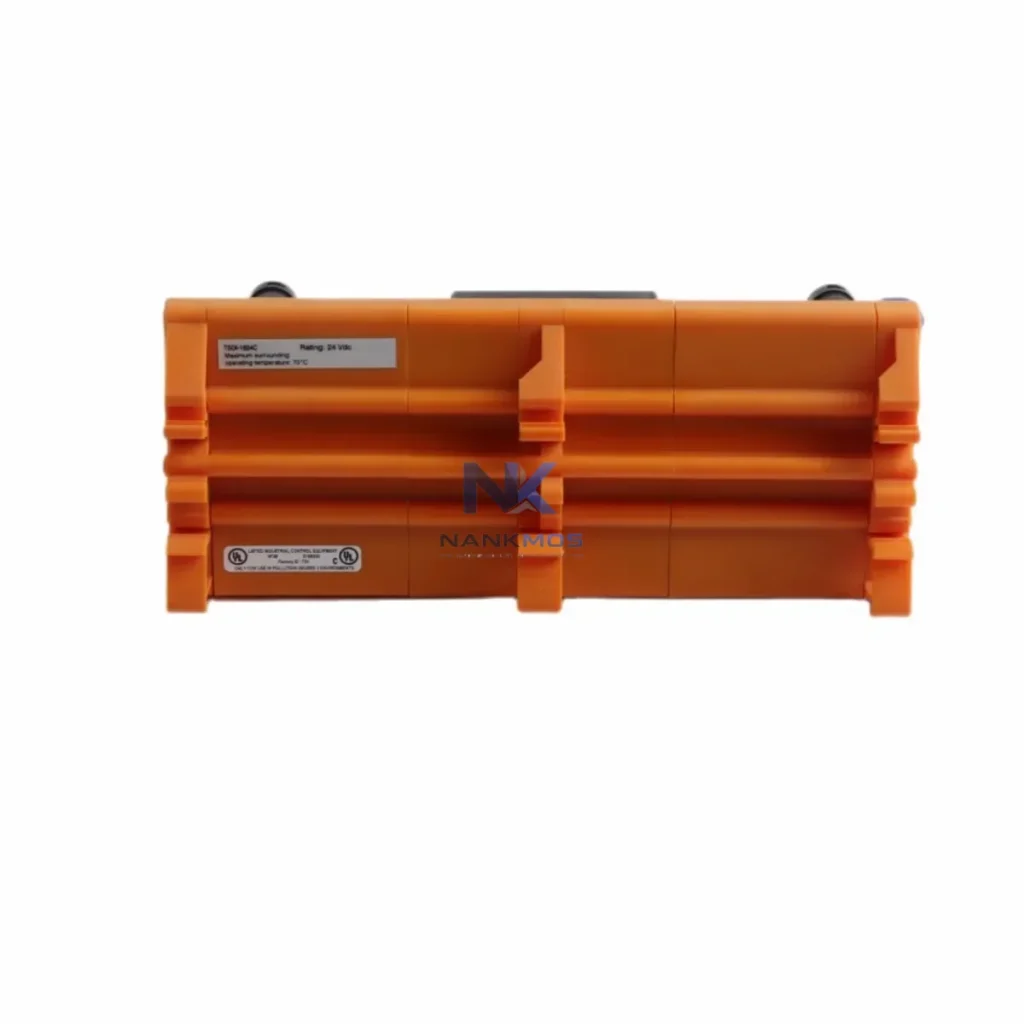

Honeywell FC-TSDI-1624 V1.0

Product Details

FC-TSDI-1624 V1.0 Product Description

The Honeywell FC-TSDI-1624 is a 16-channel, 24 VDC digital input module engineered for deployment within the Honeywell FSC (Fail-Safe Controller) safety platform. Designed to meet the rigorous demands of Safety Instrumented Systems (SIS), this module serves as the primary signal acquisition layer in architectures where process integrity, redundancy, and deterministic response are non-negotiable. Its role within the FSC rack extends beyond simple I/O acquisition — it forms the foundational sensing layer that feeds validated digital states into the safety logic solver, enabling the system to execute protective actions with the precision and reliability required by IEC 61511 and IEC 61508 functional safety standards.

In a complete FSC control architecture, the FC-TSDI-1624 operates in close coordination with the FC-TSDO-1624 digital output module, the FC-TSAI-1620 analog input module, and the FC-TSAO-1620 analog output module. These I/O modules are mounted on the FC-TBUS-0100 backplane, which provides the high-speed internal communication bus connecting all modules to the FC-CPU-0100 or FC-CPU-0200 central processing unit. The CPU executes the safety application logic, processes the digital states received from the FC-TSDI-1624, and issues commands to the output layer — all within a deterministic scan cycle that ensures protective functions are executed within the required response time.

Signal integrity is maintained through the module's built-in channel diagnostics, which continuously monitor for open-circuit faults, short-circuit conditions, and signal discrepancies. In redundant architectures — such as 1oo2 (one-out-of-two) or 2oo3 (two-out-of-three) voting configurations — multiple FC-TSDI-1624 modules may be deployed in parallel, with the FSC CPU performing cross-channel comparison to detect and isolate faults without triggering spurious trips. This architecture is particularly critical in high-demand safety applications such as emergency shutdown (ESD) systems, burner management systems (BMS), and high-integrity pressure protection systems (HIPPS).

The FC-TSDI-1624 is powered via the FC-TPSU-0100 or FC-TPSU-0200 power supply module, which provides regulated 24 VDC to the backplane and all installed I/O modules. Redundant power supply configurations are supported, ensuring that a single power supply failure does not compromise the availability of the safety system. The power supply modules are monitored by the CPU, and any power fault is immediately flagged in the system diagnostic log, enabling maintenance teams to respond before system availability is affected.

Communication between the FSC safety controller and the supervisory control layer — typically a Honeywell Experion PKS DCS or a third-party SCADA system — is handled through the FC-TCIM-0100 communication interface module. This module supports Modbus RTU, Modbus TCP/IP, and proprietary Honeywell communication protocols, enabling seamless integration of safety system status data into the plant-wide control network. The FC-TSDI-1624's channel states, diagnostic flags, and module health data are all accessible through this communication interface, providing operators with real-time visibility into the safety system's operational status.

For applications requiring human-machine interface integration, the FSC system can be connected to Honeywell's HC900 operator interface or third-party HMI panels via the communication interface module. This allows operators to monitor digital input states, acknowledge alarms, and review diagnostic data without requiring direct access to the safety controller hardware. In large-scale installations — such as offshore platforms, LNG terminals, or petrochemical complexes — this remote monitoring capability is essential for maintaining operational awareness across geographically distributed safety systems.

The FC-TSDI-1624 is housed in a compact, DIN-rail-compatible module format that slots directly into the FC-TBUS-0100 backplane. Its front-panel LED indicators provide immediate visual confirmation of channel states and module health, reducing the time required for field diagnostics during commissioning and maintenance activities. The module supports hot-swap replacement in systems configured for online maintenance, allowing faulty modules to be replaced without shutting down the safety system — a critical capability in continuous-process industries where unplanned shutdowns carry significant operational and financial consequences.

Long-term maintainability is further supported by the module's compatibility with Honeywell's Safety Manager and FSC Engineering Tool software environments. These tools provide full configuration management, version control, and diagnostic access, enabling engineering teams to maintain a complete audit trail of system changes — a requirement under IEC 61511 for safety lifecycle management. Spare module availability is maintained through NANKMOS's inventory management program, ensuring that replacement units are available for rapid deployment when required.

All FC-TSDI-1624 modules supplied by NANKMOS are covered by a 12-Month Warranty and undergo pre-shipment functional testing to verify channel integrity, communication performance, and diagnostic functionality. Each unit is shipped with full documentation, including module configuration data and test records, supporting seamless integration into existing FSC architectures.

The FC-TSDI-1624 achieves its full operational value when deployed as part of a complete FSC safety architecture. At the processing layer, the FC-CPU-0100 and FC-CPU-0200 safety CPUs execute the application logic that interprets digital input states from the FC-TSDI-1624 and generates protective output commands. The FC-TSDO-1624 digital output module translates these commands into field-level actuator signals — driving solenoid valves, motor starters, and shutdown relays in response to detected process deviations.

Analog process variables are acquired through the FC-TSAI-1620 analog input module, which monitors 4–20 mA signals from pressure transmitters, temperature sensors, and flow meters. These analog inputs are processed alongside the digital states from the FC-TSDI-1624, enabling the FSC CPU to implement complex cause-and-effect logic that considers both discrete and continuous process variables. The FC-TSAO-1620 analog output module provides modulating control outputs for final control elements that require proportional positioning rather than simple on/off actuation.

The FC-TBUS-0100 backplane provides the physical and electrical infrastructure that connects all I/O modules to the CPU, while the FC-TCIM-0100 communication interface module bridges the safety system to the plant DCS or SCADA network. Redundant power is supplied by dual FC-TPSU-0100 units, and the entire rack assembly is housed in a certified control cabinet with appropriate IP rating for the installation environment. Signal isolation between field devices and the safety system is maintained through the module's internal isolation barriers, supplemented by external signal isolators where required by the hazardous area classification.

The FC-TSDI-1624 is deployed across a broad range of safety-critical industrial applications. In oil and gas processing facilities, it serves as the primary digital input interface for emergency shutdown systems, monitoring valve position feedback, pressure switch states, and gas detector alarm contacts. In LNG terminals and offshore platforms, its redundant input capability supports 2oo3 voting architectures that minimize both spurious trips and dangerous failures in high-consequence environments.

In power generation and electrical utilities, the FC-TSDI-1624 monitors turbine protection system inputs, generator protection relay contacts, and transformer fault signals, providing the safety logic solver with the discrete state information required to execute protective tripping sequences. In petrochemical and refinery applications, it interfaces with high-integrity pressure protection systems (HIPPS), monitoring upstream pressure switch states and providing the input data required for SIL 3 protective functions.

Water treatment and municipal utility applications utilize the FC-TSDI-1624 for pump protection, valve position monitoring, and level switch integration within safety instrumented functions. In mining and metallurgical processing, the module monitors conveyor protection systems, crusher overload contacts, and ventilation fan status signals. Packaging and discrete manufacturing lines deploy the FC-TSDI-1624 for machine guarding, emergency stop monitoring, and safety gate interlock integration within FSC-based safety systems.

Q1: Is the FC-TSDI-1624 compatible with both FC-CPU-0100 and FC-CPU-0200 processors?Yes. The FC-TSDI-1624 is designed for the FSC backplane architecture and is compatible with both the FC-CPU-0100 and FC-CPU-0200 central processing units. Module configuration is managed through the FSC Engineering Tool, which supports both CPU variants. When upgrading from FC-CPU-0100 to FC-CPU-0200, existing I/O module configurations — including FC-TSDI-1624 channel assignments and diagnostic settings — can be migrated without hardware changes.

Q2: Can the FC-TSDI-1624 be replaced online without shutting down the FSC system?In FSC architectures configured for online maintenance, the FC-TSDI-1624 supports hot-swap replacement. The backplane maintains power and communication to adjacent modules during the replacement procedure, and the CPU continues executing the safety application using the last known input states or configured fault defaults. Following module insertion, the CPU automatically re-initializes the replacement module and resumes normal channel scanning. This capability is essential for maintaining system availability in continuous-process applications where planned shutdowns are infrequent.

Q3: What is the warranty coverage and supply availability for the FC-TSDI-1624?All FC-TSDI-1624 modules supplied by NANKMOS are covered by a 12-Month Warranty from the date of shipment. Each unit undergoes pre-shipment functional testing covering channel integrity, diagnostic response, and backplane communication performance. NANKMOS maintains inventory of FC-TSDI-1624 modules to support both planned procurement and urgent replacement requirements. Orders are processed with standard lead times of 3–7 business days, with expedited shipping available for critical maintenance situations. For procurement inquiries, contact [email protected] or call +86 18359268345.
