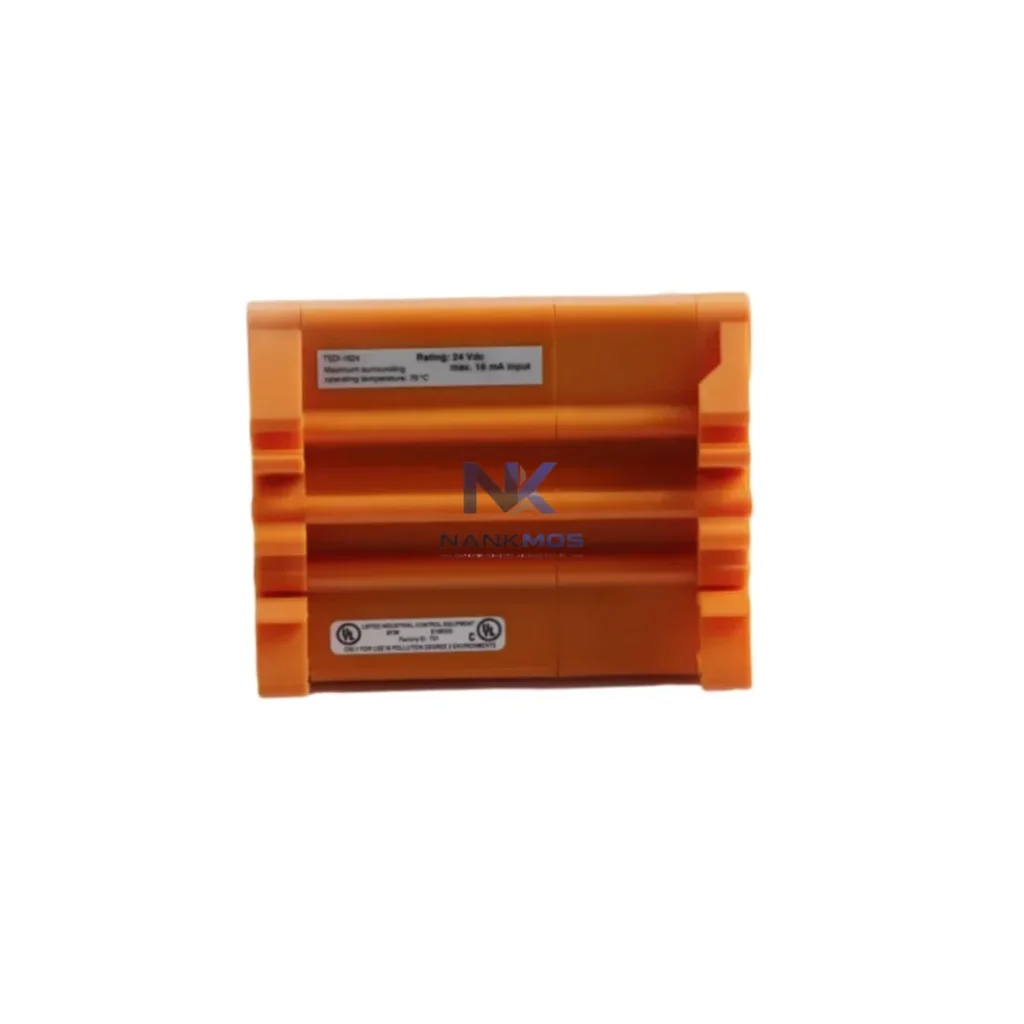

Honeywell FC-TSDO-0824C Safety Digital Output Module

Product Details

FC-TSDO-0824C Product Description

The Honeywell FC-TSDO-0824C is a safety-rated digital output module engineered for deployment within the Honeywell Safety Manager (SM) platform — a dedicated safety instrumented system (SIS) designed to achieve SIL 2 and SIL 3 functional safety requirements in accordance with IEC 61508 and IEC 61511. As a core output-layer component, the FC-TSDO-0824C provides eight channels of safe digital output, enabling the safety controller to command final control elements — including solenoid valves, motor contactors, and emergency shutdown actuators — with the diagnostic coverage and response time demanded by process safety applications.

In modern industrial control architecture, the output layer is not an isolated component. It is the terminal point of a layered signal chain that begins at the sensor, passes through the safety logic solver, and terminates at the actuator. The FC-TSDO-0824C is designed to operate within this chain with full architectural awareness: it integrates directly into the Safety Manager backplane, communicates via the internal SM bus, and participates in the system's continuous self-diagnostic cycle. This ensures that any output channel fault — whether a short circuit, open load, or internal hardware failure — is detected, reported, and acted upon within the system's defined safe state response time.

The FC-TSDO-0824C achieves its full engineering value when deployed as part of a complete Honeywell Safety Manager architecture. The Safety Manager platform is structured around a modular chassis system in which the FC-SDIO-0808C (safe digital I/O combination module), FC-TSAI-1620M (safe analog input module), and FC-TSAO-0808C (safe analog output module) operate alongside the FC-TSDO-0824C to form a comprehensive I/O layer capable of handling both discrete and continuous process signals.

At the control layer, the FC-TSDO-0824C receives commands from the Safety Manager CPU module — typically the FC-CPU-0714 or its redundant counterpart — which executes the safety application program, manages the I/O scan cycle, and coordinates the system's fault response logic. In high-availability installations, the CPU operates in a redundant 1oo2 or 2oo3 voting configuration, and the FC-TSDO-0824C's output channels are designed to support this architecture by providing channel-level diagnostics that feed back into the CPU's fault management system.

Power integrity is maintained by the FC-PSU-0424H power supply module, which provides regulated 24 VDC to the chassis backplane. In redundant power configurations, dual FC-PSU-0424H units operate in parallel, ensuring that a single power supply failure does not interrupt the output module's ability to maintain safe state commands. The FC-TSDO-0824C's internal circuitry is designed to tolerate power supply transients within the SM platform's specified range, preventing spurious output activation during power disturbances.

For process communication and integration with the broader distributed control system (DCS) or SCADA layer, the Safety Manager platform employs dedicated communication gateway modules such as the FC-EIOHA-0002 Ethernet I/O hub adapter, enabling the safety system to exchange status and diagnostic data with Honeywell Experion PKS or third-party DCS platforms via standard industrial protocols. The FC-TSDO-0824C's channel status — including output state, diagnostic results, and fault codes — is made available through this communication path, supporting real-time monitoring from the control room HMI without compromising the safety system's independence.

At the field termination layer, the FC-TSDO-0824C connects to process actuators through dedicated termination assemblies and marshalling panels. Proper cable segregation, shielding, and grounding practices are essential to maintain the module's EMC performance and prevent induced noise from affecting output channel integrity. In installations where signal isolation is required between the safety system and the process field, external signal isolators or safety barriers are used in conjunction with the FC-TSDO-0824C to maintain galvanic separation and protect the module from field-side fault propagation.

Oil, Gas & Petrochemical: In upstream and downstream hydrocarbon processing facilities, the FC-TSDO-0824C is deployed within emergency shutdown (ESD) systems to command blowdown valves, isolation valves, and deluge system actuators. Its SIL 3 capability makes it suitable for high-demand safety functions where the probability of failure on demand (PFD) must be minimized. The module's continuous diagnostic cycle ensures that any output channel degradation is detected before a demand event occurs, maintaining the integrity of the safety function throughout the proof test interval.

Power Generation & Utilities: In thermal power plants, combined-cycle facilities, and nuclear auxiliary systems, the FC-TSDO-0824C provides safe digital output for turbine trip systems, boiler protection circuits, and auxiliary shutdown functions. Its compatibility with the Safety Manager platform's redundant architecture supports the high-availability requirements of power generation safety systems, where unplanned shutdowns carry significant operational and financial consequences.

Chemical & Specialty Process Industries: Batch and continuous chemical processes rely on the FC-TSDO-0824C to command agitator interlocks, reactor isolation valves, and vent system actuators. The module's channel-level diagnostics enable maintenance teams to identify and address output channel faults during scheduled maintenance windows without requiring a full system shutdown, supporting the operational continuity demands of continuous process facilities.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities use the FC-TSDO-0824C within safety systems that protect pump stations, chemical dosing systems, and overflow prevention circuits. The module's robust operating temperature range and humidity tolerance make it suitable for the environmental conditions typical of water treatment infrastructure.

Mining & Metals: In underground mining and surface mineral processing operations, the FC-TSDO-0824C supports safety functions including conveyor emergency stop systems, ventilation fan interlocks, and hoisting system protection circuits. Its modular design allows for efficient replacement during maintenance cycles, minimizing system downtime in remote or difficult-access installations.

Q1: Is the FC-TSDO-0824C compatible with both new Safety Manager installations and existing SM chassis upgrades? Yes. The FC-TSDO-0824C is designed for direct installation into the Honeywell Safety Manager chassis backplane and is compatible with both new system builds and expansion or replacement scenarios within existing SM installations. When replacing an existing output module, the system should be placed in maintenance mode per the SM engineering procedures to ensure safe state is maintained during the module swap. NANKMOS supplies the FC-TSDO-0824C with full functional testing completed prior to shipment, reducing commissioning time and minimizing the risk of installation-related faults.

Q2: What diagnostic information does the FC-TSDO-0824C provide, and how is it accessed during system operation? The FC-TSDO-0824C performs continuous self-diagnostics on each output channel, including open load detection, short circuit detection, and internal hardware health monitoring. Diagnostic results are reported to the Safety Manager CPU via the backplane bus and are accessible through the SM Engineering Station software. Channel-level fault codes are displayed in the system's fault log and can be forwarded to the DCS or SCADA layer via the platform's communication gateway. This diagnostic transparency supports proactive maintenance planning and reduces the time required to isolate and resolve output channel faults during scheduled proof tests.

Q3: What warranty and supply assurance does NANKMOS provide for the FC-TSDO-0824C? NANKMOS provides a 12-Month Warranty on the FC-TSDO-0824C, covering hardware defects and functional failures under normal operating conditions. Each unit undergoes pre-shipment functional testing and inspection to verify output channel performance, backplane interface integrity, and diagnostic response. NANKMOS maintains inventory of the FC-TSDO-0824C to support both planned procurement and urgent replacement requirements, with global shipping capability to serve project sites across Asia-Pacific, the Middle East, Europe, and the Americas. For supply planning, lead time confirmation, and technical pre-sales support, contact NANKMOS directly.
