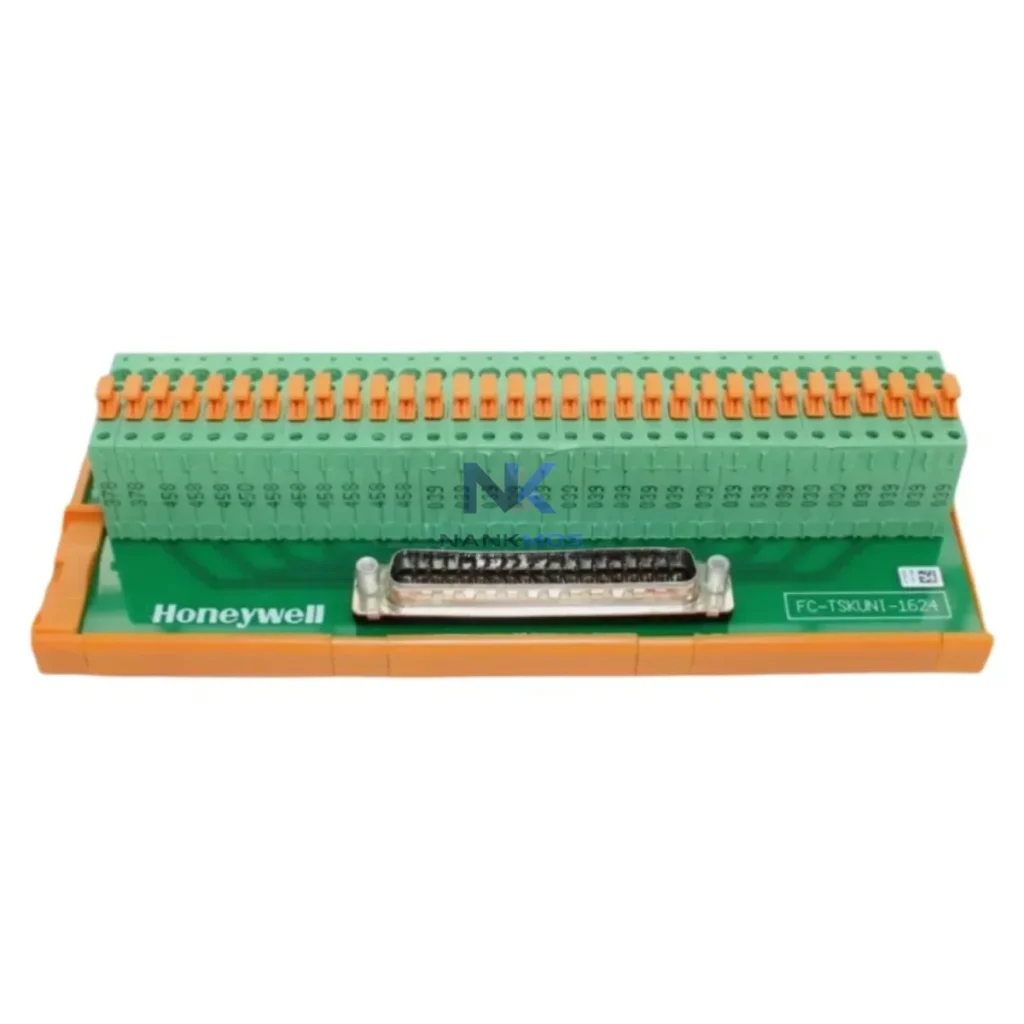

Honeywell FC-TSKUNI-1624 Safety I/O Module

Product Details

FC-TSKUNI-1624 Product Description

The Honeywell FC-TSKUNI-1624 is a high-integrity Universal I/O module engineered for deployment within the Honeywell FSC (Fail-Safe Controller) safety platform. Designed to serve as the signal interface backbone of SIL-rated safety architectures, this module bridges the physical process environment with the logic execution layer, enabling consistent, diagnostically transparent, and redundancy-capable I/O management across demanding industrial control systems.

In modern safety-critical automation, no I/O module operates in isolation. The FC-TSKUNI-1624 is conceived as a contextually integrated component — one that derives its full value from its position within a layered FSC control architecture. Whether deployed in power generation turbine protection, petrochemical emergency shutdown systems, offshore platform safety instrumented systems, or water treatment process interlocks, this module delivers the signal fidelity and architectural coherence that SIL 2 and SIL 3 applications demand.

The FC-TSKUNI-1624 achieves its highest operational value when integrated within a complete Honeywell FSC control platform. At the controller layer, it interfaces directly with the FC-CPU-FSC central processing unit, which executes the safety logic and manages I/O scanning cycles. Power integrity is maintained through the FC-PSU-24VDC redundant power supply module, ensuring uninterrupted operation even during primary power anomalies.

For applications requiring expanded I/O capacity, the FC-TSKUNI-1624 operates alongside dedicated modules such as the FC-DI-16 digital input module and the FC-DO-16 digital output module, allowing engineers to partition safety and non-safety signals across separate I/O planes while maintaining a unified rack architecture. The FC-AI-8 analog input module complements the universal I/O by handling precision 4–20 mA process signals from field transmitters, pressure sensors, and flow meters.

At the communication layer, the FSC system integrates with plant-wide SCADA and DCS networks via the FC-GATEWAY-MODBUS and FC-GATEWAY-PROFIBUS communication modules, enabling real-time safety status reporting to supervisory systems such as Honeywell Experion PKS or third-party DCS platforms. For time-critical safety data exchange, the FC-SAFETYNET peer-to-peer safety communication module supports high-speed inter-controller messaging without compromising SIL integrity.

Terminal connectivity is managed through the FC-TB-32 terminal base and marshalling panels, which provide field wiring segregation and simplify maintenance access. In redundant architectures, the FC-REDMOD redundancy module synchronizes CPU states and I/O images, enabling bumpless switchover during controller faults. HMI integration is achieved through Honeywell's Safety Manager engineering workstation, providing full diagnostic visibility, force management, and online program modification capabilities.

In power generation facilities, the FC-TSKUNI-1624 is deployed in turbine emergency trip systems, boiler protection circuits, and generator protection panels, where its universal I/O capability allows a single module to handle both trip initiation signals and valve position feedback within the same rack slot.

In petrochemical and refinery environments, the module serves as the I/O interface for high-integrity pressure protection systems (HIPPS), emergency depressurization systems, and fired heater safety interlocks. Its SIL 3 capability ensures compliance with IEC 61511 process safety requirements without requiring external safety relays for most applications.

In oil and gas upstream and midstream operations, the FC-TSKUNI-1624 supports wellhead control panels, pipeline emergency shutdown systems, and compressor station safety logic, where environmental robustness and diagnostic transparency are non-negotiable. For water and wastewater treatment plants, the module manages pump protection interlocks, chemical dosing safety circuits, and overflow prevention systems.

In mining and metallurgy, it is applied in conveyor belt protection systems, crusher overload interlocks, and ventilation safety circuits. Marine and offshore applications include fire and gas detection system interfaces, ballast control safety interlocks, and engine room emergency shutdown panels, where the module's compact rack-mount form factor and wide operating temperature range are critical advantages.

Q1: Is the FC-TSKUNI-1624 compatible with existing FSC racks and backplanes without hardware modification? Yes. The FC-TSKUNI-1624 is designed for direct insertion into standard FSC rack chassis without requiring backplane adapters or hardware modifications. It is electrically and mechanically compatible with all FSC rack generations, including both single and redundant CPU configurations. Channel configuration is performed via the FSC engineering workstation software, allowing I/O type assignment (DI, DO, or AI) at the software level without rewiring.

Q2: How does the FC-TSKUNI-1624 support long-term maintenance and spare parts management in a 12-Month Warranty framework? Each FC-TSKUNI-1624 unit supplied by NANKMOS is covered by a 12-Month Warranty and undergoes pre-shipment functional testing to verify channel integrity, diagnostic response, and communication bus handshake. For long-term maintenance planning, the module's hot-swap capability (in supported FSC configurations) minimizes process downtime during replacement. NANKMOS maintains in-stock inventory to support rapid spare parts fulfillment, reducing mean time to repair (MTTR) for critical safety systems.

Q3: What engineering tools and documentation are required for commissioning the FC-TSKUNI-1624 in a new FSC architecture? Commissioning requires the Honeywell FSC Engineering Workstation (EWS) software, the FSC system configuration database, and the project-specific I/O assignment list. NANKMOS provides the module with its original Honeywell documentation package where available, including the hardware reference manual and I/O module configuration guide. For integration into existing architectures, a factory acceptance test (FAT) procedure is recommended to validate channel mapping, diagnostic response times, and SIL verification against the project safety requirements specification (SRS).
