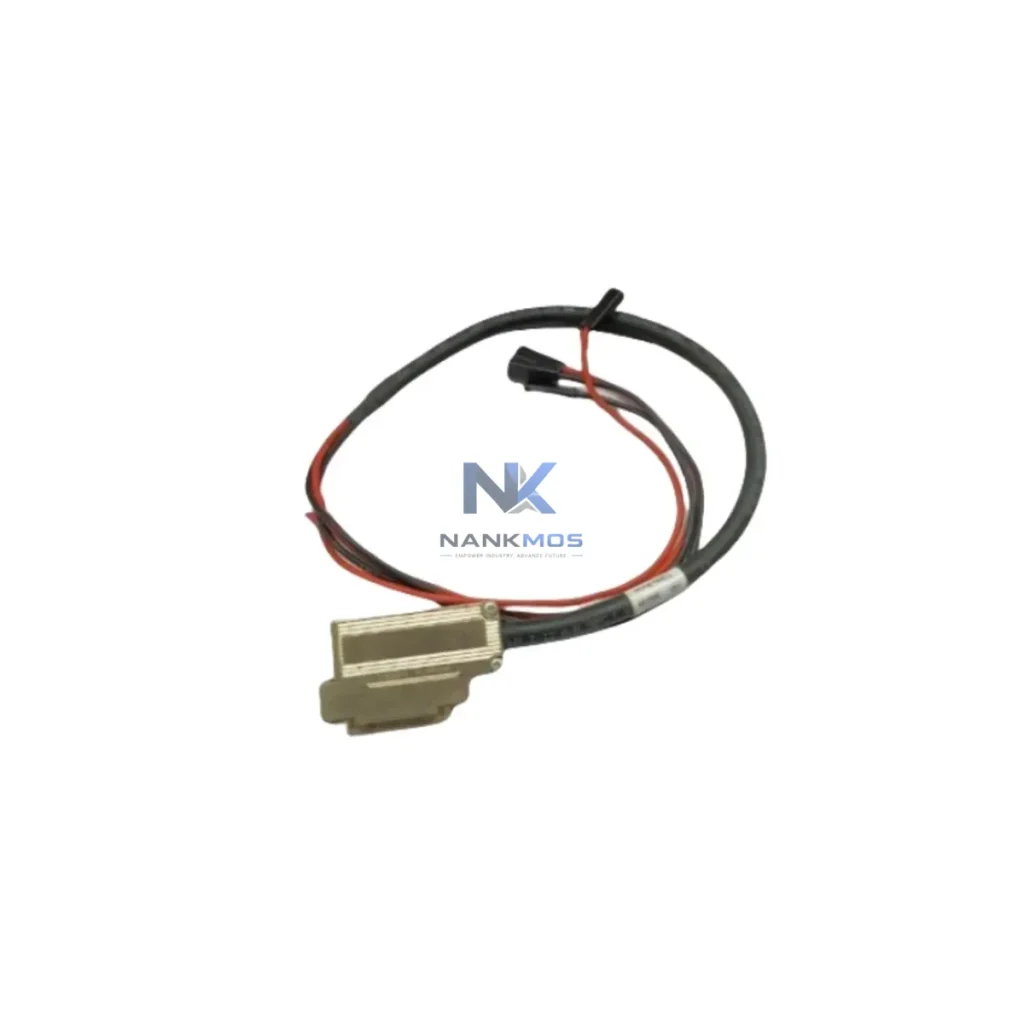

Honeywell FS-BCU-0032 Safety System Bus Coupler

Product Details

FS-BCU-0032 Product Description

The Honeywell FS-BCU-0032 is a high-integrity bus coupler module engineered for the Honeywell Safety Manager (SM) platform — one of the most widely deployed safety instrumented systems (SIS) in process industries worldwide. Designed to serve as the communication backbone between the Safety Manager controller and its distributed I/O subsystems, the FS-BCU-0032 plays a critical role in maintaining signal integrity, system redundancy, and deterministic data exchange across the full control architecture. Whether deployed in a simplex, dual, or triple modular redundant (TMR) configuration, this bus coupler ensures that every I/O signal reaches the safety logic solver with the precision and reliability demanded by SIL 2 and SIL 3 applications.

At NANKMOS, every FS-BCU-0032 unit is sourced from verified supply channels, subjected to pre-shipment functional testing, and backed by a 12-Month Warranty — giving engineering teams and procurement managers the confidence to integrate this module into both new installations and brownfield upgrades without compromise.

The FS-BCU-0032 does not operate in isolation — it is the connective tissue of the Honeywell Safety Manager architecture. In a fully integrated safety system, the bus coupler interfaces directly with the SM Controller Module (FS-CTL), which executes the safety logic and manages the overall SIS lifecycle. On the I/O side, the FS-BCU-0032 communicates with digital input modules such as the FS-SDI-0032 and digital output modules such as the FS-SDO-0016, ensuring that field signals from sensors, transmitters, and final elements are accurately captured and acted upon within the required response time.

For power distribution within the safety rack, the FS-PSU-0024 power supply module provides the regulated DC voltage required by the bus coupler and adjacent I/O modules. In redundant architectures, a secondary power supply is typically installed in parallel to eliminate single points of failure at the power layer — a configuration the FS-BCU-0032 fully supports without additional hardware modification.

At the communication layer, the Safety Manager platform integrates with plant-wide DCS environments — such as the Honeywell Experion PKS — via the FS-COM gateway module, enabling seamless data exchange between the SIS and the basic process control system (BPCS). This Contextual Integration capability allows operators to monitor safety system states, acknowledge alarms, and review diagnostic data from a unified HMI environment without breaching the safety integrity boundary.

For analog signal acquisition, the FS-SAI-0016 analog input module works in conjunction with the FS-BCU-0032 to process 4–20 mA signals from pressure transmitters, flow meters, and temperature sensors. Signal isolators — such as those from the Honeywell STT series — are often deployed upstream to condition field signals before they enter the I/O rack, protecting the bus coupler and associated modules from ground loops and electrical noise common in petrochemical and power generation environments.

In large-scale installations, multiple I/O racks are daisy-chained via the SM safety bus, with each rack equipped with its own FS-BCU-0032 bus coupler. This modular expansion capability allows engineers to scale the safety system from a compact 32-point configuration to several hundred I/O points without redesigning the control architecture. The FS-EXP expansion chassis supports this topology, enabling geographically distributed I/O placement across large process units such as compressor trains, reactor vessels, and turbine control panels.

Every component in this architecture — from the controller to the bus coupler to the terminal modules — is available through NANKMOS with verified provenance, pre-shipment testing, and a 12-Month Warranty, ensuring that your safety system remains compliant, maintainable, and fully supported throughout its operational lifecycle.

Oil & Gas / Petrochemical: The FS-BCU-0032 is extensively deployed in emergency shutdown (ESD) systems for upstream and downstream oil and gas facilities. In compressor anti-surge control, pipeline isolation, and wellhead safety systems, the bus coupler ensures that shutdown commands are transmitted from the SM controller to solenoid valve output modules within the required SIL response time. Its compatibility with TMR architectures makes it the preferred choice for high-availability applications where spurious trip rates must be minimized.

Power Generation & Utilities: In combined-cycle power plants and nuclear auxiliary systems, the Safety Manager platform — anchored by the FS-BCU-0032 — provides the deterministic I/O scanning and fault-tolerant communication required for turbine protection, boiler management, and fire & gas detection systems. The bus coupler's ability to maintain communication integrity during single-channel faults is critical in environments where unplanned shutdowns carry significant financial and safety consequences.

Chemical & Pharmaceutical Manufacturing: Batch process safety systems in chemical reactors and pharmaceutical production lines rely on the FS-BCU-0032 to interface pressure relief interlocks, agitator motor protection circuits, and temperature high-high shutdown loops with the Safety Manager controller. The module's deterministic scan cycle and diagnostic coverage support IEC 61511 compliance for process safety management.

Water & Wastewater Treatment: Municipal water treatment facilities and desalination plants use the Safety Manager architecture for chlorine dosing safety systems, pump protection interlocks, and overflow prevention. The FS-BCU-0032 enables distributed I/O placement across large treatment facilities, reducing cable runs and simplifying system commissioning.

Mining & Metals: In underground mining and surface smelting operations, the bus coupler supports safety systems for conveyor belt fire detection, hoisting machine protection, and gas monitoring interlocks — environments characterized by high electrical noise, vibration, and wide temperature variation, all within the FS-BCU-0032's qualified operating range.

Q1: Is the FS-BCU-0032 compatible with both simplex and redundant Safety Manager configurations? Yes. The FS-BCU-0032 is designed to operate in simplex, dual-redundant, and TMR (Triple Modular Redundant) Safety Manager architectures. In redundant configurations, each I/O rack is equipped with its own bus coupler, and the SM controller manages cross-channel voting and diagnostic comparison automatically. No additional configuration is required at the bus coupler level to enable redundancy — the module's behavior is governed by the SM controller's system configuration.

Q2: How does the FS-BCU-0032 support long-term maintenance and spare parts management? The FS-BCU-0032 is a field-replaceable module that can be swapped without removing the I/O rack from service in supported configurations. NANKMOS maintains inventory of this module with a 12-Month Warranty and pre-shipment functional testing, ensuring that replacement units are immediately available for planned maintenance windows or emergency repairs. Each unit is verified against Honeywell's original specifications before dispatch, reducing the risk of installing a non-conforming spare into a safety-critical system.

Q3: What commissioning steps are required when integrating the FS-BCU-0032 into an existing Safety Manager system? Commissioning the FS-BCU-0032 involves installing the module into the designated slot in the SM I/O rack, verifying backplane power levels, and confirming bus address assignment via the Safety Manager configuration tool (SMP — Safety Manager Programming environment). The SM controller will automatically detect the new bus coupler during the next system scan and report its diagnostic status. Engineers should verify I/O channel mapping, perform a loop check on connected field devices, and validate the module's diagnostic coverage report before returning the system to operational mode. NANKMOS technical support is available to assist with integration queries.
