Honeywell FS-IO-0001 Safety I/O Module

Product Details

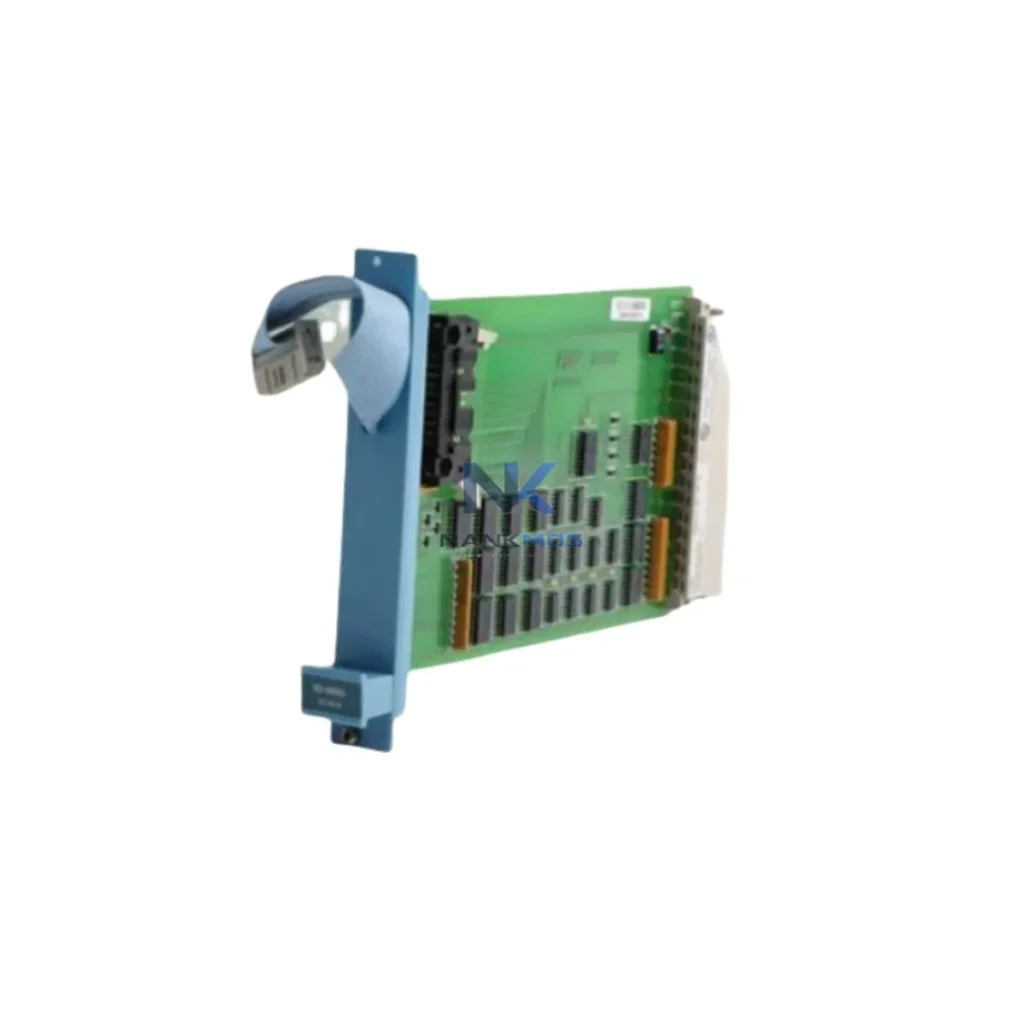

FS-IO-0001 Product Description

The Honeywell FS-IO-0001 is a dedicated I/O extension module engineered for deployment within the Honeywell FSC (Fail-Safe Controller) safety platform. Designed to expand the physical I/O capacity of FSC-based safety systems, this module delivers deterministic signal handling, SIL 3-rated integrity, and seamless rack-level integration — making it a foundational component in process safety architectures across oil & gas, petrochemical, power generation, and critical infrastructure applications.

At NANKMOS, every FS-IO-0001 unit is sourced through verified supply channels, pre-shipment tested, and backed by a 12-Month Warranty. Our global logistics infrastructure ensures fast, traceable delivery to engineering teams and plant maintenance departments worldwide.

The FS-IO-0001 does not operate in isolation — it is a precision component within a layered FSC safety architecture. Understanding its role requires examining how it interacts with adjacent modules across the control hierarchy.

At the control layer, the FS-IO-0001 interfaces directly with FSC CPU modules such as the FS-CPU-0001 or FS-CPU-0002, which execute the safety logic and manage the overall program scan cycle. The CPU communicates with I/O modules via the FSC backplane bus, and the FS-IO-0001 extends the available I/O channel count without introducing additional latency or compromising the deterministic response time required for SIL 3 applications.

At the power layer, the module draws regulated DC power from the FSC rack power supply unit — typically the FS-PSU-0001 or equivalent redundant power module. Redundant power configurations are strongly recommended in continuous process environments to eliminate single points of failure at the supply level.

At the I/O layer, the FS-IO-0001 works in conjunction with dedicated digital input modules (e.g., FS-DI-0001) and digital output modules (e.g., FS-DO-0001) to form a complete field signal acquisition and actuation subsystem. Signal conditioning, galvanic isolation, and channel-level diagnostics are distributed across these modules, ensuring that field wiring faults, open circuits, or short circuits are detected and reported to the safety CPU without interrupting the overall system scan.

At the communication layer, the FSC platform supports integration with plant-wide DCS or SCADA systems via gateway modules such as the FS-COM-0001 Modbus/PROFIBUS gateway, enabling bidirectional data exchange for alarm management, historian logging, and remote diagnostics. This Contextual Integration capability allows the FSC safety system to share process data with Honeywell Experion PKS or third-party DCS platforms without compromising the safety partition.

At the HMI layer, operator interface terminals connected via the engineering workstation running Honeywell FSC Safety Builder software provide full visibility into I/O channel status, module health, and diagnostic fault codes. Engineers can perform online diagnostics, force I/O channels for commissioning, and review event logs — all without taking the safety system offline.

At the protection and redundancy layer, the FS-IO-0001 supports hot-standby redundancy configurations when paired with a redundant FSC CPU and backplane architecture. In 1oo2 or 2oo3 voting configurations, the I/O extender ensures that field signals are read consistently across redundant processing paths, maintaining the voted output integrity required for emergency shutdown (ESD) and fire & gas (F&G) applications.

At the maintenance layer, the module's LED status indicators and self-diagnostic routines simplify fault isolation during scheduled maintenance windows. Replacement procedures follow standard FSC hot-swap protocols, minimizing mean time to repair (MTTR) and supporting the long-term maintainability goals of plant asset management programs.

Oil & Gas and Petrochemical: The FS-IO-0001 is widely deployed in emergency shutdown (ESD) systems and high-integrity pressure protection systems (HIPPS) at upstream wellhead facilities, midstream compressor stations, and downstream refinery units. Its SIL 3 rating satisfies the functional safety requirements of IEC 61511 for process industry applications, and its robust operating temperature range accommodates the thermal demands of outdoor and semi-outdoor control room enclosures.

Power Generation: In gas turbine control panels and boiler management systems, the FS-IO-0001 extends the I/O capacity of FSC-based burner management systems (BMS), enabling the connection of additional flame detectors, pressure transmitters, and solenoid valve outputs without requiring a second FSC rack — reducing panel footprint and simplifying cable management.

Water and Wastewater Treatment: Municipal water treatment facilities and industrial effluent management systems use FSC-based safety controllers to manage chemical dosing interlocks, pump protection, and overflow prevention. The FS-IO-0001 provides the additional I/O channels needed to accommodate expanding sensor networks as treatment capacity grows.

Mining and Metallurgy: In conveyor belt protection systems, crusher interlock panels, and smelter safety systems, the FS-IO-0001 supports the high channel-count requirements of large-scale material handling safety architectures, where dozens of pull-cord switches, speed sensors, and emergency stop circuits must be monitored simultaneously.

Marine and Offshore: Offshore platform safety systems and vessel automation panels certified to IEC 61508 and DNV GL standards benefit from the FS-IO-0001's compact form factor and backplane-integrated power distribution, which simplifies installation in space-constrained control rooms and reduces the risk of wiring errors during commissioning.

Q1: Is the FS-IO-0001 compatible with all FSC CPU generations, and can it be added to an existing FSC rack without system reconfiguration? The FS-IO-0001 is designed for use within the Honeywell FSC platform and is compatible with FSC CPU modules that support the standard FSC backplane bus architecture. Adding the module to an existing rack typically requires updating the FSC Safety Builder configuration to recognize the new I/O addresses and performing a validated download to the safety CPU. We recommend consulting the FSC system manual and your Honeywell FSC project engineer to confirm slot compatibility and firmware version requirements before installation. NANKMOS can provide pre-shipment documentation support to assist with configuration planning.

Q2: What redundancy configurations are supported, and how does the FS-IO-0001 behave during a CPU failover event? In redundant FSC architectures, the FS-IO-0001 continues to supply field signal data to the standby CPU via the shared backplane bus during normal operation. Upon a primary CPU failover, the standby CPU assumes control without interrupting I/O scanning, provided the system has been configured for bumpless transfer. The module's self-diagnostic routines continue to run independently of CPU state, ensuring that field wiring faults are detected and logged even during the failover transition. For 2oo3 voting architectures, three independent I/O paths must be configured, and the FS-IO-0001 should be assigned to a dedicated voting channel to maintain architectural independence.

Q3: What does the 12-Month Warranty cover, and what is the typical lead time for FS-IO-0001 units from NANKMOS? NANKMOS provides a 12-Month Warranty on all FS-IO-0001 units covering manufacturing defects, functional failures under normal operating conditions, and DOA (dead on arrival) replacements. Warranty claims are processed with priority turnaround to minimize plant downtime. For in-stock units, standard lead time is 3–7 business days for international shipments, with expedited options available for urgent maintenance requirements. All units undergo pre-shipment functional testing and are shipped with traceable documentation. Contact [email protected] or +86 18359268345 for stock confirmation and order processing.
