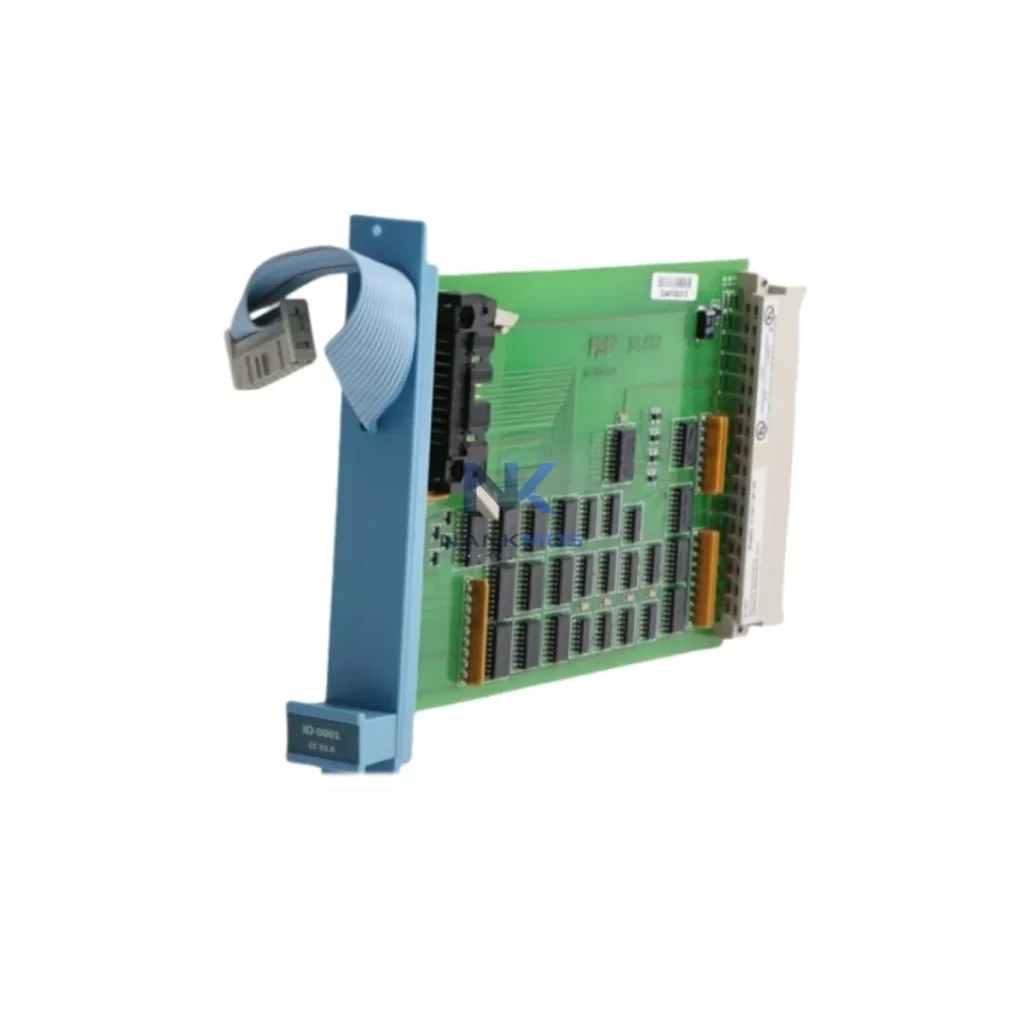

Honeywell FS-IOBUS-CPIO8 Safety I/O Module

Product Details

FS-IOBUS-CPIO8 Product Description

The Honeywell FS-IOBUS-CPIO8 is a dedicated Safety I/O Bus module engineered for seamless integration within the Honeywell FSC (Fail-Safe Controller) platform — one of the most widely deployed safety-rated control architectures in process industries worldwide. Designed to serve as the critical bridge between the FSC central processing unit and field-level safety instrumentation, the FS-IOBUS-CPIO8 delivers eight channels of CP I/O bus connectivity with deterministic signal handling, SIL 2-rated performance, and full compliance with IEC 61508 functional safety standards. Whether deployed in emergency shutdown systems (ESD), burner management systems (BMS), or high-integrity pressure protection systems (HIPPS), this module ensures that safety logic execution remains uninterrupted, diagnostically transparent, and architecturally consistent across the entire control hierarchy.

In modern process safety automation, the I/O bus layer is not merely a passive conduit — it is an active participant in system integrity. The FS-IOBUS-CPIO8 fulfills this role by providing structured, fault-tolerant communication between the FSC CPU module and distributed I/O racks, enabling real-time diagnostics, channel-level fault isolation, and deterministic scan cycle performance. Its modular form factor integrates directly into the FSC rack backplane, eliminating the need for external wiring adapters and reducing installation complexity in safety-critical control cabinets.

The FS-IOBUS-CPIO8 achieves its full operational value when deployed as part of a cohesive Honeywell FSC automation architecture. At the control layer, the FSC CPU module (such as the FS-CPU-FSC or FS-CPU-FSC-R redundant variant) executes the safety logic and communicates with the FS-IOBUS-CPIO8 via the internal CP I/O bus, ensuring deterministic scan cycle performance with sub-100ms response times for critical safety functions. The FS-IOBUS-CPIO8 acts as the I/O bus master for its assigned rack segment, coordinating data exchange between the CPU and downstream I/O modules.

At the I/O layer, digital input modules such as the FS-SDI-0808 (8-channel digital input) and digital output modules like the FS-SDO-0808 (8-channel digital output) connect directly to the CP I/O bus managed by the FS-IOBUS-CPIO8, enabling structured field signal acquisition from pressure switches, level transmitters, solenoid valves, and motor starters. For analog process variables, the FS-SAI-0404 analog input module integrates seamlessly into the same bus topology, supporting 4–20 mA HART signals from field transmitters in temperature, pressure, and flow measurement loops.

At the communication layer, the FS-COM-MODBUS gateway module enables Modbus RTU/TCP connectivity between the FSC platform and SCADA systems, DCS historians, or OPC-UA servers — allowing the FS-IOBUS-CPIO8's diagnostic data and I/O status to be surfaced in real-time to operators via Honeywell Experion PKS or third-party HMI platforms. For redundant communication architectures, the FS-COM-PROFIBUS module provides PROFIBUS DP connectivity to distributed field devices and remote I/O stations.

At the power layer, the FS-PSU-24VDC redundant power supply module ensures uninterrupted 24 VDC delivery to the FSC rack, with automatic switchover and power fault diagnostics that are visible through the FS-IOBUS-CPIO8's bus monitoring interface. Redundant power configurations eliminate single points of failure in safety-critical installations where continuous availability is mandated by functional safety standards.

At the protection and maintenance layer, the FS-DIAG-MODULE diagnostic interface and the FSC engineering workstation software (SFC — Safety Function Configurator) provide full online diagnostics, forced I/O testing, and configuration management without requiring system shutdown. This capability is essential for proof testing compliance under IEC 61511 and for maintaining SIL 2 integrity over the full system lifecycle.

Oil & Gas and Petrochemical: In upstream and downstream oil and gas facilities, the FS-IOBUS-CPIO8 is deployed within emergency shutdown (ESD) systems to manage safety instrumented functions (SIFs) such as wellhead isolation, compressor shutdown, and pressure relief valve actuation. Its SIL 2 rating and TÜV certification satisfy the functional safety requirements of IEC 61511 for process sector applications, making it a preferred choice for safety system integrators working on FEED and detailed engineering projects.

Power Generation: In gas turbine, steam turbine, and combined-cycle power plants, the FS-IOBUS-CPIO8 supports turbine protection systems (TPS) and boiler management systems (BMS), interfacing with flame detectors, vibration monitors, and overspeed protection relays. Its deterministic bus communication ensures that trip signals are processed within the required response time windows defined by turbine OEM safety specifications.

Water and Wastewater Treatment: Municipal and industrial water treatment facilities deploy the FS-IOBUS-CPIO8 within chlorination control systems, pump protection circuits, and chemical dosing safety interlocks. The module's robust operating temperature range and high diagnostic coverage make it suitable for both indoor control room installations and outdoor weatherproof enclosures in water infrastructure projects.

Mining and Metallurgy: In mining operations and smelting facilities, the FS-IOBUS-CPIO8 is integrated into conveyor protection systems, crusher interlock circuits, and furnace safety shutdown systems. Its modular architecture supports phased expansion as production capacity grows, allowing additional I/O modules to be added to the FSC rack without disrupting existing safety logic.

Marine and Offshore: Offshore platforms and LNG carriers deploy the FS-IOBUS-CPIO8 within fire and gas detection systems (F&G) and high-integrity pressure protection systems (HIPPS), where DNV GL and ABS certification requirements demand proven SIL-rated hardware with documented diagnostic coverage and mean time to repair (MTTR) data.

Q1: Is the FS-IOBUS-CPIO8 compatible with both simplex and redundant FSC CPU configurations? Yes. The FS-IOBUS-CPIO8 supports both simplex and 1oo2 (one-out-of-two) redundant CPU configurations within the Honeywell FSC rack system. In redundant configurations, two FS-IOBUS-CPIO8 modules operate in parallel, with automatic bumpless switchover in the event of a primary bus module failure. This architecture eliminates single points of failure at the I/O bus layer and is fully compliant with SIL 2 redundancy requirements under IEC 61508. NANKMOS supplies matched pairs of FS-IOBUS-CPIO8 modules for redundant installations, with each unit individually tested prior to shipment.

Q2: What engineering tools are required to configure and commission the FS-IOBUS-CPIO8 within an FSC system? Configuration and commissioning of the FS-IOBUS-CPIO8 is performed using Honeywell's SFC (Safety Function Configurator) engineering workstation software, which provides graphical I/O assignment, bus topology mapping, diagnostic threshold configuration, and online monitoring capabilities. No additional hardware programming adapters are required — the FS-IOBUS-CPIO8 is configured entirely through the FSC backplane interface. NANKMOS provides pre-shipment functional testing documentation for each unit, confirming bus communication integrity and channel-level diagnostic response prior to delivery.

Q3: What warranty and long-term supply assurance does NANKMOS provide for the FS-IOBUS-CPIO8? NANKMOS provides a 12-Month Warranty on all FS-IOBUS-CPIO8 units, covering manufacturing defects, bus communication failures, and channel-level diagnostic faults identified under normal operating conditions. All units are pre-shipment tested against Honeywell FSC functional specifications before dispatch. NANKMOS maintains dedicated inventory of FS-IOBUS-CPIO8 modules to support urgent replacement requirements in operating plants, with expedited shipping available for critical safety system maintenance windows. Long-term supply continuity is supported through established procurement channels, ensuring availability for both new project installations and lifecycle replacement programs.
