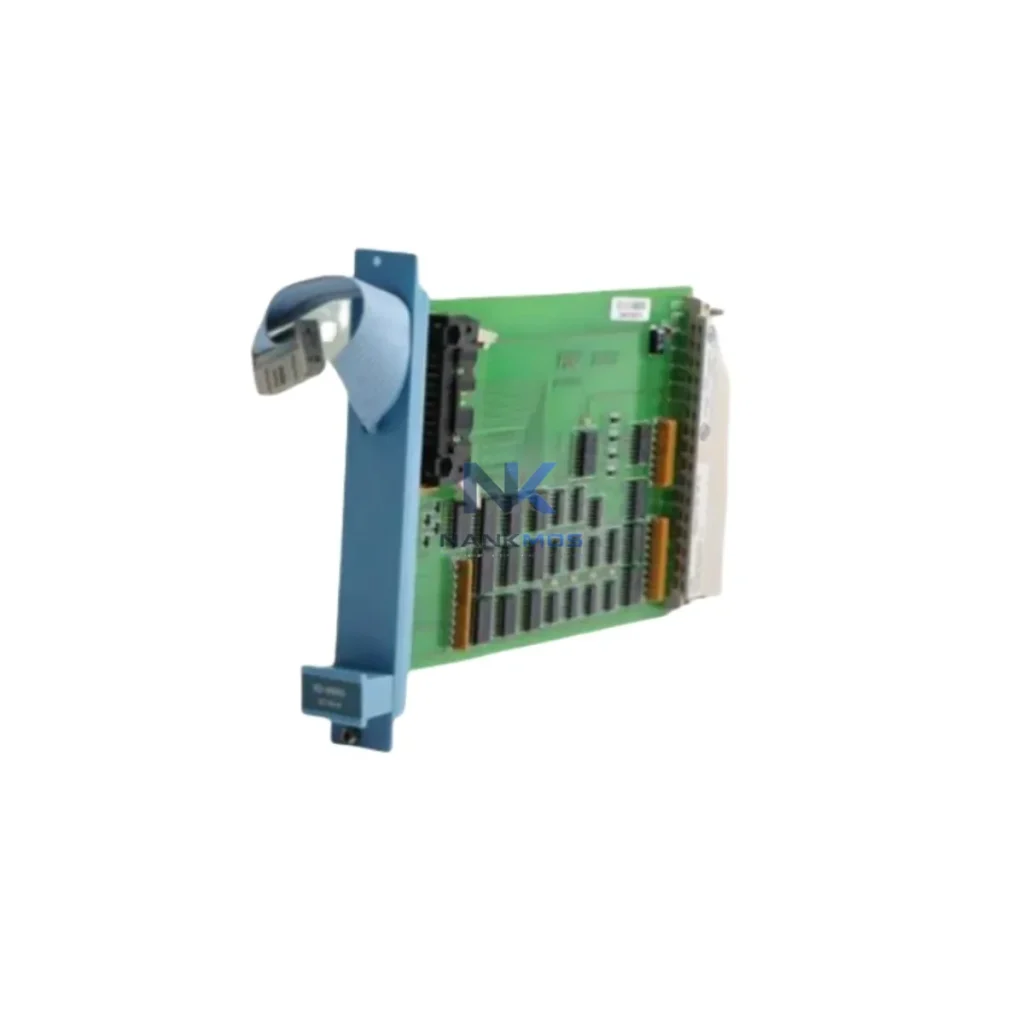

Honeywell FS-RO-1024 Relay Output Module

Product Details

FS-RO-1024 Product Description

The Honeywell FS-RO-1024 is a high-reliability relay output module engineered for the Honeywell FSC (Fail-Safe Controller) safety platform. Designed to operate within energy-conscious industrial environments, the FS-RO-1024 delivers deterministic relay switching that directly supports load management, motor control sequencing, and production line energy optimization. With 24 relay output channels and robust fail-safe architecture, this module is a foundational component for facilities targeting reduced energy waste, lower thermal loads, and higher equipment utilization across continuous process and discrete manufacturing operations.

In modern industrial facilities, energy efficiency is not achieved by a single device — it is the result of tightly coordinated control architecture. The Honeywell FS-RO-1024 relay output module plays a critical role in this coordination by providing the final switching layer between the FSC safety controller and field-connected loads such as solenoid valves, motor starters, and alarm annunciators.

When integrated with the Honeywell FSC FS-AI-1024 analog input module, the FS-RO-1024 receives processed field signals that inform precise relay actuation — ensuring that loads are energized only when process conditions demand it. This eliminates the common energy waste pattern of continuously energized outputs during idle or standby states. Paired with the Honeywell FS-DO-1024 digital output module, the relay outputs can be logically sequenced to stagger motor start loads, reducing peak demand charges and inrush current stress on upstream industrial power supply units.

For facilities operating variable frequency drives (VFDs) on pump and fan circuits, the FS-RO-1024 provides the enable/disable relay interlock that governs drive run permission. This interlock architecture prevents drives from running under no-load or low-efficiency conditions, directly reducing kWh consumption per production cycle. The module's dry-contact outputs are also compatible with servo drive enable circuits, allowing the FSC controller to cut power to servo axes during scheduled downtime windows without requiring manual intervention.

The FS-RO-1024 communicates through the FSC backplane alongside Honeywell FSC communication gateway modules that bridge the safety controller to SCADA systems and Distributed Control Systems (DCS) such as Honeywell Experion PKS. This integration allows energy management software to monitor relay state in real time, correlating output switching events with power meter data from power monitoring modules installed on the same control network. The result is a closed-loop energy visibility architecture where every relay actuation is logged, timestamped, and available for energy audit reporting.

For I/O expansion and signal conditioning, the FS-RO-1024 works alongside Honeywell FSC FS-DI-1024 digital input modules that feed process status signals — such as motor run feedback, valve position confirmation, and equipment health flags — back into the FSC logic solver. This feedback loop enables the controller to confirm that energy-consuming loads have actually de-energized after a relay open command, preventing the silent energy waste of stuck contactors or failed valve actuators. Integration with HMI panels running on the Experion PKS platform gives operators real-time visibility into relay states and load status, supporting informed decisions about load shedding during peak tariff periods.

Production line energy optimization requires more than efficient motors and drives — it demands intelligent switching logic that aligns load energization with actual production demand. The Honeywell FS-RO-1024 delivers this capability through its 24-channel relay output architecture, which allows the FSC safety controller to implement granular load control strategies across an entire process unit.

In batch processing environments, the FS-RO-1024 enables sequential load activation — bringing equipment online in a controlled order that avoids simultaneous inrush currents and reduces peak demand on facility transformers and switchgear. This sequencing capability directly lowers energy costs by flattening the demand curve during production startup, a period that typically accounts for a disproportionate share of daily energy expenditure.

During planned maintenance windows or production changeovers, the FSC controller can use the FS-RO-1024 to systematically de-energize non-essential loads — lighting circuits, auxiliary pumps, heating elements, and ventilation fans — while keeping safety-critical systems active. This structured load shedding approach reduces standby energy consumption without compromising process safety or equipment integrity. Facilities that implement this strategy consistently report measurable reductions in energy cost per unit of output, particularly in continuous process industries where equipment runs 24/7.

The module's fail-safe design ensures that in the event of a controller fault or power interruption, relay outputs default to their de-energized (safe) state. This behavior is inherently energy-efficient: loads do not remain energized during fault conditions, preventing the thermal stress and energy waste associated with uncontrolled load states. For predictive maintenance programs, the relay switching cycle count — accessible through FSC diagnostic tools — provides a leading indicator of contact wear, allowing maintenance teams to schedule replacements before failures occur and avoiding the energy inefficiency of degraded contacts with elevated resistance.

Pre-shipment testing at NANKMOS ensures that every FS-RO-1024 unit is verified for relay contact integrity, channel isolation, and backplane communication before dispatch. Combined with a 12-month warranty, this testing protocol gives procurement and maintenance engineers confidence that the module will perform to specification from day one, eliminating the hidden energy and productivity costs of early-life failures.

Q1: How does the FS-RO-1024 contribute to measurable energy savings on a production line? The FS-RO-1024 enables the FSC controller to implement demand-driven load switching — energizing field devices only when process logic requires it. By eliminating continuous energization of solenoids, motor starters, and auxiliary loads during idle periods, facilities typically observe reductions in standby power consumption. When integrated with power monitoring modules and SCADA energy dashboards, the relay state data supports quantified energy reporting per shift or production batch.

Q2: Is the FS-RO-1024 compatible with third-party PLCs or DCS platforms outside the Honeywell FSC ecosystem? The FS-RO-1024 is designed specifically for the Honeywell FSC safety controller platform and communicates via the FSC proprietary backplane bus. It is not directly compatible with third-party PLCs or DCS I/O racks. However, the FSC system can be integrated with external control platforms — including Siemens SIMATIC S7, ABB System 800xA, and Yokogawa CENTUM VP — through certified gateway modules and hardwired interlock interfaces, allowing the relay outputs to participate in broader plant-wide energy management strategies.

Q3: What is the recommended replacement or upgrade path for aging FSC relay output modules? For facilities running legacy FSC systems, the FS-RO-1024 is a direct form-fit-function replacement for earlier Honeywell FSC relay output modules. No backplane modifications or firmware changes are required for standard replacement. NANKMOS recommends performing a pre-installation bench test and reviewing the FSC system's relay output channel assignments before installation to ensure seamless integration and avoid production interruption.

Q4: What does the 12-month warranty cover, and what pre-shipment testing is performed? Every FS-RO-1024 unit supplied by NANKMOS undergoes pre-shipment functional testing that verifies relay contact operation across all 24 channels, backplane communication integrity, and channel isolation. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Units are shipped with test documentation available upon request. For urgent requirements, expedited shipping and in-stock availability ensure minimal lead time for critical maintenance and replacement scenarios.
