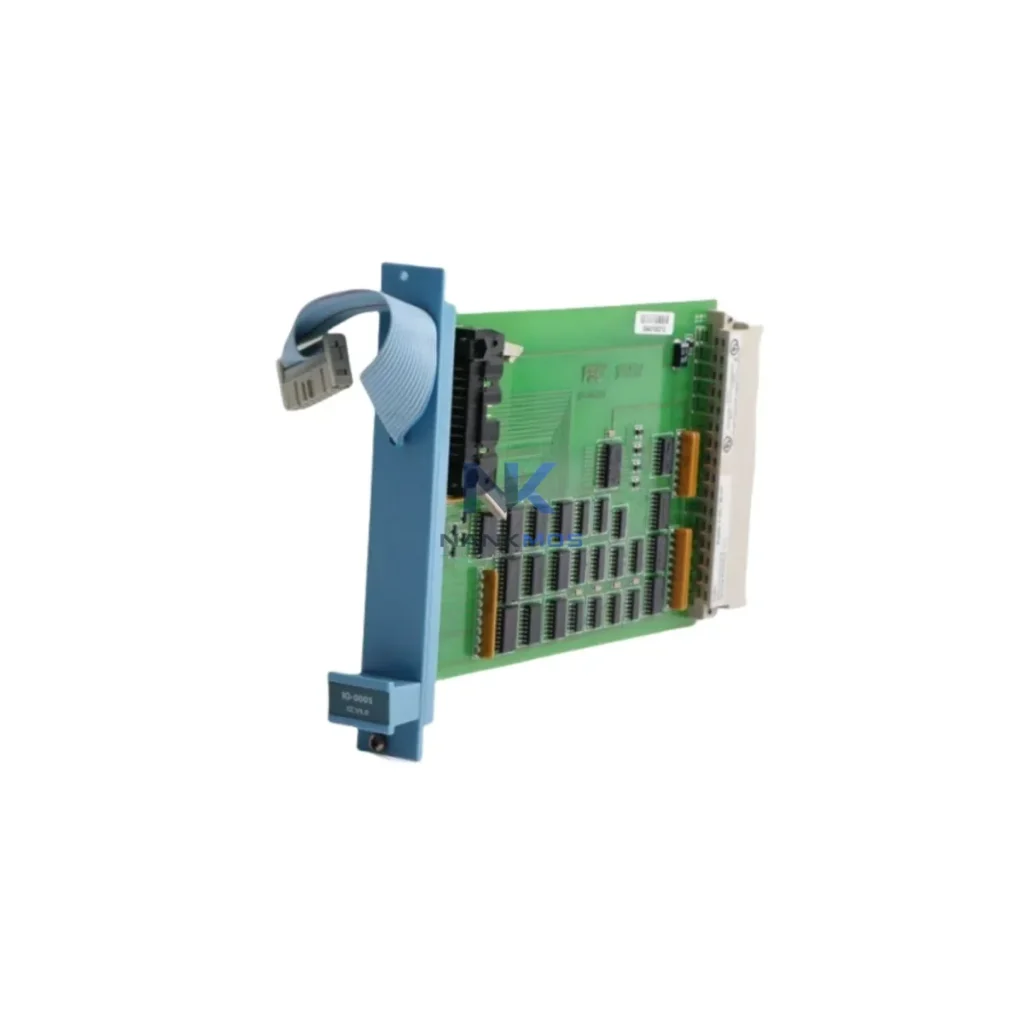

Honeywell FS-SAI-1620m Safety Analog Input Module

Product Details

FS-SAI-1620m Product Description

The Honeywell FS-SAI-1620M is engineered as a native component of the FSC Safety Manager platform, a proven safety PLC architecture widely deployed across oil & gas, petrochemical, power generation, and process industries. Its value is best understood not in isolation, but as a precision node within a layered, redundant safety control system.

At the control layer, the FS-SAI-1620M interfaces directly with the FSC Central Processing Unit — typically the FS-CPU-0702 or FS-CPU-0704 — via the FSC backplane bus. This tight integration ensures deterministic scan-cycle processing of all 16 analog input channels, with no latency introduced by external communication bridges. The CPU continuously polls the module's self-diagnostic registers, enabling real-time fault isolation without interrupting the safety function.

At the I/O layer, the FS-SAI-1620M works in concert with complementary modules such as the FS-SDO-0802 (safety digital output) and FS-SDI-1620 (safety digital input) to form a complete field I/O subsystem. Analog signals from pressure transmitters, flow meters, temperature sensors, and level instruments are conditioned and validated before being passed to the safety logic solver. The module supports both 4–20 mA current loop and voltage-mode inputs, making it compatible with a broad range of field instruments without requiring external signal converters.

At the communication layer, the FSC architecture supports PROFIBUS DP connectivity through the FS-PBM-0100 PROFIBUS Master Module, enabling the safety system to exchange process data with distributed control systems (DCS), SCADA platforms, and engineering workstations. This allows the FS-SAI-1620M's analog data to be surfaced in historian databases and operator displays without compromising the integrity of the safety network. For installations requiring Modbus RTU or Modbus TCP integration, the FS-COM-0200 communication gateway provides seamless protocol bridging.

At the power layer, the FSC rack is supplied by redundant power supply modules such as the FS-PSU-2401, which delivers regulated 24 VDC to all I/O modules including the FS-SAI-1620M. Redundant power architecture ensures that a single PSU failure does not interrupt analog signal acquisition, a critical requirement in SIL 2 and SIL 3 applications where continuous monitoring of process variables is mandatory.

At the HMI layer, operator interfaces such as Honeywell's Experion PKS console or third-party SCADA systems receive real-time analog values from the FS-SAI-1620M via the DCS gateway, enabling operators to monitor process trends, acknowledge alarms, and initiate controlled shutdowns. The module's channel-level diagnostics are surfaced directly in the HMI alarm management system, reducing mean time to diagnose (MTTD) and accelerating corrective action.

At the protection and redundancy layer, the FS-SAI-1620M supports hot-standby redundancy configurations when paired with a redundant FSC CPU and backplane. In 1oo2 (one-out-of-two) or 2oo3 (two-out-of-three) voting architectures, multiple FS-SAI-1620M modules can be configured to cross-validate analog readings, eliminating single points of failure in critical measurement loops. This is particularly relevant in emergency shutdown (ESD) and fire & gas (F&G) systems where spurious trips must be minimized without compromising safety integrity.

At the maintenance layer, the module's online self-test capability allows engineers to verify channel health during live operation without requiring a system shutdown. Combined with the FSC's modular rack design, the FS-SAI-1620M can be replaced in the field with minimal downtime, provided the replacement unit has been pre-tested and verified — a process fully supported by NANKMOS's pre-shipment testing protocol and covered under our 12-Month Warranty.

Oil & Gas and Petrochemical: In upstream and downstream facilities, the FS-SAI-1620M monitors analog signals from wellhead pressure transmitters, pipeline flow meters, and separator level instruments. Its SIL 2/3 rating makes it a direct fit for emergency shutdown (ESD) systems, where analog input accuracy and fault detection speed are non-negotiable. Installations in LNG terminals, refinery process units, and offshore platforms rely on the FSC platform's proven track record for continuous safe operation.

Power Generation and Utilities: In thermal power plants, combined-cycle facilities, and grid substations, the FS-SAI-1620M acquires analog signals from turbine vibration sensors, boiler pressure transmitters, and generator temperature monitors. Its integration with the FSC CPU enables rapid response to abnormal process conditions, supporting automatic load shedding and turbine trip functions within the required safety response time.

Water and Wastewater Treatment: Municipal water treatment plants and industrial effluent systems use the FS-SAI-1620M to monitor chlorine dosing levels, pH sensors, and pump discharge pressures. The module's 16-channel density reduces panel footprint while maintaining full SIL-rated signal integrity, an important consideration in space-constrained water utility control rooms.

Mining and Metallurgy: In mineral processing plants and smelting operations, the FS-SAI-1620M monitors analog signals from conveyor load cells, furnace temperature sensors, and hydraulic pressure transmitters. Its robust operating temperature range and TÜV-certified diagnostics make it suitable for harsh industrial environments where ambient conditions can challenge standard I/O hardware.

Chemical and Pharmaceutical Process Control: Batch and continuous process facilities use the FS-SAI-1620M within FSC-based safety instrumented systems (SIS) to monitor reactor temperatures, vessel pressures, and flow rates. Its compatibility with PROFIBUS DP and Modbus gateways enables seamless integration with existing DCS platforms such as Honeywell Experion, Emerson DeltaV, and Siemens PCS 7, reducing engineering effort during system upgrades or expansions.

Q1: Is the FS-SAI-1620M compatible with existing FSC Safety Manager racks, and can it be added to a running system without a full shutdown? Yes. The FS-SAI-1620M is designed for direct installation into standard FSC rack backplane slots. In systems configured for hot-standby or redundant I/O operation, module insertion can be performed during live operation following Honeywell's documented hot-swap procedure. For simplex I/O configurations, a controlled process hold is recommended. NANKMOS supplies each unit with a pre-shipment functional test report, reducing commissioning time and minimizing the duration of any required process interruption.

Q2: What communication protocols does the FS-SAI-1620M support, and how does it integrate with third-party DCS or SCADA platforms? The FS-SAI-1620M communicates natively over the FSC internal backplane bus. Integration with external systems is achieved through FSC communication gateway modules: the FS-PBM-0100 for PROFIBUS DP, the FS-COM-0200 for Modbus RTU/TCP, and OPC DA/UA via the Honeywell FSC Engineering Workstation software. This architecture allows analog data from the FS-SAI-1620M to be published to Honeywell Experion PKS, Siemens WinCC, AVEVA System Platform, and other SCADA historians without modifying the safety logic or compromising SIL certification.

Q3: What does the 12-Month Warranty cover, and what is the typical lead time for in-stock units? NANKMOS's 12-Month Warranty covers the FS-SAI-1620M against manufacturing defects, functional failures, and component degradation under normal operating conditions from the date of shipment. Each unit undergoes pre-shipment power-on testing and functional verification before dispatch. In-stock units are typically shipped within 3–7 business days. For urgent project requirements, expedited shipping arrangements are available. Replacement or repair decisions are handled directly by NANKMOS's technical support team, ensuring minimal disruption to your safety system's operational continuity.
