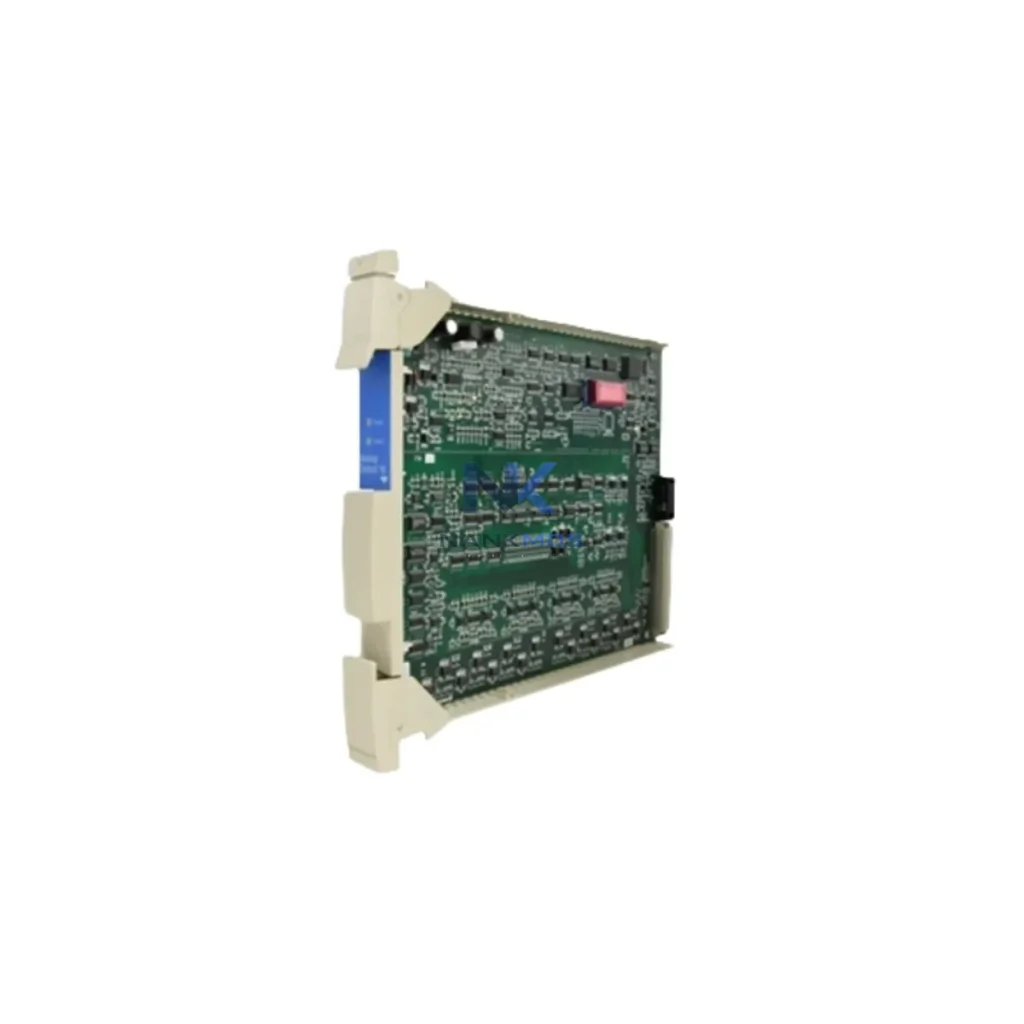

Honeywell FS-SDIL-1608 Safety Digital Input Module

Product Details

FS-SDIL-1608 Product Description

The Honeywell FS-SDIL-1608 is a 16-channel Safety Digital Input Module engineered for the Honeywell Safety Manager FS (FS-SMS) safety instrumented system platform. Rated to SIL 2 and SIL 3 in accordance with IEC 61511 and IEC 61508, this module serves as a critical node in the field I/O layer of safety-critical control architectures across process industries. Its design prioritizes signal integrity, diagnostic coverage, and seamless integration within the Safety Manager FS rack-based hardware ecosystem, making it a preferred choice for engineers specifying functional safety solutions in oil & gas, petrochemical, power generation, and chemical processing facilities.

The FS-SDIL-1608 is built to operate within the structured redundancy and self-diagnostic framework of the Safety Manager FS platform. Each channel supports continuous online diagnostics, enabling the system to detect field wiring faults, short circuits, and open-circuit conditions without interrupting the safety function. This level of diagnostic transparency directly contributes to the high diagnostic coverage (DC) values required for SIL 2 and SIL 3 loop certification, reducing the probability of dangerous undetected failures (PFDavg) across the safety instrumented function (SIF).

The FS-SDIL-1608 does not operate in isolation — it is a functional element within a layered, multi-tier safety and control architecture. In a typical Safety Manager FS deployment, the module is installed in the FS-RCU rack chassis alongside complementary I/O modules such as the FS-SDOL-0808 (Safety Digital Output Module) and the FS-SAIL-0802 (Safety Analog Input Module), forming a complete field interface layer capable of handling both discrete and analog safety signals from field instruments.

At the control layer, the FS-SDIL-1608 interfaces directly with the FS-CPU-0014 Safety Manager FS Central Processing Unit, which executes the safety application logic and manages the voting architecture across redundant I/O channels. For installations requiring high-availability configurations, the system supports dual-redundant CPU arrangements using a second FS-CPU-0014 unit, with automatic failover managed through the internal backplane without interrupting the safety function.

Power integrity is maintained by the FS-PSU-0024 Safety Manager FS Power Supply Unit, which provides regulated 24 VDC to the rack and all installed modules including the FS-SDIL-1608. In redundant power configurations, a second PSU operates in hot-standby mode, ensuring uninterrupted power delivery even during a single power supply failure — a critical requirement for SIL 3 applications.

Communication between the Safety Manager FS and the plant DCS or SCADA layer is typically handled through the FS-NCM-0001 Network Communication Module, which supports Modbus TCP, OPC DA/UA, and Honeywell-proprietary protocols for integration with Experion PKS or third-party distributed control systems. This gateway function enables the safety system to report diagnostic status, module health, and I/O channel states to the supervisory layer without compromising the safety function's independence.

For installations requiring field-level diagnostics and loop testing, the FS-SDIL-1608 works in conjunction with the FS-TBU-1600 Terminal Base Unit, which provides the physical wiring interface between field cables and the module's I/O channels. The terminal base design supports hot-swap module replacement, allowing maintenance teams to replace the FS-SDIL-1608 during online operation without requiring a full system shutdown — a significant advantage for continuous process industries where planned shutdowns are infrequent.

In extended architectures, the Safety Manager FS platform can be integrated with Honeywell's Experion PKS C300 Controller at the process control layer, enabling coordinated safety and process control responses. The FS-SDIL-1608 contributes field-level digital status signals that feed into both the safety logic solver and, via the NCM gateway, into the process historian and alarm management system. This dual-layer signal flow supports both safety function execution and operational visibility without signal duplication or cross-contamination between the safety and basic process control systems (BPCS).

For facilities deploying IO-Link or HART-enabled field devices alongside discrete safety inputs, the architecture may also incorporate Honeywell XYR 6000 wireless transmitters or wired HART multiplexers at the field level, with the FS-SDIL-1608 handling the hardwired discrete safety signals while HART data is routed separately to the asset management layer. This separation maintains SIL loop integrity while maximizing field device diagnostic visibility.

Oil & Gas and Petrochemical: The FS-SDIL-1608 is widely deployed in emergency shutdown (ESD) and high-integrity pressure protection systems (HIPPS) for upstream wellhead control, midstream pipeline isolation, and downstream refinery process units. Its SIL 3 capability supports the most demanding functional safety requirements in hydrocarbon processing environments, where a single undetected input failure could result in catastrophic consequences.

Power Generation: In thermal, combined-cycle, and nuclear auxiliary systems, the FS-SDIL-1608 provides reliable discrete input acquisition for turbine protection, boiler safety interlock, and generator trip systems. Its high diagnostic coverage and online self-test capability align with the stringent availability and reliability requirements of power plant safety instrumented systems.

Chemical and Specialty Process Industries: Batch and continuous chemical processes rely on the FS-SDIL-1608 for monitoring limit switches, pressure switches, level switches, and valve position feedback within safety instrumented functions. The module's ability to detect field wiring faults online reduces the risk of spurious trips caused by undetected open-circuit conditions, improving process availability without compromising safety integrity.

Water and Wastewater Treatment: Municipal and industrial water treatment facilities use the FS-SDIL-1608 in pump protection, chemical dosing interlock, and overflow prevention systems. Its compact rack-mounted form factor and wide operating temperature range make it suitable for both climate-controlled control rooms and field-mounted enclosures in outdoor installations.

Mining and Metals: In conveyor protection, crusher interlock, and ventilation safety systems, the FS-SDIL-1608 provides the discrete input acquisition layer for safety functions that protect personnel and equipment in high-dust, high-vibration environments. Its robust design and TÜV-certified safety ratings meet the functional safety requirements of mining industry standards.

Q1: Is the FS-SDIL-1608 compatible with both 1oo2 and 2oo3 voting architectures in the Safety Manager FS platform? Yes. The FS-SDIL-1608 is fully compatible with 1oo1, 1oo2, and 2oo3 voting configurations as defined in the Safety Manager FS system architecture. The voting logic is implemented in the FS-CPU-0014 safety logic solver, and the FS-SDIL-1608 provides the channel-level input data to support all standard IEC 61511 voting architectures. System architects should consult the Safety Manager FS Hardware Manual (document SM-HW-001) for rack slot assignment rules and channel-to-CPU mapping requirements when configuring redundant I/O architectures.

Q2: Can the FS-SDIL-1608 be replaced online (hot-swap) without shutting down the Safety Manager FS system? Yes, when installed on the FS-TBU-1600 Terminal Base Unit, the FS-SDIL-1608 supports online module replacement. The terminal base maintains field wiring connections while the module is removed and reinserted, and the Safety Manager FS CPU manages the transition through a configurable bypass or hold-last-value strategy during the replacement window. This capability is critical for maintaining process continuity in continuous operations where planned shutdowns are not feasible. NANKMOS supplies pre-tested replacement modules with a 12-Month Warranty to support planned maintenance and emergency replacement scenarios.

Q3: What is the lead time and warranty coverage for the FS-SDIL-1608 supplied by NANKMOS? NANKMOS maintains inventory of the FS-SDIL-1608 to support both planned procurement and emergency replacement requirements. Standard lead time for in-stock units is 3–7 business days for global destinations, with expedited shipping options available for critical plant situations. All units supplied by NANKMOS are covered by a 12-Month Warranty from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions. Pre-shipment functional testing is performed on all units to verify channel integrity and communication with the Safety Manager FS backplane before dispatch. For volume procurement or long-term supply agreements, contact NANKMOS at [email protected] or +86 18359268345.
