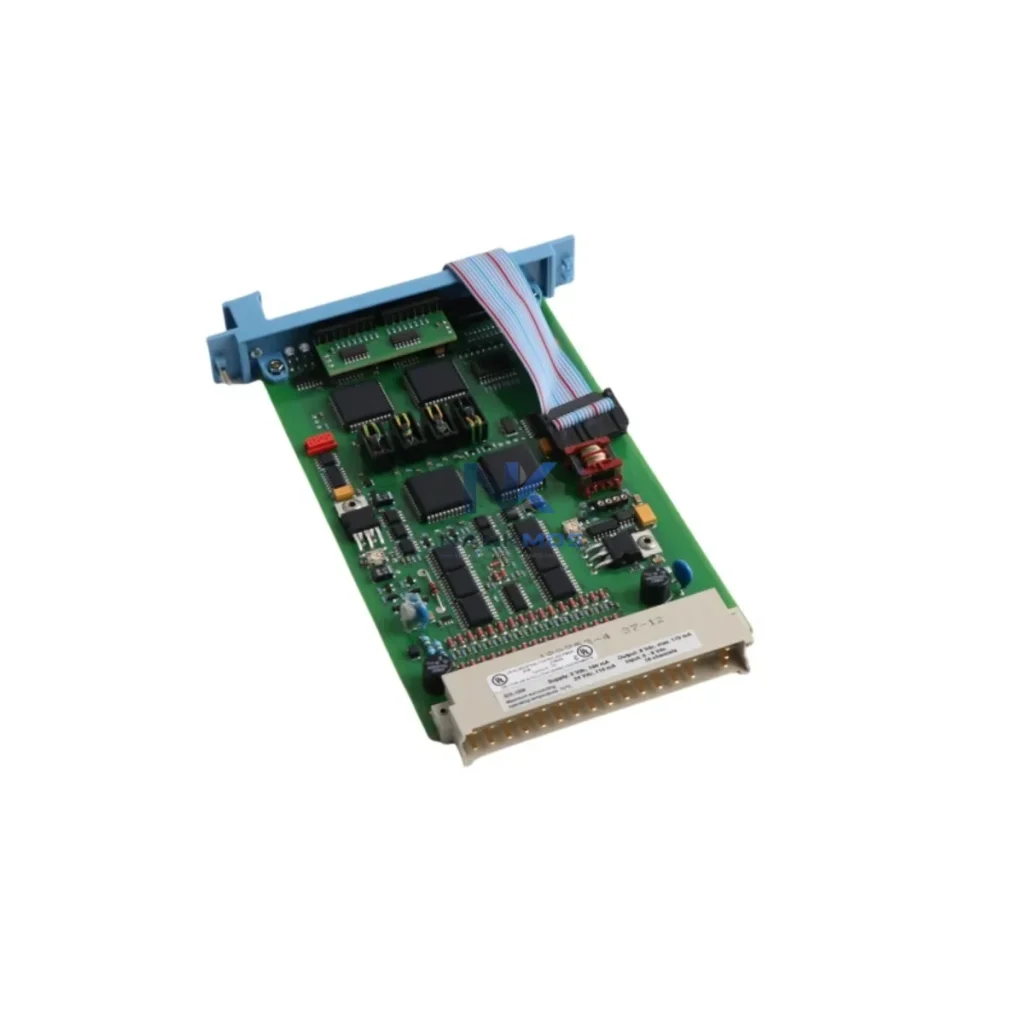

Honeywell FS-SDO-0424 Safety Output Module

Product Details

FS-SDO-0424 Product Description

The Honeywell FS-SDO-0424 is a high-reliability safety output module engineered for the Honeywell FSC (Fail-Safe Controller) platform, purpose-built to deliver deterministic, energy-aware digital output control across safety-critical industrial environments. Designed for process industries including oil & gas, petrochemical, power generation, and advanced manufacturing, the FS-SDO-0424 provides four independently configurable 24 VDC safety output channels that integrate seamlessly into SIL 2/SIL 3 safety instrumented systems (SIS). Its architecture supports both de-energize-to-trip (DTT) and energize-to-trip (ETT) output logic, enabling precise load management and minimizing unnecessary actuator energization — a direct contributor to reduced plant-wide energy consumption.

In modern smart production lines, every watt counts. The FS-SDO-0424 addresses this by ensuring that output channels are activated only when safety logic demands it, eliminating parasitic loads from continuously energized solenoids, relays, and actuators. When integrated with the Honeywell FSC Safety Controller and its associated FS-SDI-0424 Safety Digital Input Module, the system forms a closed-loop safety and energy feedback architecture — inputs monitor field device states, while outputs respond with minimal latency and zero unnecessary power draw. This tight coupling between input sensing and output actuation is foundational to reducing thermal load on control panels and extending the service life of connected field devices.

The FS-SDO-0424 does not operate in isolation — its energy efficiency value is fully realized when deployed as part of a coordinated automation architecture. In a typical FSC-based safety system, the module works in concert with the Honeywell FSC Central Processing Unit (CPU), which executes the safety application logic and determines when each output channel should be energized or de-energized. The CPU's deterministic scan cycle ensures that output state changes are executed with precision, preventing unnecessary switching transients that can spike energy consumption and stress connected loads.

On the field side, the FS-SDO-0424 drives solenoid valves, motor starters, relay coils, and actuator control circuits. When paired with a Honeywell FS-SDI-0424 Safety Digital Input Module monitoring process variables — pressure, temperature, flow, or position — the system enables closed-loop load management: outputs are held de-energized until a confirmed process deviation demands actuation. This demand-driven model is fundamentally more energy-efficient than continuously energized output architectures.

For facilities running variable-speed drives or motor control centers, the FS-SDO-0424 safety outputs can serve as the enable/inhibit signal for variable frequency drives (VFDs) and soft starters, ensuring that motors are only permitted to run when process conditions are within safe and efficient operating bands. This integration reduces motor start-up energy spikes and prevents unnecessary run-time on pumps, compressors, and fans — equipment that collectively accounts for a significant share of industrial energy budgets.

The module also interfaces with Honeywell FSC Communication Modules (such as the FS-COM series) to report real-time output channel status to SCADA and DCS platforms via Modbus RTU or PROFIBUS DP. This telemetry enables energy management systems (EMS) to correlate safety output states with power consumption data from power monitoring modules installed on the same bus, creating a unified view of load activity across the production line. HMI panels connected to the FSC network can display output channel health, trip history, and energy event logs — giving operators the data they need to identify inefficient load patterns and schedule predictive maintenance before failures occur.

In multi-zone production environments, the FS-SDO-0424 can be deployed across multiple FSC racks, with each module managing a discrete safety zone. Combined with Honeywell FSC Power Supply Modules that provide regulated, filtered 24 VDC to the backplane, the system maintains stable output voltage even under fluctuating load conditions — preventing the voltage sag events that can cause spurious trips and unplanned downtime. I/O expansion via Honeywell FSC Remote I/O further extends the reach of the safety output network without adding unnecessary cable runs or junction boxes, reducing both installation cost and resistive losses in field wiring.

Industrial facilities face mounting pressure to reduce energy intensity per unit of output — and safety systems are increasingly recognized as a lever for achieving this goal, not merely a compliance requirement. The FS-SDO-0424 contributes to plant energy optimization in several concrete ways.

Demand-driven actuation is the primary mechanism. By holding output channels in the de-energized state during normal operation and activating them only upon a confirmed safety demand, the module eliminates the continuous power draw associated with normally-energized output architectures. For solenoid valves with coil resistances in the range of 10–50 Ω, this can represent a meaningful reduction in steady-state current draw across a large installation.

Thermal load reduction follows directly from reduced current draw. Control panels housing FSC modules benefit from lower ambient temperatures, which extends the service life of capacitors, connectors, and other heat-sensitive components. Lower panel temperatures also reduce the duty cycle of panel air conditioning or cooling systems — a secondary energy saving that compounds over time.

Production line rhythm stability is another key benefit. The FS-SDO-0424's fast response time and deterministic output behavior ensure that safety-related shutdowns and restarts are executed cleanly, without the extended recovery periods associated with poorly coordinated safety output systems. Faster, cleaner trip-and-reset cycles mean less production time lost per safety event, improving overall equipment effectiveness (OEE) and reducing the energy cost of restart transients.

Predictive maintenance enablement is supported through the module's per-channel diagnostics. By continuously monitoring output channel integrity and reporting faults to the FSC CPU and connected SCADA systems, the FS-SDO-0424 allows maintenance teams to identify degrading output drivers, relay contacts, or field wiring before they cause unplanned shutdowns. Planned maintenance windows are inherently more energy-efficient than emergency repairs, which often require extended system restarts and purge cycles.

All units supplied by NANKMOS are sourced from verified supply chains, subjected to functional output testing prior to shipment, and covered by a 12-month warranty from the date of delivery. Inventory is maintained in stock for rapid dispatch to support both planned capital projects and urgent replacement requirements.

Q1: How does the FS-SDO-0424 contribute to measurable energy savings in a process plant? The module's de-energize-to-trip output logic ensures that solenoids, relays, and actuators connected to its output channels draw power only when a safety demand is active. In normal operation, outputs remain de-energized, eliminating continuous coil current draw. Across a large installation with dozens of safety output channels, this demand-driven approach can reduce steady-state load on the 24 VDC safety bus and lower panel thermal output, contributing to both direct energy savings and reduced cooling costs.

Q2: Is the FS-SDO-0424 compatible with my existing Honeywell FSC system, and can it replace older output modules? The FS-SDO-0424 is designed for the Honeywell FSC platform and is compatible with FSC racks and backplanes that support 4-channel 24 VDC digital output modules. It is suitable as a direct replacement for equivalent FSC safety output modules of the same form factor and channel configuration. Before installation, verify the FSC system firmware version and module slot assignment with your system documentation or a qualified FSC engineer to ensure compatibility.

Q3: What testing is performed on FS-SDO-0424 units before shipment? All FS-SDO-0424 units supplied by NANKMOS undergo functional output testing to verify channel switching, output voltage levels, and diagnostic response prior to dispatch. Units are inspected for physical condition, connector integrity, and firmware label consistency. Test records are available upon request for quality-critical procurement processes.

Q4: What warranty and lead time should I expect for the FS-SDO-0424? NANKMOS provides a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Units are held in stock and are available for same-day or next-business-day dispatch depending on order timing and destination. For large-quantity requirements or project-based procurement, contact our team to confirm availability and lead time commitments.
