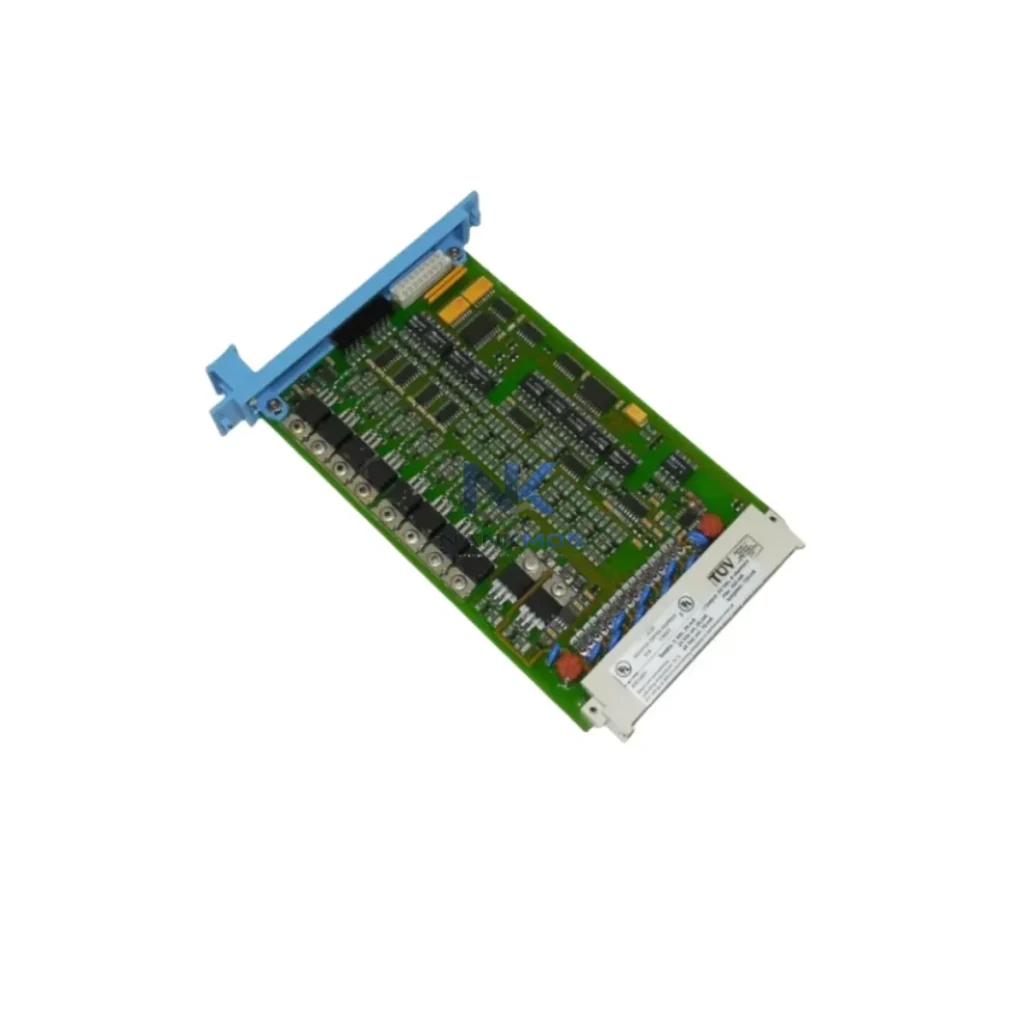

Honeywell FS-SDO-0824 Safety Output Module

Product Details

FS-SDO-0824 Product Description

The Honeywell FS-SDO-0824 is an 8-channel safe digital output module engineered for deployment within the Honeywell Safety Manager FS (FS) platform — a dedicated safety instrumented system (SIS) designed to achieve SIL 2 and SIL 3 functional safety requirements in accordance with IEC 61508 and IEC 61511. As a core output layer component, the FS-SDO-0824 translates safety-validated logic commands from the FS Safety Controller into reliable, diagnostically supervised actuator signals, forming the critical bridge between the control layer and the execution layer in process safety architectures.

In modern industrial automation, the integrity of the output path is as important as the logic that generates it. The FS-SDO-0824 addresses this requirement through internal diagnostic circuitry that continuously monitors output channel health, detects short-circuit and open-load conditions, and reports fault states back to the safety controller — enabling the system to take pre-defined safe-state actions without operator intervention. This level of self-diagnostics is essential in applications where actuator failure could result in hazardous process conditions.

The FS-SDO-0824 does not operate in isolation — it is an integral node within the Honeywell Safety Manager FS architecture, a platform designed for modular, scalable, and redundant safety system deployment. Understanding its role requires examining the full system stack and how each layer contributes to overall safety performance.

At the control layer, the Honeywell FS Safety Controller (FS-CPU module) executes the safety application logic, processes input data, and generates output commands. The FS-SDO-0824 receives these commands via the FS chassis backplane, ensuring deterministic, low-latency signal delivery to field actuators. In redundant configurations, the FS Safety Controller may be deployed in 1oo2 or 2oo3 voting architectures, and the FS-SDO-0824 is designed to maintain output integrity across controller switchover events.

At the I/O layer, the FS-SDO-0824 works alongside complementary modules such as the Honeywell FS-SDI-0824 Safe Digital Input Module and the Honeywell FS-SAI-0824 Safe Analog Input Module, forming a complete I/O subsystem capable of handling both discrete and analog process signals. This modular I/O architecture allows engineers to configure the system precisely to the I/O density required by the application, without over-provisioning hardware.

At the power layer, the Honeywell FS Power Supply Module provides regulated, monitored DC power to the FS chassis. Redundant power supply configurations are supported, ensuring that a single power supply failure does not compromise system availability. The FS-SDO-0824 draws its operating power from the chassis backplane, simplifying field wiring and reducing the risk of power-related installation errors.

At the communication layer, the Safety Manager FS platform supports integration with Honeywell's Experion PKS DCS via the FS Communication Module, enabling safety system status, alarm data, and diagnostic information to be surfaced in the plant-wide control and monitoring environment. This integration supports unified operator visibility across both the basic process control system (BPCS) and the safety instrumented system (SIS), a key requirement in modern process safety management.

At the HMI layer, operators interact with the safety system through Honeywell's Experion Station or dedicated safety HMI terminals, where the output status of each FS-SDO-0824 channel can be monitored in real time. Diagnostic alarms generated by the module's internal self-test routines are surfaced directly in the HMI, enabling maintenance teams to identify and respond to output channel faults before they escalate.

At the execution layer, the FS-SDO-0824 drives solenoid valves, motor starters, relay coils, and other actuator types that implement the physical safe-state actions defined in the safety application. The module's per-channel current capacity and diagnostic supervision ensure that actuator commands are executed reliably and that any actuator-side fault is detected and reported promptly.

At the protection layer, the FS-SDO-0824 contributes to the overall Safety Instrumented Function (SIF) by providing the output path for safety actions such as emergency shutdown (ESD), pressure relief valve actuation, and pump trip commands. Its SIL 3 capability ensures that the output path does not become the limiting factor in the overall SIF SIL achievement.

At the maintenance layer, the module's plug-in form factor and backplane connectivity simplify replacement procedures. Maintenance teams can swap a faulty FS-SDO-0824 without disturbing field wiring, and the Safety Manager FS platform supports online module replacement in configurations where redundancy allows continued operation during maintenance activities. Paired with the Honeywell FS Chassis / Rack and FS Termination Assembly, the system provides a structured, audit-friendly maintenance environment.

The Honeywell FS-SDO-0824 is deployed across a wide range of safety-critical industrial environments where reliable, diagnostically supervised digital output capability is essential to process safety and regulatory compliance.

In oil and gas processing and petrochemical facilities, the FS-SDO-0824 is used to implement emergency shutdown (ESD) and high-integrity pressure protection system (HIPPS) functions. It drives the solenoid valves and actuators that isolate process sections, depressurize vessels, and shut down rotating equipment in response to hazardous process conditions detected by the safety instrumented system.

In power generation — including thermal, combined-cycle, and nuclear auxiliary systems — the module provides the output path for turbine trip, boiler shutdown, and auxiliary system isolation functions. Its SIL 3 capability and high diagnostic coverage make it suitable for applications where output failure could result in significant equipment damage or personnel safety risk.

In chemical and specialty chemical manufacturing, the FS-SDO-0824 supports reactor safety systems, where precise, reliable actuation of cooling water valves, quench systems, and vent valves is required to prevent runaway reactions. The module's per-channel diagnostics ensure that any output path degradation is detected before it compromises the safety function.

In water and wastewater treatment, the module is used in pump protection, chemical dosing interlock, and overflow prevention systems. Its robust operating temperature range and IP20 protection class make it suitable for installation in control panels within water treatment facilities.

In mining and minerals processing, the FS-SDO-0824 supports conveyor safety systems, crusher protection interlocks, and ventilation control functions. Its modular architecture allows safety systems to be scaled as processing capacity expands, without requiring complete system redesign.

In marine and offshore applications, the module is deployed in fire and gas (F&G) systems, ballast control interlocks, and machinery protection systems, where the combination of SIL certification, compact form factor, and diagnostic transparency meets the stringent requirements of classification societies such as DNV, Lloyd's Register, and ABS.

Q1: Is the FS-SDO-0824 compatible with both SIL 2 and SIL 3 safety instrumented functions, and what determines the achievable SIL level?

The FS-SDO-0824 is designed and certified for use in SIL 2 and SIL 3 safety instrumented functions. The achievable SIL level for a specific SIF depends on the overall system architecture — including the voting configuration of the safety controller, the redundancy of the I/O subsystem, the proof test interval, and the PFD (Probability of Failure on Demand) contributions of all SIF elements. For SIL 3 achievement, the FS-SDO-0824 is typically deployed in redundant output configurations with appropriate voting logic defined in the safety application. A formal SIL verification calculation, performed in accordance with IEC 61508 Part 6, is required to confirm SIL achievement for each specific SIF.

Q2: Can the FS-SDO-0824 be replaced online without shutting down the entire Safety Manager FS system, and what procedures apply?

The Safety Manager FS platform supports online module replacement in configurations where system redundancy allows continued safe operation during the replacement procedure. The specific procedure depends on the system configuration, the redundancy architecture, and the safety application requirements. Before performing any online module replacement, engineers must consult the Honeywell Safety Manager FS System Manual and the site-specific safety management of change (MOC) procedure. The FS-SDO-0824's plug-in form factor and backplane connectivity are designed to facilitate efficient replacement without disturbing field wiring terminations at the FS Termination Assembly.

Q3: What is the warranty coverage for the FS-SDO-0824, and what does NANKMOS's supply and support commitment include?

Every Honeywell FS-SDO-0824 supplied by NANKMOS is backed by a 12-Month Warranty covering manufacturing defects and functional performance. Prior to shipment, each unit undergoes functional verification testing to confirm output channel integrity, diagnostic response, and backplane communication. NANKMOS maintains inventory of Safety Manager FS series modules to support both planned project procurement and urgent replacement requirements, with global shipping capability to minimize system downtime. For technical pre-sales support, compatibility verification, or volume procurement inquiries, contact NANKMOS at [email protected] or +86 18359268345.
