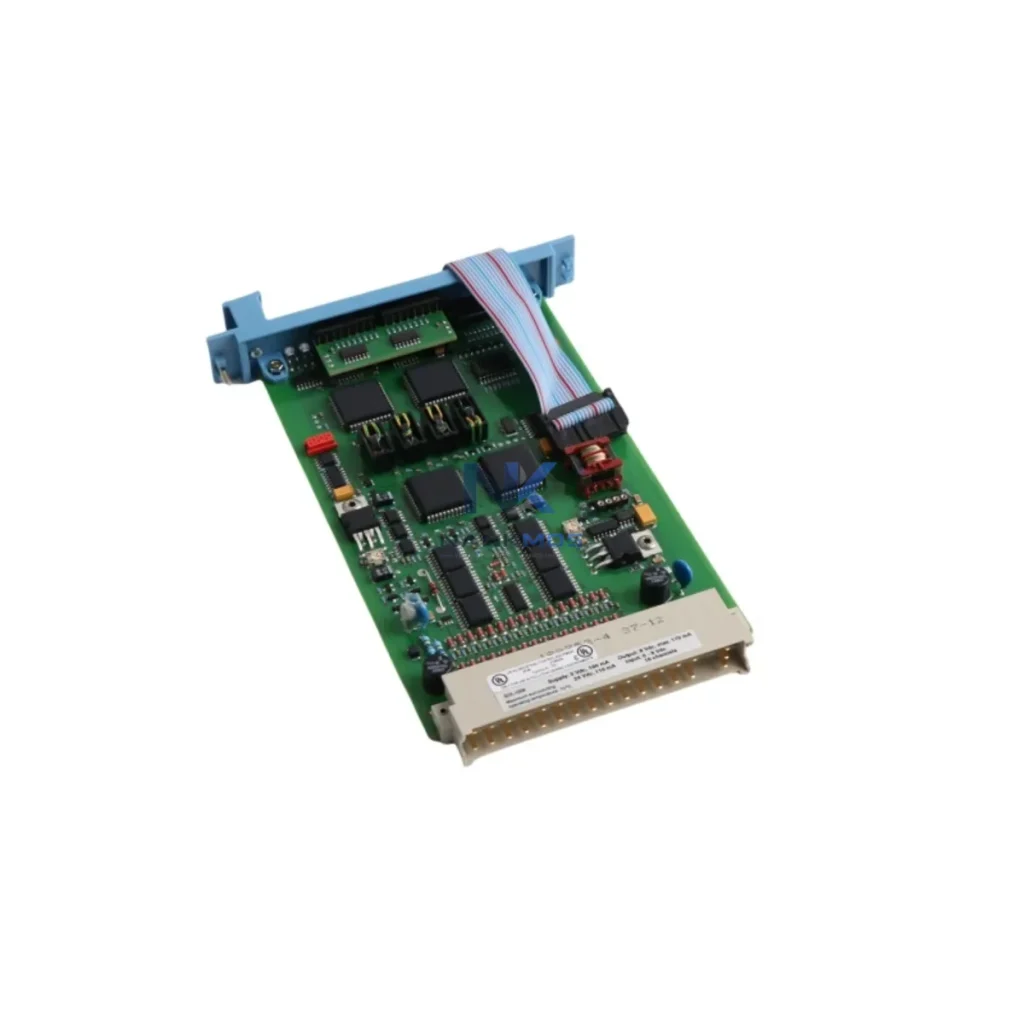

Honeywell FS-SDOL-0424 Safety Digital Output Module

Product Details

FS-SDOL-0424 Product Description

The Honeywell FS-SDOL-0424 is a SIL2-certified Safety Digital Output Module engineered for the Honeywell FSC (Fail-Safe Controller) platform, delivering deterministic, high-integrity digital output control across safety-critical industrial environments. With 4 channels of 24VDC digital output, the FS-SDOL-0424 forms the final control element in a complete safety instrumented system (SIS) data chain — from field sensor signal acquisition through PLC logic execution to actuator command delivery. Its role in the smart factory data flow is not merely switching; it is the verified, auditable endpoint of a safety-rated communication loop that spans every layer of the automation hierarchy.

In a connected factory architecture, the FS-SDOL-0424 integrates directly into the FSC safety backplane alongside companion modules such as the FS-SDI-0824 Safety Digital Input Module and the FS-SAI-0424 Safety Analog Input Module, forming a tightly coupled I/O subsystem. The FSC controller processes field data from these input modules, executes SIL2-validated logic, and issues output commands through the FS-SDOL-0424 to drive solenoid valves, motor contactors, emergency shutdown relays, and other final elements. This closed-loop architecture ensures that every output state change is traceable, time-stamped, and logged — a prerequisite for process safety management (PSM) compliance and HAZOP audit readiness.

The FS-SDOL-0424 sits at the command execution layer of a multi-tier industrial data architecture. Understanding its position in the full data flow reveals why it is indispensable to smart factory safety integration.

At the field level, process sensors — pressure transmitters, temperature elements, gas detectors, and flow switches — feed analog and digital signals into the FSC system via input modules such as the FS-SAI-0424 (Safety Analog Input) and FS-SDI-0824 (Safety Digital Input). These signals are conditioned, validated, and passed to the FSC CPU module, which executes the safety application logic in accordance with IEC 61511 functional safety requirements. The CPU's output commands are then routed through the safety backplane to the FS-SDOL-0424, which drives the physical actuators in the field.

For facilities running hybrid safety and process control architectures, the FSC system communicates upstream to DCS platforms and SCADA systems via the Honeywell FS-PROFIBUS-DP gateway module or equivalent communication bridges. This allows real-time output status, diagnostic data, and alarm states from the FS-SDOL-0424 to be visible in Honeywell Experion PKS, Siemens WinCC, or Wonderware InTouch SCADA environments — enabling operators to monitor safety output states without direct access to the FSC engineering workstation.

In ESD (Emergency Shutdown) applications, the FS-SDOL-0424 is typically wired to solenoid-operated valves (SOVs) on critical process lines. When the FSC logic detects a process deviation — high pressure, high temperature, or loss of containment — the output module de-energizes the relevant channel, driving the SOV to its fail-safe position. This action is simultaneously logged by the FSC event recorder and transmitted to the SCADA historian, creating a complete, time-stamped audit trail from sensor signal to actuator response.

For remote monitoring and diagnostics, the FSC system's communication gateway enables integration with edge computing platforms and industrial IoT infrastructure. Diagnostic data from the FS-SDOL-0424 — including output channel health, load current monitoring, and self-test results — can be forwarded to cloud-based asset management systems or on-premise data historians such as OSIsoft PI or Honeywell PHD. This supports predictive maintenance workflows, where output module degradation trends can be identified before a functional failure occurs.

In Fire & Gas (F&G) system architectures, the FS-SDOL-0424 drives alarm horns, beacon lights, deluge valve solenoids, and HVAC shutdown relays. These outputs are coordinated with the Honeywell FS-SDI-0824 input module receiving signals from flame detectors, gas sensors, and manual call points. The complete signal chain — from detector activation through FSC logic to FS-SDOL-0424 output — is designed to meet IEC 61508 SIL2 requirements for both hardware fault tolerance and systematic capability.

For Burner Management System (BMS) applications, the FS-SDOL-0424 controls fuel gas valves, ignition systems, and combustion air dampers. Integration with the FSC's analog input modules allows the BMS logic to respond to flame signal loss, low fuel pressure, or combustion air failure by issuing immediate shutdown commands through the FS-SDOL-0424 output channels. The module's high diagnostic coverage ensures that any internal output fault is detected and reported before it can compromise the burner safety function.

Industrial facilities operating legacy safety systems frequently encounter data visibility gaps that compromise both safety performance and operational efficiency. The FS-SDOL-0424, when deployed within a properly configured FSC architecture, addresses several of the most common integration challenges.

Protocol Fragmentation: Many plants run a mix of PROFIBUS DP, Modbus RTU, and proprietary backplane protocols across their safety and process control layers. The FSC platform's modular communication architecture — using dedicated gateway modules to bridge the FSC backplane to standard fieldbus networks — allows the FS-SDOL-0424's output status and diagnostics to be surfaced on any connected SCADA or DCS platform without protocol conversion errors or data loss.

Data Islands and Alarm Blind Spots: In facilities where safety system outputs are not integrated with the process SCADA, operators may be unaware of output module faults until a functional test reveals the problem. By connecting the FSC system to the plant SCADA via PROFIBUS DP or Modbus TCP gateways, every FS-SDOL-0424 channel state and diagnostic alarm becomes visible in the central control room, eliminating safety data islands.

Remote Monitoring Limitations: For unmanned or remotely operated facilities, the ability to monitor safety output states from a central location is critical. The FSC communication architecture supports remote diagnostics via the plant WAN or dedicated safety network, allowing engineers to verify FS-SDOL-0424 output health, review event logs, and perform remote functional test initiation without on-site presence.

Production Line Transparency: Integration of the FS-SDOL-0424 output data into MES (Manufacturing Execution System) and ERP platforms — via OPC-DA or OPC-UA data bridges — enables production managers to correlate safety system interventions with production KPIs, supporting root cause analysis and continuous improvement programs.

System Scalability: The FSC platform's modular I/O architecture allows additional FS-SDOL-0424 modules to be added to the safety system as process expansion requires, without redesigning the safety application logic. This scalability is essential for phased plant expansions and greenfield project additions.

Q1: What communication protocols does the FS-SDOL-0424 support for SCADA integration?The FS-SDOL-0424 communicates natively via the FSC safety backplane bus. For SCADA integration, the FSC system uses dedicated gateway modules — such as PROFIBUS DP or Modbus RTU communication cards — to expose output module status, diagnostic data, and alarm states to Honeywell Experion PKS, Siemens WinCC, Wonderware InTouch, and other standard SCADA platforms. OPC-DA and OPC-UA bridges are also supported for MES and ERP connectivity.

Q2: How does the FS-SDOL-0424 ensure network stability and output reliability in safety-critical applications?The module incorporates continuous internal self-diagnostics, output load current monitoring, and channel-level fault detection. Any detected fault is immediately reported to the FSC CPU and transmitted to the connected SCADA system as a diagnostic alarm. The SIL2-rated architecture ensures that both random hardware failures and systematic faults are detected within the required safe failure fraction (SFF) limits, maintaining output reliability even under adverse network or power conditions.

Q3: Can the FS-SDOL-0424 be integrated into an existing PROFIBUS DP or Modbus network without replacing the FSC controller?Yes. The FSC platform supports the addition of PROFIBUS DP or Modbus RTU gateway modules to existing FSC racks, enabling the FS-SDOL-0424's output data to be integrated into plant-wide fieldbus networks without replacing the FSC CPU or safety application software. This allows incremental network integration as part of a phased digital transformation program.

Q4: What does the 12-month warranty cover, and how are units tested before shipment?All FS-SDOL-0424 units supplied by NANKMOS are covered by a 12-month warranty against manufacturing defects and functional failures. Every unit undergoes pre-shipment functional testing to verify output channel operation, diagnostic response, and backplane communication integrity. Units are shipped with test documentation upon request, supporting incoming inspection and FAT (Factory Acceptance Test) requirements.
