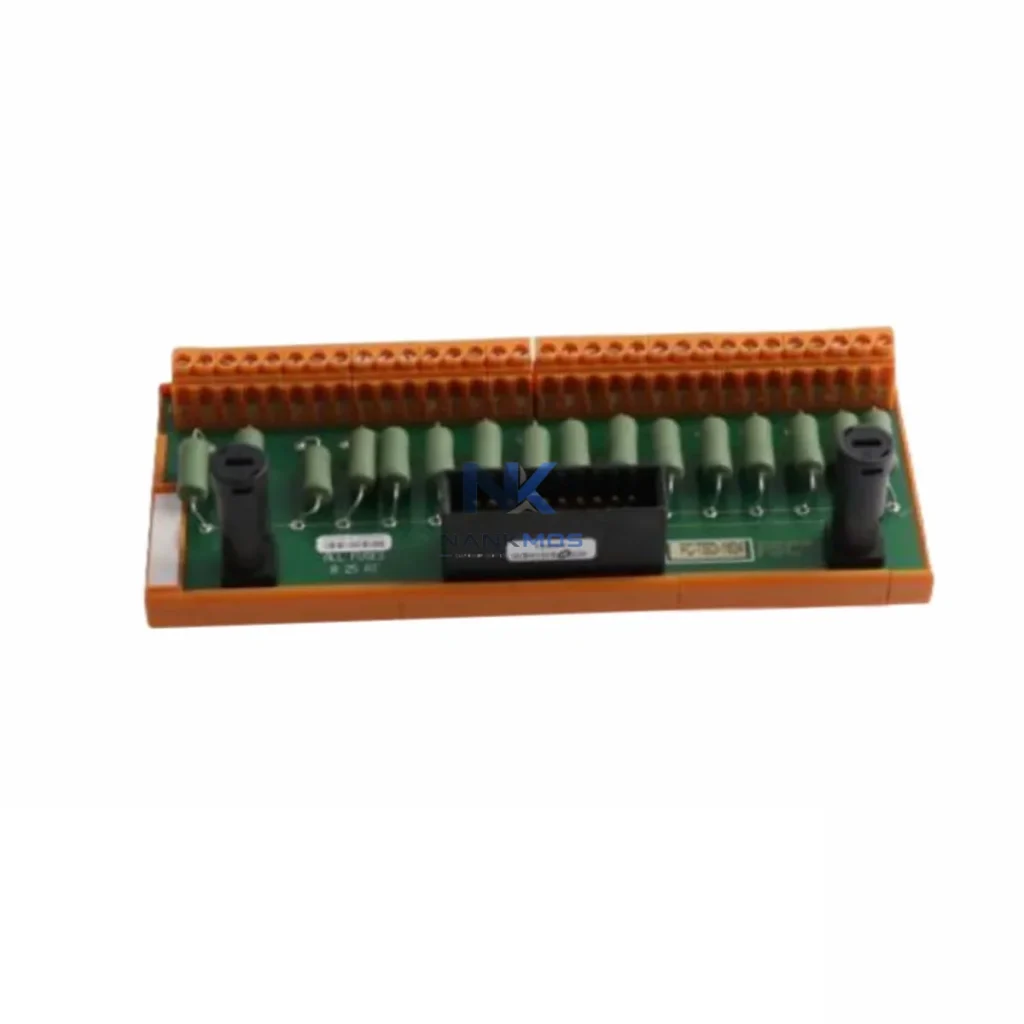

Honeywell FS-TSAI-1620m Safety PLC Analog Input Module

Product Details

FS-TSAI-1620m Product Description

The Honeywell FS-TSAI-1620M is a high-integrity analog input module engineered for deployment within the Honeywell FSC (Fail-Safe Controller) safety PLC platform. Designed to meet the rigorous demands of SIL2-rated process safety applications, this module delivers reliable signal acquisition, deterministic scan performance, and seamless contextual integration across layered industrial control architectures. Whether deployed in a standalone safety loop or as part of a redundant, multi-rack FSC system, the FS-TSAI-1620M provides the signal fidelity and diagnostic transparency that modern process safety engineering demands.

At NANKMOS, every FS-TSAI-1620M unit is sourced, inspected, and dispatched with a 12-Month Warranty, full traceability documentation, and pre-shipment functional verification — ensuring your project timeline and system integrity are never compromised.

The FS-TSAI-1620M does not operate in isolation — it is a precision node within a broader, multi-layer FSC safety architecture. Understanding its role requires examining how it interacts with every functional layer of the control system.

At the control layer, the FS-TSAI-1620M feeds real-time analog process values directly to the Honeywell FSC CPU module (FS-CPU-0702 or FS-CPU-0704), which executes the safety logic program and generates trip or permissive outputs based on validated signal data. The CPU's deterministic scan cycle depends on accurate, low-latency analog input — a requirement the FS-TSAI-1620M fulfills through its high-resolution 12-bit A/D conversion and channel-level diagnostics.

At the I/O layer, the module occupies a dedicated slot within the FSC rack chassis, sharing the backplane with complementary modules such as the FS-TSDO-1620M digital output module and the FS-TSDI-1620M digital input module. This co-location within the same rack minimizes signal propagation delays and simplifies wiring discipline in the marshalling cabinet. For applications requiring expanded I/O capacity, additional FS-TSAI-1620M modules can be added to extended racks connected via the FSC I/O expansion bus, supporting modular scale-out without architectural redesign.

At the communication layer, the FSC platform integrates with plant-wide DCS and SCADA systems through dedicated gateway modules such as the Honeywell FS-TCOM Modbus/TCP gateway or the FS-TPNI PROFIBUS DP interface module. Analog values acquired by the FS-TSAI-1620M are mapped to the FSC data table and made available to upstream systems via these communication interfaces, enabling real-time process monitoring, historian logging, and alarm management without compromising the safety function boundary.

At the power layer, the FSC rack is supplied by redundant Honeywell FS-TPSU power supply modules, which provide regulated, monitored DC power to all installed I/O modules including the FS-TSAI-1620M. Redundant power supply configuration ensures that a single PSU failure does not interrupt analog signal acquisition — a critical requirement in continuous process industries where loss of measurement can trigger unplanned shutdowns.

At the HMI layer, operator stations running Honeywell Safety Manager or Experion PKS display the analog process values sourced from the FS-TSAI-1620M, providing operators with real-time visibility into temperature, pressure, flow, and level signals that drive safety interlock decisions. Integration with the HMI layer also enables remote diagnostic access, allowing maintenance engineers to review channel health status and calibration drift without physical access to the control cabinet.

At the protection and redundancy layer, the FS-TSAI-1620M supports 1oo2 (one-out-of-two) and 2oo3 (two-out-of-three) voting architectures when deployed in parallel with additional analog input modules. This redundancy configuration is commonly specified in SIL2 and SIL3 safety instrumented functions (SIFs) where a single-channel failure must not result in a spurious trip or a dangerous undetected failure. The module's built-in diagnostic coverage — including open-circuit detection, range validation, and A/D conversion integrity checks — supports the proof test interval calculations required by IEC 61511 functional safety management.

At the maintenance layer, the FS-TSAI-1620M's hot-swap capability (where supported by the FSC rack configuration) allows field replacement without de-energizing the entire rack, reducing mean time to repair (MTTR) and supporting the continuous availability targets of critical process units. Paired with the FSC Engineering Workstation (EWS) and Honeywell's Safety Builder configuration tool, maintenance teams can perform online diagnostics, channel calibration verification, and firmware status checks as part of scheduled proof testing routines.

Oil, Gas & Petrochemical: In upstream and downstream hydrocarbon processing, the FS-TSAI-1620M is deployed in emergency shutdown (ESD) systems and fire and gas (F&G) detection panels. It acquires 4–20 mA signals from pressure transmitters, temperature sensors, and gas detectors, feeding the FSC safety logic solver with the process data required to execute SIL2-rated shutdown sequences. Its galvanic channel isolation prevents ground loop interference in electrically noisy field environments typical of compressor stations and refinery process units.

Power Generation & Utilities: In thermal power plants and combined-cycle facilities, the FS-TSAI-1620M monitors turbine bearing temperatures, steam pressure, and cooling water flow rates within the turbine protection system (TPS). Its deterministic scan performance and online self-diagnostics ensure that the safety logic solver receives validated analog data within the required response time for turbine trip functions, supporting compliance with IEC 61511 and NERC CIP reliability standards.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities use the FS-TSAI-1620M to monitor chlorine dosing rates, pH levels, and pump discharge pressures within safety-critical process loops. The module's wide operating temperature range and humidity tolerance make it suitable for installation in outdoor marshalling enclosures and partially conditioned pump station control rooms.

Mining & Metallurgy: In mineral processing and smelting operations, the FS-TSAI-1620M acquires analog signals from furnace temperature sensors, conveyor load cells, and ventilation airflow transmitters. Its robust diagnostic architecture supports the high proof test frequency requirements of mining safety regulations, while its modular design allows incremental expansion as processing capacity grows.

Marine & Offshore: Offshore platform and FPSO vessel control systems deploy the FS-TSAI-1620M within integrated safety and control systems (ISCS) for wellhead pressure monitoring, gas detection, and deluge system activation. Its TÜV certification and ATEX zone 2 compatibility make it suitable for installation in hazardous area control rooms and junction boxes.

Q1: Is the FS-TSAI-1620M compatible with both legacy FSC racks and current-generation FSC chassis configurations? A: Yes. The FS-TSAI-1620M is designed for the Honeywell FSC platform and is compatible with standard FSC rack chassis configurations used across multiple FSC hardware generations. For specific rack slot compatibility and firmware version alignment, we recommend verifying the FSC system hardware manual revision against your installed base. NANKMOS provides pre-shipment compatibility verification as part of our standard order process, and our technical team can assist with rack configuration review prior to dispatch.

Q2: Can the FS-TSAI-1620M be used in a redundant analog input architecture for SIL2 safety instrumented functions? A: Yes. The FS-TSAI-1620M supports deployment in redundant 1oo2 and 2oo3 voting configurations within the FSC safety logic solver. When multiple FS-TSAI-1620M modules are installed and configured for the same safety instrumented function, the FSC CPU performs cross-channel comparison and voting logic in accordance with the safety requirements specification (SRS). This architecture satisfies the hardware fault tolerance (HFT) requirements for SIL2 SIFs as defined in IEC 61511-1. NANKMOS can supply matched module pairs or triads from the same production batch to minimize inter-module variation.

Q3: What does the 12-Month Warranty cover, and what is the lead time for in-stock units? A: Every FS-TSAI-1620M supplied by NANKMOS carries a 12-Month Warranty covering manufacturing defects, functional failures under normal operating conditions, and A/D conversion accuracy within published specifications. Warranty claims are processed with priority dispatch of replacement units to minimize system downtime. For in-stock units, standard lead time is 3–7 business days for international shipments, with expedited options available for critical maintenance requirements. All units undergo pre-shipment functional testing and are dispatched with test records and traceability documentation. Contact [email protected] or +86 18359268345 for real-time stock confirmation and project-specific lead time commitments.
