Honeywell FS-TSDI-1624C Safety I/O Module

Product Details

FS-TSDI-1624C Product Description

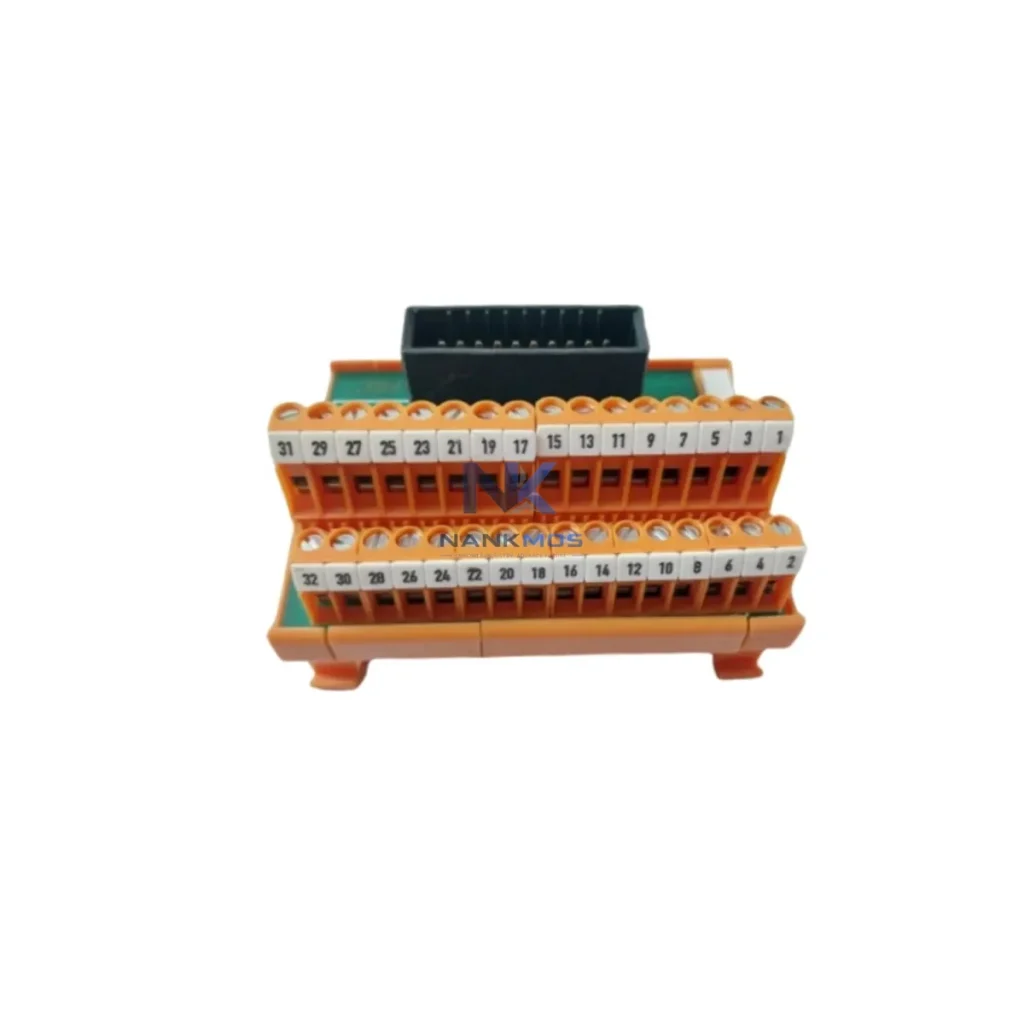

The Honeywell FS-TSDI-1624C is a 16-channel Safety Digital Input Field Termination Assembly (FTA) engineered for the Honeywell Safety Manager platform. Designed to operate at the intersection of functional safety and industrial data connectivity, this module serves as a critical node in the field-level signal acquisition layer of modern smart factory architectures. From discrete sensor inputs at the process edge to real-time safety logic execution in the Safety Manager controller, the FS-TSDI-1624C ensures that every digital signal is captured, validated, and transmitted with the integrity demanded by SIL 2 and SIL 3 safety-rated environments.

In today's connected manufacturing landscape, safety I/O modules are no longer passive terminal blocks — they are active participants in the plant-wide data chain. The FS-TSDI-1624C interfaces directly with the Honeywell Safety Manager's I/O bus, feeding verified digital states from field instruments — emergency shutdown switches, pressure switches, flame detectors, and position sensors — into the safety logic solver. This data flows upstream through the Safety Manager's communication backbone, where it becomes available to SCADA systems, DCS platforms, and historian databases for real-time monitoring, alarm management, and long-term trend analysis.

Understanding the FS-TSDI-1624C's role requires mapping the complete data flow from field device to enterprise system. At the process edge, field instruments — including NAMUR-compatible proximity sensors, solenoid valve position feedback switches, and manual call points — connect directly to the FS-TSDI-1624C's 16 input channels via the FTA terminal block. The module conditions and validates each input signal before passing it across the Honeywell Safety Manager I/O bus to the safety logic solver.

Within the Safety Manager controller, the digital input states are processed against the configured safety logic — ESD sequences, F&G voting logic, or BMS interlocks. The Safety Manager then communicates process and safety status data upstream via its Ethernet gateway interface, making real-time data available to the Honeywell Experion PKS distributed control system. Operators monitoring the Experion Station HMI can view live input states, diagnostic alarms, and safety system status without interrupting the safety function.

For plants requiring broader connectivity, the Safety Manager's Modbus TCP or OPC UA gateway capability allows integration with third-party SCADA platforms, enabling the FS-TSDI-1624C's input data to feed into plant-wide data historians, MES systems, and cloud-based analytics dashboards. In multi-zone safety architectures, the FS-TSDI-1624C works alongside companion modules such as the FS-TSDO-1622C safety digital output FTA and the FS-TAI-1620C analog input FTA, forming a complete field I/O layer under a single Safety Manager controller.

For remote diagnostic capability, the Safety Manager's built-in diagnostics — accessible via the Safety Manager Engineering Console — allow maintenance engineers to interrogate individual channel health, wiring faults, and input state history without physical access to the field cabinet. This remote diagnostic loop is essential for offshore platforms, remote pipeline stations, and unmanned substations where minimizing site visits directly reduces operational cost and risk. Paired with an industrial managed Ethernet switch such as the Honeywell EAGLEHAWK series or a compatible third-party switch supporting PROFINET or EtherNet/IP, the Safety Manager network can be segmented and monitored for latency, packet loss, and link health — ensuring the safety data chain remains unbroken.

In larger safety system architectures, the FS-TSDI-1624C may operate alongside Honeywell's FS-TSAI-1620C analog input FTA for continuous process variable monitoring, the FS-TSDO-1622C digital output FTA for actuator control, and the Safety Manager's redundant controller modules for fault-tolerant operation. Edge gateway devices — such as those running Honeywell's Connected Plant applications — can aggregate safety I/O data with process historian data, enabling predictive maintenance models that flag degrading field instruments before they cause spurious trips or dangerous failures.

Many industrial facilities face a persistent challenge: safety systems operate in isolation from the broader plant data infrastructure. The FS-TSDI-1624C, as part of the Honeywell Safety Manager ecosystem, directly addresses this data gap. By providing a structured, diagnostics-rich digital input interface, it eliminates the ambiguity of unmonitored field wiring and replaces it with a fully auditable, channel-level data record.

Protocol Fragmentation: In plants where legacy PLCs communicate over Modbus RTU while newer systems use EtherNet/IP or PROFINET, the Safety Manager's gateway capabilities allow the FS-TSDI-1624C's input data to be translated and forwarded to any upstream system — resolving protocol incompatibility without replacing field wiring.

Data Silos: Safety system data is often trapped in proprietary engineering consoles. The Safety Manager's OPC UA server capability breaks down this silo, exposing FS-TSDI-1624C input states and diagnostic data to any OPC UA-compatible SCADA or historian platform — enabling unified plant-wide visibility.

Remote Monitoring Gaps: For geographically distributed assets, the Safety Manager's remote engineering access allows the FS-TSDI-1624C's channel diagnostics to be reviewed from a central control room or engineering office, reducing the need for costly field inspections.

Production Line Transparency: By integrating safety input data into the plant historian via OPC DA/UA, operations teams gain a complete timeline of safety system activations, near-miss events, and input state changes — supporting root cause analysis, regulatory reporting, and continuous improvement programs.

Alarm Rationalization: The FS-TSDI-1624C's high diagnostic coverage enables the Safety Manager to distinguish between genuine process alarms and instrument faults — reducing nuisance alarms and improving operator response quality.

System Scalability: As plant safety requirements evolve, additional FS-TSDI-1624C modules can be added to the Safety Manager I/O bus without architectural redesign, supporting phased capacity expansion aligned with production growth.

Q1: What communication protocols does the Honeywell FS-TSDI-1624C support for SCADA integration?The FS-TSDI-1624C connects to the Honeywell Safety Manager via its proprietary I/O bus. The Safety Manager controller then exposes process and safety data to SCADA and DCS systems via OPC DA, OPC UA, and Modbus TCP — enabling seamless integration with third-party platforms including Wonderware, iFIX, and Ignition SCADA without modifying the safety-rated field wiring.

Q2: How does the FS-TSDI-1624C support remote diagnostics and predictive maintenance?The Safety Manager Engineering Console provides channel-level diagnostics for each FS-TSDI-1624C input, including wiring continuity, input state history, and fault codes. These diagnostics are accessible remotely via the Safety Manager's Ethernet interface, allowing maintenance teams to identify degrading field instruments, open circuits, or short-circuit conditions without dispatching personnel to the field cabinet.

Q3: Can the FS-TSDI-1624C operate in a redundant Safety Manager architecture?Yes. The FS-TSDI-1624C is designed to operate within Honeywell Safety Manager configurations that include redundant controller modules and redundant I/O buses. In a redundant architecture, both controllers continuously monitor the FS-TSDI-1624C's input states, ensuring that a single controller failure does not interrupt the safety function — meeting the availability requirements of SIL 2 and SIL 3 applications.

Q4: What is the warranty coverage and pre-shipment testing process for the FS-TSDI-1624C?Every FS-TSDI-1624C supplied by NANKMOS is covered by a 12-month warranty against manufacturing defects and functional failures. Prior to shipment, each unit undergoes functional verification testing to confirm channel integrity, I/O bus communication, and diagnostic response. Units are shipped with original manufacturer documentation where available, and our technical team provides post-sale support for installation, commissioning, and system integration queries.
