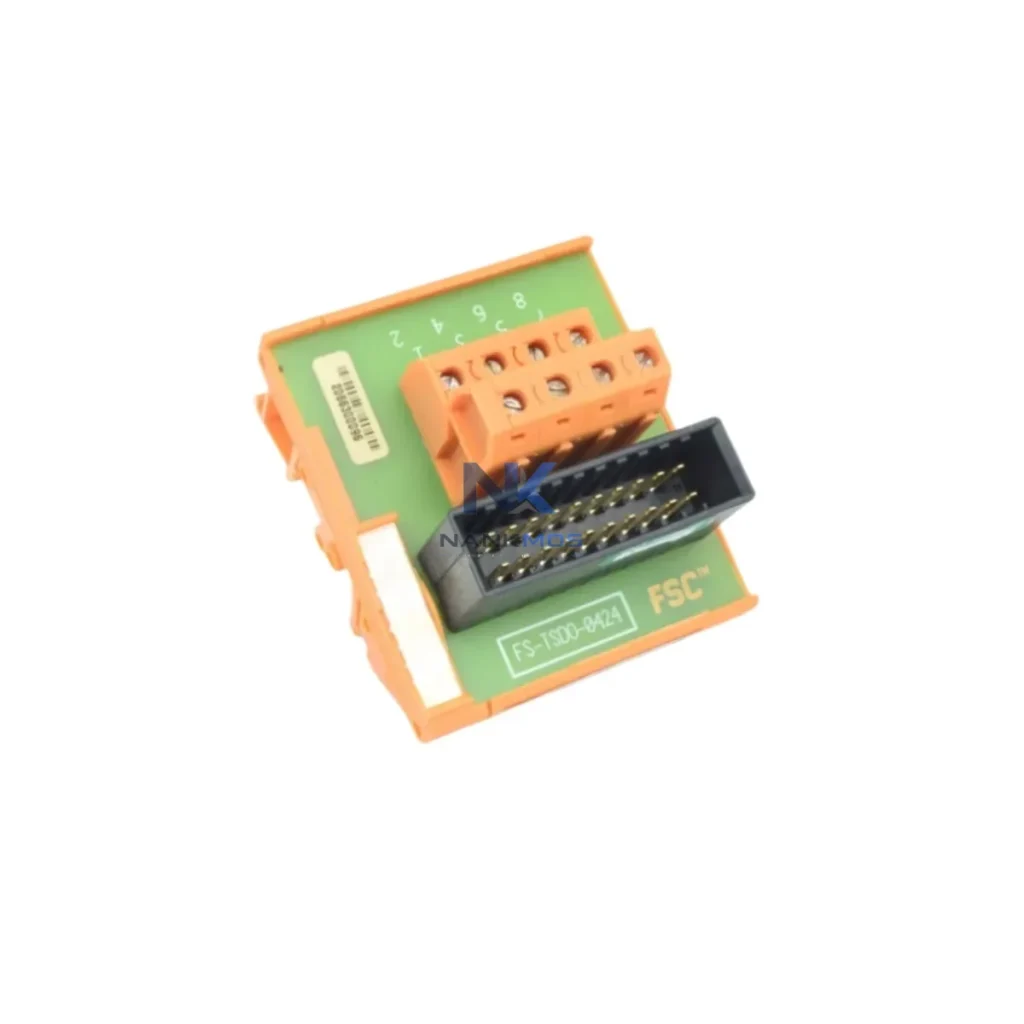

Honeywell FS-TSDO-0424 Safety Digital Output Module

Product Details

FS-TSDO-0424 Product Description

The Honeywell FS-TSDO-0424 is a SIL2-certified Safety Digital Output Module engineered for the Honeywell FSC (Fail Safe Controller) platform — one of the most trusted safety PLC architectures deployed across oil & gas, chemical processing, power generation, and advanced manufacturing. In the context of a connected smart factory, the FS-TSDO-0424 serves as a critical node in the safety data chain, bridging field-level actuators and shutdown devices with the supervisory control layer through a deterministic, fault-tolerant digital output interface.

As industrial sites evolve toward fully integrated Industrial IoT architectures, the demand for safety I/O modules that can participate in real-time data flows — from sensor signal acquisition through protocol conversion, network transmission, SCADA visualization, and remote diagnostics — has never been greater. The FS-TSDO-0424 meets this demand by delivering high-integrity digital output control within the FSC safety network, enabling seamless integration with upstream HMI systems, DCS platforms, and plant-wide SCADA environments.

In a modern smart factory or process plant, the FS-TSDO-0424 occupies a pivotal position within the safety instrumented system (SIS) data architecture. The data flow begins at the field level, where sensors — including pressure transmitters, flame detectors, gas analyzers, and temperature elements — feed real-time process values into the FSC safety PLC via dedicated safety input modules such as the Honeywell FS-TSDI-0824 (Safety Digital Input Module). The FSC controller processes these inputs against pre-configured safety logic and, upon detecting an abnormal condition, issues a digital output command through the FS-TSDO-0424 to actuate shutdown valves, de-energize motor starters, or trigger alarm annunciators.

This output signal path is not isolated from the broader plant data network. Through the Honeywell FSC Gateway Module (e.g., FS-TSAI series or dedicated Modbus/OPC-UA communication cards), the FSC platform exchanges real-time status data with the plant DCS — often a Honeywell Experion PKS or equivalent distributed control system. This integration allows operators at the central control room HMI to monitor the live state of every digital output channel on the FS-TSDO-0424, including energized/de-energized status, diagnostic fault flags, and bypass conditions.

At the SCADA layer, historians and visualization platforms — such as Honeywell Uniformance PHD or third-party SCADA systems connected via OPC-DA/OPC-UA — continuously log output state transitions from the FS-TSDO-0424. This creates a complete, time-stamped audit trail of every safety action taken on the plant floor, supporting regulatory compliance, incident investigation, and predictive maintenance workflows.

For remote diagnostics and asset management, the FSC platform's communication infrastructure — including Honeywell Safety Manager SC integration pathways and industrial Ethernet switches such as managed Layer 2/3 switches supporting PROFINET or Modbus TCP — enables remote engineering teams to interrogate module health, review diagnostic counters, and perform online configuration changes without interrupting the safety function. Edge gateway devices can further aggregate this data and push it to cloud-based analytics platforms, enabling AI-driven anomaly detection and predictive shutdown analysis.

The FS-TSDO-0424 also integrates naturally with remote I/O expansion architectures. In large-scale plants where field devices are distributed across multiple process units, Honeywell FSC Remote I/O modules extend the safety output reach without compromising SIL2 integrity. Industrial power supplies — such as 24 VDC DIN-rail units with redundant feed capability — ensure that the output module maintains continuous operation even during utility power fluctuations, a critical requirement for emergency shutdown systems.

Variable frequency drives (VFDs) and motor control centers connected downstream of the FS-TSDO-0424 receive hardwired digital output signals that command safe-state transitions — motor stop, valve close, or pump trip — within the response time mandated by the safety requirements specification (SRS). This hardwired output path, combined with the module's online self-diagnostic capability, ensures that the safety function is always available and verifiable without requiring a plant shutdown for proof testing.

Many industrial sites operating legacy FSC or hybrid safety PLC architectures face persistent challenges around data visibility, protocol fragmentation, and remote monitoring capability. The FS-TSDO-0424 addresses several of these pain points directly:

Protocol Fragmentation: In plants where the FSC safety system coexists with third-party DCS platforms or SCADA systems using Modbus RTU, PROFIBUS DP, or OPC-UA, the FSC gateway communication modules bridge the protocol gap, allowing the FS-TSDO-0424's output status data to be surfaced in any supervisory system without custom middleware development.

Data Silos: Safety system data has historically been siloed from process control and business intelligence systems. By integrating the FSC platform with plant historians and MES layers via standard industrial communication protocols, the FS-TSDO-0424's operational data — output state, diagnostic health, bypass status — becomes part of the unified plant data model, enabling cross-system KPI dashboards and OEE analysis.

Remote Monitoring Gaps: For unmanned or remotely operated facilities, the ability to monitor safety output module status in real time — and receive alarm notifications via SCADA or mobile HMI — is essential. The FSC platform's communication architecture supports this use case, with the FS-TSDO-0424 contributing live diagnostic data to the remote monitoring feed.

Production Line Transparency: Integrating safety output data into MES and ERP systems provides production managers with real-time visibility into safety-related production interruptions, enabling faster root cause analysis and reducing unplanned downtime.

Alarm Tracking and System Expansion: The FS-TSDO-0424 supports structured alarm management workflows, with each output channel's state change logged and time-stamped for alarm rationalization and HAZOP review. As plant capacity expands, additional FSC I/O modules can be added to the existing rack architecture without redesigning the safety logic, providing a scalable path for system growth.

All units supplied by NANKMOS undergo pre-shipment functional testing and are backed by a 12-month warranty, with in-stock inventory available for fast delivery to support urgent MRO and project procurement requirements.

Q1: What communication protocols does the Honeywell FS-TSDO-0424 support for SCADA and DCS integration? The FS-TSDO-0424 operates on the Honeywell FSC proprietary safety bus at the I/O level. Integration with SCADA and DCS platforms is achieved through FSC gateway communication modules that support Modbus TCP/RTU, OPC-DA, OPC-UA, and PROFIBUS DP, depending on the FSC system configuration. This allows real-time output status data to be surfaced in any standard supervisory system without custom protocol development.

Q2: Can the FS-TSDO-0424 be used in systems requiring SIL2 certification, and how is this verified? Yes. The FS-TSDO-0424 is designed and certified for use in SIL2 safety instrumented functions in accordance with IEC 61508 and IEC 61511. SIL2 compliance is verified through the module's diagnostic coverage, safe failure fraction (SFF), and hardware fault tolerance (HFT) parameters documented in the Honeywell FSC safety manual. Pre-shipment testing at NANKMOS includes functional verification of output channel integrity.

Q3: How does the FS-TSDO-0424 support remote diagnostics and predictive maintenance in a smart factory environment? The FSC platform's online self-diagnostic architecture continuously monitors the health of each output channel on the FS-TSDO-0424, reporting fault conditions — including open-circuit, short-circuit, and internal module faults — to the FSC controller and upstream SCADA/HMI systems in real time. Remote engineering teams can access this diagnostic data via the plant's industrial Ethernet network, enabling condition-based maintenance scheduling without requiring physical access to the module.

Q4: What is the delivery lead time and warranty coverage for the Honeywell FS-TSDO-0424 from NANKMOS? NANKMOS maintains in-stock inventory of the FS-TSDO-0424 to support urgent MRO and project procurement. Standard delivery lead times vary by destination; please contact our team for a confirmed availability and shipping schedule. All units are covered by a 12-month warranty from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions.
