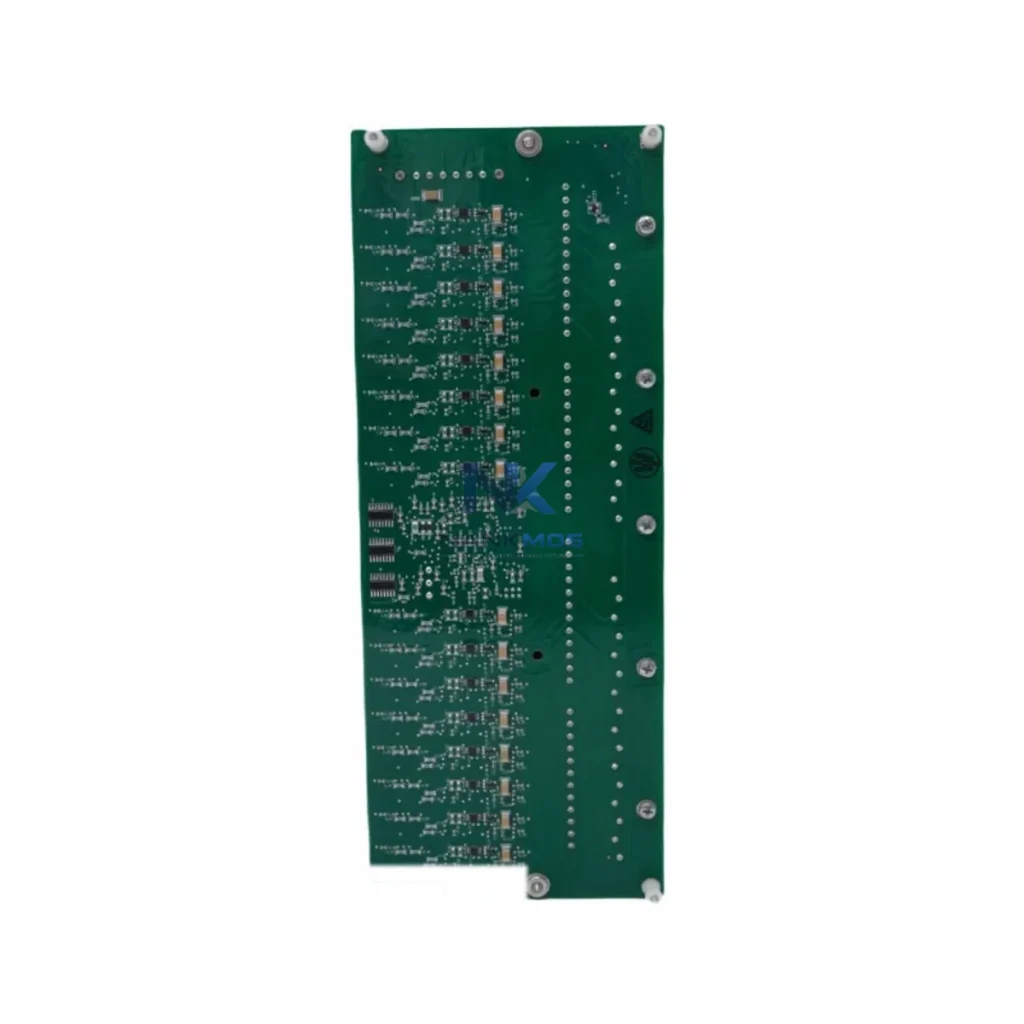

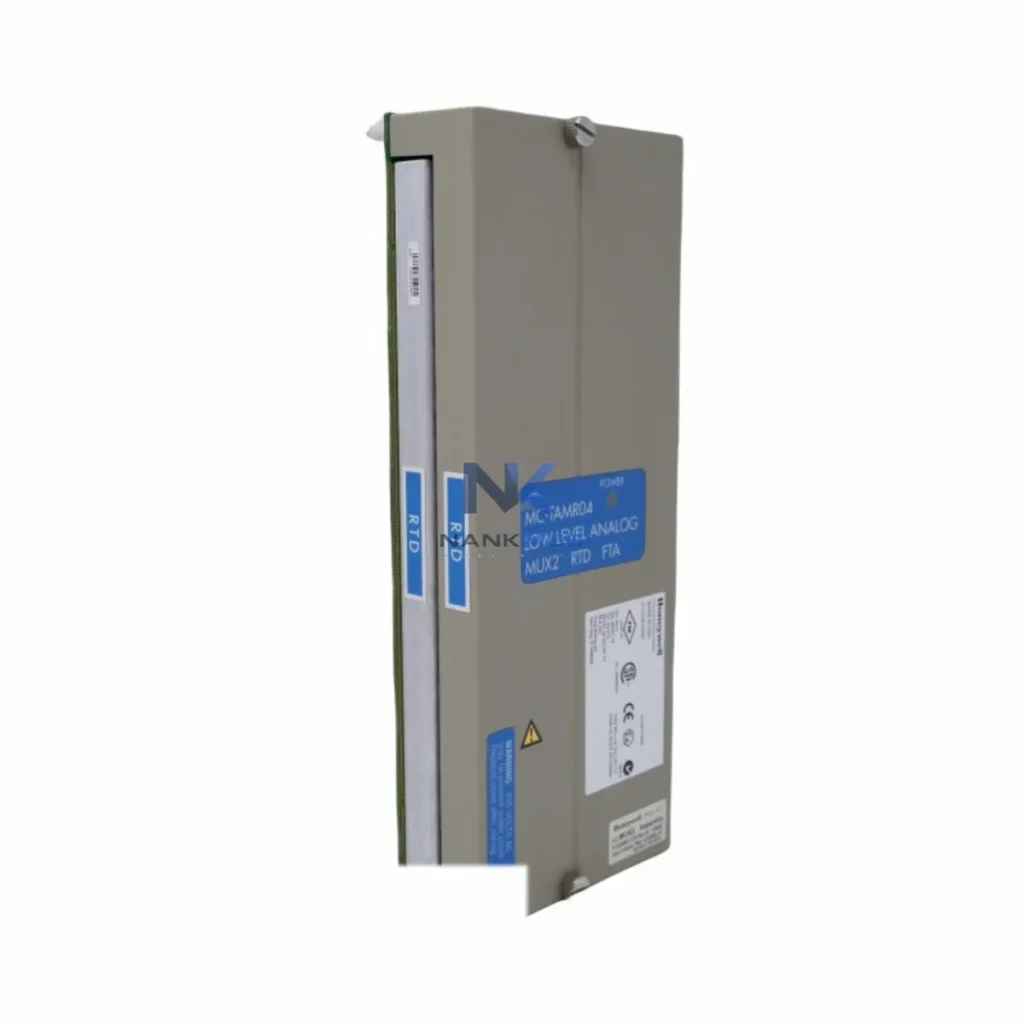

Honeywell MC-TAMR04 Analog Input Module

Product Details

MC-TAMR04 Product Description

The Honeywell MC-TAMR04 is a 4-channel analog input module engineered for the Honeywell TDC 3000 Distributed Control System (DCS). Designed to operate within high-demand industrial environments, this module plays a central role in energy-aware process automation — capturing real-time field signals, feeding accurate data into the control loop, and enabling the kind of load-aware decision-making that modern production lines depend on to reduce waste and maximize uptime.

In energy-intensive industries such as petrochemical refining, power generation, pulp and paper, and continuous manufacturing, the quality of analog signal acquisition directly determines how efficiently a plant can respond to load fluctuations. The MC-TAMR04 delivers stable, low-drift signal conditioning across its four input channels, ensuring that the TDC 3000 controller receives clean, reliable data — the foundation of any effective energy optimization strategy.

The MC-TAMR04 does not operate in isolation — its value is realized through tight integration with the broader TDC 3000 control architecture. Within a typical TPS environment, the module connects to the Honeywell UCN (Universal Control Network) via the MC-TAMT04 Network Interface Module, enabling high-speed, deterministic data exchange between field instruments and the process controller. This low-latency communication path is essential for energy-sensitive control loops where delayed feedback leads to overshoot, unnecessary actuator movement, and wasted energy.

On the field side, the MC-TAMR04 accepts signals from a wide range of process sensors — including pressure transmitters, flow meters, temperature sensors, and level instruments — and conditions them for use by the Honeywell HPM (High-Performance Process Manager). The HPM uses this data to execute PID control strategies that are tuned not just for setpoint accuracy, but for energy-efficient operation: minimizing valve travel, reducing pump cycling, and keeping heat exchangers operating within their optimal efficiency bands.

In motor-driven applications, the analog inputs captured by the MC-TAMR04 feed directly into load management decisions. When integrated with variable frequency drives (VFDs) — such as those in the Honeywell or third-party drive ecosystem — the DCS can modulate motor speed in response to real-time process demand rather than running at fixed speed. This alone can reduce motor energy consumption by 20–50% in pump and fan applications. The MC-TAMR04 provides the signal fidelity required to make these fine-grained adjustments reliably.

For power monitoring, the module works alongside Honeywell MC-TAIH32 digital input modules and dedicated power measurement instruments connected to the UCN, enabling the TDC 3000 to build a comprehensive picture of energy consumption across the plant. When combined with the Honeywell GUS (Global User Station) or a modern SCADA interface, operators gain real-time visibility into energy KPIs — kWh per unit of production, peak demand windows, and load imbalance alerts — all driven by the accurate analog data the MC-TAMR04 delivers.

The module also supports integration with Honeywell MC-TAMT04 and MC-TAMR02 series modules within the same card file, allowing engineers to build mixed analog input configurations that match the specific signal density requirements of each process unit. This modularity reduces unnecessary hardware, lowers backplane power draw, and simplifies maintenance — all contributing to a leaner energy footprint at the system level.

In continuous process industries, energy waste rarely comes from a single source — it accumulates through thousands of small inefficiencies: control loops that hunt, actuators that cycle unnecessarily, motors that run at full speed when half-speed would suffice, and heat exchangers that operate outside their design envelope because the control system lacks accurate input data. The MC-TAMR04 addresses this at the root by ensuring that the TDC 3000 always has access to high-quality, low-noise analog signals from the field.

When a control loop receives clean, stable input from the MC-TAMR04, the controller can maintain tighter setpoint adherence with less corrective action. This translates directly into reduced actuator wear, lower valve cycling frequency, and more stable thermal profiles in heat-intensive processes. In a refinery or chemical plant running dozens of interacting control loops, the cumulative energy savings from improved signal quality can be substantial — often measurable in the hundreds of megawatt-hours per year across a large process unit.

The module also plays a key role in predictive maintenance strategies. By providing continuous, accurate analog data from critical process points, the MC-TAMR04 enables the TDC 3000 — or an overlying asset management system — to detect early signs of equipment degradation: rising bearing temperatures, declining pump efficiency, increasing pressure drop across filters. Catching these trends early allows maintenance teams to intervene before a failure occurs, avoiding the energy spikes and production losses associated with unplanned downtime.

For production line pacing, the MC-TAMR04 supports the kind of real-time load balancing that keeps throughput steady without energy overconsumption. By feeding accurate flow, pressure, and temperature data into the HPM's advanced control strategies — including model predictive control (MPC) where deployed — the module helps the plant run at its most efficient operating point, maximizing output per unit of energy consumed.

Every MC-TAMR04 unit supplied by NANKMOS undergoes full functional testing prior to shipment, including analog channel verification across the full input range. This ensures that the module performs to specification from day one, with no hidden signal errors that could compromise control loop performance or energy efficiency. Stock is maintained for fast dispatch, minimizing the downtime window when a replacement is needed.

Q1: How does the MC-TAMR04 contribute to measurable energy savings in a TDC 3000 system? The MC-TAMR04 improves energy efficiency by delivering high-accuracy analog signals that allow the TDC 3000 HPM to execute tighter, more stable control loops. Reduced control error means less actuator movement, lower motor cycling, and more consistent thermal management — all of which reduce energy waste. In plants with VFD-driven motors, the accurate load feedback from the MC-TAMR04 enables precise speed modulation, which is one of the highest-impact energy-saving measures available in process automation.

Q2: Is the MC-TAMR04 compatible with both legacy TDC 3000 and newer TPS (TotalPlant Solution) architectures? Yes. The MC-TAMR04 is designed for the Honeywell TDC 3000 / TPS platform and is compatible with standard TDC 3000 card files and the UCN communication infrastructure. It can coexist with other modules in the MC-TAM series — including the MC-TAMR02 and MC-TAIH32 — within the same card file, making it straightforward to expand or reconfigure existing installations without replacing the broader control infrastructure.

Q3: What is the recommended replacement or upgrade path if the MC-TAMR04 is no longer available new from the OEM? For plants requiring a direct replacement, NANKMOS supplies tested, warranty-backed MC-TAMR04 units from verified inventory. Each unit is functionally tested across all four analog input channels before shipment. For plants considering a longer-term migration, the MC-TAMR04 can continue to serve reliably within a hybrid architecture while newer I/O subsystems are phased in — its UCN interface ensures compatibility with the existing control network throughout the transition period.

Q4: What does the 12-month warranty cover, and what is the typical lead time? The 12-month warranty covers functional defects in the module's analog input circuitry, backplane interface, and signal conditioning components under normal operating conditions. All units are tested before dispatch to confirm channel accuracy and communication integrity. NANKMOS maintains ready stock of the MC-TAMR04, with most orders dispatched within 1–3 business days. For urgent plant requirements, expedited shipping options are available — contact [email protected] or call +86 18359268345 to confirm current availability and lead time.
