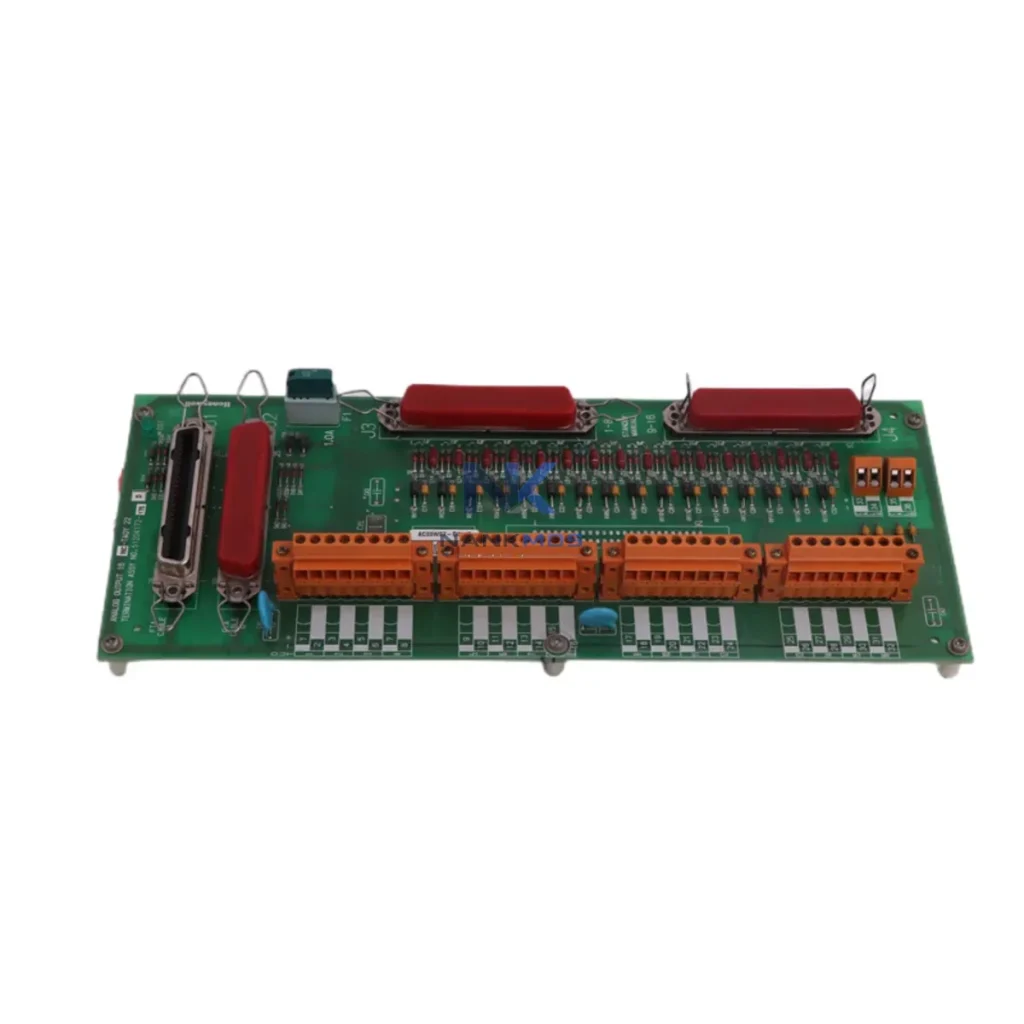

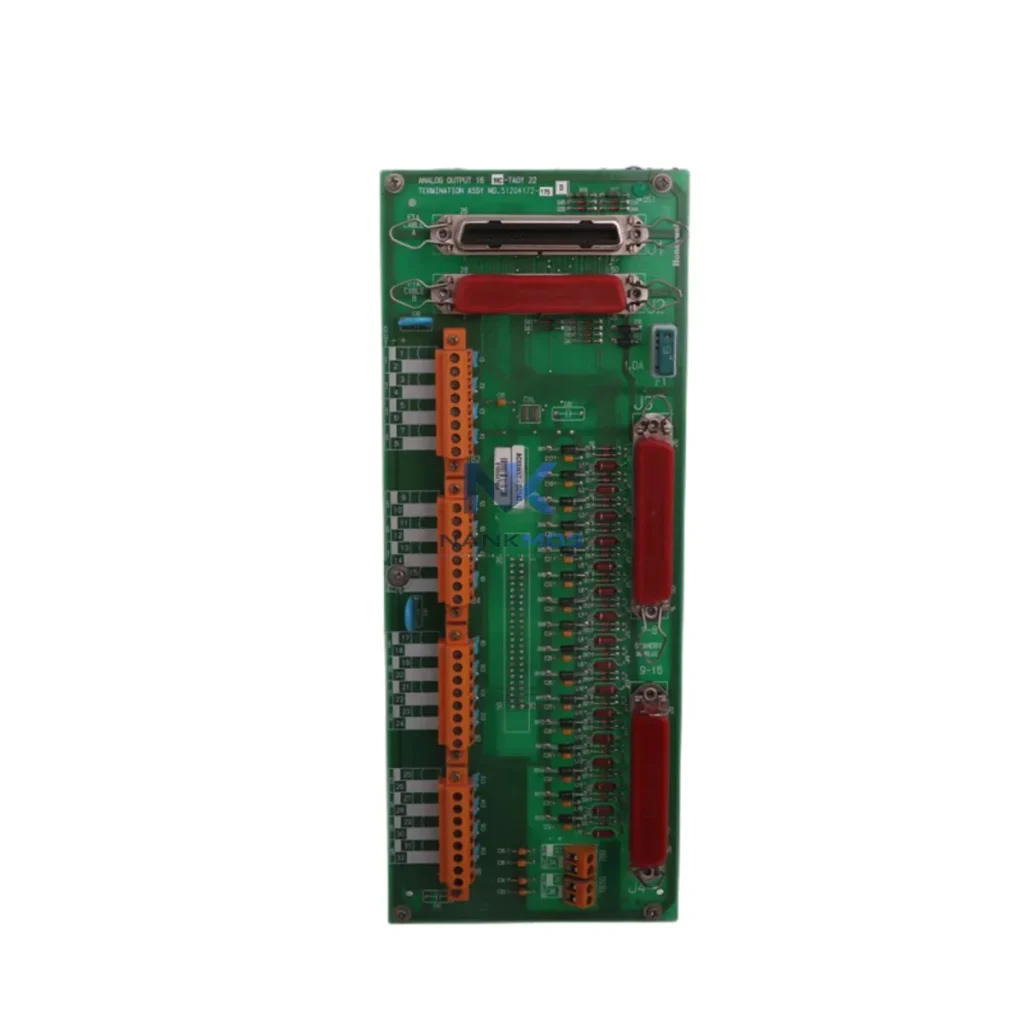

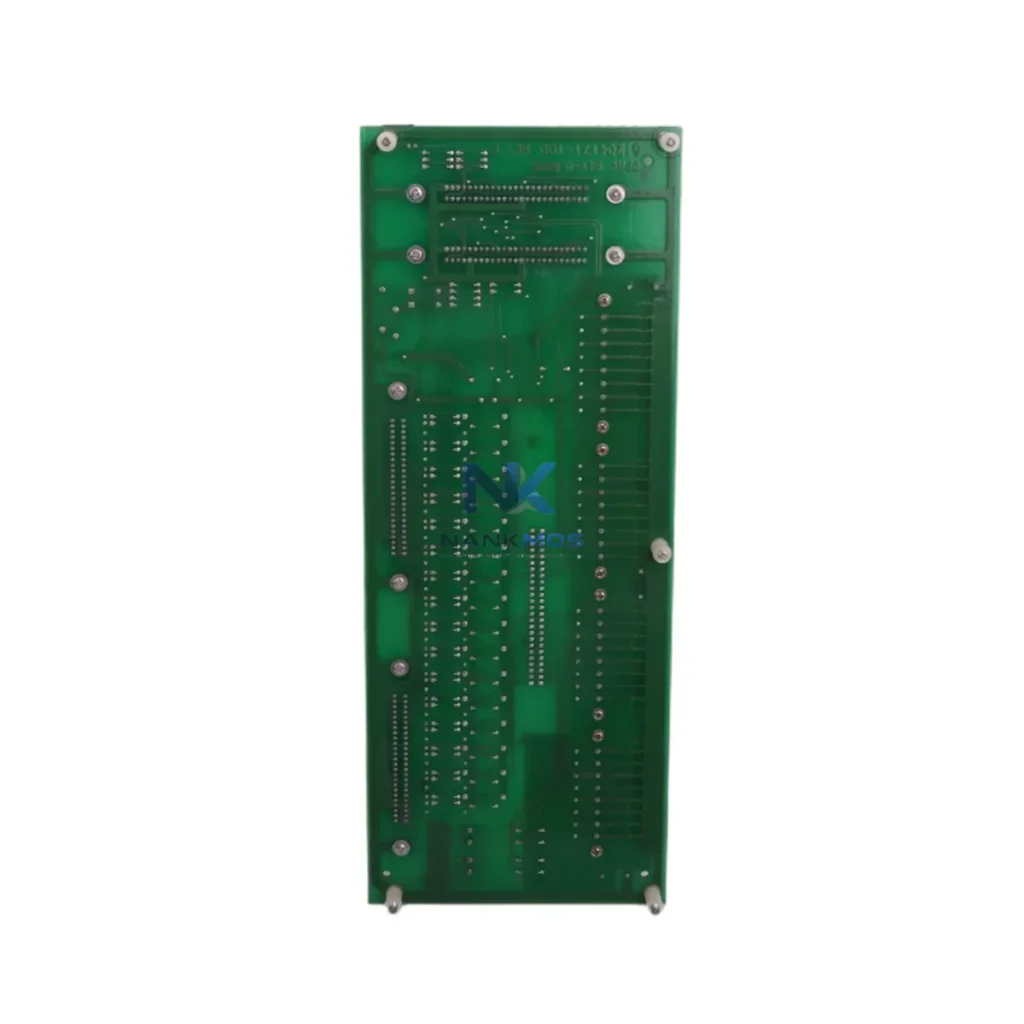

Honeywell MC-TAOY22 51204172-175 DCS Analog Output Module

Product Details

MC-TAOY22 51204172-175 Product Description

The Honeywell MC-TAOY22 (Part No. 51204172-175) is a field-proven analog output module engineered for seamless integration within the TDC 3000 Distributed Control System platform. Designed to deliver precise 4–20 mA current loop signals to final control elements, this module occupies a critical position in the signal-flow hierarchy of process automation architectures — bridging the controller layer with the execution layer across demanding industrial environments including refining, petrochemical processing, power generation, and continuous manufacturing.

Unlike generic replacement components, the MC-TAOY22 is purpose-built for the Honeywell TDC 3000 backplane ecosystem. Its direct compatibility with the Universal Control Network (UCN) and Local Control Network (LCN) bus structures ensures that signal integrity, scan-cycle synchronization, and fault-reporting behavior remain fully consistent with the host system's control philosophy. This architectural alignment reduces commissioning risk, eliminates signal-conditioning workarounds, and preserves the deterministic response characteristics that process engineers depend on for closed-loop stability.

The MC-TAOY22 does not operate in isolation — its value is fully realized when deployed as part of a coherent, layered automation architecture. Within a TDC 3000 or TotalPlant Solution (TPS) environment, the module interfaces directly with the Honeywell MC-PAOY22 process analog output card family and is typically installed alongside MC-TAIX12 and MC-TAIX22 analog input modules to form a balanced I/O complement within the same IOP (Input/Output Processor) chassis.

At the controller layer, the MC-TAOY22 receives setpoint commands from Honeywell HPM (High-Performance Process Manager) or APM (Advanced Process Manager) controllers, which execute regulatory, cascade, and feedforward control strategies. The module's output signals are routed through Honeywell MC-TDIY22 digital I/O modules and marshalling panels to field-mounted control valves, variable frequency drives, and positioners — completing the execution layer of the control loop.

For communication redundancy, the MC-TAOY22 operates on a dual-redundant UCN highway alongside Honeywell NIM (Network Interface Module) cards, ensuring that a single network fault does not interrupt analog output continuity. In larger architectures, the Honeywell LCN Gateway and HG (Hiway Gateway) modules extend connectivity between the TDC 3000 platform and modern Ethernet-based supervisory systems, enabling hybrid legacy-modern integration without full platform migration.

Power distribution to the IOP chassis housing the MC-TAOY22 is typically managed by Honeywell MC-PWRJ1 or equivalent redundant power supply modules, which provide regulated 24 VDC with automatic failover. At the HMI layer, operator stations running Honeywell GUS (Global User Station) or Universal Station software display real-time analog output values, loop status, and diagnostic alarms generated by the MC-TAOY22's built-in self-test routines.

For installations requiring signal conditioning or galvanic isolation between the TDC 3000 output and field devices operating at different ground potentials, signal isolator modules such as the Pepperl+Fuchs KFD2-STC4-Ex series or equivalent DIN-rail isolators are commonly deployed in the marshalling cabinet. This arrangement preserves the MC-TAOY22's output accuracy while protecting the module from field-side transients and ground loops.

Refining and Petrochemical: In crude distillation units and catalytic cracking processes, the MC-TAOY22 drives control valve positioners that regulate feed rates, reflux ratios, and product draw-off flows. Its 12-bit resolution supports the fine throttling accuracy required for tight product specification control, while the dual-channel architecture allows a single module to manage two independent control loops — reducing card count and improving cabinet density in retrofit projects.

Power Generation: Boiler combustion control systems rely on analog output modules to position fuel control valves, air dampers, and feedwater control valves in coordinated sequences. The MC-TAOY22's deterministic scan-cycle behavior and backplane-level fault reporting make it suitable for boiler management systems where output signal loss must trigger immediate safe-state transitions.

Water and Wastewater Treatment: Municipal and industrial water treatment facilities use TDC 3000 platforms for dosing pump speed control, filter backwash sequencing, and effluent pH adjustment. The MC-TAOY22 provides the analog output signals that drive variable-speed pump drives and chemical dosing systems, with the system's diagnostic capabilities enabling remote fault detection without on-site intervention.

Metallurgy and Mining: Continuous casting lines, rolling mills, and mineral processing circuits require precise analog output control for hydraulic actuators, cooling water valves, and conveyor speed references. The MC-TAOY22's industrial temperature rating and optical isolation make it resilient in environments with high electromagnetic interference from large motor drives and induction furnaces.

Packaging and Discrete Manufacturing: While primarily a process control module, the MC-TAOY22 is also deployed in hybrid manufacturing environments where TDC 3000 platforms manage both continuous process loops and batch sequencing. Analog outputs drive servo amplifiers, tension controllers, and web-guide actuators in paper, film, and packaging lines integrated with Honeywell's batch management software.

Q1: Is the MC-TAOY22 51204172-175 compatible with both TDC 3000 and TotalPlant Solution (TPS) architectures?Yes. The MC-TAOY22 with part number 51204172-175 is designed for the TDC 3000 IOP card cage and is fully compatible with TPS environments that retain the original UCN/LCN backplane infrastructure. It slots directly into the IOP chassis without hardware modification, and the TPS system software recognizes the module's diagnostic and configuration registers natively. If your site has migrated to Experion PKS, consult your Honeywell system integrator regarding I/O compatibility bridges before installation.

Q2: What is the recommended maintenance and replacement cycle for the MC-TAOY22 in a continuous-process environment?Honeywell recommends periodic loop calibration verification (typically annually) and visual inspection of backplane connector contacts. In high-cycle or high-temperature environments, proactive replacement every 7–10 years is common practice to avoid unplanned downtime. NANKMOS supplies tested, shelf-ready MC-TAOY22 modules with a 12-Month Warranty, enabling planned replacement without extended lead times. Each unit undergoes functional output verification and isolation testing prior to shipment.

Q3: Can NANKMOS guarantee stock availability and fast dispatch for the MC-TAOY22 51204172-175?Yes. NANKMOS maintains dedicated inventory of Honeywell TDC 3000 I/O modules including the MC-TAOY22 51204172-175 to support both planned maintenance programs and emergency replacement scenarios. Orders are processed with same-day or next-business-day dispatch, with global shipping to major industrial regions. All units are covered by a 12-Month Warranty and include pre-shipment functional testing documentation upon request. Contact [email protected] or +86 18359268345 for availability confirmation and volume pricing.
