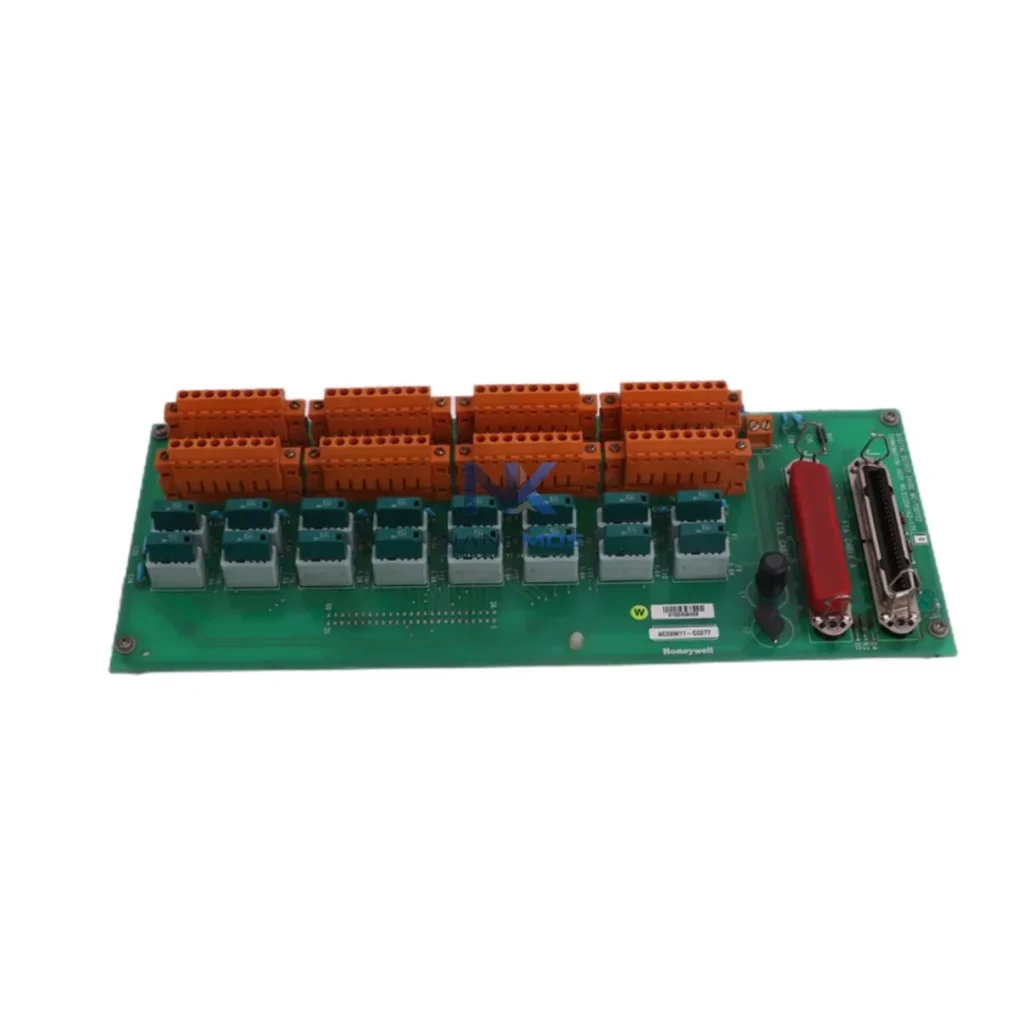

Honeywell MC-TDOY22 51204162-175 DCS Termination Assembly

Product Details

MC-TDOY22 51204162-175 Product Description

The Honeywell MC-TDOY22 (Part No. 51204162-175) is a High-Density (HD) Digital Output Termination Assembly engineered for seamless integration within the TotalPlant Solution (TPS) and TDC3000 Distributed Control System (DCS) architecture. Designed to serve as the critical field-wiring interface between the DCS controller layer and discrete output field devices, this termination assembly ensures signal integrity, wiring discipline, and long-term maintainability across demanding industrial environments. With a 12-Month Warranty and proven Contextual Integration capability, the MC-TDOY22 is a trusted drop-in replacement for process plants requiring uninterrupted digital output control.

In modern industrial automation, the termination layer is not a passive component — it is the structural backbone that determines how reliably control signals reach actuators, solenoids, motor starters, and discrete field devices. The MC-TDOY22 fulfills this role within the Honeywell TPS platform by providing a standardized, rack-mounted termination point that eliminates field-wiring variability and reduces commissioning time. Its HD form factor maximizes I/O density within the control cabinet, supporting compact panel designs without sacrificing accessibility or signal quality.

The MC-TDOY22 does not operate in isolation — it is a functional node within a layered TPS/TDC3000 control architecture where every module contributes to system-wide coherence. Understanding its role requires examining how it interacts with adjacent layers across the full automation stack.

At the controller layer, the TPS platform relies on Application Modules (AM) and High-Performance Process Managers (HPM) to execute control strategies. These controllers communicate with I/O subsystems through the Universal Control Network (UCN), where the MC-PDOY22 Digital Output Processor Module serves as the direct counterpart to the MC-TDOY22 termination assembly. The processor module handles signal conditioning and protocol translation, while the MC-TDOY22 provides the physical field-wiring interface — together they form a matched pair that must be selected and replaced as a coordinated unit to maintain system integrity.

At the I/O layer, the MC-TDOY22 sits alongside complementary termination assemblies such as the MC-TDIY22 Digital Input HD Termination Assembly and the MC-TAOY22 Analog Output HD Termination Assembly, forming a complete I/O termination suite within the same rack. This co-location strategy reduces inter-cabinet wiring complexity and supports modular expansion as process requirements evolve. The MC-PAOY22 Analog Output Processor Module and MC-PAIX02 Analog Input Processor Module round out the I/O processor layer, ensuring that both analog and digital signal paths are handled with equivalent precision.

At the power layer, the TPS architecture depends on redundant power supplies — typically the MC-PSIM11 Power Supply Input Module — to maintain continuous operation across all I/O and processor modules. The MC-TDOY22 termination assembly is powered through the backplane, making power supply redundancy a direct dependency for sustained digital output availability. Any power interruption at the supply level propagates immediately to the termination and processor layers, underscoring the importance of N+1 power redundancy in critical process applications.

At the communication layer, the TPS platform uses the UCN and Local Control Network (LCN) to coordinate data exchange between controllers, I/O subsystems, and operator stations. While the MC-TDOY22 itself is a hardwired termination device, its upstream processor module participates in the UCN data highway, ensuring that digital output states are reflected in real time on Honeywell GUS (Global User Station) operator consoles and HMIWeb Display Builder interfaces. This tight integration between the termination layer and the HMI layer enables operators to monitor discrete output status, acknowledge alarms, and execute manual overrides without leaving the control room environment.

At the protection and redundancy layer, the TPS architecture supports redundant I/O configurations where critical digital output channels are mirrored across primary and backup processor modules. In such configurations, the MC-TDOY22 termination assembly must be paired with a redundant MC-PDOY22R Redundant Digital Output Processor to achieve full output redundancy. This design is particularly relevant in safety-instrumented applications where loss of a digital output signal could trigger unplanned shutdowns or equipment damage.

At the maintenance and diagnostics layer, the TPS platform provides module-level fault detection through the Honeywell FSC (Fail-Safe Controller) diagnostic framework and the Plant Scape / Experion PKS migration pathway, which allows legacy TPS assets to be monitored and gradually migrated to the Experion platform without full system replacement. The MC-TDOY22, as a passive termination assembly, has an inherently long service life — but its field-wiring connections, terminal block integrity, and backplane seating should be verified during scheduled maintenance cycles to prevent intermittent output faults.

Refining & Petrochemical: In crude distillation units and catalytic cracking plants, the MC-TDOY22 controls solenoid valves, motor starters, and shutdown actuators across the digital output layer. Its HD channel density supports large-scale marshalling cabinets where hundreds of discrete outputs must be managed within a compact footprint. The 12-Month Warranty provides procurement teams with a defined support horizon for planned turnaround maintenance.

Power Generation: In coal-fired, gas turbine, and combined-cycle power plants running TPS/TDC3000 DCS, the MC-TDOY22 manages breaker control, fan start/stop commands, and auxiliary equipment switching. Its compatibility with the existing TPS backplane eliminates the need for adapter modules or rewiring during replacement, reducing outage duration and maintenance cost.

Chemical & Specialty Manufacturing: Batch and continuous chemical processes rely on precise digital output sequencing to control agitators, pumps, valves, and heating elements. The MC-TDOY22 provides the termination infrastructure for these sequences, ensuring that controller-issued commands reach field devices without signal degradation or wiring ambiguity.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities using TPS-based SCADA/DCS architectures deploy the MC-TDOY22 to control pump stations, chlorination dosing systems, and UV disinfection equipment. Its robust industrial design tolerates the humidity and temperature variations common in water treatment environments.

Mining & Metals: In ore processing, smelting, and materials handling applications, the MC-TDOY22 supports conveyor control, crusher sequencing, and furnace management through its digital output channels. The ability to source a verified replacement with a 12-Month Warranty is critical in remote mining operations where unplanned downtime carries significant production cost.

Q1: Is the MC-TDOY22 (51204162-175) a direct drop-in replacement for existing TPS/TDC3000 installations? Yes. The MC-TDOY22 51204162-175 is designed as a direct replacement within the TPS and TDC3000 DCS architecture. It mates with the MC-PDOY22 Digital Output Processor Module via the standard TPS backplane connector, requiring no rewiring of field cables or modification of the processor module configuration. Contextual Integration is confirmed — the replacement unit assumes the same channel mapping and I/O addressing as the original assembly, minimizing commissioning time and eliminating the risk of address conflicts during hot-swap procedures.

Q2: What redundancy options are available for digital output channels using the MC-TDOY22? The TPS architecture supports redundant digital output configurations by pairing the MC-TDOY22 termination assembly with a redundant MC-PDOY22R processor module. In this configuration, the primary and backup processor modules share the same termination assembly, with automatic failover managed by the TPS controller. For applications requiring full output redundancy — such as safety-critical shutdown systems — it is recommended to consult the Honeywell TPS I/O Subsystem Design Guide to verify backplane slot assignments and redundancy wiring requirements before installation.

Q3: What does the 12-Month Warranty cover, and what is the typical lead time for replacement units? The 12-Month Warranty covers manufacturing defects, component failures, and functional non-conformance under normal operating conditions as defined by Honeywell's TPS installation and environmental specifications. Warranty claims are processed through NANKMOS with direct coordination with the supply chain to minimize resolution time. Replacement units are maintained in stock to support fast global shipping, with typical lead times of 3–7 business days for standard destinations. For urgent plant maintenance requirements, expedited shipping options are available — contact [email protected] or +86 18359268345 to confirm current stock status and shipping schedules.
