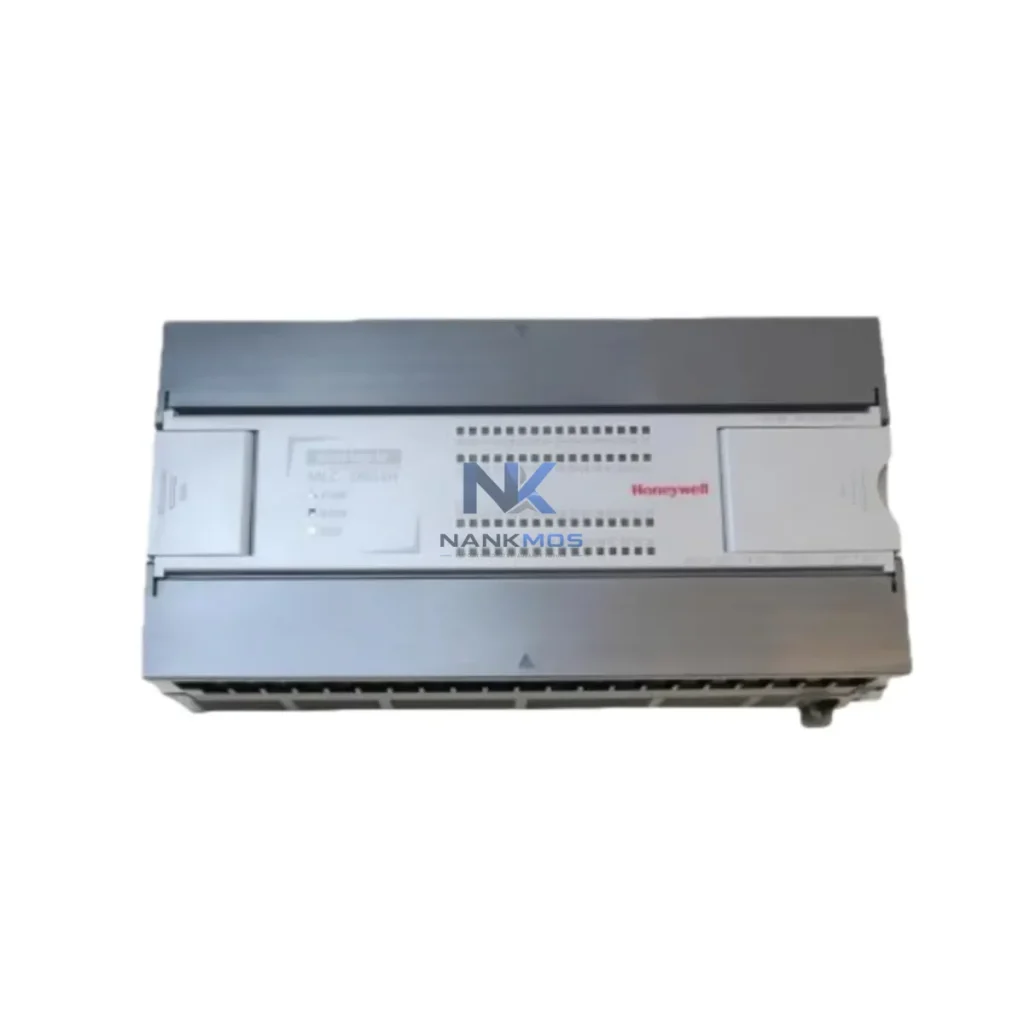

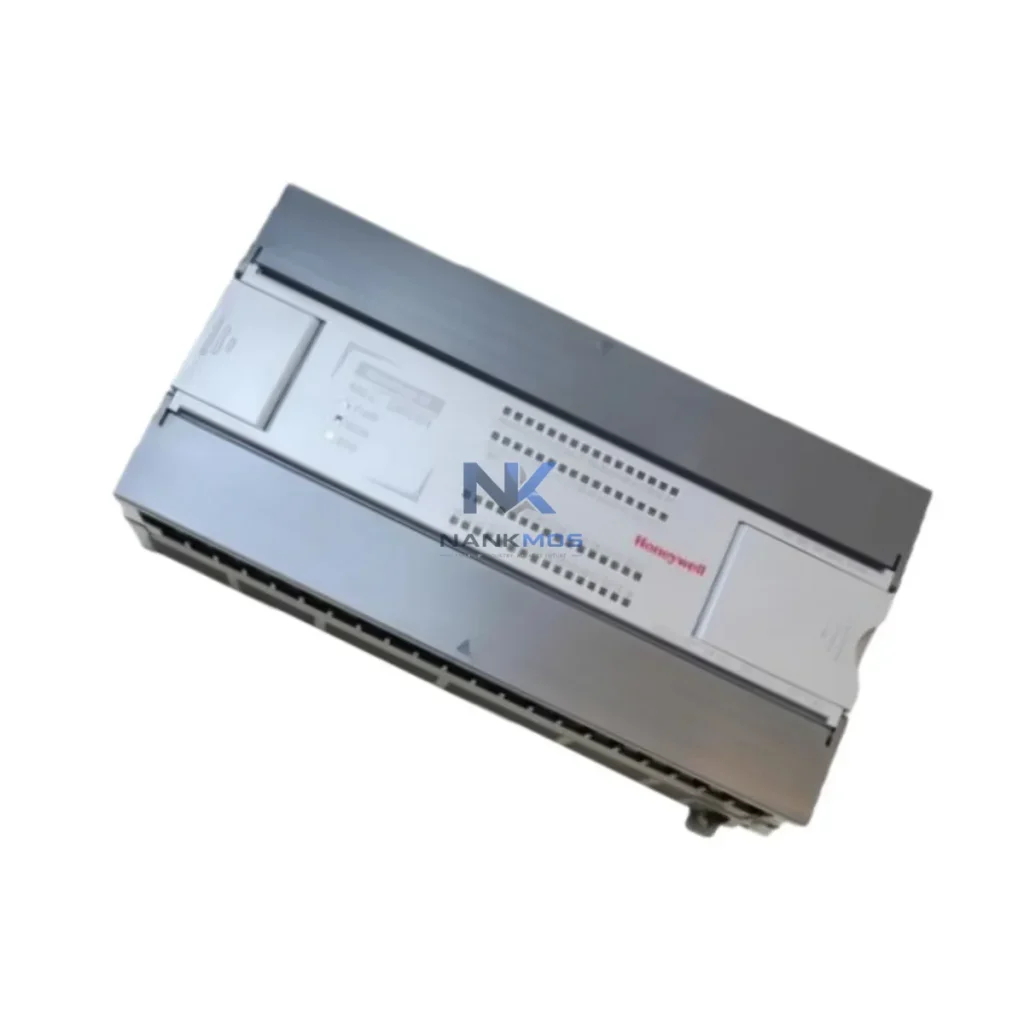

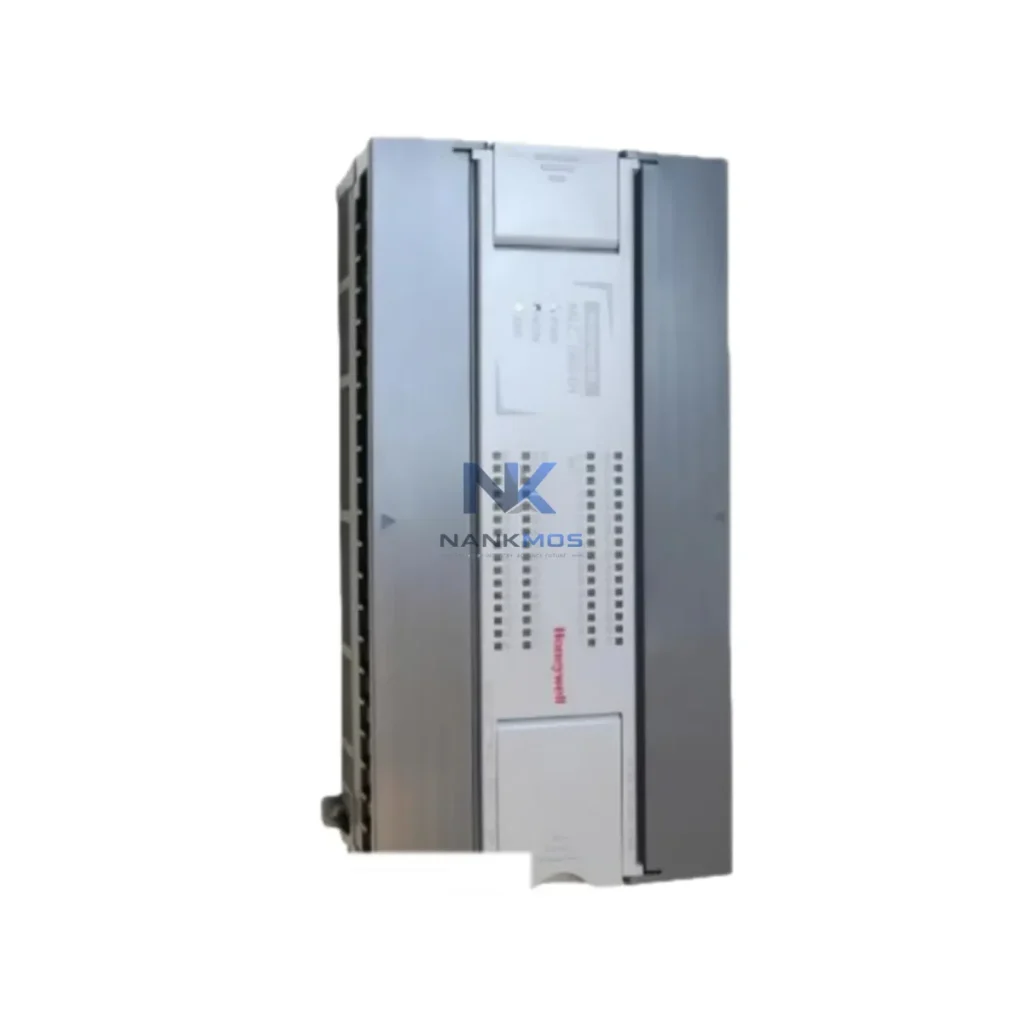

Honeywell MLC-DR32H Relay Digital Output Module

Product Details

MLC-DR32H Product Description

The Honeywell MLC-DR32H is a 32-point relay digital output module engineered for the MasterLogic PLC platform, delivering precise load switching, energy-aware control, and reliable signal isolation across demanding industrial environments. Designed to operate within smart production lines where energy efficiency and uptime are non-negotiable, the MLC-DR32H enables plant engineers to manage actuator loads, motor starters, solenoid valves, and contactor coils with deterministic precision — reducing unnecessary switching cycles, minimizing reactive energy losses, and extending the service life of connected field devices.

Every unit supplied by NANKMOS is sourced from verified inventory channels, subjected to full functional output testing prior to shipment, and backed by a 12-month warranty. Whether you are maintaining an existing MasterLogic control architecture or expanding a production cell, the MLC-DR32H is available for immediate dispatch.

In a fully integrated MasterLogic control system, the MLC-DR32H relay output module does not operate in isolation — it functions as a critical switching node within a coordinated energy management architecture. When paired with a Honeywell MLC-C30A or MLC-C50A CPU module, the relay outputs can be governed by ladder logic or function block programs that implement demand-response strategies: activating loads only when process conditions require, staggering motor start sequences to suppress inrush current peaks, and deactivating idle actuators during low-production intervals.

On the drive side, the MLC-DR32H commonly interfaces with variable frequency drives (VFDs) — such as those in the Honeywell or third-party drive families — by controlling enable/disable relay signals and bypass contactors. This allows the PLC to coordinate soft-start sequences and speed ramp profiles, reducing mechanical stress and energy waste during motor acceleration. When the MLC-DR32H relay outputs are used to switch contactor coils feeding pump or fan motors, the energy savings from eliminating full-voltage direct-on-line starts can be substantial across a multi-motor production line.

For power quality monitoring, the MLC-DR32H works alongside power monitoring modules and energy meters integrated into the MasterLogic I/O bus. Real-time kWh, current, and power factor data collected by these modules can feed PLC logic that dynamically adjusts which relay outputs remain energized — effectively implementing closed-loop load management without requiring a separate energy management controller.

The module's 32 relay points are well-suited for controlling distributed I/O panels across large production cells. When combined with Honeywell MLC analog input modules (such as the MLC-AD8H) monitoring temperature, pressure, or flow, the relay outputs can respond to process deviations in real time — shutting down non-critical loads when thermal thresholds are approached, thereby reducing panel heat buildup and lowering cooling energy demand.

Communication transparency is maintained through the MasterLogic backplane bus, where the MLC-DR32H output status registers are continuously visible to SCADA systems via OPC-UA or Modbus TCP gateways connected to the CPU. Operators monitoring the HMI — whether a Honeywell panel PC or a third-party HMI terminal — can view real-time relay state, cycle counts, and load status, enabling predictive maintenance scheduling before relay contacts reach end-of-life wear thresholds.

In servo-driven assembly lines, the MLC-DR32H handles auxiliary relay functions — brake release signals, safety gate interlocks, and tooling solenoids — that complement the high-speed positioning commands issued to servo drives and servo amplifiers via dedicated motion control modules. This division of labor keeps the servo communication bus free of low-priority switching traffic while ensuring that all mechanical interlocks are managed with PLC-enforced timing precision.

Factory energy audits consistently identify relay output modules as underappreciated contributors to panel heat load and energy waste — primarily because poorly configured relay logic keeps outputs energized longer than process requirements demand. The MLC-DR32H, when programmed with energy-conscious PLC logic on the MasterLogic platform, directly addresses this inefficiency.

By implementing output deactivation timers for idle actuators, load shedding routines during peak demand windows, and staggered start sequences for multi-motor systems, production engineers can measurably reduce both active energy consumption and reactive power penalties. The relay's dry-contact architecture ensures that field-side voltage and current characteristics do not bleed back into the PLC logic bus, maintaining signal integrity even in electrically noisy environments typical of heavy manufacturing.

Thermal load reduction is another direct benefit. Each relay point on the MLC-DR32H is energized only when its output command is active, meaning the module's self-heating is proportional to actual process demand rather than a fixed worst-case value. In production lines with variable throughput — such as batch processing, assembly-on-demand, or shift-based manufacturing — this characteristic translates to lower average panel temperatures, reduced HVAC load in the control room, and extended component lifespan across the entire control cabinet.

Predictive maintenance integration is straightforward: the MasterLogic CPU can track relay output toggle counts via internal registers, and when a channel approaches its rated mechanical life cycle, the SCADA system can generate a maintenance alert — preventing unexpected relay failure from causing unplanned downtime and the associated energy and productivity losses of an emergency restart sequence.

NANKMOS maintains ready inventory of the MLC-DR32H to support both planned maintenance replacements and urgent production recovery scenarios. All units are tested for output continuity, isolation resistance, and coil response before shipment, ensuring that replacement modules integrate into the production line without commissioning delays.

Q1: How does the MLC-DR32H contribute to energy savings in a MasterLogic PLC system?The MLC-DR32H enables demand-based load control through its 32 independently switchable relay outputs. When the MasterLogic CPU executes energy management logic — such as load shedding during peak tariff periods or deactivating idle actuators between production cycles — the relay module acts as the physical switching layer. This eliminates the energy waste of continuously energized loads and reduces reactive power draw from inductive field devices.

Q2: Is the MLC-DR32H compatible with existing MasterLogic PLC backplanes and CPU modules?Yes. The MLC-DR32H is designed for the Honeywell MasterLogic I/O backplane system and is compatible with MLC-series CPU modules and the standard MasterLogic rack infrastructure. It occupies a standard I/O slot and is recognized automatically by the MasterLogic programming environment. If you are unsure about backplane compatibility for your specific rack revision, contact NANKMOS with your existing system configuration for confirmation.

Q3: What is the recommended replacement process, and how quickly can a unit be shipped?NANKMOS maintains in-stock inventory of the MLC-DR32H. Each unit undergoes output function testing and isolation verification before dispatch. For standard orders, same-day or next-business-day shipment is available. The replacement process involves powering down the affected rack slot, swapping the module, and restoring power — no re-programming is required as the MasterLogic CPU retains the I/O configuration in its project file.

Q4: What warranty coverage applies to the MLC-DR32H supplied by NANKMOS?All MLC-DR32H units supplied by NANKMOS are covered by a 12-month warranty from the date of shipment. This covers relay output failure, isolation breakdown, and module communication faults under normal operating conditions. Warranty claims are processed directly through NANKMOS with priority support for production-critical applications.
