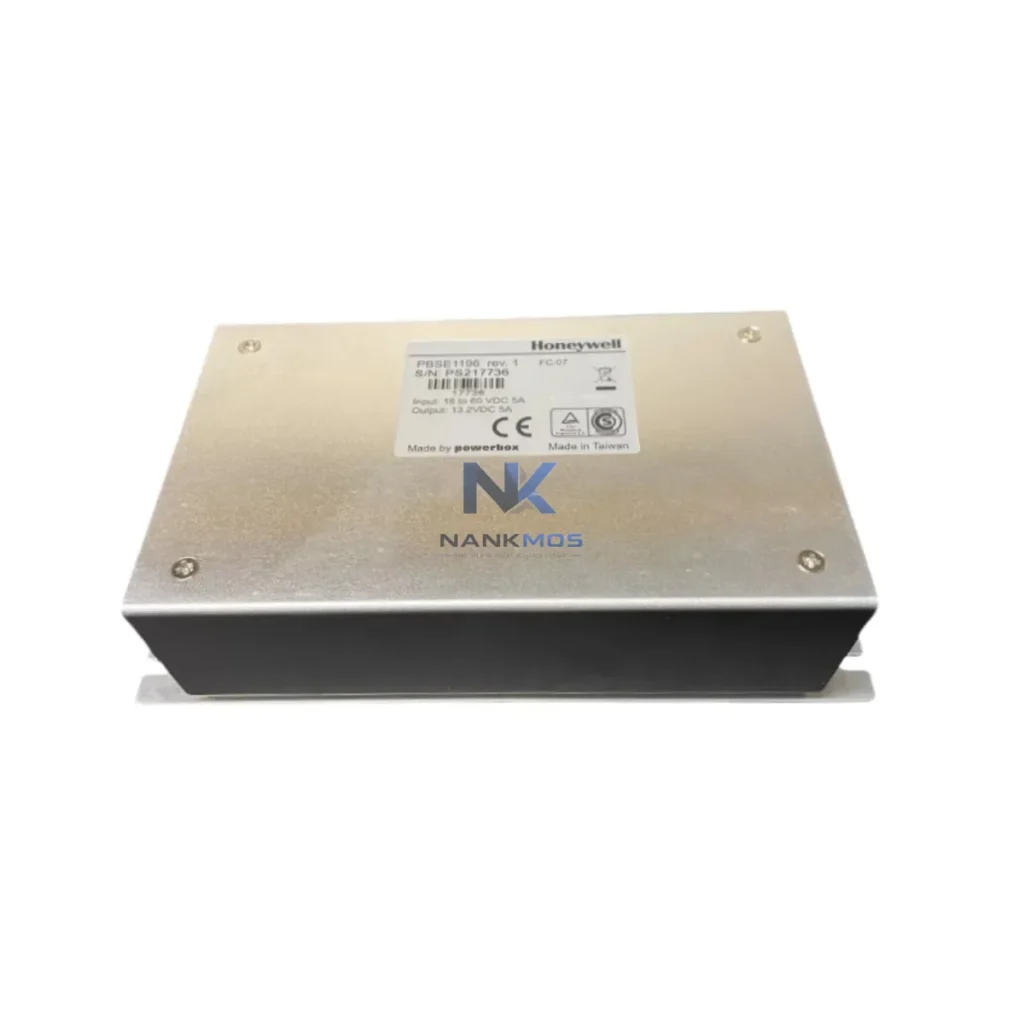

Honeywell PBSE1196 PBSE1120 Safety Power Supply Module

Product Details

PBSE1196 PBSE1120 Product Description

The Honeywell PBSE1196 is a dedicated power supply module engineered for deployment within the Honeywell FSC (Fail-Safe Controller) Safety Manager platform — one of the most widely adopted safety instrumented system (SIS) architectures in process industries worldwide. Designed to deliver stable, conditioned DC power across the full FSC backplane, the PBSE1196 serves as the electrical foundation upon which every layer of the safety control architecture depends: from the central processing unit and I/O modules to communication gateways, terminal assemblies, and redundant controller pairs.

In safety-critical environments — including oil and gas processing, petrochemical refining, power generation, water treatment, and offshore platforms — power supply integrity is not a secondary concern. It is the single most consequential factor in system availability. The PBSE1196 addresses this requirement through a robust, field-proven design that supports redundant power configurations, ensuring that no single point of failure in the power layer can compromise the safety function of the overall FSC system.

The PBSE1196 does not operate in isolation. Its value is fully realized when understood within the context of the complete FSC Safety Manager rack architecture. In a standard FSC deployment, the power supply module feeds regulated DC power to the FSC Central Processing Unit (CPU) — typically the HIMA FSC CPU 470 or Honeywell-branded equivalent — which executes the safety logic in accordance with IEC 61508 SIL 2 or SIL 3 requirements. The CPU communicates with field devices through a structured I/O layer comprising FSC Digital Input Modules and FSC Digital Output Modules, each drawing power from the backplane bus that the PBSE1196 sustains.

For applications requiring high-availability architectures, the PBSE1196 is deployed in a 1oo2 (one-out-of-two) redundant power configuration alongside a second PBSE1196 or compatible PBSE1120 unit. This arrangement ensures that if one power supply module enters a fault state, the second immediately assumes full load without interruption to the safety function — a critical requirement in continuous process environments where unplanned shutdowns carry significant safety and economic consequences.

The communication layer of the FSC system — including Profibus DP gateway modules, Modbus RTU/TCP communication cards, and HART multiplexer interfaces — also depends on stable backplane power. Signal integrity across these communication channels is directly influenced by power supply ripple and transient response characteristics. The PBSE1196's regulated output minimizes noise injection into the communication bus, preserving data integrity between the FSC controller and upstream DCS platforms such as the Honeywell Experion PKS or third-party SCADA systems.

At the HMI and engineering workstation layer, stable power delivery from the PBSE1196 supports uninterrupted operation of FSC Engineering Workstations running SFC (Safety Function Chart) programming environments. Maintenance engineers performing online diagnostics, logic modifications, or firmware updates rely on continuous, stable power to the FSC rack — any power interruption during these operations risks corrupting controller memory or triggering unintended safety shutdowns.

The terminal and wiring layer — including FSC terminal boards, marshalling cabinets, and signal isolator modules — interfaces with the PBSE1196-powered I/O layer. Proper power supply sizing, accounting for the aggregate current draw of all installed I/O modules, terminal boards, and communication cards, is essential during system commissioning. NANKMOS engineering support can assist with load calculation and redundancy configuration validation prior to shipment.

For installations requiring intrinsic safety barriers or Zener barrier assemblies in hazardous area applications (ATEX Zone 1/2, IECEx), the PBSE1196 provides the stable 24 VDC rail from which barrier modules draw their supply — ensuring that field instrument loops in explosive atmospheres receive conditioned, regulated power within the energy limits prescribed by the barrier design.

Oil & Gas Processing and Upstream Production: In wellhead control panels, separator skids, and compressor station safety systems, the PBSE1196 powers FSC safety controllers responsible for emergency shutdown (ESD) and high-integrity pressure protection (HIPPS) functions. The module's wide-range AC/DC input accommodates both utility power and UPS-backed DC bus feeds common in remote production facilities.

Petrochemical and Refinery Applications: Refinery safety instrumented systems managing burner management (BMS), fired heater protection, and reactor emergency shutdown rely on FSC platforms with redundant power architectures. The PBSE1196 supports continuous operation across extended turnaround cycles, with its modular design enabling hot-swap replacement during planned maintenance windows without requiring full system shutdown.

Power Generation and Utilities: Turbine protection systems, boiler safety interlocks, and grid-connected generator protection panels in thermal and combined-cycle power plants deploy FSC controllers with PBSE1196 power modules. The module's galvanic isolation prevents ground loop interference from high-voltage switchgear environments from propagating into the safety controller logic.

Water and Wastewater Treatment: Municipal water treatment facilities and industrial effluent management systems use FSC-based safety controllers for chemical dosing interlocks, pump protection, and overflow prevention. The PBSE1196's operating temperature range and humidity tolerance make it suitable for the challenging environmental conditions typical of water treatment plant control rooms.

Mining, Metals, and Mineral Processing: In underground mining ventilation control, conveyor safety systems, and smelter process protection, FSC platforms with PBSE1196 power supplies provide the reliability required for personnel safety applications. The module's robust construction withstands the vibration and electrical noise environments characteristic of heavy industrial facilities.

Marine and Offshore Platforms: Offshore oil production platforms and FPSO (Floating Production, Storage and Offloading) vessels deploy FSC safety systems for wellhead control, gas detection, and fire and gas (F&G) system integration. The PBSE1196's wide-input voltage range accommodates the variable power quality conditions common in marine electrical systems.

Q1: Can the PBSE1196 be used in a redundant power configuration with the PBSE1120, and how is load sharing managed? Yes. The PBSE1196 and PBSE1120 are designed for parallel redundant operation within the FSC rack. Load sharing is managed passively through matched output impedance characteristics — both modules contribute equally to the backplane load under normal conditions. In the event of a single module failure, the remaining unit assumes full load automatically. No manual switchover or software intervention is required. NANKMOS supplies both modules with pre-shipment functional testing and matched output voltage verification to ensure seamless redundant operation from initial installation.

Q2: What is the recommended procedure for replacing a PBSE1196 in a live FSC system, and does replacement require a system shutdown? In a properly configured redundant power architecture (two PBSE1196 or PBSE1196 + PBSE1120 installed), the failed module can be replaced without shutting down the FSC controller or interrupting the safety function — provided the second module is healthy and carrying full load. The replacement procedure involves isolating the failed module's AC/DC input feed, physically removing the module from the rack, inserting the replacement unit, and restoring the input feed. Post-replacement, verify output voltage and current sharing balance using the FSC diagnostic interface. NANKMOS recommends performing this procedure during a planned maintenance window with a qualified safety instrumentation engineer present.

Q3: What does the 12-Month Warranty cover, and what pre-shipment testing is performed on the PBSE1196? Every PBSE1196 supplied by NANKMOS is covered by a 12-Month Warranty from the date of shipment, covering manufacturing defects, component failures, and functional non-conformance under normal operating conditions. Prior to shipment, each unit undergoes a structured pre-shipment test protocol including: output voltage regulation verification across load range (10%–100%), input voltage range acceptance test (85–264 VAC), isolation resistance measurement (input-to-output), ripple and noise measurement at full load, and visual inspection for physical damage. Test records are available upon request. Units failing any test parameter are quarantined and not shipped. For time-critical projects, NANKMOS offers expedited fulfillment with same-day dispatch for in-stock units.
