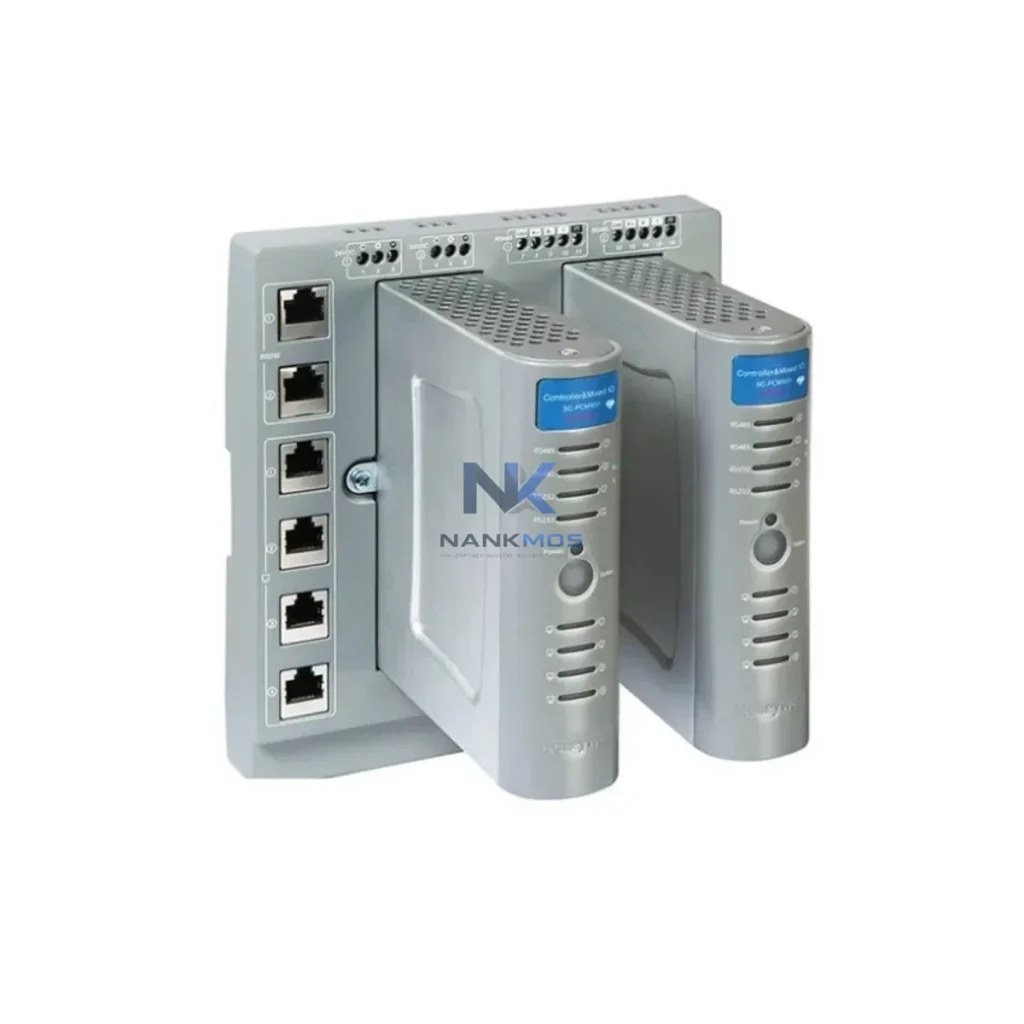

Honeywell SC-UCNN11 Safety Controller Module

Product Details

SC-UCNN11 Product Description

The Honeywell SC-UCNN11 is a high-integrity safety controller module engineered for deployment within Honeywell Safety Manager (SM) distributed control and safety instrumented systems. Designed to meet IEC 61508 SIL 3 requirements, the SC-UCNN11 serves as the central processing unit within the Safety Manager controller chassis, executing safety logic, managing I/O communication, and maintaining system-wide diagnostic coverage across the full automation architecture. Its role extends beyond standalone safety execution — it is a foundational element of a layered, redundant, and diagnostically capable safety platform used across oil and gas, petrochemical, power generation, and critical process industries.

Every SC-UCNN11 unit supplied by NANKMOS undergoes pre-shipment functional testing and ships with a 12-Month Warranty, ensuring operational confidence from day one of installation.

The SC-UCNN11 does not operate in isolation — it is the intelligence layer within a tightly integrated safety and control architecture. In a typical Safety Manager deployment, the SC-UCNN11 CPU module coordinates with the SC-PSCN1 and SC-PSCN2 power supply modules to ensure uninterrupted power delivery to the controller chassis, with redundant power paths eliminating single-point failures at the energy layer.

At the I/O layer, the SC-UCNN11 interfaces with SC-XAOX08 analog output modules, SC-XAIX08H analog input modules, and SC-XDIX16 digital input modules mounted within the same or remote I/O chassis. These modules provide the field signal acquisition and actuation pathways that the SC-UCNN11 processes through its safety logic engine. Signal integrity is maintained through hardware-level diagnostics on each I/O channel, with fault detection reported back to the CPU in real time.

For communication and supervisory integration, the SC-UCNN11 connects to the plant DCS — typically a Honeywell Experion PKS system — via the Fault Tolerant Ethernet (FTE) network, enabling seamless data exchange between the safety layer and the process control layer without compromising safety system independence. The SC-UCMM11 communication module may be co-deployed within the same chassis to extend gateway functionality to Modbus RTU or Profibus DP field devices, broadening the SC-UCNN11's reach across legacy and modern field instrument networks.

In redundant CPU configurations, a second SC-UCNN11 module operates in hot-standby mode. The primary and standby CPUs synchronize state continuously, and in the event of a primary CPU fault, the standby assumes control with bumpless switchover — a critical capability for SIL 3 applications where process interruption is not acceptable. This redundancy architecture is further supported by the SC-MRCK11 redundancy controller module, which manages the switchover logic and monitors both CPU health states.

At the HMI and engineering layer, the SC-UCNN11 integrates with Honeywell Safety Builder engineering workstations for logic download, online monitoring, and cause-and-effect matrix management. Operators interact with safety system status through Experion PKS operator stations or dedicated safety HMI panels, providing full visibility into safety loop states, bypass conditions, and diagnostic alarms without requiring physical access to the controller chassis.

For applications requiring field-level protection, the SC-UCNN11 architecture supports integration with Yokogawa YFGW410 field wireless gateways or Pepperl+Fuchs signal isolators and barriers at the protection and signal conditioning layer, ensuring that intrinsically safe field instruments in hazardous areas communicate reliably with the safety controller without introducing ignition risks or signal degradation.

This multi-layer architecture — spanning power, CPU, I/O, communication, HMI, and field protection — positions the SC-UCNN11 as the central coordinator of a complete, standards-compliant safety instrumented system capable of long-term operation with minimal maintenance intervention.

Oil, Gas & Petrochemical: The SC-UCNN11 is widely deployed in emergency shutdown (ESD) systems for upstream wellhead control, midstream pipeline isolation, and downstream refinery process protection. Its SIL 3 rating and hot-standby redundancy make it suitable for high-demand safety functions including high-pressure shutoff, fire and gas detection integration, and burner management system (BMS) logic execution.

Power Generation: In thermal, combined-cycle, and nuclear auxiliary systems, the SC-UCNN11 manages turbine protection logic, boiler safety interlocks, and generator trip functions. Its deterministic scan cycle and high diagnostic coverage ensure that safety responses meet the sub-second actuation requirements of power plant protection systems.

Chemical & Specialty Process: Batch and continuous chemical processes rely on the SC-UCNN11 for reactor overpressure protection, toxic gas detection response, and automated emergency depressurization sequences. The module's ability to handle complex cause-and-effect logic with configurable voting structures (1oo2, 2oo3) supports diverse process safety requirements within a single controller platform.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities use the SC-UCNN11 to manage chemical dosing safety interlocks, pump protection logic, and overflow prevention systems. Its Modbus communication capability enables integration with SCADA systems managing distributed treatment assets across large geographic areas.

Mining & Metals: In underground mining and surface smelting operations, the SC-UCNN11 provides safety logic for conveyor emergency stops, ventilation fan protection, and high-temperature process shutdowns. Its robust operating temperature range and vibration tolerance support reliable operation in harsh industrial environments.

Marine & Offshore: Offshore platform ESD systems and marine vessel automation systems deploy the SC-UCNN11 for wellhead control, ballast system protection, and engine room safety interlocks. Its compact chassis footprint and redundant architecture meet the space and reliability constraints of offshore installations.

Q1: Can the SC-UCNN11 operate in a fully redundant CPU configuration, and what is required for hot-standby switchover? Yes. The SC-UCNN11 supports 1oo1D and 1oo2D redundant CPU configurations. For hot-standby operation, a second SC-UCNN11 module is installed in the redundant CPU slot of the Safety Manager chassis, and the SC-MRCK11 redundancy controller module manages continuous state synchronization between primary and standby CPUs. Switchover is bumpless and automatic upon detection of a primary CPU fault, with no interruption to safety logic execution. Both CPUs must run identical firmware versions and safety application programs.

Q2: What communication protocols does the SC-UCNN11 support, and how does it integrate with a Honeywell Experion PKS DCS? The SC-UCNN11 communicates with Honeywell Experion PKS via Fault Tolerant Ethernet (FTE), providing a high-availability, dual-path network connection between the safety system and the process control domain. The SC-UCMM11 communication module extends protocol support to Modbus RTU and Profibus DP for legacy field device integration. Safety data is exchanged with the DCS in accordance with IEC 61784-3 functional safety communication requirements, maintaining safety system independence while enabling supervisory visibility from Experion operator stations.

Q3: What does NANKMOS's 12-Month Warranty cover for the SC-UCNN11, and what pre-shipment testing is performed? Every SC-UCNN11 supplied by NANKMOS is subject to pre-shipment functional testing that verifies CPU initialization, communication port operation, diagnostic self-test completion, and firmware integrity. The 12-Month Warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. NANKMOS maintains global inventory of SC-UCNN11 modules to support urgent replacement requirements, with expedited shipping available to minimize plant downtime. For warranty claims or technical support, contact [email protected] or +86 18359268345.
