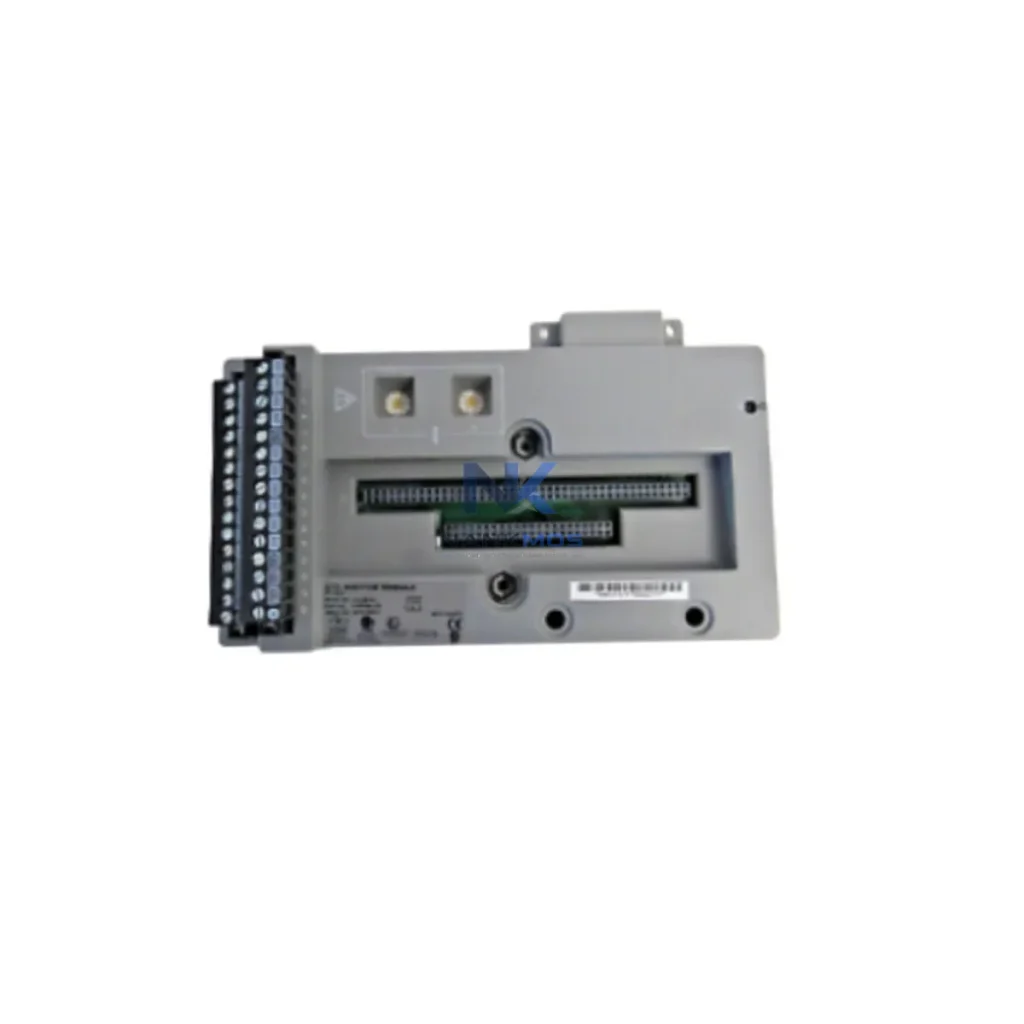

Honeywell SC-UMIX01 Safety I/O Module

Product Details

SC-UMIX01 Product Description

The Honeywell SC-UMIX01 is a universal mixed I/O module engineered for the Honeywell Safety Manager (SM) platform — one of the most widely deployed safety instrumented systems (SIS) in process industries worldwide. Designed to bridge field-level instrumentation with upper-layer control and monitoring architectures, the SC-UMIX01 serves as a critical data link node in smart factory and industrial automation environments. Whether deployed in oil & gas, chemical processing, power generation, or advanced manufacturing, this module enables seamless signal acquisition, protocol-level communication, and real-time safety data transmission across the entire plant network.

In modern industrial facilities, the demand for continuous, reliable data flow between field devices and supervisory systems has never been greater. The SC-UMIX01 addresses this need by providing a flexible, mixed-signal I/O interface that supports both digital and analog field connections, making it compatible with a broad range of sensors, transmitters, actuators, and final control elements. Its architecture is purpose-built for functional safety applications, supporting SIL 2 and SIL 3 rated loops in compliance with IEC 61508 and IEC 61511 standards.

The SC-UMIX01 sits at the intersection of field instrumentation and plant-wide data infrastructure. In a typical smart factory deployment, field sensors — including pressure transmitters, temperature elements, flow meters, and gas detectors — feed analog and digital signals directly into the SC-UMIX01's mixed I/O channels. These signals are conditioned, validated against safety logic, and transmitted upstream through the Safety Manager SC controller backplane to the Honeywell Experion PKS distributed control system.

Within the Safety Manager architecture, the SC-UMIX01 works in close coordination with the SC-XMOD02 communication module, which handles Profibus DP and Modbus TCP/IP gateway functions, enabling the safety system to exchange real-time data with third-party PLCs, remote I/O racks, and SCADA servers. For facilities running Siemens S7-300 or S7-400 PLCs alongside Honeywell safety systems, the SC-UMIX01's Profibus-compatible data path allows transparent integration without protocol conversion bottlenecks.

On the field device side, HART-enabled transmitters — such as Yokogawa EJA series pressure transmitters or Emerson Rosemount 3051 units — can pass HART diagnostic data through the SC-UMIX01 channels to the asset management layer, enabling predictive maintenance workflows without additional multiplexers. This HART pass-through capability is particularly valuable in refineries and chemical plants where hundreds of HART-capable field instruments are already installed.

For remote I/O expansion, the SC-UMIX01 integrates with Honeywell's SM-series remote I/O modules, extending the safety system's reach to geographically distributed process areas — tank farms, compressor stations, or offshore platforms — over fiber-optic or industrial Ethernet backbones. Industrial managed switches, such as those from the Hirschmann MACH or Phoenix Contact FL SWITCH series, provide the network infrastructure layer, ensuring deterministic packet delivery and redundant ring topology for uninterrupted safety data transmission.

At the supervisory level, the SC-UMIX01's data feeds into Honeywell Experion PKS historian and alarm management modules, where operators can visualize real-time safety loop status, trend process variables, and receive structured alarm notifications on HMI workstations. Integration with third-party SCADA platforms — including Wonderware System Platform or Ignition by Inductive Automation — is achieved through OPC-DA/UA gateways, allowing plant-wide data aggregation across heterogeneous control systems.

Edge computing nodes, such as the Honeywell Experion Edge or third-party IIoT gateways running MQTT/Sparkplug B, can subscribe to SC-UMIX01 process data streams for local analytics, anomaly detection, and cloud forwarding — completing the data chain from field sensor to enterprise dashboard without gaps or latency-induced blind spots.

Many industrial facilities face persistent challenges with fragmented data architectures: safety systems that cannot communicate with process control networks, field devices locked into proprietary protocols, and remote assets that are invisible to central SCADA platforms. The SC-UMIX01 directly addresses these pain points.

Protocol Fragmentation: Plants running mixed Profibus, Modbus, and HART environments often struggle with data silos where safety system data cannot be accessed by the DCS historian or alarm management system. The SC-UMIX01's multi-protocol I/O architecture and compatibility with the SC-XMOD02 gateway module eliminate these barriers, enabling unified data access across all control layers.

Remote Monitoring Gaps: For assets located in remote or hazardous areas — offshore platforms, pipeline compressor stations, or isolated tank farms — the SC-UMIX01 supports remote I/O configurations over industrial Ethernet, allowing safety loop status and process variables to be monitored from a central control room without requiring local operator presence.

Production Line Transparency: By feeding structured safety data into Honeywell Experion PKS and connected historian systems, the SC-UMIX01 enables production managers to track safety loop availability, identify recurring nuisance alarms, and correlate safety events with process upsets — transforming raw safety data into actionable operational intelligence.

Alarm Tracking and Audit Trails: Regulatory compliance in process industries requires complete alarm event records. The SC-UMIX01's integration with Experion PKS alarm management ensures that every safety loop state change is timestamped, logged, and available for audit — supporting IEC 61511 lifecycle documentation requirements.

System Scalability: As production capacity expands, the SC-UMIX01's modular design allows additional I/O channels to be added to the Safety Manager rack without reconfiguring the entire safety system, protecting the initial investment while accommodating future growth.

Q1: What communication protocols does the Honeywell SC-UMIX01 support for SCADA and DCS integration? The SC-UMIX01 supports Modbus RTU, Modbus TCP/IP, and Profibus DP for upstream SCADA and DCS connectivity. When paired with the SC-XMOD02 communication module, it can also interface with Ethernet/IP and OPC-UA-capable systems, enabling integration with Honeywell Experion PKS, Wonderware, and Ignition SCADA platforms. HART pass-through is supported for asset management applications.

Q2: How does the SC-UMIX01 ensure network stability and data integrity in safety-critical applications? The SC-UMIX01 is designed for SIL 2/SIL 3 environments and incorporates hardware and software diagnostics that continuously monitor I/O channel health, communication link status, and module integrity. In the event of a communication fault, the Safety Manager SC controller executes pre-configured safe-state logic to protect the process. Redundant network configurations using industrial managed switches with ring topology further ensure uninterrupted data transmission.

Q3: Can the SC-UMIX01 be integrated with third-party PLCs and remote I/O systems from other vendors? Yes. Via Profibus DP and Modbus TCP/IP, the SC-UMIX01 can exchange data with third-party PLCs including Siemens S7 series, ABB AC500, and Schneider Electric Modicon platforms. Remote I/O expansion using Honeywell SM-series remote modules over industrial Ethernet is also supported, making the SC-UMIX01 suitable for heterogeneous automation environments.

Q4: What pre-shipment testing and warranty coverage is provided with the SC-UMIX01? Every SC-UMIX01 unit supplied by NANKMOS undergoes pre-shipment functional testing to verify I/O channel performance, communication interface integrity, and module diagnostics before dispatch. A 12-month warranty is included with every unit, covering hardware defects and operational failures under normal industrial use conditions. Expedited replacement support is available for critical process applications.
