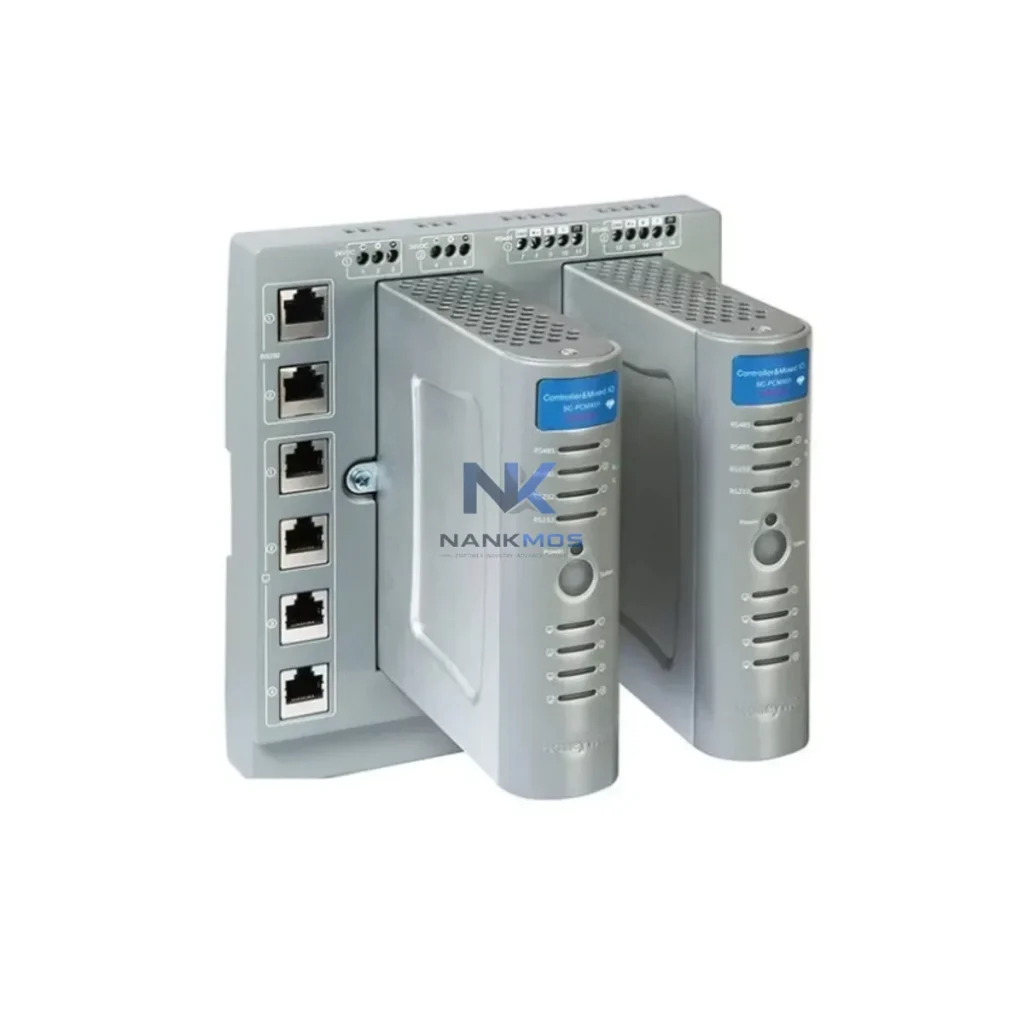

Honeywell SP-EMD174 Safety Controller

Product Details

SP-EMD174 Product Description

The Honeywell SP-EMD174 is engineered as a core execution module within the Honeywell FSC (Fail-Safe Controller) safety platform — a purpose-built architecture for process industries where functional safety is non-negotiable. Rather than operating as a standalone component, the SP-EMD174 derives its full value from its role within a tightly integrated, multi-layer safety and control system.

At the control layer, the SP-EMD174 interfaces directly with the FSC Central Processing Unit — typically the SP-CPS10 or SP-CPS20 — which executes the safety logic and issues output commands to the DO module via the FSC backplane bus. This backplane architecture eliminates external wiring between the CPU and I/O modules, reducing signal latency and improving system determinism. The CPU continuously monitors the health of each output channel, enabling rapid fault detection and safe-state activation in the event of a hardware anomaly.

At the I/O layer, the SP-EMD174 works in concert with digital input modules such as the SP-IDD820 and analog input modules like the SP-IAA111, forming a complete signal acquisition and actuation loop. Field sensors — pressure transmitters, temperature elements, flow switches — feed data through the input modules to the CPU, which then commands the SP-EMD174 to energize or de-energize field actuators such as solenoid valves, motor starters, and emergency shutdown (ESD) devices. This closed-loop architecture ensures that every output action is traceable to a validated safety function.

At the communication layer, the FSC system integrates with the plant-wide DCS or SCADA infrastructure via the SP-COMM gateway modules, supporting protocols such as Modbus RTU, PROFIBUS DP, and Honeywell's proprietary FTE (Fault Tolerant Ethernet). This enables the SP-EMD174's output status — channel state, diagnostic alarms, forced outputs — to be visible at the operator workstation in real time, supporting both normal operations and emergency response scenarios.

For power supply integrity, the FSC architecture relies on redundant 24 VDC power modules such as the SP-PS01, which provide isolated, regulated power to the backplane and all connected I/O modules including the SP-EMD174. Redundant power feeds with automatic switchover ensure that a single power supply failure does not compromise the safety function — a critical requirement in SIL 2 and SIL 3 applications.

Redundancy at the controller level is achieved through hot-standby CPU configurations, where a secondary SP-CPS10 or SP-CPS20 mirrors the primary CPU state and assumes control within milliseconds of a primary failure. The SP-EMD174 remains continuously powered and monitored during switchover, ensuring no interruption to field output states. This architecture is particularly valued in applications such as burner management systems (BMS), high-integrity pressure protection systems (HIPPS), and turbine overspeed protection.

At the HMI layer, operator interfaces such as Honeywell's Experion PKS stations or third-party SCADA systems receive real-time status from the FSC system, including the SP-EMD174's channel diagnostics. Maintenance engineers can view forced output states, channel health, and trip history without interrupting the safety function — a key advantage for facilities operating under continuous production constraints.

For modular expansion, the FSC chassis supports additional I/O modules — including relay output modules such as the SP-RLY832 and signal isolators for intrinsically safe field devices — allowing the safety system to scale from small standalone ESD panels to large, multi-rack safety instrumented systems (SIS) covering an entire process unit. The SP-EMD174 fits seamlessly into this expansion model, maintaining consistent electrical and diagnostic characteristics across all chassis slots.

The Honeywell SP-EMD174 is deployed across a broad spectrum of safety-critical industries where reliable, SIL-rated digital output execution is essential to protecting personnel, assets, and the environment.

In oil and gas processing and petrochemical plants, the SP-EMD174 drives ESD solenoid valves, blowdown valves, and deluge system actuators within safety instrumented systems designed to IEC 61511. Its TÜV-certified SIL 2/3 capability makes it a preferred choice for HIPPS and wellhead control panels where proof-test intervals must be minimized and diagnostic coverage maximized.

In power generation — including thermal, combined-cycle, and nuclear auxiliary systems — the SP-EMD174 supports turbine protection, boiler safety, and generator trip functions. Its hot-standby redundancy compatibility ensures that safety functions remain available even during planned maintenance windows, supporting high-availability requirements typical of baseload generation assets.

In water and wastewater treatment facilities, the SP-EMD174 controls pump trip circuits, chemical dosing shutoffs, and overflow prevention actuators. Its wide operating temperature range and DIN rail mounting flexibility make it suitable for both indoor control rooms and outdoor marshalling cabinets in humid or variable-temperature environments.

In mining and metals processing, the SP-EMD174 is integrated into conveyor safety systems, crusher protection panels, and ventilation control systems. Its robust diagnostic architecture — including channel-level fault detection and safe-state output forcing — reduces unplanned downtime and supports rapid fault isolation during maintenance.

In marine and offshore applications, the SP-EMD174 is used in fire and gas (F&G) systems, ballast control, and engine room safety panels. Its compliance with international safety standards and compatibility with Honeywell's broader FSC ecosystem makes it a reliable choice for vessel and platform operators seeking type-approved safety solutions.

Q1: Is the SP-EMD174 compatible with both SIL 2 and SIL 3 FSC architectures, and what configuration changes are required? The SP-EMD174 is TÜV-certified for use in SIL 2 and SIL 3 safety instrumented functions when configured within a compliant FSC chassis and paired with an appropriate CPU module (SP-CPS10 or SP-CPS20). For SIL 3 applications, a 1oo2D (one-out-of-two with diagnostics) or 2oo3 voting architecture is typically implemented at the system level, with the SP-EMD174 serving as the output execution element. No hardware modification to the module itself is required — SIL level is determined by the overall system architecture, proof-test interval, and diagnostic coverage as documented in the FSC Safety Manual.

Q2: Can the SP-EMD174 be installed in an existing FSC rack alongside older-generation I/O modules, and are there firmware compatibility requirements? Yes. The SP-EMD174 is designed for backward compatibility within the Honeywell FSC chassis family. It can be installed alongside existing digital input modules (SP-IDD820), analog modules (SP-IAA111), and relay output modules (SP-RLY832) without requiring chassis replacement. Firmware compatibility should be verified against the FSC system release notes for your specific CPU firmware version. NANKMOS recommends confirming the module revision level prior to installation in legacy systems to ensure full diagnostic interoperability.

Q3: What does the 12-Month Warranty cover, and how does NANKMOS support long-term inventory supply for FSC system maintenance? Every SP-EMD174 supplied by NANKMOS is covered by a 12-Month Warranty against manufacturing defects and functional failures under normal operating conditions. Prior to shipment, each unit undergoes pre-shipment functional testing to verify output channel integrity, backplane communication, and diagnostic response. For long-term FSC system maintenance, NANKMOS maintains dedicated inventory of SP-EMD174 and related FSC modules — including CPU, power supply, and I/O modules — to support both planned lifecycle replacements and emergency procurement. Global shipping is available with lead times confirmed at order placement.
