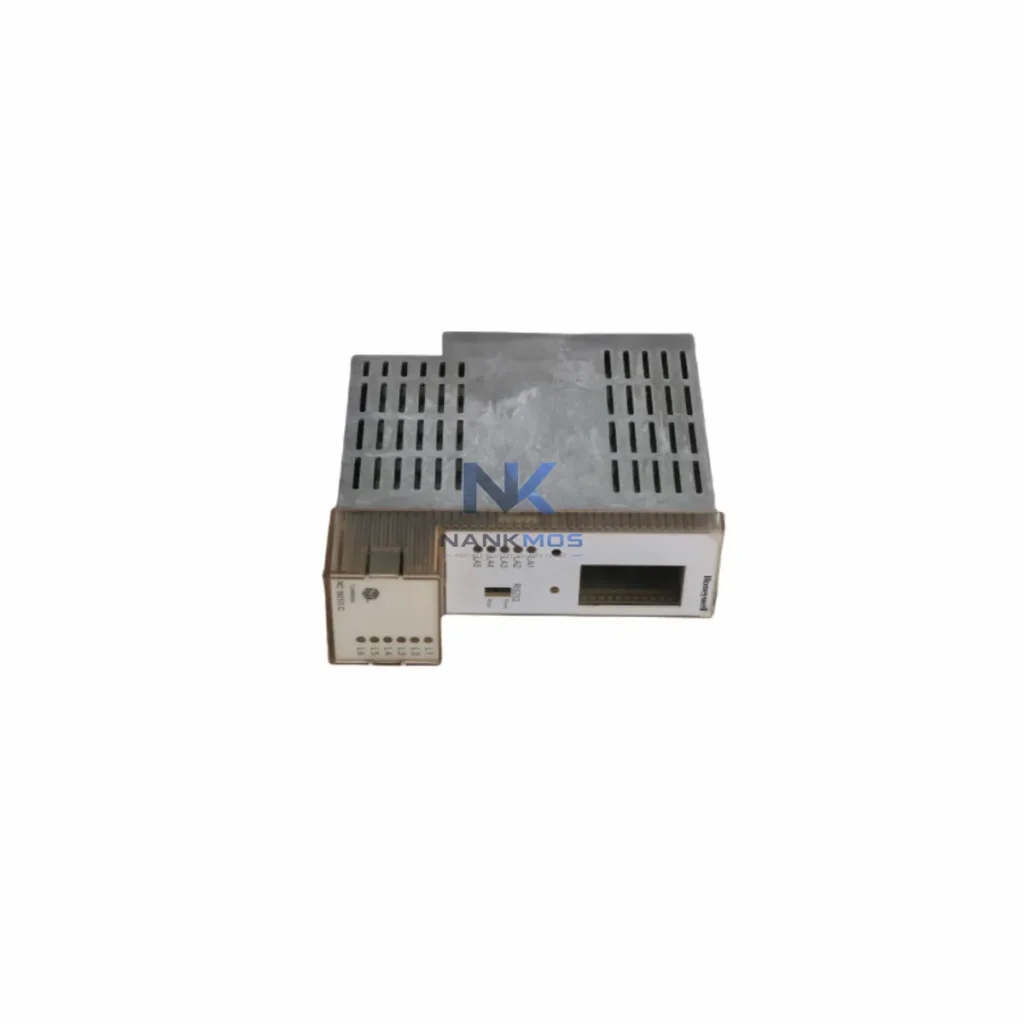

Honeywell XC5010C CPU Module

Product Details

XC5010C Product Description

The Honeywell XC5010C is a high-performance CPU module engineered for deployment within the Honeywell XC Series programmable logic controller platform. Designed to serve as the computational core of a distributed or centralized control architecture, the XC5010C delivers deterministic scan-cycle execution, robust I/O coordination, and seamless integration across all layers of an industrial automation system. Whether deployed in a standalone machine control application or embedded within a multi-rack, multi-node process control network, the XC5010C provides the processing reliability and system coherence that demanding industrial environments require.

In modern industrial automation, the CPU module is not simply a processing unit — it is the architectural anchor that defines system throughput, communication latency, diagnostic depth, and long-term scalability. The XC5010C fulfills this role with a design philosophy centered on system-matched performance: every hardware specification, communication interface, and firmware capability is optimized for native compatibility within the XC Series ecosystem. This approach eliminates integration uncertainty, reduces commissioning time, and ensures that the control architecture performs as a unified system rather than a collection of loosely coupled components.

Sourced directly from authorized supply channels and subject to full pre-shipment functional testing, each XC5010C unit shipped by NANKMOS is covered by a 12-Month Warranty and supported by engineering-level technical assistance throughout the product lifecycle. Global inventory availability ensures rapid deployment for both new installations and replacement scenarios.

The XC5010C achieves its full architectural value when deployed as part of a coordinated XC Series automation platform. At the power layer, the XC-PS24VDC or equivalent XC Series power supply module provides regulated 24 VDC to the backplane, ensuring stable voltage delivery to the CPU and all connected I/O modules under variable load conditions. Power layer stability is a prerequisite for deterministic CPU scan performance, and the XC5010C is rated for continuous operation within the XC Series power envelope.

At the I/O layer, the XC5010C coordinates directly with digital input modules such as the XC-DI16 (16-channel 24 VDC digital input) and digital output modules such as the XC-DO16T (16-channel transistor output), as well as analog I/O modules including the XC-AI8 (8-channel analog input, 4–20 mA / 0–10 V) and XC-AO4 (4-channel analog output). These modules mount directly onto the XC Series backplane, with the XC5010C managing all I/O scan cycles, data mapping, and fault detection across the full I/O complement.

At the communication layer, the XC5010C supports Modbus TCP and EtherNet/IP protocols, enabling direct integration with SCADA systems, distributed control nodes, and industrial Ethernet switches such as the Moxa EDS-308 or equivalent managed switches used in ring-topology or star-topology plant networks. For legacy serial device integration, the RS-485 port supports Modbus RTU communication with field instruments, variable frequency drives such as the Honeywell SmartVFD HVAC series, and remote I/O gateways.

At the HMI layer, the XC5010C interfaces natively with Honeywell operator panels and third-party HMI terminals via Ethernet or serial links, supporting real-time process visualization, alarm management, and parameter adjustment without requiring additional protocol converters. Compatible HMI platforms include the Honeywell Experion HS operator station series and standard Modbus-compatible touch panels.

For applications requiring redundancy, the XC5010C can be deployed in architectures that incorporate redundant power supplies and redundant communication paths, with watchdog and diagnostic functions providing automatic fault detection and system status reporting. Signal isolation modules such as the MTL5000 series or equivalent galvanic isolators are recommended at the I/O boundary in high-noise environments such as variable speed drive panels, motor control centers, and high-voltage switchgear rooms.

At the protection layer, the XC5010C integrates with safety relay modules and emergency stop circuits via hardwired I/O, supporting SIL-rated safety architectures in applications where functional safety standards apply. The module's diagnostic output flags enable upstream SCADA or DCS systems to receive real-time health status, reducing mean time to repair (MTTR) and supporting predictive maintenance workflows.

Manufacturing & Discrete Automation: The XC5010C is well-suited for machine control applications in automotive assembly, packaging lines, and material handling systems. Its fast scan cycle and deterministic I/O response support high-speed sequencing, servo coordination via analog output modules, and integration with barcode readers or vision systems through serial or Ethernet interfaces. In multi-station production lines, multiple XC5010C units can be networked via EtherNet/IP to a supervisory PLC or SCADA server, enabling line-wide data aggregation and centralized alarm management.

Power Generation & Electrical Utilities: In power plant auxiliary systems, substation automation, and distributed energy resource (DER) management, the XC5010C provides the communication reliability and I/O density required for generator control, transformer monitoring, and switchgear sequencing. Its Modbus TCP interface supports integration with energy management systems (EMS) and power quality analyzers, while the wide operating temperature range ensures reliable performance in outdoor switchgear enclosures and substation control rooms.

Oil, Gas & Petrochemical Processing: For upstream wellhead control, midstream pipeline monitoring, and downstream refinery process control, the XC5010C delivers the scan-cycle consistency and communication stability required for continuous process management. Integration with pressure transmitters, flow meters, and control valves via analog I/O modules enables closed-loop PID control, while Modbus RTU links support remote terminal unit (RTU) communication in SCADA-based pipeline networks.

Water & Wastewater Treatment: Municipal water treatment plants and industrial effluent systems benefit from the XC5010C's ability to manage pump sequencing, chemical dosing control, and level monitoring across distributed lift stations. The module's Ethernet connectivity supports integration with plant-wide SCADA systems, enabling remote monitoring and alarm notification for unattended or minimally staffed installations.

Mining, Metallurgy & Heavy Industry: In ore processing, smelting, and rolling mill applications, the XC5010C operates reliably in high-vibration, high-dust environments when installed in appropriately rated control enclosures. Its compatibility with variable frequency drives via analog output and Modbus RTU enables coordinated motor speed control for conveyor systems, crushers, and ventilation fans, while digital I/O modules handle limit switch, proximity sensor, and solenoid valve interfacing.

Q1: Is the XC5010C compatible with existing XC Series I/O modules and backplanes already installed in my control cabinet?A: Yes. The XC5010C is designed for native compatibility with the full XC Series module ecosystem, including all standard digital and analog I/O modules, power supply modules, and communication expansion modules that mount on the XC Series backplane. No additional adapters or protocol converters are required for same-series integration. For mixed-generation installations, firmware version alignment is recommended prior to commissioning — NANKMOS technical support can assist with compatibility verification based on your existing hardware revision levels.

Q2: What communication protocols does the XC5010C support, and how does it integrate with third-party SCADA or DCS platforms?A: The XC5010C supports Modbus TCP over Ethernet and Modbus RTU over RS-485 as primary communication protocols, providing broad compatibility with SCADA platforms including Wonderware, Ignition, and Siemens WinCC, as well as DCS systems that support standard Modbus driver interfaces. EtherNet/IP compatibility (subject to firmware variant) enables integration with Rockwell Automation ControlLogix-based supervisory systems. For protocol conversion to PROFIBUS, PROFINET, or DeviceNet, a compatible communication gateway module is recommended at the network boundary.

Q3: What does the 12-Month Warranty cover, and what is the process for replacement or repair if a fault occurs during the warranty period?A: The 12-Month Warranty covers all manufacturing defects, component failures, and functional faults that arise under normal operating conditions within 12 months from the date of shipment. Physical damage resulting from incorrect installation, overvoltage events, or environmental exposure beyond the module's rated specifications is excluded. In the event of a warranty claim, NANKMOS will arrange advance replacement shipment or repair service based on fault diagnosis. All units undergo pre-shipment functional testing prior to dispatch, and test records are available upon request. Contact [email protected] or +86 18359268345 to initiate a warranty claim.
