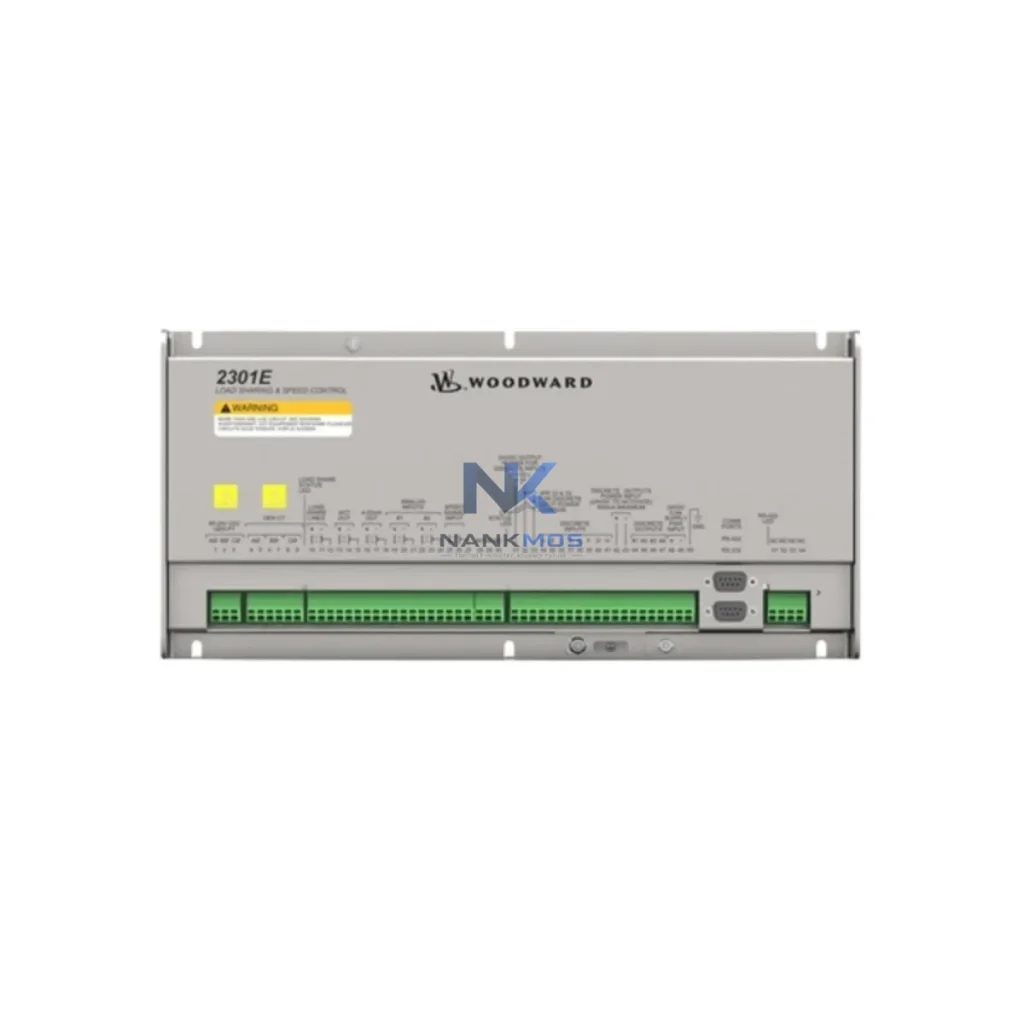

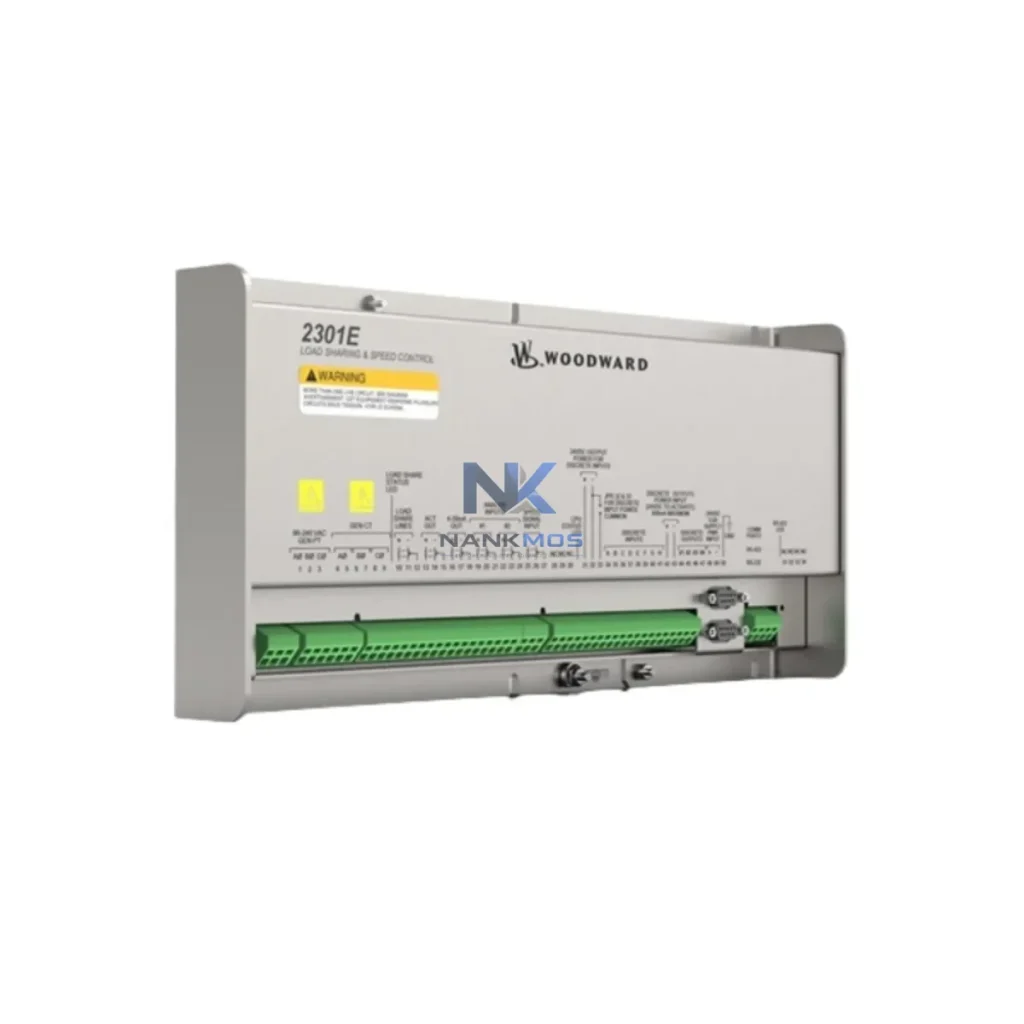

Woodward 2301E Speed Governor

Product Details

2301E Product Description

The Woodward 2301E is a precision digital speed governor engineered for seamless integration within multi-layer industrial control architectures. Rather than functioning as a standalone module, the 2301E is designed to operate as a coordinated node within a broader automation ecosystem — interfacing with control-layer PLCs, power-layer actuators, communication-layer gateways, and HMI-layer supervisory systems to deliver consistent, reliable prime mover regulation across demanding industrial environments.

At the control layer, the 2301E pairs naturally with Woodward's own 505 Digital Governor and 723PLUS Digital Speed Control in multi-unit or redundant generator configurations, where coordinated load sharing and isochronous speed regulation are required. In larger turbine control panels, the 2301E is frequently deployed alongside the Woodward MicroNet TMR — a triple-modular redundant controller — providing a layered architecture where the 2301E handles local actuator-level speed response while the MicroNet manages system-level sequencing, protection, and diagnostics.

At the I/O and signal layer, the 2301E accepts magnetic pickup (MPU) speed signals directly from turbine shaft sensors, eliminating the need for intermediate signal conditioning in most installations. Where signal isolation is required — particularly in high-noise generator room environments — inline signal isolators and MPU signal conditioners are used to maintain signal integrity between the speed sensor and the 2301E input terminals. The governor's 4–20 mA actuator output connects directly to Woodward EG-3P or EG-10P electro-hydraulic actuators, providing precise fuel rack or valve positioning with minimal latency.

At the communication layer, the 2301E's RS-232 interface supports configuration via Woodward's Watch Window software, enabling engineers to tune PID parameters, set speed reference points, and monitor real-time governor performance without interrupting operation. In facilities requiring SCADA integration, the 2301E is typically paired with a Modbus RTU-to-Ethernet gateway — such as the Moxa MGate MB3180 or equivalent — to bridge serial governor data into plant-wide DCS or SCADA networks. This communication architecture ensures that speed, load, and fault status data from the 2301E are continuously available at the supervisory level for trend analysis and alarm management.

At the power layer, the 2301E operates on an 18–40 VDC supply, making it compatible with standard 24 VDC panel power rails. In critical installations, a redundant 24 VDC power supply with automatic switchover — such as units from the Phoenix Contact QUINT or PULS DIMENSION series — is recommended to ensure uninterrupted governor operation during grid disturbances or panel maintenance. Proper power rail design, including EMC filtering and surge protection, is essential to preserve the 2301E's analog input accuracy and output stability.

At the HMI layer, the 2301E's operating parameters and speed setpoints are typically surfaced through a plant-level SCADA HMI or a local operator panel connected via the Modbus gateway described above. In smaller installations, a dedicated Woodward 2301A Load Sharing and Speed Control panel or a compact touchscreen HMI provides local visibility into governor status, speed deviation, and actuator output — enabling operators to make real-time adjustments without requiring engineering workstation access.

At the protection layer, the 2301E incorporates internal overspeed detection logic and relay contact outputs that interface directly with engine or turbine protection systems — including emergency shutdown (ESD) solenoids, fuel shutoff valves, and generator protection relays. This integration ensures that the governor's speed control function is tightly coupled with the plant's safety interlock architecture, providing a coordinated response to overspeed, underspeed, or load rejection events without relying on external PLC logic for basic protection functions.

At the maintenance layer, the 2301E's modular design and standardized wiring interface simplify field replacement and spare-parts management. Its compatibility with the broader Woodward 2301 series — including the 2301A, 2301D, and 2301LSSC variants — means that engineering teams can maintain a single wiring standard and configuration template across multiple units, reducing commissioning time and minimizing the risk of wiring errors during scheduled maintenance or emergency replacement.

The Woodward 2301E is deployed across a wide range of industrial sectors where precise prime mover speed regulation is critical to process stability and equipment protection.

In power generation applications — including diesel generator sets, gas turbine gensets, and combined heat-and-power (CHP) plants — the 2301E provides isochronous speed control and load sharing coordination, ensuring stable frequency output under varying load conditions. Its fast actuator response and configurable droop settings make it suitable for both island-mode and grid-parallel operation.

In oil and gas facilities, the 2301E governs gas compressor drivers and pipeline pump turbines, where consistent speed regulation directly impacts compression efficiency and pipeline pressure stability. Its wide operating temperature range and robust analog I/O make it well-suited for remote compressor stations and offshore platform environments.

In petrochemical and refinery plants, the 2301E is used to control steam turbine drivers for process pumps, compressors, and fans — applications where speed stability directly affects product quality and process yield. Integration with plant DCS via Modbus gateway allows the 2301E's speed setpoint to be adjusted remotely in response to process demand signals.

In marine and shipboard applications, the 2301E governs main propulsion diesel engines and auxiliary generator sets, providing reliable speed control in environments characterized by vibration, humidity, and wide ambient temperature variation. Its compact form factor and DIN rail mounting option simplify installation in space-constrained engine rooms.

In water and wastewater treatment facilities, the 2301E controls engine-driven pump sets and emergency generator systems, ensuring reliable speed regulation during both normal operation and grid outage events. Its relay contact outputs interface directly with facility SCADA systems for remote monitoring and alarm annunciation.

Q1: Is the Woodward 2301E compatible with existing 2301A or 2301D wiring harnesses and actuator interfaces? The 2301E is designed as a functional upgrade within the Woodward 2301 governor family. While terminal assignments and actuator output characteristics are largely consistent with the 2301A and 2301D, engineers should review the 2301E installation manual and compare terminal wiring diagrams before direct substitution. In most installations, the 2301E can be retrofitted into existing 2301-series panel cutouts with minor wiring adjustments, preserving the existing actuator, MPU, and power supply connections. Pre-shipment configuration and bench testing are recommended to verify PID tuning and speed reference settings prior to field installation.

Q2: How does the 2301E integrate into a SCADA or DCS architecture for remote speed setpoint control? The 2301E's RS-232 serial port supports Woodward Watch Window communication for local configuration and monitoring. For SCADA or DCS integration, the 2301E is typically paired with a Modbus RTU serial gateway — connected to the RS-232 port — which bridges governor data onto an Ethernet-based plant network. Alternatively, the 2301E's 4–20 mA analog input can accept a remote speed setpoint signal directly from a DCS analog output card, enabling closed-loop speed control without requiring serial communication infrastructure. Both integration methods support Contextual Integration within existing plant automation architectures without requiring panel redesign.

Q3: What warranty and supply assurance does NANKMOS provide for the Woodward 2301E? All Woodward 2301E units supplied by NANKMOS are covered by a 12-Month Warranty from the date of shipment. Each unit undergoes pre-shipment functional testing — including speed signal simulation, actuator output verification, and relay contact continuity checks — to confirm operational integrity before dispatch. NANKMOS maintains verified stock of the 2301E and related Woodward governor components, supporting rapid order fulfillment for both planned procurement and emergency replacement requirements. Global shipping is available with full export documentation. For volume orders or long-term supply agreements, contact [email protected] or +86 18359268345.
