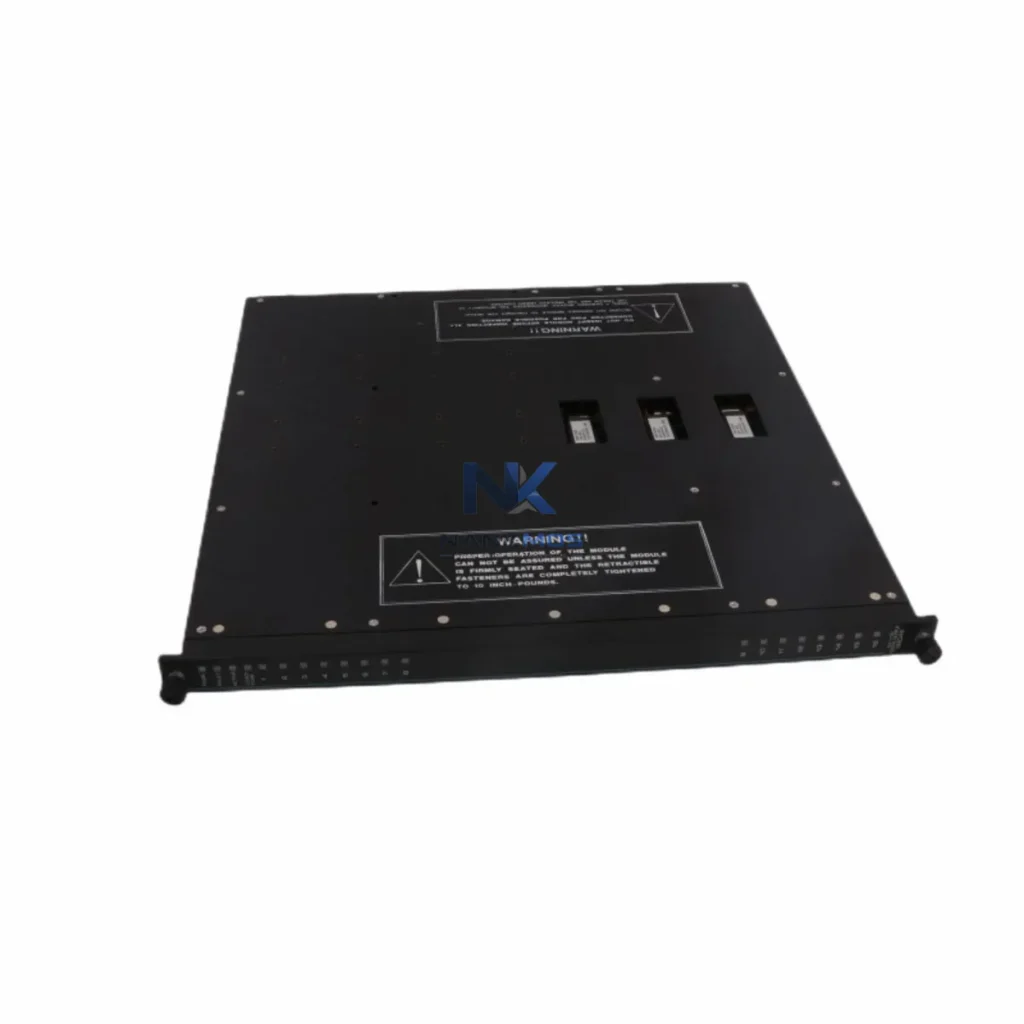

Triconex 3601T Safety System Output Module

Product Details

3601T Product Description

The Triconex 3601T is a high-integrity digital output module engineered for deployment within the Tricon Triple Modular Redundant (TMR) safety system platform. Designed to operate within the Tricon 3600 I/O series, the 3601T delivers deterministic, fault-tolerant output switching across the full spectrum of safety-critical industrial control architectures — from process shutdown systems and emergency depressurization to burner management and turbine protection. Its role within the control architecture extends beyond simple signal switching: the 3601T functions as a precision output interface that bridges the logic solver layer with the final control element layer, ensuring that every actuator command is executed with the reliability and diagnostic transparency demanded by IEC 61511 and IEC 61508 functional safety standards.

In a complete Tricon TMR architecture, the 3601T operates in concert with the Tricon Main Chassis, the Tricon Communication Module (TCM), and the Tricon Power Supply modules to form a fully redundant, self-diagnosing safety instrumented system (SIS). The module's triple-channel output voting logic ensures that no single-point failure within the output path can cause an undetected dangerous state, making it a foundational component for SIL 2 and SIL 3 rated safety loops. Its contextual integration capability allows it to be configured and monitored through Triconex TriStation 1131 programming software, enabling engineers to perform online diagnostics, force outputs for commissioning, and review channel-level fault histories without interrupting live process operations.

The 3601T is fully compatible with the Tricon 3600 backplane and can be hot-swapped during operation, a critical feature for continuous-process industries where planned shutdowns are costly and unplanned outages are unacceptable. When paired with the Tricon 3700 series analog I/O modules, the 3601T enables mixed-signal architectures that handle both discrete shutdown commands and modulating control signals within a single chassis, reducing panel footprint and simplifying cable management. Integration with the Tricon Communication Module (TCM) further extends the module's reach into distributed control system (DCS) environments via Modbus, OPC, and proprietary Triconex protocols, ensuring that safety system status is continuously visible to the plant-wide SCADA or DCS layer.

The 3601T achieves its full architectural value when deployed as part of a coordinated Triconex Tricon system. At the logic solver layer, the Triconex Tricon Main Processor (MP3008) executes the safety application program and issues output commands to the 3601T via the TMR backplane, ensuring that all three redundant channels receive synchronized switching instructions. The Tricon Power Supply (9662-110) provides regulated, redundant DC power to the I/O chassis, and its dual-feed architecture ensures that a single power supply failure does not interrupt output module operation.

For analog process control loops running in parallel with the discrete safety layer, the Triconex 3703E Analog Output Module and 3805E Analog Input Module complement the 3601T within the same chassis, enabling a unified I/O architecture that handles both modulating control and safety shutdown functions without requiring separate hardware platforms. The Triconex TCM (Tricon Communication Module) serves as the gateway between the Tricon safety system and the plant DCS or SCADA, transmitting real-time output status, diagnostic alarms, and system health data over Modbus TCP or OPC-DA, ensuring that the 3601T's operational state is continuously visible at the supervisory layer.

In redundant network architectures, the Triconex Enhanced Intelligent Communication Module (EICM) extends connectivity to peer safety controllers and remote I/O panels, supporting geographically distributed safety architectures common in pipeline, offshore, and large-scale refinery applications. For HMI integration, Wonderware InTouch or Ignition SCADA platforms connect to the Tricon system via the TCM's OPC server, providing operators with real-time visualization of 3601T output states, channel diagnostics, and safety loop status. At the field device layer, the 3601T drives solenoid valves, motor starters, and relay coils through its 24 VDC output channels, with each channel individually monitored for open-circuit and short-circuit faults to ensure that wiring failures are detected before they can compromise safety function integrity.

For installations requiring additional I/O density, the Triconex Tricon Remote I/O (RXM) chassis extends the 3601T's output capacity to remote field junction boxes, reducing home-run cable costs in large process units. The Triconex 3625 Digital Input Module provides the complementary input layer, reading field device status signals and feeding them to the MP3008 processor for safety logic evaluation, completing the closed-loop safety instrumented function (SIF) from sensor to final element.

In oil and gas processing facilities, the 3601T is deployed in emergency shutdown (ESD) systems to control wellhead isolation valves, blowdown valves, and compressor shutdown relays. Its TMR voting architecture ensures that spurious trips caused by single-channel faults are eliminated, reducing process downtime while maintaining the required probability of failure on demand (PFD) for SIL 2 and SIL 3 safety loops. In petrochemical and refinery environments, the module drives high-integrity pressure relief valve actuators and fired heater fuel gas shutoff valves, where the combination of hot-swap capability and online diagnostics allows maintenance teams to verify output channel health during normal operation without requiring a process shutdown.

In power generation applications — including gas turbine, steam turbine, and combined-cycle plants — the 3601T interfaces with turbine protection systems to execute overspeed trips, flame failure shutdowns, and lube oil pressure trips. Its deterministic response time and TMR redundancy meet the stringent reliability requirements of turbine OEM safety specifications. In chemical and specialty manufacturing plants, the module controls reactor isolation valves, emergency quench systems, and toxic gas detection response actuators, where the IEC 61511 compliance of the Tricon platform satisfies process hazard analysis (PHA) and layer of protection analysis (LOPA) requirements.

In water and wastewater treatment facilities, the 3601T manages pump shutdown sequences, chlorine dosing isolation, and overflow prevention valve control within SCADA-integrated safety systems. Its low-maintenance design and 12-Month Warranty support the long operational lifecycles typical of municipal infrastructure projects. In mining and metals processing, the module is used in conveyor emergency stop systems, crusher protection circuits, and smelter gas handling shutdown sequences, where the harsh electrical environment demands the robust noise immunity and fault detection capabilities built into the Tricon TMR output architecture.

Q1: Is the Triconex 3601T compatible with all Tricon 3600 series chassis configurations, and can it be mixed with other 3600 series I/O modules in the same chassis?Yes. The 3601T is fully compatible with the Tricon 3600 Main Chassis and can be installed in any available I/O slot alongside other 3600 series modules, including the 3625 Digital Input, 3703E Analog Output, and 3805E Analog Input modules. The Tricon backplane architecture supports mixed I/O configurations within a single chassis, and the TriStation 1131 software automatically recognizes the module type and slot assignment during system configuration. No hardware jumpers or DIP switch settings are required — all channel configuration is performed through the software engineering environment.

Q2: What diagnostic capabilities does the 3601T provide for long-term maintenance and how are faults reported to the control system?The 3601T performs continuous self-diagnostics at the channel level, detecting open-circuit faults, short-circuit conditions, and output driver failures in real time. Fault status is reported to the Tricon Main Processor via the backplane bus and is accessible through TriStation 1131's online diagnostic display, which shows individual channel health, module-level fault codes, and historical fault logs. Faults are also propagated to the plant DCS or SCADA via the TCM's Modbus or OPC interface, enabling centralized alarm management. The module's TMR architecture ensures that a single-channel fault triggers a diagnostic alarm without causing a spurious trip, allowing maintenance personnel to schedule corrective action during the next planned maintenance window.

Q3: What is the warranty coverage for the Triconex 3601T and what does the pre-shipment testing process include?Every Triconex 3601T supplied by NANKMOS is covered by a 12-Month Warranty from the date of shipment. Prior to dispatch, each unit undergoes a structured functional test protocol that verifies output channel switching, TMR voting logic integrity, backplane communication, and diagnostic reporting. Units are tested under load conditions representative of typical field installations, and test records are retained for traceability. In-stock units are available for immediate shipment to support urgent project timelines and unplanned maintenance requirements. For procurement inquiries or technical pre-sales support, contact [email protected] or call +86 18359268345.
