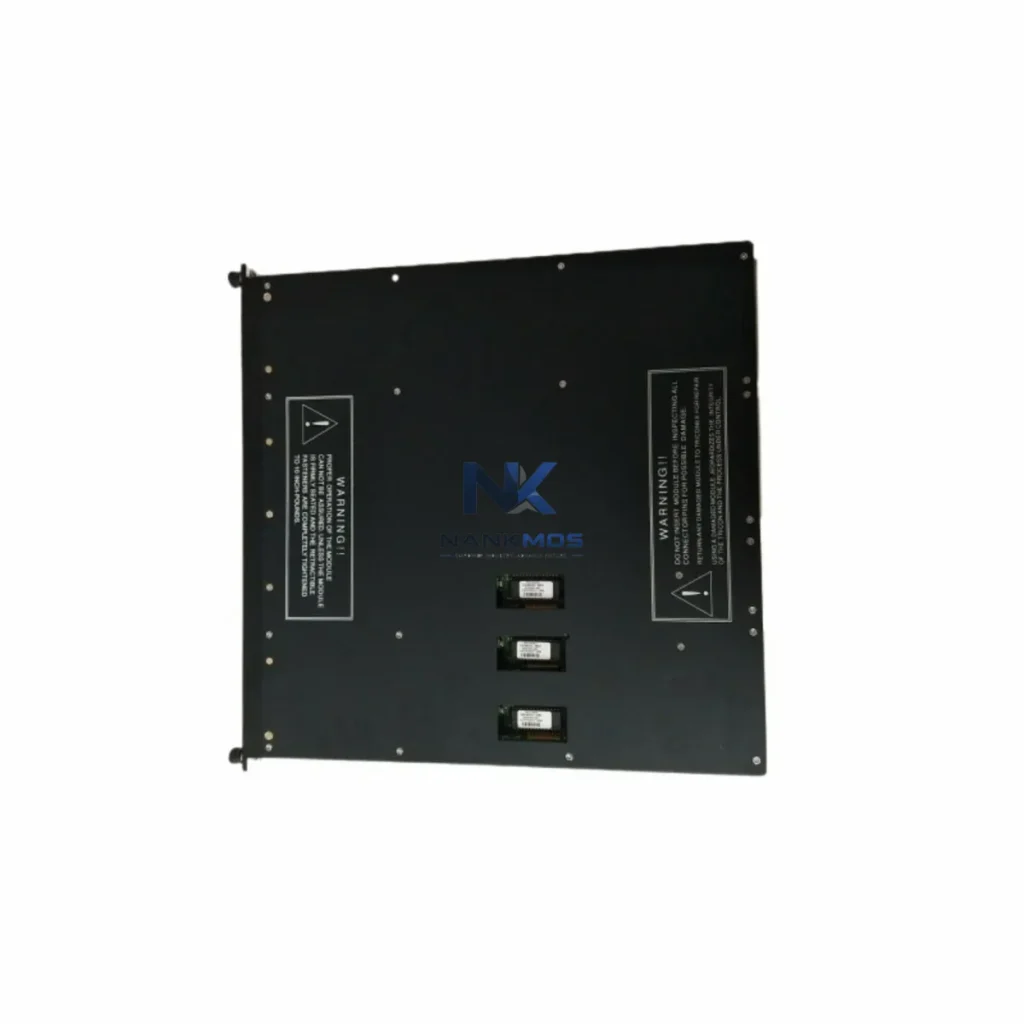

Triconex 3664 Analog Output Module

Product Details

3664 Product Description

The Triconex 3664 Analog Output Module is a precision-engineered output component designed for the Tricon CX Triple Modular Redundancy (TMR) safety system platform. In modern smart factory environments, reliable analog signal output is the backbone of closed-loop process control — translating digital control commands from the safety PLC into real-world actuator signals across 4–20 mA or voltage output channels. The 3664 module delivers this function with the fault-tolerant architecture that Triconex TMR systems are globally recognized for, making it a critical node in the industrial data chain from controller to field device.

Within a connected automation site, the 3664 operates as the terminal output stage of a data flow that begins at the sensor layer, passes through remote I/O marshalling, is processed by the Tricon CX main chassis CPU (such as the Triconex 3008 or 3006 processor modules), and terminates at final control elements — including control valves, variable frequency drives, and positioners. Each analog output channel carries a precisely conditioned signal that reflects real-time setpoint commands issued by the safety logic solver, ensuring that field actuators respond with the accuracy and speed demanded by process-critical applications in oil and gas, chemical processing, power generation, and advanced manufacturing.

The Triconex 3664 sits at the output end of a tightly integrated industrial data pipeline. In a typical smart factory deployment, field sensors — including pressure transmitters, temperature sensors, and flow meters — feed raw process data into remote I/O modules or directly into the Tricon CX input layer via analog input modules such as the Triconex 3703E or 3721 modules. This data is processed by the Tricon CX safety logic solver, which executes the control program developed in TriStation 1131 engineering software. The resulting output commands are then routed to the 3664 module, which converts them into calibrated analog signals driving downstream actuators.

For network-level data visibility, the Tricon CX system communicates upstream via the Triconex TCM 4351B or TCM 4352B Tricon Communication Module, which bridges the TMR backplane to Ethernet-based plant networks. This enables real-time data exchange with SCADA platforms such as Wonderware System Platform, Ignition SCADA, or OSIsoft PI Historian, as well as HMI terminals running on Modbus TCP or OPC DA/UA protocols. Operators at the control room level can monitor analog output channel status, loop integrity, and fault diagnostics without interrupting the safety function.

In multi-node architectures, the 3664 module works alongside Triconex 3805E digital output modules and 3625 analog input modules to form a complete I/O layer within the Tricon CX chassis. For sites requiring protocol translation between the TMR safety network and standard industrial Ethernet, edge gateways such as Moxa MGate or HMS Anybus gateways can be deployed to bridge Modbus RTU signals from the Triconex system to PROFINET or EtherNet/IP segments used by Siemens S7 PLCs, Rockwell ControlLogix controllers, or ABB AC500 safety PLCs operating in the same facility. Industrial managed switches — such as those from the Hirschmann MICE or Phoenix Contact FL SWITCH series — provide the network backbone that ensures deterministic, low-latency data delivery across these segments.

Variable frequency drives receiving 4–20 mA setpoint signals from the 3664 module — including units from the ABB ACS880 or Schneider Electric Altivar Process series — close the loop between the safety controller and rotating machinery, enabling precise speed and torque regulation tied directly to process safety logic. This end-to-end data chain, from sensor to controller to actuator, is what defines the connected factory architecture that the Triconex 3664 enables.

Many industrial sites face persistent challenges around protocol fragmentation, data silos, and limited remote visibility — particularly in legacy safety system environments. The Triconex 3664, as part of the Tricon CX platform, directly addresses these issues through its integration with the TCM communication layer, which exposes analog output channel data to OPC-compliant SCADA and historian systems without requiring custom middleware.

For sites where the safety PLC and the process control DCS operate on separate network segments, the Tricon CX architecture supports dual-network configurations that allow the 3664's output status and loop diagnostics to be mirrored to both the safety network and the process information network simultaneously. This eliminates the data island problem where safety system outputs are invisible to plant-wide monitoring dashboards.

Remote diagnostics are supported through TriStation 1131's online monitoring capability, which allows engineers to inspect analog output channel values, fault flags, and module health in real time from an engineering workstation connected via the plant Ethernet network. Alarm management systems integrated via OPC DA can receive channel-level fault notifications from the 3664, enabling rapid response to loop failures, open-circuit faults, or out-of-range output conditions before they escalate to process upsets.

For production line transparency, the 3664's output data can be fed into MES (Manufacturing Execution System) platforms via OPC-UA connectors, providing operations teams with real-time actuator command visibility alongside production KPIs. This supports the broader Industry 4.0 objective of full production line digitalization, where every control output is traceable, logged, and auditable across the plant lifecycle.

Q1: What communication protocols does the Triconex 3664 support for SCADA and HMI integration? The 3664 module itself is an analog output I/O module; its communication to upper-level systems is handled by the Tricon CX platform's TCM (Tricon Communication Module), which supports Modbus RTU, Modbus TCP, OPC DA, and — with appropriate gateway configuration — OPC-UA. This allows seamless integration with leading SCADA platforms including Wonderware, Ignition, and iFIX, as well as HMI systems from Siemens, Rockwell, and Schneider Electric.

Q2: How does the Triconex 3664 maintain network stability in a TMR safety architecture? The Tricon CX TMR architecture provides triple-redundant processing across all I/O modules, including the 3664. Each output channel is voted across three independent processing legs, ensuring that a single-point hardware failure does not affect output signal integrity. This fault-tolerant design maintains continuous analog output even during module diagnostics or partial fault conditions, supporting 24/7 uninterrupted process control.

Q3: Can the Triconex 3664 be integrated into a remote diagnostics and predictive maintenance framework? Yes. Via the TCM communication interface, the 3664's channel-level diagnostic data — including loop current feedback, open-circuit detection, and module health status — can be published to OPC DA/UA servers and consumed by asset management platforms or CMMS systems. This enables condition-based maintenance workflows where analog output loop degradation is detected and flagged before causing process disruption.

Q4: What warranty and supply assurance does NANKMOS provide for the Triconex 3664? NANKMOS supplies the Triconex 3664 with a 12-month warranty covering hardware defects and functional performance. All units undergo pre-shipment functional testing to verify analog output accuracy and module communication integrity. In-stock inventory ensures rapid order fulfillment to support urgent project timelines and unplanned maintenance requirements globally.
